Minuteman Smart Up Series Manuel utilisateur

Smart Up Series

Uninterruptible Power Supply

User’s Manual

Smart Up Series User’s Manual

1. Introduction 2

2. Controls and Indicators 4

3. Installation 6

4. Operation 7

5. Troubleshooting 11

6. Replacing the Battery 12

7. Obtaining Service 15

8. Specifications 16

9. Limited Warranty 17

ãCopyright Para Systems, Inc., 1999

Thank you for purchasing a Minuteman power protection product. It has been designed

and manufactured to provide many years of trouble free service.

Please read the manual before installing your Smart Up Series UPS as it

providestheinformationthatshouldbefollowedduringinstallationandmain-

tenance of the UPS and batteries allowing you to correctly set up your sys-

temfor the maximumsafety and performance.

Included is information on customer support and factory service if it is required. If you

experience a problem with the UPS, please refer to the Troubleshooting guide in this

manual to correct the problem or collect enough information so that the Minuteman

technical support department can rapidly assist you.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS !

NOTICE: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instruction manual,

may cause interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his own

expense.

This digital apparatus does not exceed the Class A limits for radio noise

emissions from digital apparatus set out in the Radio Interference regula-

tions of the Canadian Department of Communications.

Le présent appareil numérique n’emit pas de bruits radioélectriques

dépassant les limites applicables aux appareils numérique de la Class A

presc rites dans le Règlement sur le brouillage radioélectrique édicte

CAUTION:WHENDISCONNECTINGTHEINTERNALBATTERIES,THEUPS

CANNOTBERUNNINGINTHEBATTERYMODE. THEUPSMUSTBEOFFOR

SUPPLYINGPOWERTOTHELOADFROMTHEUTILITYMAINS.

WARNING:CHANGESORMODIFICATIONSTOTHISUNITNOTEXPRESSLY

APPROVEDBYTHEPARTYRESPONSIBLEFORCOMPLIANCECOULDVOIDTHE

USER’SAUTHORITYTOOPERATETHEEQUIPMENT.

Receiving Inspection

After removing your Minuteman UPS from its carton, it should be inspected for damage that

may have occurred in shipping. Immediately notify the carrier and place of purchase if any

damage is found. Warranty claims for damage caused by the carrier will not be honored.

The packing materials that your UPS was shipped in are carefully designed to minimize

any shipping damage. In the unlikely case that the UPS needs to be returned to Minute-

man, please use the original packing material. Since Minuteman is not responsible for

shipping damage incurred when the system is returned, the original packing material is

inexpensive insurance.

PLEASESAVETHEPACKING MATERIALS!

WARNING:RISK OF ELECTRICAL SHOCK. HAZARDOUS LIVE PARTS

INSIDETHISPOWERSUPPLYARE ENERGIZED FROM THE BATTERY EVEN

WHENTHEACINPUTPOWERISDISCONNECTED.

TODE-ENERGIZETHEOUTPUTSOFTHEUPS:

1. IFTHEUPSISONPRESSTHEON/OFFBUTTONFOR1SECOND.

2. DISCONNECTTHEUPSFROMTHEACPOWEROUTLET.

3. TODE-ENERGIZETHEUPSCOMPLETELY,DISCONNECTTHEBATTERY.

(SEE SECTION 6 FOR INSTRUCTIONS)

CAUTION!TOREDUCETHERISKOFELECTRICALSHOCKINCONDI-

TIONSWHERELOADEQUIPMENTGROUNDINGCANNOTBEVERIFIED,

DISCONNECTTHEUPSFROMTHEACPOWEROUTLETBEFOREINSTALLINGA

COMPUTERINTERFACECABLE.RECONNECTTHEPOWERCORDONLYAFTER

ALLSIGNALINGCONNECTIONSAREMADE.

CAUTION!CONNECTTHEUPSTOATWOPOLE,THREEWIREGROUND-

INGACPOWEROUTLET.THERECEPTACLEMUSTBECONNECTEDTO

APPROPRIATEBRANCHPROTECTION(CIRCUITBREAKERORFUSE).

CONNECTIONTOANYOTHERTYPEOFRECEPTACLEMAYRESULTINA

SHOCKHAZARDANDVIOLATE LOCAL ELECTRICAL CODES.

Para Systems Life Support Policy

As a general policy, Para Systems, Inc. (Para Systems) does not recommend the use of any of its

products in life support applications where failure or malfunction of the Para Systems product can

be reasonably expected to cause failure of the life support device or to significantly affect its safety

or effectiveness. Para Systems does not recommend its products for use in direct patient care.

Para Systems will not knowingly sell its products for use in such applications unless it receives in

writing assurances satisfactory to Para Systems that (a) the risks of injury or damage have been

minimized, (b) the customer assumes all such risks, and (c) the liability of Para Systems, Inc. is

adequately protected under the circumstances.

Examples of devices considered to be life support devices are neonatal oxygen analyzers, nerve

stimulators (whether used for anesthesia, pain relief or other purposes), auto transfusion devices,

blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis systems,

peritoneal dialysis systems, neonatal ventilator incubators, ventilators for both adults and infants,

anesthesia ventilators, and infusion pumps as well as any other devices designated as “critical” by

the United States FDA.

Hospital grade wiring devices and leakage current may be ordered as options on many PARA

SYSTEMS UPS systems. PARA SYSTEMS does not claim that units with this modification are

certified or listed as Hospital Grade by PARA SYSTEMS or any other organization. Therefore, these

units do not meet the requirements for use in direct patient care. 3

FRONT PANEL

Press and release the On/Test/Alarm Silence button to turn on, test or silence

the alarm.

Press and release the OFF button to turn the UPS OFF.

The Buck LED illuminates when the UPS is correcting for a high utility line voltage.

The On Battery LED illuminates when the UPS is supplying power from the battery.

The AC Normal LED illuminates when the utility voltage is normal.

The Boost LED illuminates when the UPS is correcting for a low utility line voltage.

The Overload LED illuminates when the loads connected to the UPS exceeds the

UPS power rating (see Section 4).

The Replace battery LED illuminates when the UPS has detected that battery

replacement is required (see Section 6).

The Load Level LEDs illuminate to show the percentage of load connected to the

UPS: 20%, 40%, 60% or 80%.

The Battery Level LEDs illuminate to show the percentage of battery capacity

remaining: 25%, 50%, 75% or 100%.

On/Test/AlarmSilence

Off

On Battery

Buck

Normal

Boost

Overload

ReplaceBattery

Load

Battery

Minuteman Smart Up

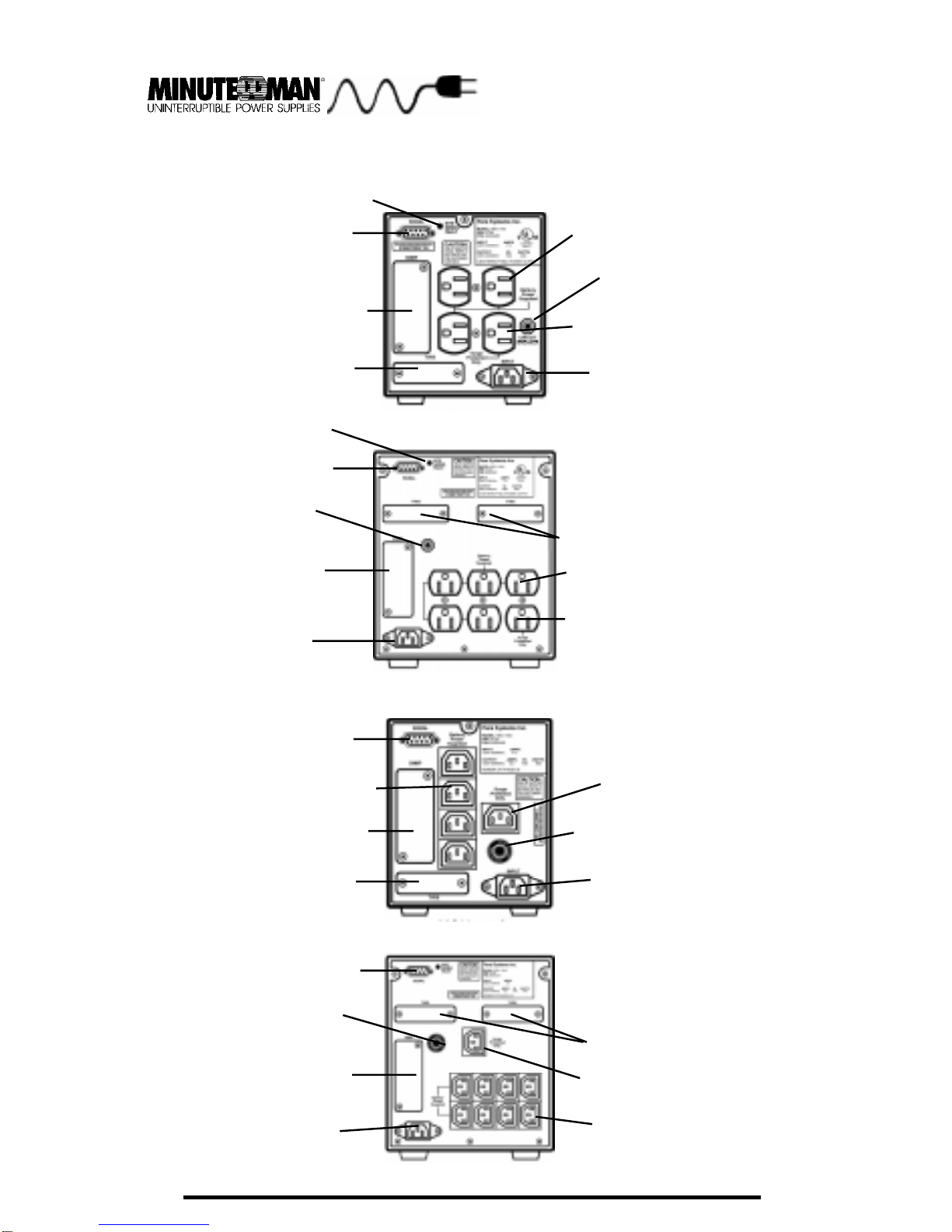

Rear Panel

Site Wiring Fault

DB9

Connector

Accessory Slot

OptionSlot

Output Receptacles

InputCircuit

Breaker

Surge Only Receptacle

Input Power

Site Wiring Fault

DB9 Connector

Accessory Slot

Option Slots

Output Receptacles

InputCircuit

Breaker

Surge Only Receptacle

Input Power

DB9

Connector

Accessory Slot

OptionSlot

Output Receptacles

InputCircuit

Breaker

Surge Only Receptacle

Input Power

MSU 1000i &1400i

DB9 Connector

Accessory Slot

Option Slots

Output Receptacles

InputCircuit

Breaker

Surge Only Receptacle

Input Power

MSU 1000 &1400

MSU 700

MSU 700i

REAR PANEL

The Accessory Slot is used for SNMP UPS monitoring. Available from Minuteman.

The DB9 connector is used for UPS monitoring and control through a computer’s serial port

(see Section 3).

The Option Slots are for adding RJ-45/RJ-11 surge protection cards. Available from Min-

uteman.

The Site Wiring Fault LED illuminates when the UPS detects an improperly wired AC power

outlet (see Section 3).

The Output Power receptacles are NEMA 5-15R type for 120V units and IEC 320 for 230V

units.

The Input Power receptacle is a IEC 320.

The Input Circuit Breaker will trip in the event the load exceeds the UPS’s power rating.

INSTALLATION PLACEMENT

Please observe the following items:

nInstall the UPS in a temperature-controlled, indoor environment that is free of conduc-

tive contaminants. Select a location which will provide good air circulation for the UPS

at all times. Avoid locations near heating devices, water or excessive humidity, or

where the UPS is exposed to direct sunlight.

nPlug the UPS into a two pole, three wire, grounded receptacle only. Do not use exten-

sion cords or adapter plugs.

DB9CONNECTOR

Minuteman Power Management software and interface cable kits are used with this port

(software and cables are optional and available from Minuteman). Use only Minuteman or

Minuteman approved interface cables with these UPS’s. Connect the interface cable to the

DB9 connector on the rear of the UPS. Secure the connector to the UPS via the screws on

the connector housing. Connect the other end of the cable to the device that will be monitor-

ing/controllingthe UPS.

NOTE:CONNECTING TO THE DB9 IS OPTIONAL. THE UPS WORKS PROPERLY

WITHOUT A CONNECTION.

SITEWIRINGFAULT

After plugging in the UPS, check the site wiring fault (SWF) LED on the rear of the unit. If the

LED is illuminated, the UPS is plugged into an improperly wired AC outlet.

CHARGINGTHEBATTERIES

The Smart Up Series UPS’s will charge the batteries whenever the unit is connected to an

AC source. It is recommended that the UPS batteries be charged for a minimum of 4 hours

before use. The UPS may be used immediately. However, the “on battery” run time may be

less than normally expected.

CONNECTINGYOUREQUIPMENT

Plug the equipment into the receptacles on the rear of the unit. Insure that you do not exceed

the maximum output rating of the UPS (refer to the back panel of the UPS or the electrical

specifications in this manual). For non-critical loads, such as printers, it is recommended that

the equipment be connected to the Surge Only outlet.

CAUTION!BE SURE ALLCRITICALLOADSARECONNECTED TO THE

BATTERY SUPPLIEDOUTLETS. THE SURGE ONLY OUTLET ISNOT A BAT-

TERY SUPPLIED OUTLET.

CAUTION!DO NOT CONNECT A LASER PRINTER TO THE BATTERY

SUPPLIEDRECEPTACLES ON THEUPS. LASER PRINTERS MAY BE

CONNECTEDTOTHESURGEONLY OUTLET.

CAUTION!: IF THE UPS INDICATES A SITE WIRING FAULT, HAVE A

QUALIFIEDELECTRICIAN CORRECT THE PROBLEM.

ON/TEST/SLIENCE SWITCH

Press and release this switch to turn the UPS on. After the UPS is ON, pressing this

switch will implement a self test. When the UPS is in battery mode, pressing this switch

will silence the alarm. If utility line is not present, press and hold this switch for 2 seconds

and the UPS will turn on.

OFF SWITCH

Press and release this switch to turn the UPS OFF. The UPS will continue to charge the

batteries whenever it is plugged in and the utility line is present.

LED STATUS & ALARMS

LOAD LEVEL DISPLAY

The 4-LED load percentage display shows the power level (20%, 40%, 60%, 80%)

drawn by the loads which are connected to THE BATTERY-SUPPLIED OUTLETS on the

UPS. If UPS is overloaded, the OVERLOAD LED will light.

BATTERYLEVELDISPLAY

This display shows the battery capacity left in the battery. The level is represented by

percentage of 25, 50, 75 and 100, and these LED’s will extinguish gradually when using

battery power. When battery capacity reaches the minimal level of 25%, the lowest

LED(25%) blinks.

When UPS is in battery mode, the ON BATTERY LED will light, proceed by a “beep” sound

for every 2 seconds, and then the UPS will start supplying power to load through battery.

ONBATTERYMODE

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Minuteman UPS

Minuteman

Minuteman Encompass EC1000RT2U Manuel utilisateur

Minuteman

Minuteman MBK 300YYY Manuel utilisateur

Minuteman

Minuteman XRT Series Manuel utilisateur

Minuteman

Minuteman MM-AVR Manuel utilisateur

Minuteman

Minuteman CPE 1000 On-Line Series Instructions d'utilisation

Minuteman

Minuteman SentryII UPS Manuel utilisateur

Minuteman

Minuteman Endeavor ED6000T Manuel utilisateur

Minuteman

Minuteman CPE 1000 Manuel utilisateur

Minuteman

Minuteman Pro Series Manuel utilisateur

Minuteman

Minuteman Enterprise Plus LCD RTXL UPS Series Manuel utilisateur

Minuteman

Minuteman E750RM2U Manuel utilisateur

Minuteman

Minuteman MBK-E SERIES Manuel utilisateur

Minuteman

Minuteman Continuous Power MCP 10001 Manuel utilisateur

Minuteman

Minuteman Enterprise Plus Series Manuel utilisateur

Minuteman

Minuteman AT1200 Manuel utilisateur

Minuteman

Minuteman PRO-E Manuel utilisateur

Minuteman

Minuteman Continuous Power Series Manuel utilisateur

Minuteman

Minuteman Entrust-LG Series Manuel utilisateur

Minuteman

Minuteman PRO1100E Manuel utilisateur

Minuteman

Minuteman Pro Series Manuel utilisateur

Minuteman

Minuteman Encompass Series Manuel utilisateur

Minuteman

Minuteman CP Series Manuel utilisateur

Minuteman

Minuteman ETR550LCD Manuel utilisateur

Minuteman

Minuteman Endeavor RTXL Series Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
