Mini Gadgets OmniBCan Manuel utilisateur
1 Version 1.0
OmniEye Bang Can with
Hidden Camera
SKU: OmniBCan
2 Version 1.0
THANK YOU FOR PURCHASING THE OMNIBCAN
HIDDEN CAMERA
Please read this manual before operating the camera
and keep it handy.
Your purchase should include:
1 x OmniBCan
1 x AC Wall Charger
1 x Manual
1 x A/V Cable
1 x 3.5mm to USB Cable
1 x Remote
1 x 16GB MicroSD Card
1 x MicroSD Card Reader
3 Version 1.0
GET FAMILIAR WITH YOUR OMNIBCAN HIDDEN
CAMERA
4 Version 1.0
5 Version 1.0
IMPORTANT WARRANY INFORMATION: If the
warranty sticker on your device has been removed or
tampered with, your lifetime warranty will be voided.
You may be charged fees or denied a return should this
happen.
HOW TO CHARGE THE CAMERA
Note: If you are not located in the US, or if you intend
to use this product anywhere other than the US, you
will need to purchase a converter in order to use the AC
wall plug in and avoid damaging the product. Because
different countries use different voltages in their
electrical wiring, you will need a converter that adapts
to the current in your particular country.
1. Connect the included AC wall adapter to the
included 3.5mm to USB cable.
2. Connect the other end of the charging adapter
to the DC port located on the bottom of the
device (see page 3).
6 Version 1.0
a. The indicator light will be on as long as
the cable is connected.
3. We recommend charging for 4-6 hours to get a
full charge.
OPERATING THE CAMERA
HOW TO TURN ON THE CAMERA
1. Your device can be powered on in one of two
ways.
a. Connect your device to an AC outlet
using the provided AC wall charger.
b. Use the internal battery to power the
device.
2. If you plug the device into an electrical outlet,
the device will power on automatically and
enter into motion detection mode. The Green
light will blink once and then the Red light will
blink 3 more times and turn off (if motion is
7 Version 1.0
detected immediately). The device is now in
motion detection mode.

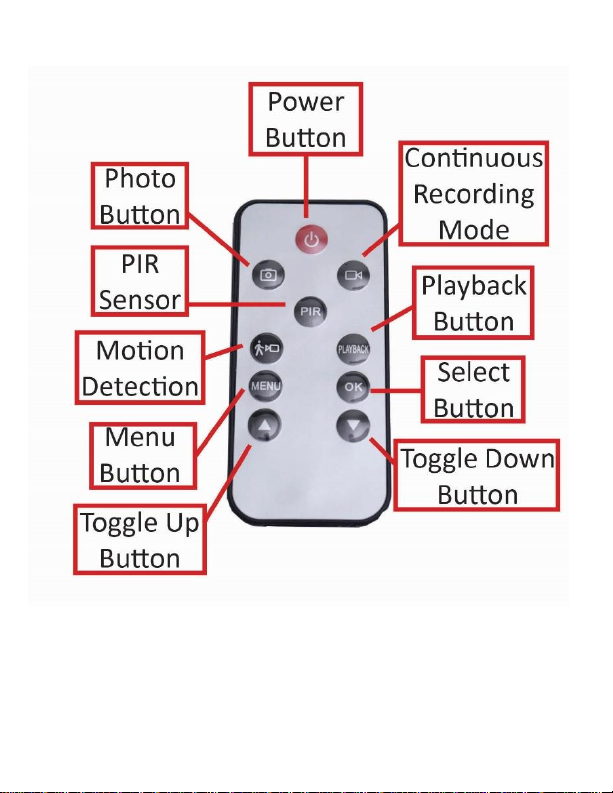

3. If you choose to use battery power, point the
remote at the device and press the power
button on the remote (see page 4). The Green
light will blink once and then the Red light will
blink 3 more times and turn off (if motion is
detected immediately). The device is now in
motion detection mode.
NOTE: If the light doesn’t come on, try many different
angles when pressing the power button and pointing it
at the front/bottom of the unit. Do not hold down the
power button. Press and release the button only.
4. To put the device into standby mode, stop
motion recording by pressing the motion
detection button one time. The Green light will
come on, and the device will be in standby
mode.
HOW TO RECORD VIDEO
8 Version 1.0
1. When the camera is in Standby Mode, press the
“Continuous Recording Button” on the remote
(see page 4). The Indicator LED will flash two
times.
2. Once the Indicator LED turns off, the camera is
now recording video.
HOW TO STOP RECORDING VIDEO
1. While the camera is recording video, press the
“Continuous Recording Button” once more.
(The Indicator LED will turn on.)
2. The camera has now stopped recording and is
now in Standby Mode.
HOW TO TAKE PICTURES
1. When the camera is in Standby Mode, press the
“Photo Button” (see page 4). The green light
will turn red while the photo is being taken.
2. Once the photo is taken, the light will turn back
to green, and once again be in standby mode.
HOW TO RECORD MOTION DETECTION
9 Version 1.0
1. When the camera is in Standby Mode, press the
“Motion Detection Button” (see page 4).
2. If motion is detected, the Red light will flash 2
times and turn off.
3. If there is no motion after 1 minute, the device
will return to detection standby mode until
motion is detected again. While waiting, the
Green light will be on.
NOTE: If you activate motion detection and there is no
motion currently in front of the camera, there will be no
indication you have entered into motion mode. The green
light will simply remain on. If you wish to confirm that
you have entered into motion detection mode, wave your
hand in front of the camera lens, and the unit will flash
the red light 2 times. The light will turn off, confirming
that the device detected your motion and is now
recording video.
HOW TO STOP RECORDING MOTION DETECTION
10 Version 1.0
1. While the camera is recording motion
detection, press the “Motion Detection Button”
once more. (The Indicator LED will turn on.)
2. The camera has stopped recording motion
detection and is now in Standby Mode.
HOW TO USE PIR SENSOR (If Applicable)
Note: The “Motion Detection” mode and “PIR” mode
work similarly in that they detect motion. The “Motion
Detection” mode relies on the camera itself to detect
motion, while the “PIR” mode relies on the PIR sensors
to detect motion. “PIR” represents “passive infrared
sensor”, which relies on measures of infrared light to
detect motion.
Note: Only OmniX Products have a PIR sensor installed.
OmniEye products do not come with this feature.
1. While the camera is in Standby Mode, press the
“PIR Sensor” button (see page 4).
2. If motion is detected, the indicator light will
flash, then turn off.
3. The device is now in PIR sensor mode.
