MIMAKI jV100-160 Manuel d'entretien
Cartridge-ink model
You can also download the latest manual from official website.
MIMAKI ENGINEERING CO., LTD.
https://mimaki.com/ D203530-10
Original instructions
TABLE OF CONTENTS
2
Maintenance
1. Maintenance Precautions ........................................................... 4
2. Maintenance Items and Timing................................................... 5
3. Maintenance ............................................................................... 6
Items Required for Maintenance........................................................... 6
Ink Maintenance ................................................................................... 6
Wiper Cleaning ..................................................................................... 7
Cap Cleaning ........................................................................................ 8
NCU Cleaning....................................................................................... 9
Carriage Underside Cleaning ............................................................. 10
Print Head Nozzle Washing................................................................ 11
Ink Discharge Channel Cleaning ........................................................ 13
Media Sensor Cleaning ...................................................................... 13
Automatic Correction Sensor (DAS) Cleaning.................................... 14
Media Holder Cleaning ....................................................................... 15
Platen Cleaning .................................................................................. 15
Cover (Exterior) Cleaning ................................................................... 16
When Not in Use for Extended Periods .............................................. 16
4. Consumable Item Replacement ............................................... 19
Wiper Replacement ............................................................................ 19
Wiper Cleaner Replacement............................................................... 20
Cap Replacement ............................................................................... 22
Cap Absorber Replacement ............................................................... 23
Waste Ink Tank Replacement............................................................. 24
Blowing Fan Filter Replacement......................................................... 27
Pinch Roller Replacement .................................................................. 27
Media Holder Replacement ................................................................ 28
Media Cutter Replacement ................................................................. 30
3
Maintenance
To ensure years of precise performance, maintain this product periodically or based on frequency of use.
Read the maintenance precautions thoroughly before maintaining this product.
1. Maintenance Precautions
4
1. Maintenance Precautions
• This machine includes parts that must be replaced periodically. We therefore recommend taking
out a maintenance contract. Maintain this machine and replace consumable items to prevent
quality defects and accidents.
• Clean periodically. Debris and dust will accumulate on electrical components when this machine
is used for extended periods. There is a risk of failure, electric shock, or fire due to current
leakage.
• Do not clean by blowing—e.g., avoid using air blowers. Doing so may lead to failure, electric
shock, or fire involving the machine if airborne debris or dust gets inside electrical components.
Wipe using a soft cloth soaked in dilute detergent and thoroughly wrung out. A vacuum cleaner
may also be used for cleaning.
• Do not allow liquids to get inside the product. Otherwise there is a risk of failure, electric shock,
or fire.
• For heavy soiling, wipe using a soft cloth soaked in dilute detergent and thoroughly wrung out.
• Pay close attention to ventilation and be sure to wear safety glasses, gloves, and a mask when
handling ink, maintenance liquid, waste ink, or other solutions used with this machine. Leaking
ink may adhere to the skin or get into the eyes or mouth.
• Never touch the print head nozzle surface. Do not allow water or alcohol to come into contact
with the print nozzle surface. This will increase the risk of machine failure or printing defects
(e.g., nozzle clogging or deflection).
• Do not use cotton swabs to clean around the head or carriage. Fibers from cotton swabs may
adhere to the head nozzle surface and lead to printing defects (e.g., nozzle clogging or
deflection).
• Be careful to avoid splashing ink or maintenance liquid on the covers. Exposure to splashing ink
or maintenance liquid may damage or deform the cover.
• Avoid using chemical products containing benzine, thinner, or abrasives. Use of these
chemicals may result in damage to or deformation of parts.
• Do not move the carriage by hand. To move the carriage, use the carriage out function on the
menu.
2. Maintenance Items and Timing
5
2. Maintenance Items and Timing
Timing Item
At the end of the
work week
Clean the wiper and wiper bracket. "Wiper Cleaning"(P. 7)
Clean the cap rubber. "Cap Cleaning"(P. 8)
Clean the NCU. "NCU Cleaning"(P. 9)
Clean the underside of the carriage. "Carriage Underside Cleaning"(P. 10)
Clean the media sensor. "Media Sensor Cleaning"(P. 13)
Clean the DAS sensor. "Automatic Correction Sensor (DAS) Cleaning"(P. 14)
Clean the media holder. "Media Holder Cleaning"(P. 15)
Clean the ink discharge channel. "Ink Discharge Channel Cleaning"(P. 13)
Clean the platen. "Platen Cleaning"(P. 15)
Clean the cover (exterior). "Cover (Exterior) Cleaning"(P. 16)
Check the waste ink levels in the waste ink tank.
When not used for
more than a week
Clean the wiper and cap and wash the ink discharge channels. After cleaning, store
without turning off the main power supply. "When Not in Use for Extended
Periods"(P. 16)
Periodically Shake the Ink bottle. "Ink Maintenance"(P. 6)
3. Maintenance
6
3. Maintenance
Items Required for Maintenance
To order replacement consumable items, contact your local dealer or our service office.
Item Code
200 Maintenance Liquid Kit for Solvent Ink SPC-0369
Cleaning Stick for Head Surrounding SPC-0527
Swab 6-axis "S" A101438
BEMCOT M-3 A101437
KIMWIPE S-200 SPA-0207
Maintenance cloth SPC-0574
Safety glasses
Gloves
For more information on other consumable items, refer to our website.
https://mimaki.com/supply/inkjet.html
• Avoid storing this product in locations accessible to children.
Ink Maintenance
If ink constituents are sedimented, the ink density may become uneven. We recommend shaking the Ink
bottle periodically to keep printing consistent.
Solvent ink: once a month.
Orange ink: once a week.
lOrange Ink
This machine counts the time elapsed after stirring the orange ink. The “Shake the Orange ink cartridge”
message appears when a preset count is reached. If the message appears, shake the Orange ink cartridge
by following the instructions below:
lShaking the Ink bottle
1Shake the Ink bottle to the left and right slowly at least 20 times.
• Shake the case slowly from left to right to ensure that the ink moves inside.
Repeat the procedure.
3. Maintenance
7
• If the ink cartridge is partially used, cover the gap between the side and the ink cartridge
opening with a paper towel and shake slowly at an angle until the ink cartridge becomes
upright.
Needle slot Gap on the side
Wiper Cleaning
The wiper wipes off ink adhering to the print head nozzle surface. Continuing to use the dirty wiper may
cause the wiper to which dried ink and dust are attached to rub against the nozzle surface, leading to printing
defects (e.g., nozzle clogging or deflection).
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of printing defects (e.g., nozzle clogging or deflection).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Platen Right End ], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.
4Pull out the wiper.
• Hold the lug at the rear of the wiper, then tilt forward to pull out the wiper.
Lug
3. Maintenance
8
5Clean the wiper and bracket.
• Wipe off any ink adhering with a clean stick moistened with maintenance liquid.
• Wipe off the maintenance liquid. Make sure none remains.
Wiper
Bracket
• Replace dirty or warped wipers with new ones. "Wiper Replacement"(P. 19)
6Wipe away any ink or dust adhering to the wiper slider.
• Wipe off any ink adhering with a clean stick moistened with maintenance liquid.
• Wipe off the maintenance liquid. Make sure none remains.
7Reattach the wiper at the original position.
Lug
• Do not remove the absorbent material in the absorbent material case. Doing so may result
in leaking ink.
8Once cleaning is complete, close the front cover, then press the [ENTER] key.
Cap Cleaning
The cap prevents the print head nozzle surface from drying out. Continuing to use a dirty cap may affect ink
take-up and lead to print defects (e.g., nozzle clogging, deflection).
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of printing defects (e.g., nozzle clogging or deflection).

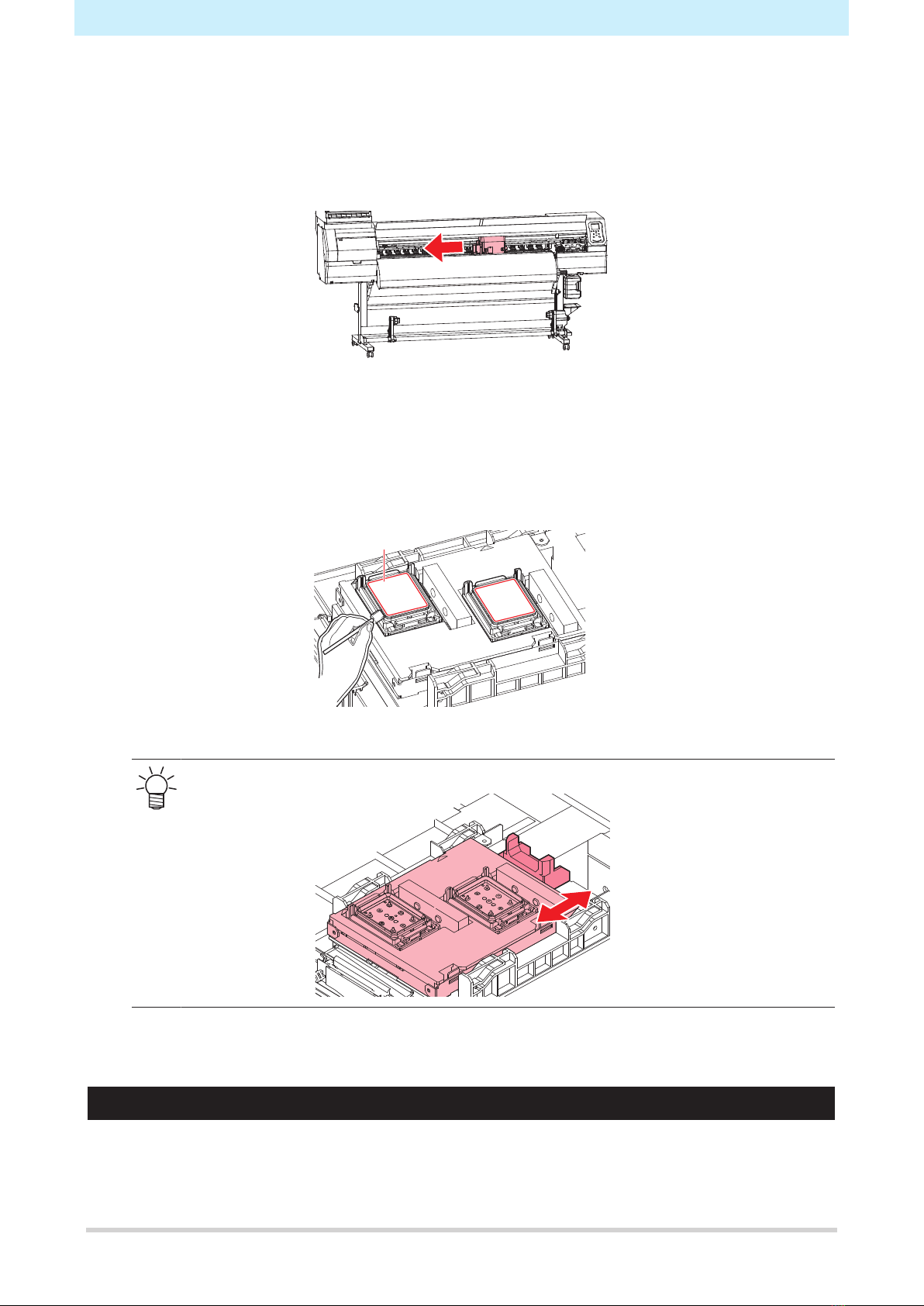

3. Maintenance
9
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Platen Right End ], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.
4Clean the cap rubber.
• Wipe off any ink adhering with a clean stick moistened with maintenance liquid.
• Wipe off the maintenance liquid. Make sure none remains.
Cap rubber
5Check to confirm that the cap slider is not tilted once cleaning is complete.
• If the cap slider is tilted, move the slider block to the left or right to correct the tilt.
6Close the front cover, then press the [ENTER] key.
NCU Cleaning
The NCU uses a sensor to monitor the ink droplets ejected from the print head nozzles. Continuing to use
the dirty NCU may prevent the nozzle Check function from operating correctly.
3. Maintenance
10
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of printing defects (e.g., nozzle clogging or deflection).
1On the LOCAL mode screen, select [MENU] > [Maintenance], then press the [ENTER] key.
• The Maintenance menu is displayed.
2Select [Station] > [Carriage Out] > [Move To Platen Right End ], then press the [ENTER] key.
• The carriage moves over the platen.
3Open the front cover.
4Wipe away any ink or dust adhering to the NCU.
• Wipe off any ink adhering to the NCU using a cleaning stick moistened with maintenance liquid.
• Wipe off the maintenance liquid. Make sure none remains.
• Insert the cleaning stick as far as the line shown in the illustration.
5Once cleaning is complete, close the front cover, then press the [ENTER] key.
Carriage Underside Cleaning
The underside of the carriage becomes coated with ink wiped off by the wiper. Continuing to use the dirty
carriage underside will rub dried ink and attached dust on to the media, resulting in contaminated prints.
The print head uses an extremely delicate mechanism. Take great care when handling it.
• Be careful to avoid leaving fragments from the cleaning stick behind when cleaning. These
fragments will increase the risk of printing defects (e.g., nozzle clogging or deflection).
