Miele DA5000D Manuel utilisateur

Operating and Installation

Instructions

Ventilation System

DA 5000 D

To prevent accidents

and machine damage,

read these instructions

before

installation or use. M.-Nr. 07 197 930

en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning on the fan s...............................................11

Selecting the performance level ......................................11

Delayed shut down "5m15" .........................................12

Turning off the fan s...............................................12

Direct lighting n..................................................12

Indirect lighting ...................................................13

Safety cut-off .....................................................13

Grease filter timer l...............................................13

Sensor button tone.................................................14

Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Grease filter ......................................................16

Re-setting the grease filter timer ......................................17

Changing the halogen light bulbs .....................................18

Changing the fluorescent light bulb ...................................19

After Sales Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Installation instructions .............................................24

Installation accessories .............................................24

Structural support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Appliance dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Contents

Read these Operating Instructions carefully before installing or

using the Ventilation System.

This appliance is intended for

residential use only. Use the

appliance only for its intended

purpose. The manufacturer cannot

be held responsible for damages

caused by improper use of the

hood.

This appliance complies with current

safety requirements. Improper use

of the appliance can lead to

personal injury and material

damage.

READ AND SAVE THESE

INSTRUCTIONS

,CAUTION

Use only for general ventilation.

Do not use to exhaust hazardous or

explosive materials and vapors.

~This appliance is designed to vent

cooking smoke and odors only.

~Be certain your appliance is

properly installed and grounded by a

qualified technician.

To guarantee the electrical safety of this

appliance, continuity must exist

between the appliance and an effective

grounding system. It is imperative that

this basic safety requirement be met. If

there is any doubt, have the electrical

system of the house checked by a

qualified electrician. The manufacturer

cannot be held responsible for

damages caused by the lack, or

inadequacy, of an effective grounding

system.

~Before connecting the appliance to

the power supply make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This data

must correspond to prevent machine

damage. If in doubt consult a qualified

electrician.

~Installation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

Repairs and other work by unqualified

persons could be dangerous and the

manufacturer will not be held

responsible.

IMPORTANT SAFETY INSTRUCTIONS

~This equipment is not designed for

maritime use or for use in mobile

installations such as recreational

vehicles or aircraft. However, under

certain conditions it may be possible for

an installation in these applications.

Please contact the nearest Miele dealer

or the Miele Technical Service

Department with specific requirements.

~Before servicing or cleaning the unit,

switch power off at the service panel

and lock the service disconnecting

means to prevent power from being

switched on accidentally. If the service

disconnecting means cannot be

locked, securely fasten a prominent

warning device, such as a tag, to the

service panel.

~Before discarding an old appliance,

disconnect it from the power supply

and remove the power cord to prevent

hazards.

Use

~Do not allow children to play with or

operate the appliance or its controls.

Supervise use by the elderly or infirm.

~Do not flambé or grill with an open

flame beneath the hood.

Flames could be drawn up into the

hood by the suction and the grease

filters may catch fire.

~Never operate gas burners without

cookware. Turn the burner off when not

in use. Adjust the burner so that the

flames do not extend beneath the

cookware. Do not overheat the

cookware, e.g. when using a wok. The

hood can be damaged due to

excessive heat from the burners and

the cookware.

~Do not use the hood without the

grease filter in place.

~Clean the grease filter regularly.

Dirty filters are a fire hazard.

~Do not use a steam cleaner to clean

the hood. Steam could penetrate

electrical components and cause a

short circuit.

~Always turn on the hood when using

the cooktop to prevent damage from

condensation.

IMPORTANT SAFETY INSTRUCTIONS

,WARNING - TO REDUCE

THE RISK OF A COOKTOP

GREASE FIRE:

~Never leave surface units

unattended at high settings. Boil-overs

cause smoking and greasy spillovers

may ignite. Heat oils slowly on low or

medium settings.

~Always turn the hood on when

cooking at high heat.

~Clean ventilating fans frequently.

Grease should not be allowed to

accumulate on fan or filter.

~Use proper pan size. Always use

cookware appropriate for the size of the

surface element.

,WARNING

TO REDUCE THE RISK OF INJURY

TO PERSONS, IN THE EVENT OF A

COOKTOP GREASE FIRE, OBSERVE

THE FOLLOWING:

~SMOTHER FLAMES with a close

fitting lid, cookie sheet, or metal tray

then turn off the burner.

BE CAREFUL TO PREVENT BURNS.

If the flames do not go out immediately,

EVACUATE AND CALL THE FIRE

DEPARTMENT.

~NEVER PICK UP A FLAMING PAN

You may be burned.

~DO NOT USE WATER, including

wet dishcloths or towels - a violent

steam explosion will result.

~Use a fire extinguisher

ONLY if:

– You have a class ABC extinguisher,

and you know how to operate it.

– The fire is small and contained in the

area where it started.

–The fire department is being called.

–You can fight the fire with your back

to an exit.

IMPORTANT SAFETY INSTRUCTIONS

Installation

~,WARNING

To reduce the risk of fire only use

metal duct work.

~Any fittings, sealant, or materials

used to install the duct work must be

made of approved non-flammable

materials.

~Provided a larger distance is not

given by the manufacturer of the

cooktop, follow the minimum safety

distances between a cooktop and the

bottom of the hood:

– 22" (550 mm) above electric

cooktops,

– 30" (762 mm) above gas cooktops,

– 26" (650 mm) above an open electric

grill or an open electric boiler/fryer.

If local building codes require a greater

safety distance, follow their

requirement.

If there is more than one appliance

beneath the hood and they have

different minimum safety distances

always select the greater distance.

~Do not install this hood over

cooktops burning solid fuel.

~Be careful not to damage hidden

electrical wiring or plumbing when

cutting or drilling into the wall or ceiling.

~Do not use an extension cord to

connect the appliance to electricity.

Extension cords do not guarantee the

required safety of the appliance,

(e.g. danger of overheating).

~Never connect an exhaust hood to

an active chimney, dryer vent, vent flue,

or room ventilating duct work. Seek

professional advice before connecting

an exhaust hood vent to an existing,

inactive chimney or vent flue.

~Ducted fans must always be vented

outdoors.

~Make sure that the airflow in the

room is sufficient for combustion and

exhausting of all non-electric heating

appliances (water heaters, gas

cooktops, gas ovens, etc.), otherwise

back drafts may occur. Follow the

heating manufacturer’s guidelines and

safety standards or those published by

the National Fire Protection Association

(NFPA) or the American Society for

Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE).

If in doubt, consult an experienced

professional.

IMPORTANT SAFETY INSTRUCTIONS

Guide to the appliance

aCovering frame

bChimney

cCanopy

The canopy opens as soon as the fan is

turned on.

dIndirect lighting

eControl panel

The symbols serve as sensor buttons.

To select a function, touch the sensor

button. A brief tone is heard as

confirmation.

fDirect lighting

gGrease filter

Sensor buttons

hIndirect lighting

iDirect lighting

Use this button to switch the direct

lighting On/Off, and to adjust the

brightness.

The lighting can be used independently

from the fan.

jFan On/Off

kFan power selection

lDelayed shut down

This button activates the Delayed Shut

Down feature. The fan can be set to

turn off automatically after 5 or 15

minutes.

mGrease filter

This sensor button will light up when the

grease filter needs to be changed.

This sensor button is also used:

–to reset the grease filter timer after

cleaning the grease filters (see

"Cleaning and care").

–to check how long the grease filters

have been in use (see Operation /

Grease filter timer").

–to change the number of hours

counted by the grease filter timer

(see Operation / Grease filter timer").

Guide to the appliance

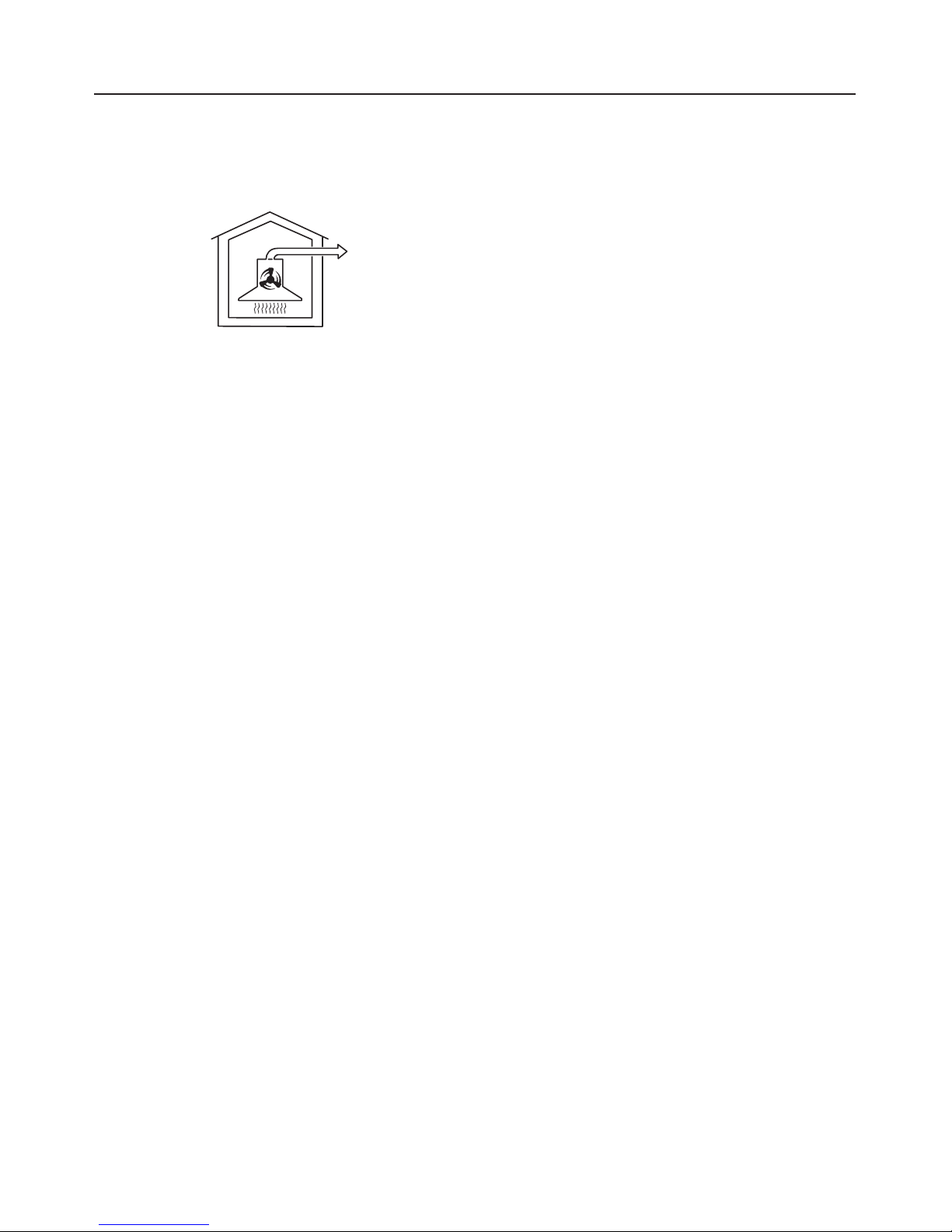

The ventilation hood works by air

extraction. The air is drawn in and

cleaned by the grease filter and

directed outside.

The hood comes equipped with a

non-return flap. This flap automatically

closes when the hood is turned off so

that no exchange of outside air and

room air can occur. When the hood is

turned on, the air pressure of the

exhaust fan automatically opens the

flap blowing the inside air and cooking

odors outside.

Functional description

Autres manuels pour DA5000D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Miele hotte de ventilation

Miele

Miele DA 78 Manuel utilisateur

Miele

Miele DA 5196 W EXT Manuel utilisateur

Miele

Miele DA 3668 Manuel utilisateur

Miele

Miele SmartLine CSDA 7000 FL Manuel utilisateur

Miele

Miele DA 289-4 EXT Manuel utilisateur

Miele

Miele DA 3466 Manuel utilisateur

Miele

Miele DA 249-2 Alu EXT Manuel utilisateur

Miele

Miele DA 6690 D EXT Manuel utilisateur

Miele

Miele DA 419-7 Manuel utilisateur

Miele

Miele DA 360 Fiche technique

Miele

Miele Imperial DA 846-1 Fiche technique

Miele

Miele DA 186 Manuel utilisateur

Miele

Miele DA 420V-6 EXT Manuel utilisateur

Miele

Miele DA2280 Instructions de montage

Miele

Miele DA 327 i Fiche technique

Miele

Miele DA 5381 W Operating and Manuel de la liste des pièces

Miele

Miele DAS 4930 Manuel utilisateur

Miele

Miele DA1260SS Manuel utilisateur

Miele

Miele DA 249-4 Manuel utilisateur

Miele

Miele DA 249-3 Manuel utilisateur

Miele

Miele DA 3668 Manuel utilisateur

Miele

Miele DA 5490 W Fiche technique

Miele

Miele DA 424 V EXT Manuel utilisateur

Miele

Miele Imperial DIA 1070-2 EX Fiche technique

Manuels hotte de ventilation populaires d'autres marques

emmeti

emmeti RECUPA MED A-140 Mode d’emploi

Nibe

Nibe F135 Manuel utilisateur

Kuppersberg

Kuppersberg INTRO 60 Instructions d'installation et d'entretien

Zephyr

Zephyr Spruce AK9834BS Guide d'installation

Hisense

Hisense MH6INBG Manuel utilisateur

Broan

Broan 46000 Manuel utilisateur

GE Profile PV977 Instructions originales

FALMEC

FALMEC FFRIA24W5FS Manuel utilisateur

Whirlpool

Whirlpool RH2600XL-1 SERIES Manuel utilisateur

Küppersbusch

Küppersbusch DX ISLA Manuel utilisateur

ETNA

ETNA AV360RVS Manuel utilisateur

JUNO

JUNO JDF603E6 Manuel utilisateur

Tricity Bendix

Tricity Bendix LE 150 Manuel

AEG

AEG X68163BV1 Manuel utilisateur

AEG

AEG 125 D Manuel utilisateur

Smeg

Smeg KSEV97X Manuel utilisateur

Nibe

Nibe S Series Guide de l'utilisateur

Caple

Caple CCH100 Manuel
