Miele H 2261 B Manuel utilisateur

Operating and Installation Instructions

Oven

To prevent accidents and machine damage, read these instructions

before installation or use.

en – CA M.-Nr. 09 786 730

Technical Service

After sales service

In the event of a fault which you cannot

easily correct yourself, please contact:

– your Miele dealer, or

– the Miele Technical Service

Department.

See back cover for contact details.

Please quote the model and serial

number of your appliance when

contacting Miele.

This information is given on the data

plate, visible on the front frame of the

oven, with the door fully open.

Warranty

For further information, please refer to

your warranty booklet.

Caring for the environment

Disposal of the packing

material

The cardboard box and packing

materials protect the appliance during

shipping. They have been designed to

be biodegradable and recyclable.

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of children.

Danger of suffocation!

Disposal of your old appliance

Do not dispose of this appliance with

your household waste.

Old appliances may contain materials

that can be recycled. Please contact

your local recycling authority about the

possibility of recycling these materials.

Before discarding an old appliance

ensure that it presents no danger to

children while being stored for disposal.

Unplug it from the outlet, cut off its

power cord and remove any doors to

prevent hazards.

Electrical connection

CAUTION:

Before servicing, disconnect the

power supply by either removing the

fuse, shutting off the power main or

manually "tripping" the circuit

breaker.

Installation, repair and maintenance

work must be performed by a Miele

authorized service technician. Work

by unqualified persons could be

dangerous and may void the

warranty.

Before connecting the appliance to

the power supply, make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

Only operate the appliance after it

has been installed into cabinetry.

The plug must be plugged into an

appropriate outlet that is installed

and grounded in accordance with all

local codes and ordinances.

WARNING: THIS APPLIANCE MUST

BE GROUNDED

Installer: Please leave these

instructions with the consumer.

Data plate

The silver data plate is located along

the front side of the oven with the door

open (see "Guide to the oven").

Before connecting the appliance

to the power supply, make sure that

the voltage and frequency listed on

the data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

Electrical connection 208 V

Do not connect the oven to a

240 V power supply.

The oven is equipped with a 6' 3"

(1.9 m) long flexible power cord with a

NEMA 14-30 P plug, ready for

connection to a 120/208 V, 60 Hz, 20 A

power supply.

Maximum connected load: 3,600 W

Electrical connection 240 V

The oven is equipped with a 6' 3"

(1.9 m) long flexible power cord with a

NEMA 14-30 P plug, ready for

connection to a 120/240 V, 60 Hz, 20 A

power supply.

Maximum connected load: 3,800 W

SAVE THESE INSTRUCTIONS FOR

THE ELECTRICAL INSPECTOR'S

USE.

Installation diagrams

Appliance and cut-out dimensions

Undercounter installation

7/8" (23 mm)

21 9/16" (547 mm)

22 1/2"

(572 mm)

21 7/16" (544 mm)

23 7/16"

(595 mm)

23 7/16"

(596 mm)

22 1/16"

(560 mm)

(100 mm)

23 5/8"

(600 mm)

21 5/8"

( 550 mm)

Cut-out for power cord with plug (min. 4" x 22" / 100 mm x 560 mm) in the

bottom of the cabinet

Power cord with plug

Installation diagrams

Installation into a tall cabinet

7/8" (23 mm)

21 9/16" (547 mm)

22 1/2"

(572 mm)

21 7/16" (544 mm)

23 7/16"

(595 mm)

23 7/16"

(596 mm)

22 1/16"

(560 mm)

(100 mm)

590-595 mm

(23 1/4"-23 7/16")

21 5/8"

( 550 mm)

Cut-out for power cord with plug (min. 4" x 22" / 100 mm x 560 mm) in the

bottom of the cabinet

Power cord with plug

Installing the oven

The oven must not be operated

until it has been properly installed

within cabinetry.

In order for the oven to function

correctly, it required an adequate

supply of cool air. Ensure that the air

flow is not impaired (e.g. insulation in

the cabinetry). Also be sure that the

cool air supply is not heated by other

sources nearby.

Before installation

Before connecting the oven to the

power supply, first disconnect the

power supply from the oven isolator

switch.

Installing the oven

Connect the power cord to the

electrical supply.

Do not carry the oven by the door

handle. The door can be damaged.

Use the handles on each side of the

oven to carry it.

It is recommended that you remove

the door before installing the

appliance (see "Cleaning and Care -

Removing the door") and all oven

accessories from the cavity. This will

make for easier installation into the

niche and will not tempt you to use

the handle to carry it.

If there are side handles, please

remove them.

Push the oven into the cabinetry and

align it.

Open the door (if it was not removed

previously).

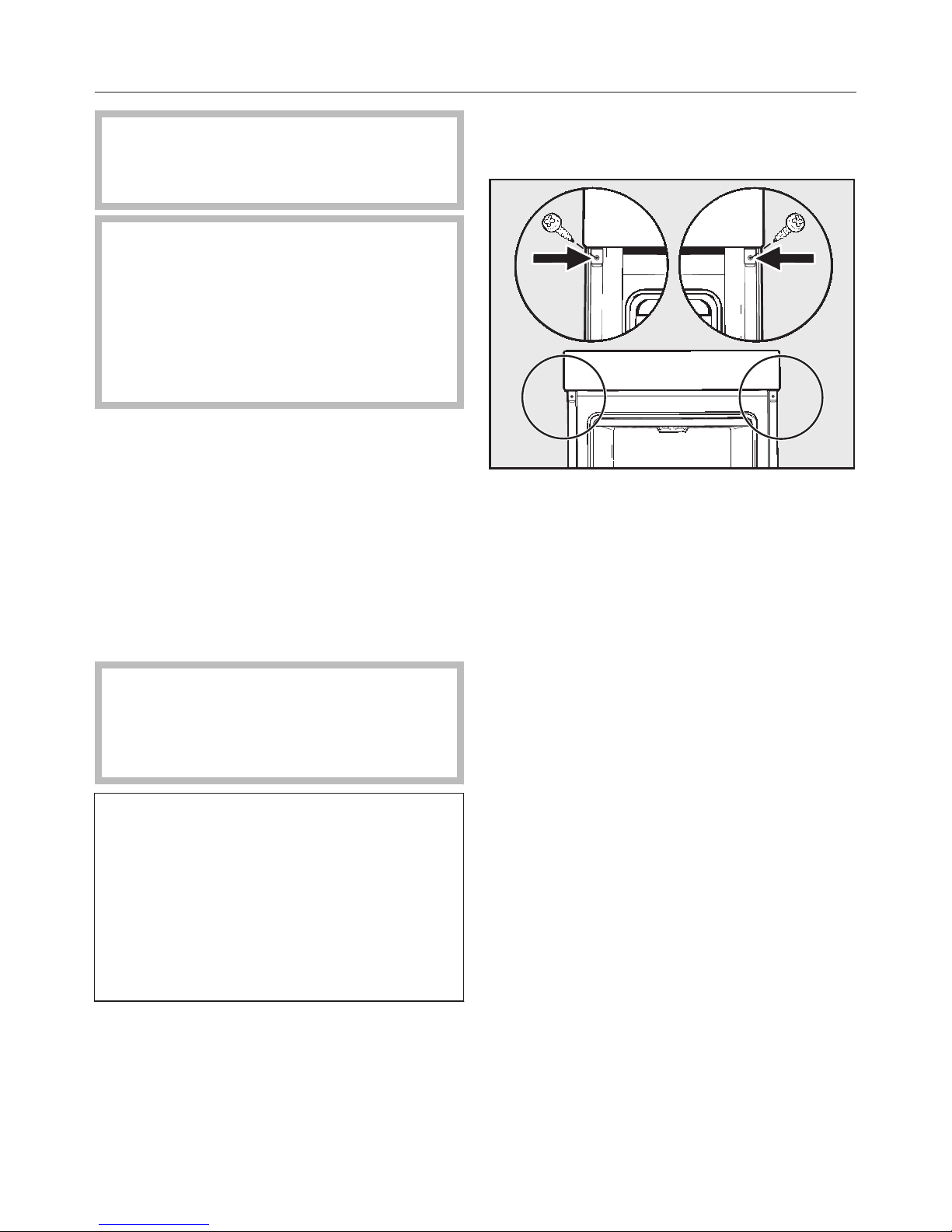

Use the supplied screws to secure

the oven to the side walls of the

cabinetry through the holes in the

trim.

Reinstall the door, if necessary (see

"Cleaning and care - Installing the

door").

M.-Nr. 09 786 730 / 00en – CA

H2261B


