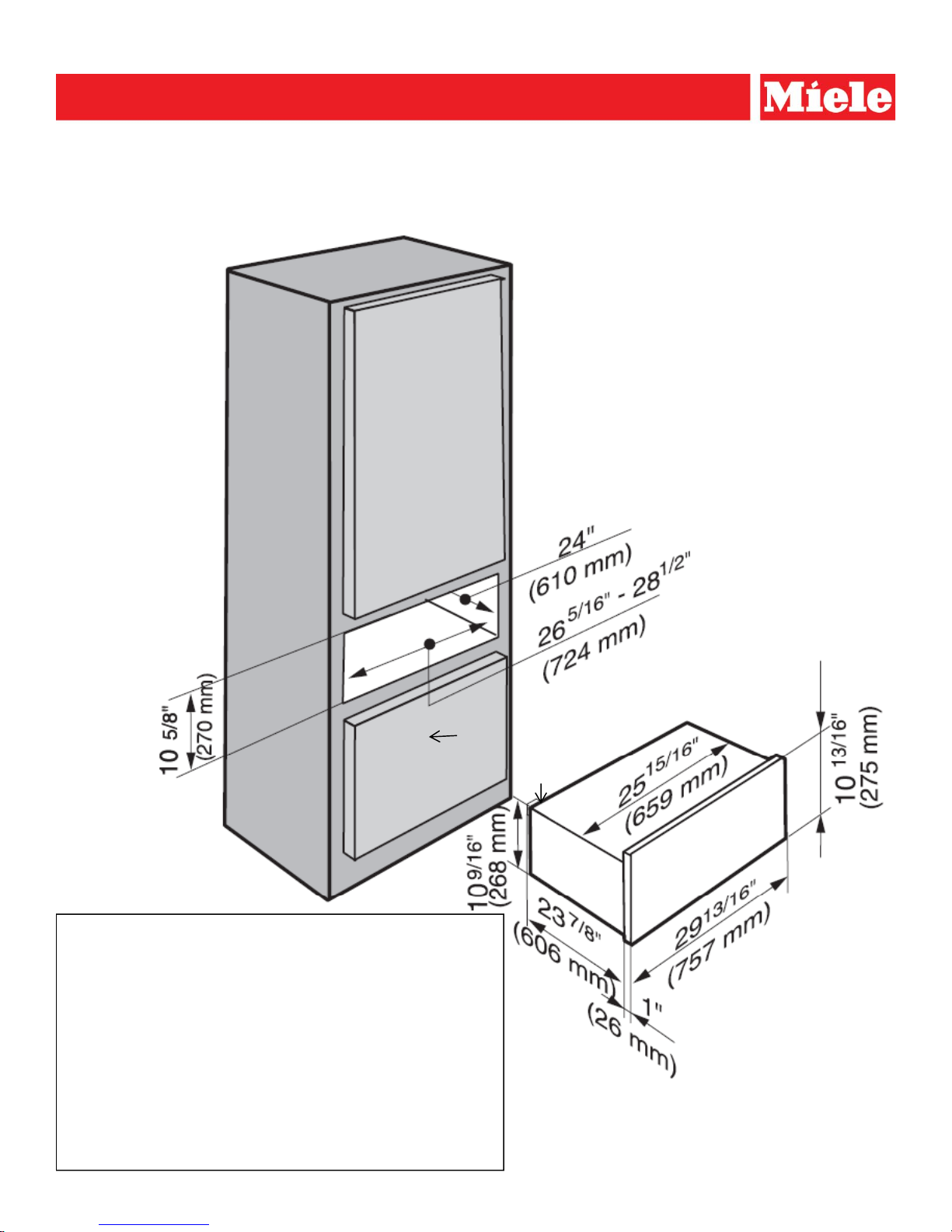

Product and Cut-out Dimensions Page 1 of 4

Warming Drawer

ESW 4816

D i Cl T h St i l St l ith

4043

ESW

4816

uropa

ean

ouc

ess

ith

4043

Square Series Handle

Location Codes

E – The drawer comes equipped with a 5 ft. (1.5 m) power

cord with a three-prong grounding plug ready for connection

to a 120V, 15 A, 60 Hz power supply.

O – 1” ² minimum hole size for plug. Outlet to be

Note: Drawing is not to scale

Specification Sheets OJS 11142011

installed in adjacent cabinetry

Notes

Miele appliances can be installed flush or proud. Discuss

your installation requirements with your architect, designer

and installer.

All installations must be done in accordance with local codes.

Product and Cut-out Dimensions Page 2 of 4

Warming Drawer

ESW 4816

D i Cl T h St i l St l ith

4043

ESW

4816

uropa

ean

ouc

ess

ith

4043

Square Series Handle

Location Codes

E – The drawer comes equipped with a 5 ft. (1.5 m) power

cord with a three-prong grounding plug ready for connection

to a 120V, 15 A, 60 Hz power supply.

O – 1” ² minimum hole size for plug. Outlet to be

Note: Drawing is not to scale

Specification Sheets OJS 11142011

installed in adjacent cabinetry

Notes

Miele appliances can be installed flush or proud. Discuss

your installation requirements with your architect, designer

and installer.

All installations must be done in accordance with local codes.

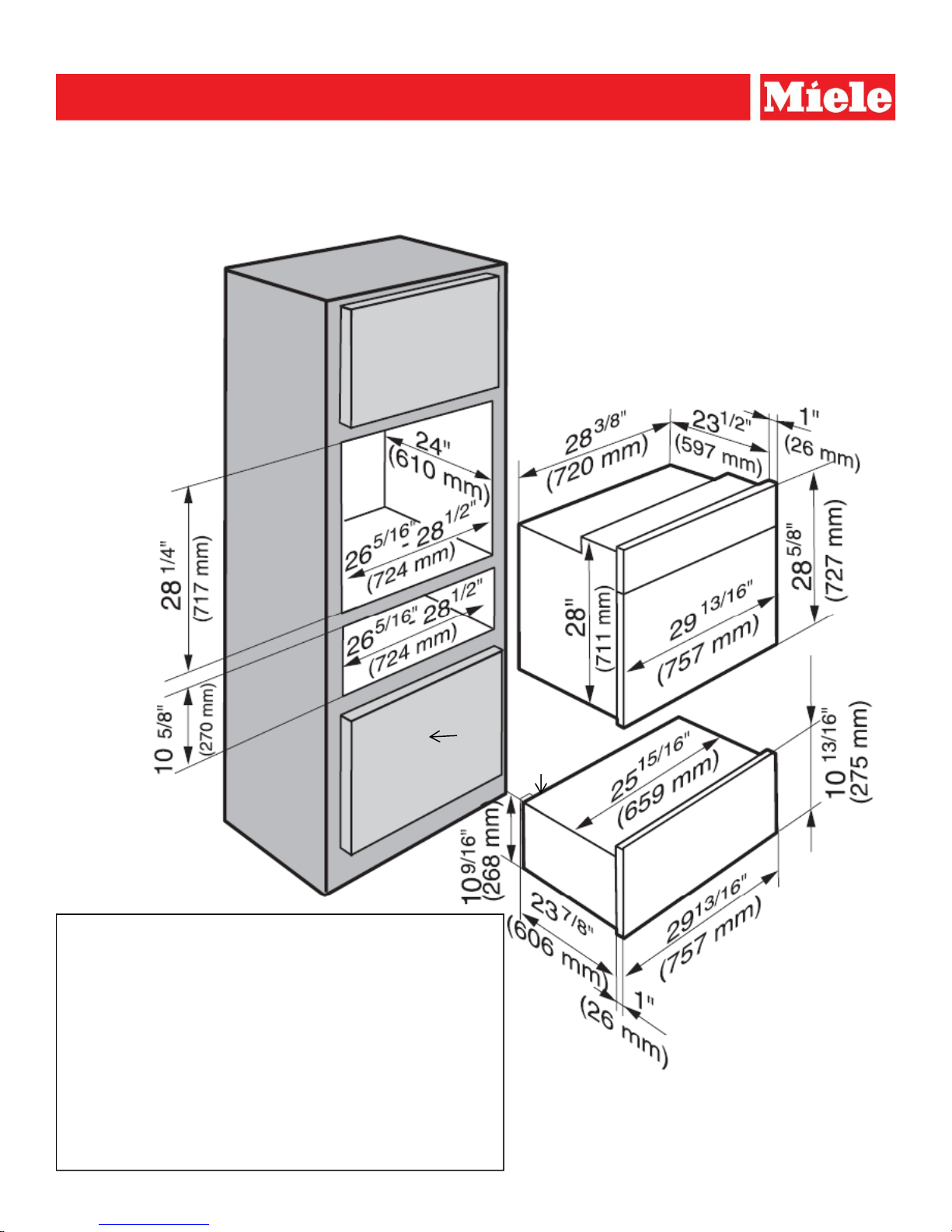

Product and Cut-out Dimensions Page 3 of 4

Warming Drawer

ESW 4816

D i Cl T h St i l St l ith

4043

ESW

4816

uropa

ean

ouc

ess

ith

4043

Square Series Handle

Installation shown with a Miele

30” Oven

Location Codes

E – The drawer comes equipped with a 5 ft. (1.5 m) power

cord with a three-prong grounding plug ready for connection

to a 120V, 15 A, 60 Hz power supply.

O – 1” ² minimum hole size for plug. Outlet to be

Note: Drawing is not to scale

Specification Sheets OJS 11142011

installed in adjacent cabinetry

Notes

Miele appliances can be installed flush or proud. Discuss

your installation requirements with your architect, designer

and installer.

All installations must be done in accordance with local codes.

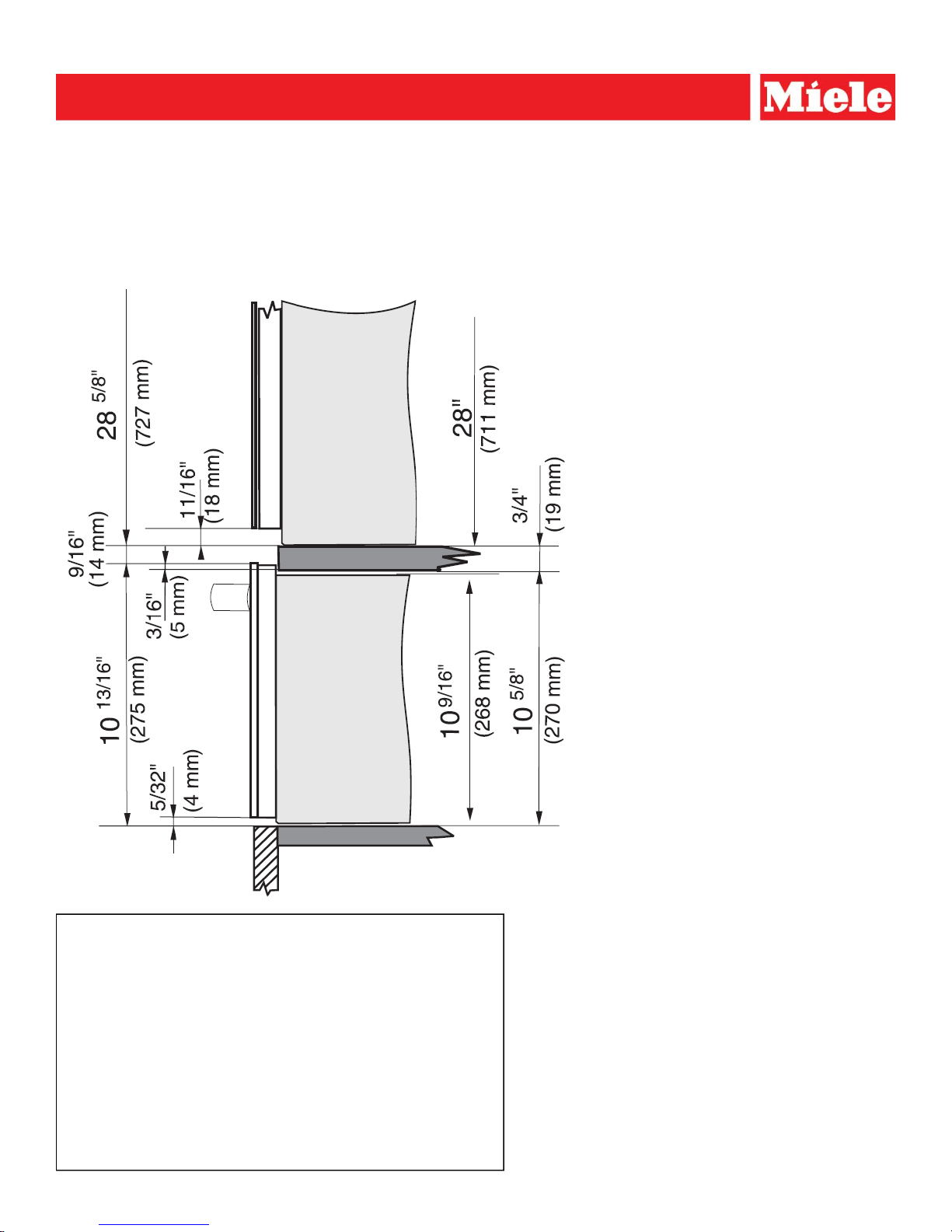

Product and Cut-out Dimensions Page 4 of 4

Warming Drawer

ESW 4816

D i Cl T h St i l St l ith

4043

ESW

4816

uropa

ean

ouc

ess

ith

4043

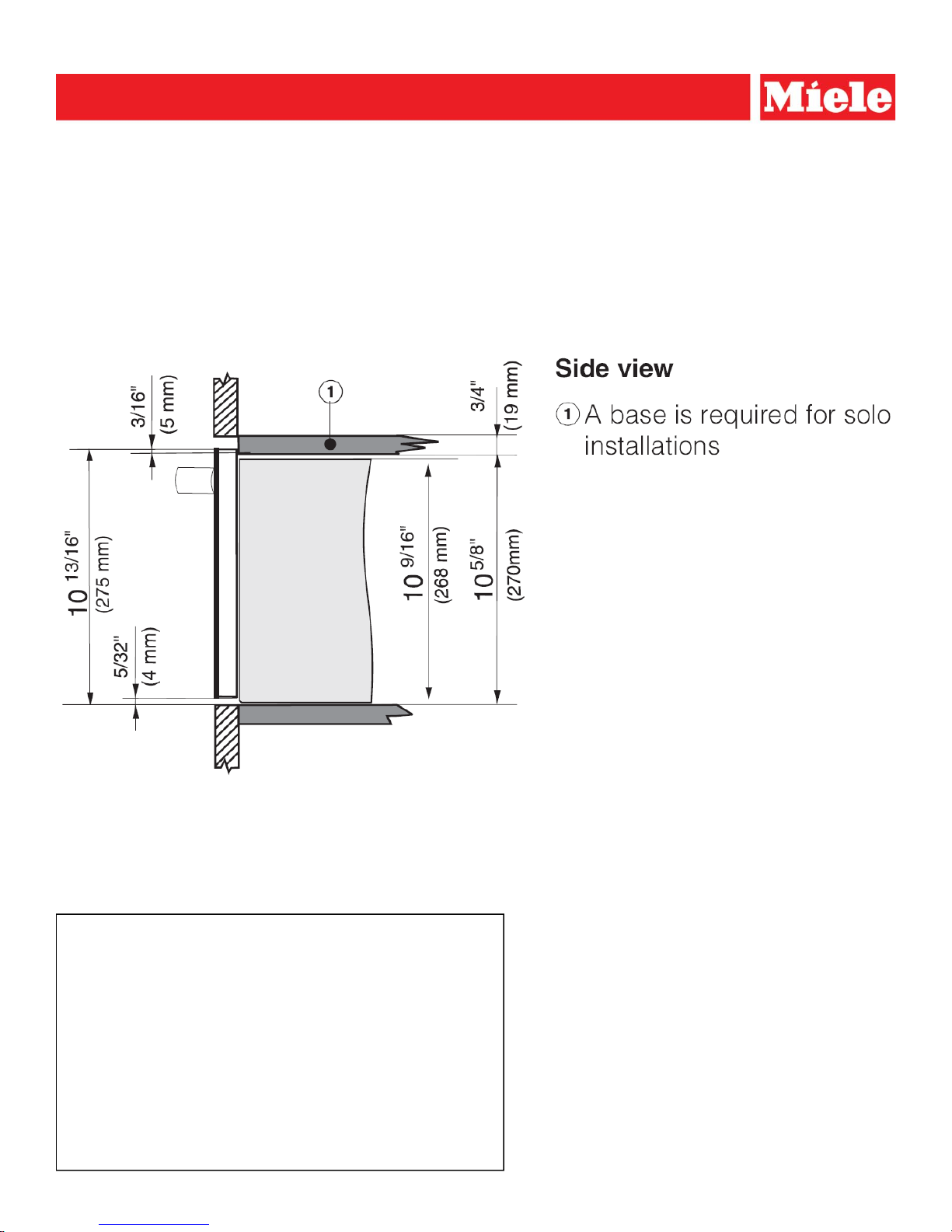

Signature Series Handle

Side view with a Miele oven

Location Codes

E – The drawer comes equipped with a 5 ft. (1.5 m) power

cord with a three-prong grounding plug ready for connection

to a 120V, 15 A, 60 Hz power supply.

O – 1” ² minimum hole size for plug. Outlet to be

Note: Drawing is not to scale

Specification Sheets OJS 11142011

installed in adjacent cabinetry

Notes

Miele appliances can be installed flush or proud. Discuss

your installation requirements with your architect, designer

and installer.

All installations must be done in accordance with local codes.
