Miele CS 1234 Manuel utilisateur
Operating and installation instructions
Ceramic hobs with induction
CS 1212
CS 1221
CS 1234
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 180 660
en-GB
Guide to the appliance .............................................4
CS 1212 ..........................................................4
CS 1221 ..........................................................5
CS 1234 ..........................................................6
Display ...........................................................7
Cooking zones .....................................................7
Warning and Safety instructions .....................................9
Caring for the environment.........................................16
Before using for the first time.......................................17
Induction........................................................18
The induction principle .............................................18
Noises ..........................................................19
Pans ............................................................20
Operation .......................................................21
Switching on and off ...............................................21
Residual heat indicator .............................................21
Settings .........................................................22
Auto heat-up .....................................................23
Booster function...................................................24
Keeping warm ....................................................25
Safety features ...................................................26
Safety lock .......................................................26
Safety switch-off...................................................26
Overheating protection .............................................27
Cleaning and care ................................................28
Problem solving guide ............................................30
Optional accessories..............................................32
Contents
2
Safety instructions for installation...................................33
Appliance and building-in dimensions ...............................37
CS 1212 .........................................................37
CS 1221 .........................................................38
CS 1234 .........................................................39
Preparing the worktop.............................................40
Installation of several appliances....................................41
Fitting the spring clamps and spacer bars ............................43
Installing the appliance ............................................45
General installation tips ...........................................46
Electrical connection..............................................47
After sales service, data plate ......................................50
Contents
3
CS 1212
aCooking zone with twin booster (BI/II)
bCooking zone with single booster (Bl)
cDisplay
dCooking zone symbols
eIndicators
Cooking zone controls:
fRear
gFront
Indicators
lIn-operation indicator
mBooster indicator
nResidual heat indicator
Guide to the appliance
4
CS 1221
aCooking zone with twin booster (BI/II)
bDisplay
cIndicators
dControl
Indicators
lIn-operation indicator
mBooster indicator
nResidual heat indicator
Guide to the appliance
5

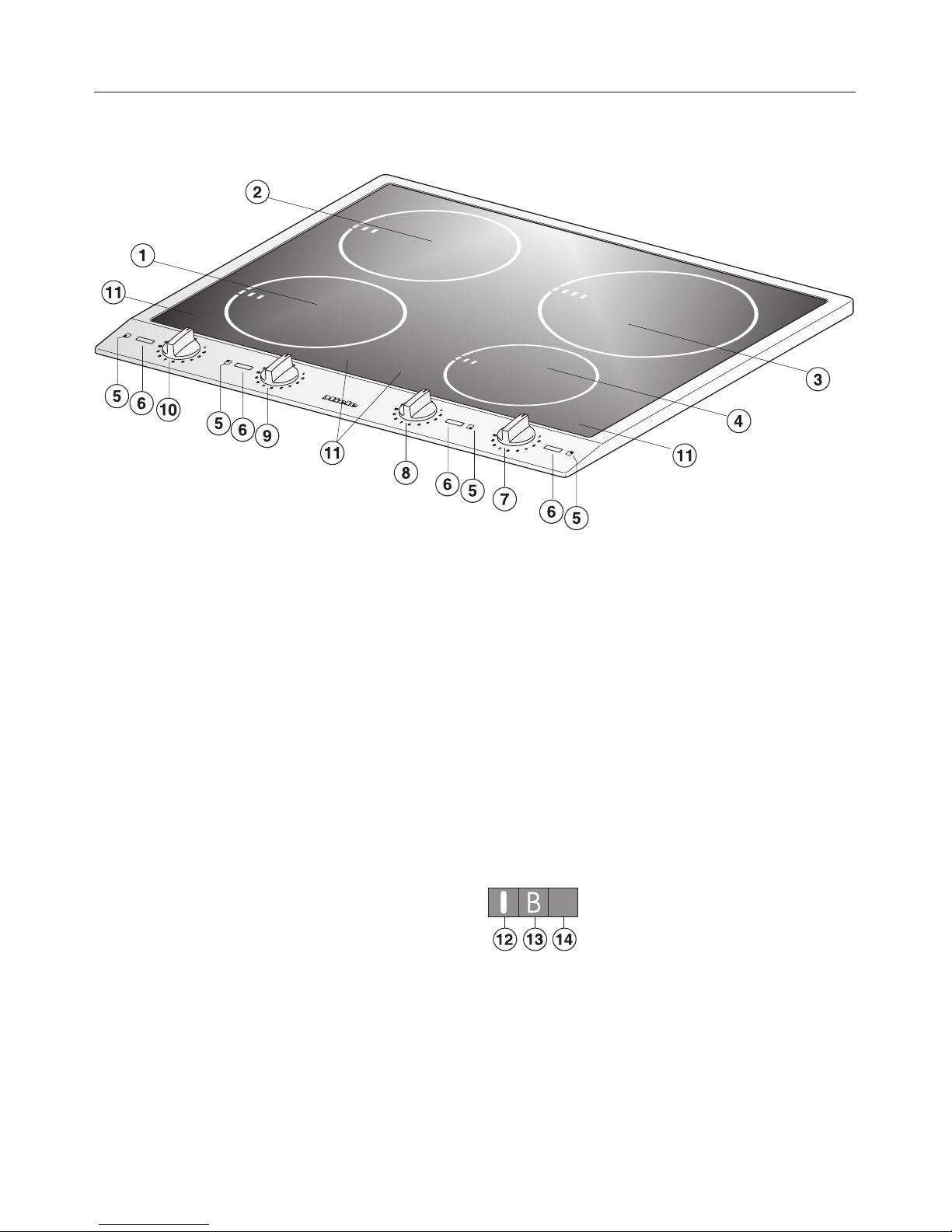

CS 1234
abd Cooking zones with single
booster (BI)
cCooking zone with twin booster (BI/II)
eCooking zone symbols
fIndicators
kDisplay
Cooking zone controls:
gRear right
hFront right
iRear left
jFront left
Indicators
lIn-operation indicator
mBooster indicator
nResidual heat indicator
Guide to the appliance
6
Display
ß= No pan on cooking zone or pan unsuitable
A= Auto heat-up
F= Fault message (see "Problem solving guide")
C/0= Safety switch off (see "Safety features")
I= Booster I
II = Booster II (only for cooking zones with twin boosters)
H= Overheating protection (see "Safety features")
L= Safety lock (see "Safety features")
Cooking zones
Cooking zone CS 1212
minimum to maximum C
in cm*
Rating in watts for 230 V**
Front 10 - 16 normal:
with booster:
1400
1800
Rear
16 - 23 normal:
with Booster I:
with Booster II:
2300
3000
3700
Total: 3700
* Pans of any diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
Guide to the appliance
7
CS 1221
minimum to maximum C
in cm*
Rating in watts for 230 V**
18 - 30 normal:
with Booster I:
with Booster II:
2400
3000
3700
Cooking zone CS 1234
minimum to maximum C
in cm*
Rating in watts for 230 V**
Front left 14 - 19 normal:
with booster:
1850
2900
Rear left 14 - 19 normal:
with booster:
1850
2900
Rear right 16 - 23 normal:
with Booster I:
with Booster II:
2300
3000
3700
Front right 10 - 16 normal:
with booster:
1400
1800
Total: 7400
* Pans of any diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
Guide to the appliance
8
This appliance complies with all
relevant local and national safety
requirements. Improper use of the
appliance can, however, present a
risk of both personal injury and
material damage.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before installation and before using
it for the first time. They contain
important notes on installation,
safety, operation and care of the
appliance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the content. Pass them
on to any future owner.
Correct application
~This appliance is intended for
domestic use for the preparation of
food only.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it, or have
been shown how to use it correctly by a
person responsible for their safety.
Warning and Safety instructions
9
Safety with children
~Activate the safety lock to ensure
that children cannot switch on the
appliance inadvertently.
~This appliance is not a toy! To avoid
the risk of injury, keep children away
from it at all times, and do not let them
play with it or use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may use the
appliance only when its operation has
been clearly explained to them and
they are able to use it safely,
recognising the dangers of misuse.
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Do not store anything which might
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.
~Keep all pans out of reach of
children. Turn pan handles inwards
away from the edge of the hob. Danger
of burning or scalding.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation. Dispose of or recycle all
packaging safely as soon as possible.
Warning and Safety instructions
10
