Operating and installation instructions
Ceramic hobs
KM 5801
KM 5813 / KM 5816
KM 5822
To avoid the risk of accidents or
damage to the appliance it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 07 570 890
en-GB
2
Guide to the appliance .............................................5
Models ...........................................................5
KM 5801 .......................................................5
KM 5813 / KM 5816 ..............................................6
KM 5822 .......................................................7
Control panel ......................................................8
Cooking zones ....................................................10
Warning and Safety instructions ....................................11
Caring for the environment.........................................17
Before using for the first time.......................................18
Cleaning for the first time............................................18
Before using for the first time.........................................18
How the cooking zones work .......................................19
Operation .......................................................20
How the hob is operated ............................................20
Switching on .....................................................21
Power level range .................................................22
Auto heat-up .....................................................23
Switching the outer circle of a double circle / extended zone on and off .......25
Switching off and residual heat indicators...............................26
Suitable pans ....................................................27
Tips on saving energy ............................................28
Timer ...........................................................29
Minute minder ....................................................30
To switch a cooking zone off automatically ..............................33
To use both timer functions at the same time ............................34
Contents
3
Safety features ...................................................35
Safety lock / System lock ...........................................35
Stop and Go......................................................36
Safety switch-off...................................................37
Overheating protection .............................................38
Cleaning and care ................................................39
Programming ....................................................41
Problem solving guide ............................................44
To test the power level ............................................48
Optional accessories..............................................50
Safety instructions for installation...................................51
Building-in dimensions ...........................................56
KM 5801.........................................................56
KM 5813.........................................................57
KM 5816.........................................................58
KM 5822.........................................................59
Installation ......................................................60
Electrical connection..............................................63
Wiring diagram ...................................................64
After sales service, data plate ......................................65
Contents
4
Models

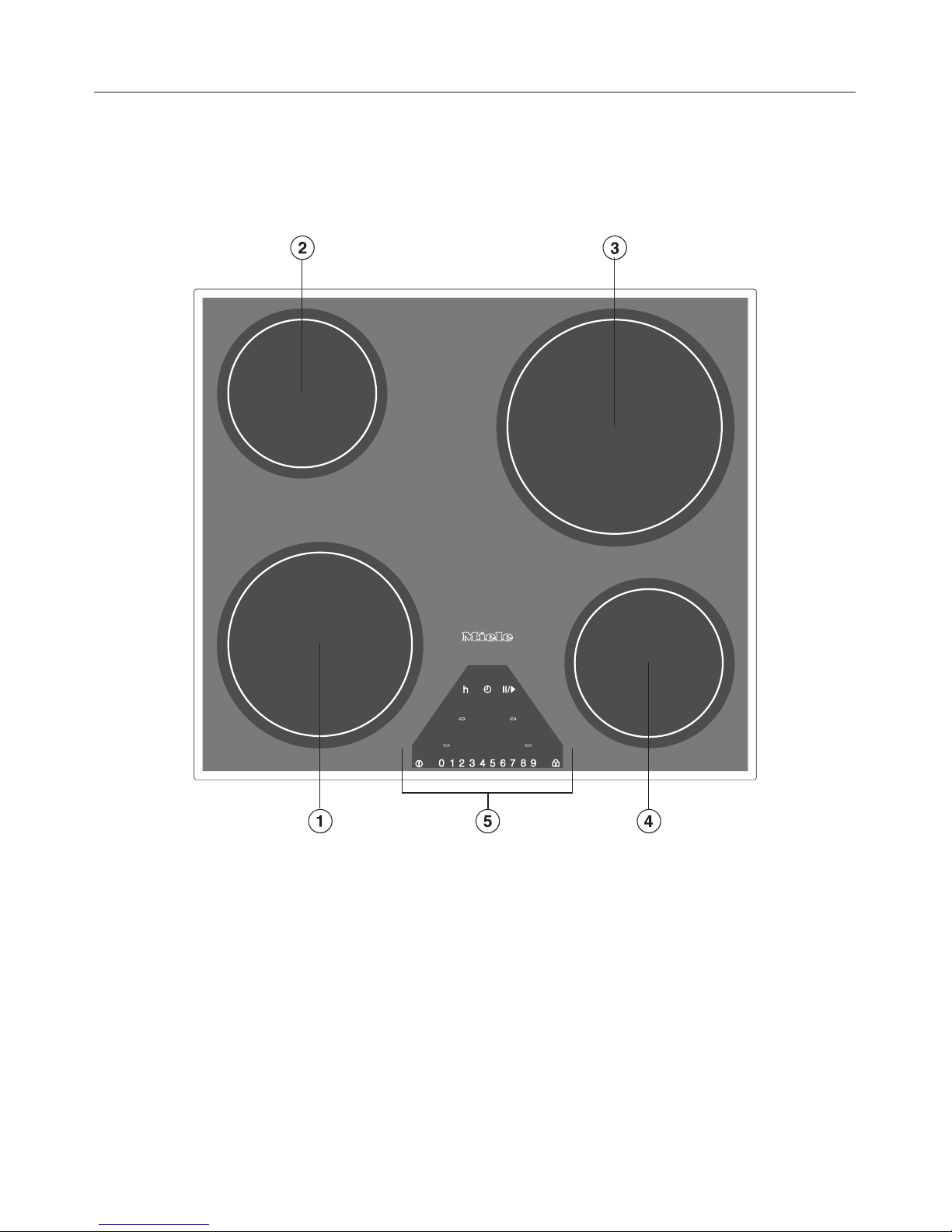

KM 5801
abcd Single circle zones
eControl panel
Guide to the appliance
5

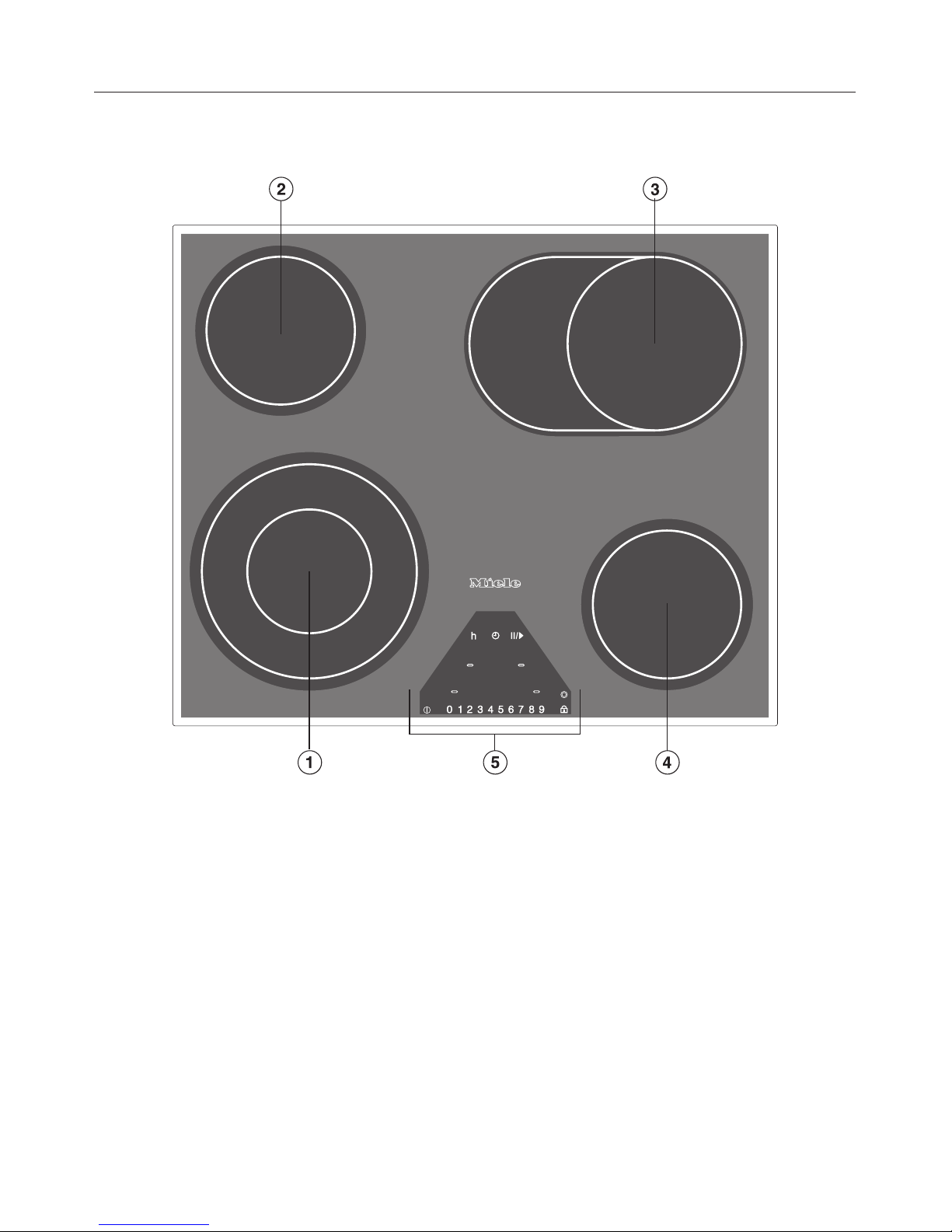

KM 5813 / KM 5816
aDouble circle zone
bd Single circle zones
cExtended cooking zone
eControl panel
Guide to the appliance
6

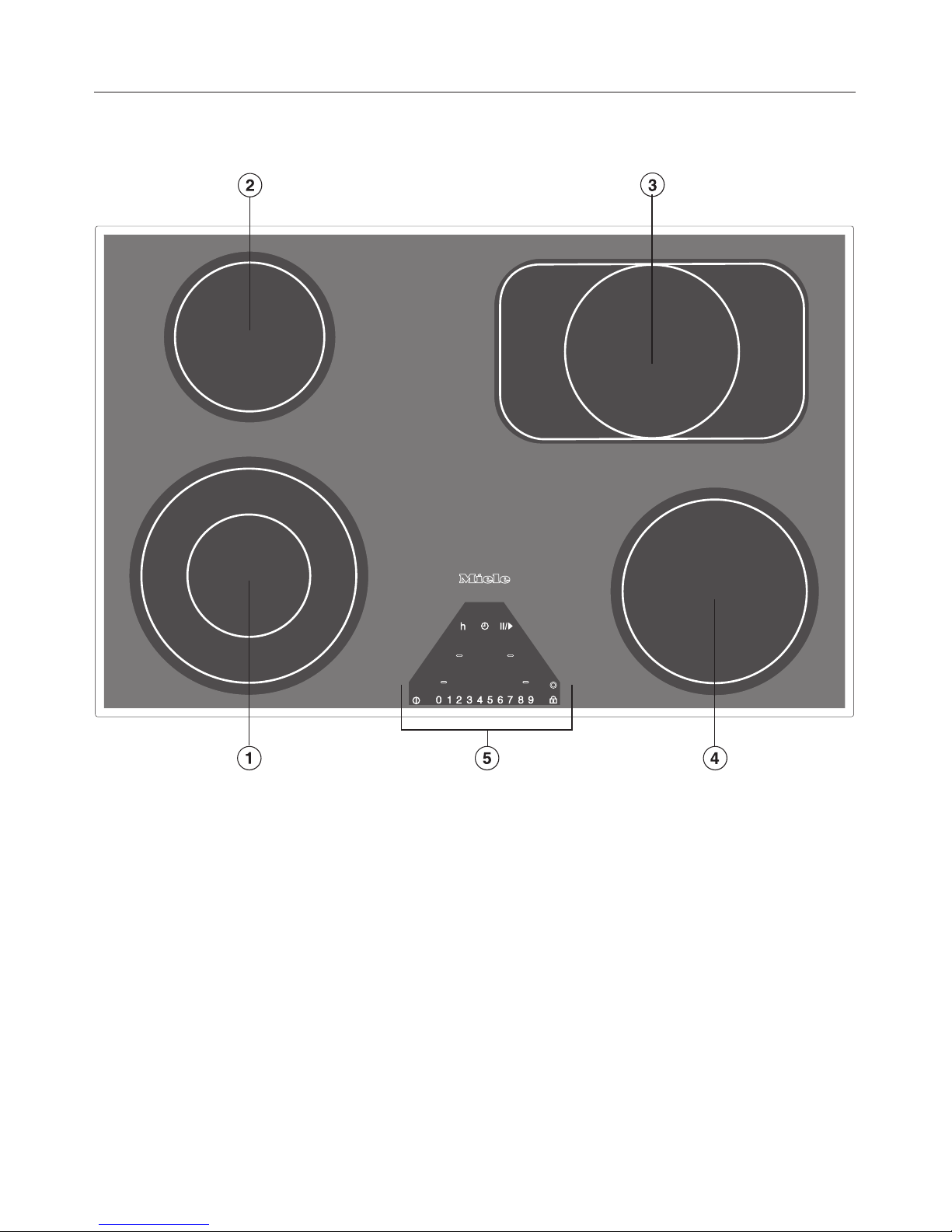

KM 5822
aDouble circle zone
bd Single circle zones
cExtended cooking zone
eControl panel
Guide to the appliance
7
Control panel
Guide to the appliance
8

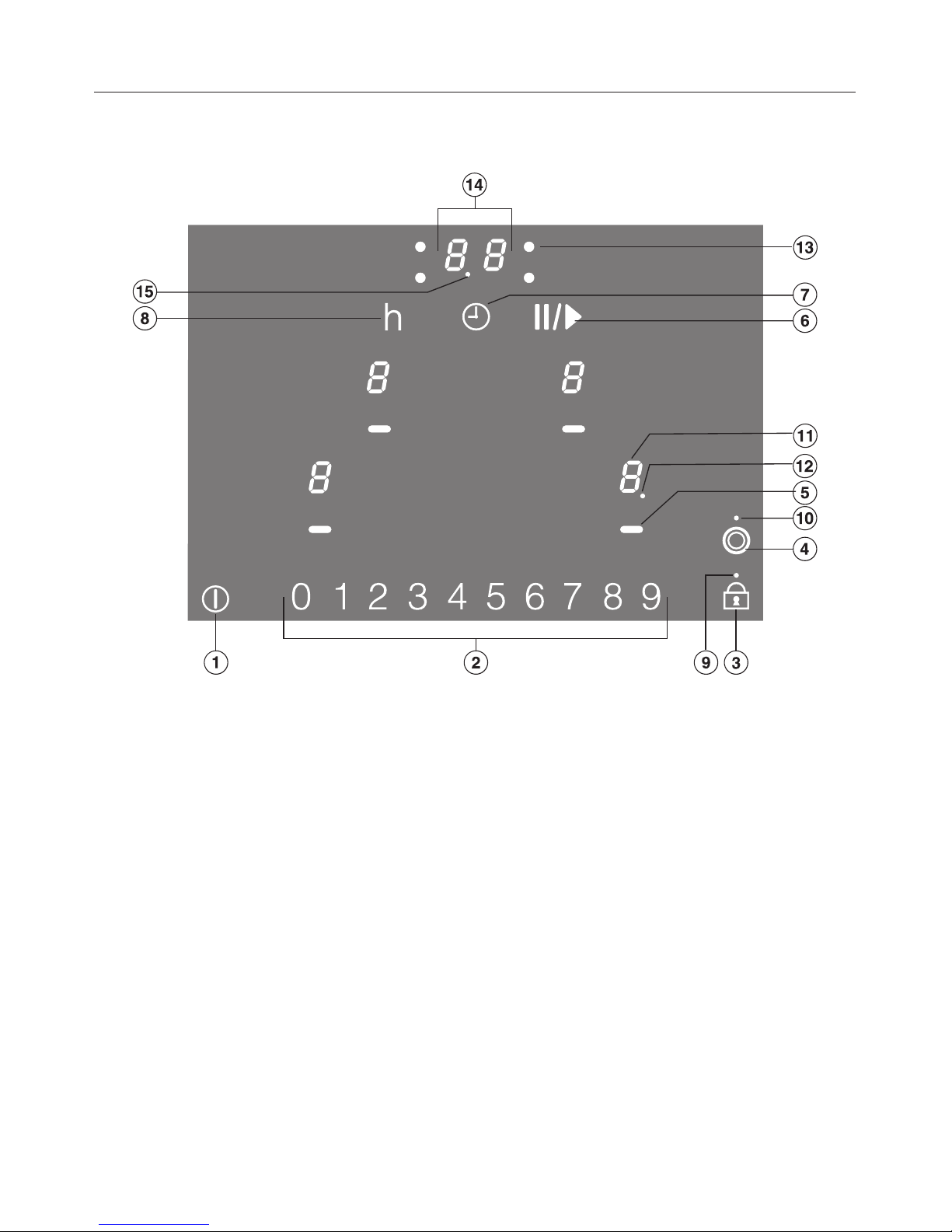

Sensors for
aSwitching the hob on and off
bNumerical keypad
- For setting the power level
- For setting the time
cSafety lock
dSwitching on the outer circle of a double circle/extended zone (depending on
model)
eSelecting the cooking zone
fStop and Go
g- Selecting the timer
- Switching between the timer functions
- Selecting the switch off time (see "Switching off a cooking zone automatically")
hHour function
Indicator lamps
iSafety lock
jOuter circle of a double circle/extended zone switched on
Cooking zone displays
k
0= Cooking zone ready for use
1to 9= Power levels
#= Residual heat
A= Auto heat-up when the power level range has been extended
lIndicator lamp for Auto heat-up or extended power setting (see "Programming")
Timer display
mIndicator lamp for relevant zone, e.g. the rear right cooking zone
n
00 to 99 = Time in minutes
0.^ to 9^ = Time in hours
PS = Programming (see "Programming")
F= Fault (see “Safety switch-off”)
oIndicator lamp for half hours with a minute minder time of more than 99 minutes
Guide to the appliance
9
Cooking zones
Zone KM 5801
Cin cm Rating in watts for 230 V
y18.0 1800
w14.5 1200
x21.0 2200
z14.5 1200
Total: 6400
Zone KM 5813 / KM 5816
Cin cm Rating in watts for 230 V
y12.0 / 21.0 750 / 2200
w14.5 1200
x17.0 /
17.0 x 26.5
1500 /
2400
z14.5 1200
Total: 7000
Zone KM 5822
Cin cm Rating in watts for 230 V
y12.0 / 21.0 750 / 2200
w14.5 1200
x17.0 / 17.0 x 29.0 1500 / 2600
z18.0 1800
Total: 7800
Guide to the appliance
10
