Contents

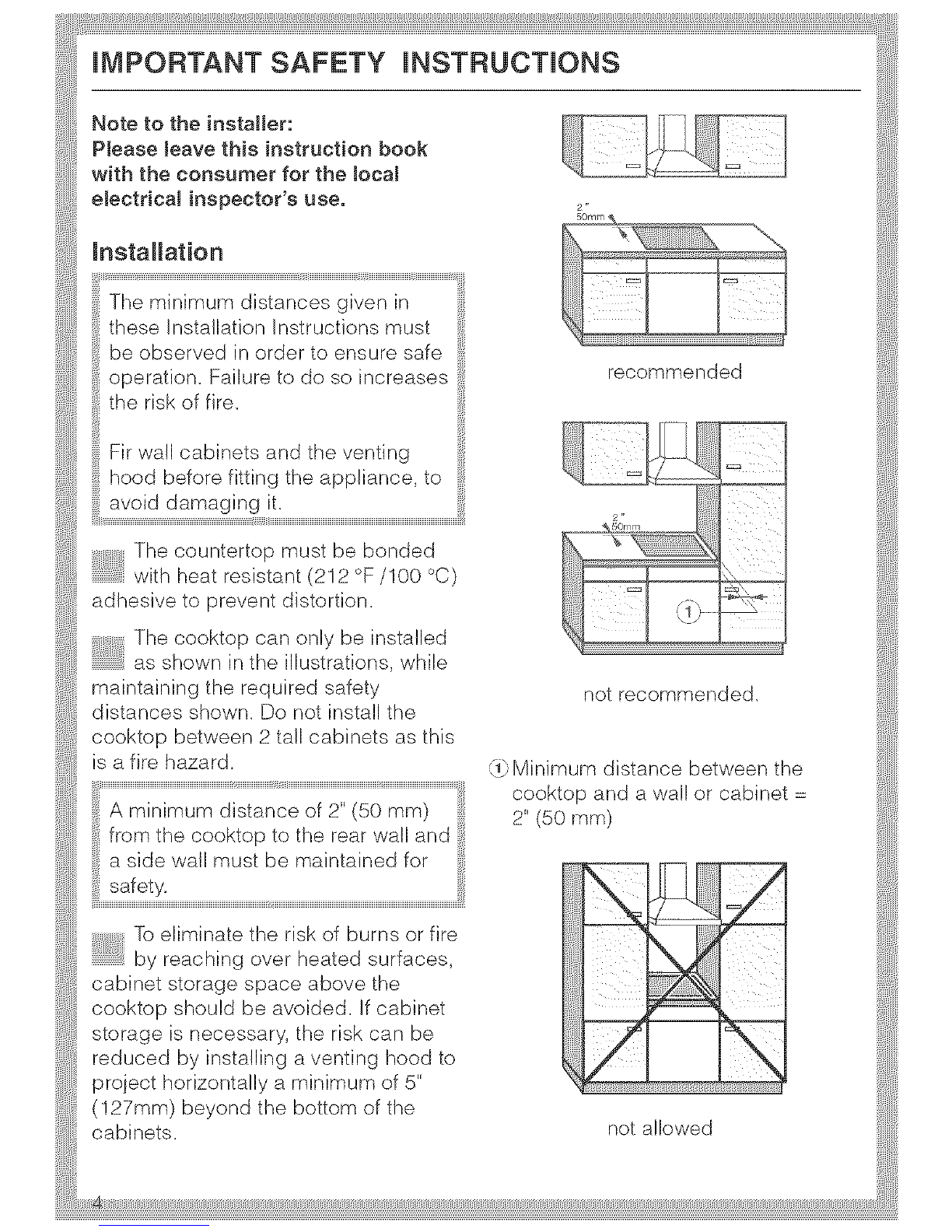

iMPORTANT SAFETY INSTRUCTmONS ................................ 4

installation ........................................................ 4

Minimum safety distance above the appliance ............................ 5

Appliance and cut-out dimensions

KM 452

,7 Spring clips

,_2_

,_There must be at least ,'3,'3/ ,,(81ram)

J16

of usable depth on the right side of

the cut ouL

[] Make the countertop cut-out following

the dimensions given in the

illustration.

[] Remember to maintain a minimum

distance of 2" (50) mm between the

rear watl and a right or left hand side

wa!l. See also "Important Safety

instructions".

[] Seal the cut surfaces with a suitable

sealant to avoid swelling caused by

moisture. The materials used must be

heat resistant.

If, during installation, the seal around [:

the frame does not sit flush with the

countertop on the corners, ,!he il

ii corner radius max. R4 (s/16) can be _

installation

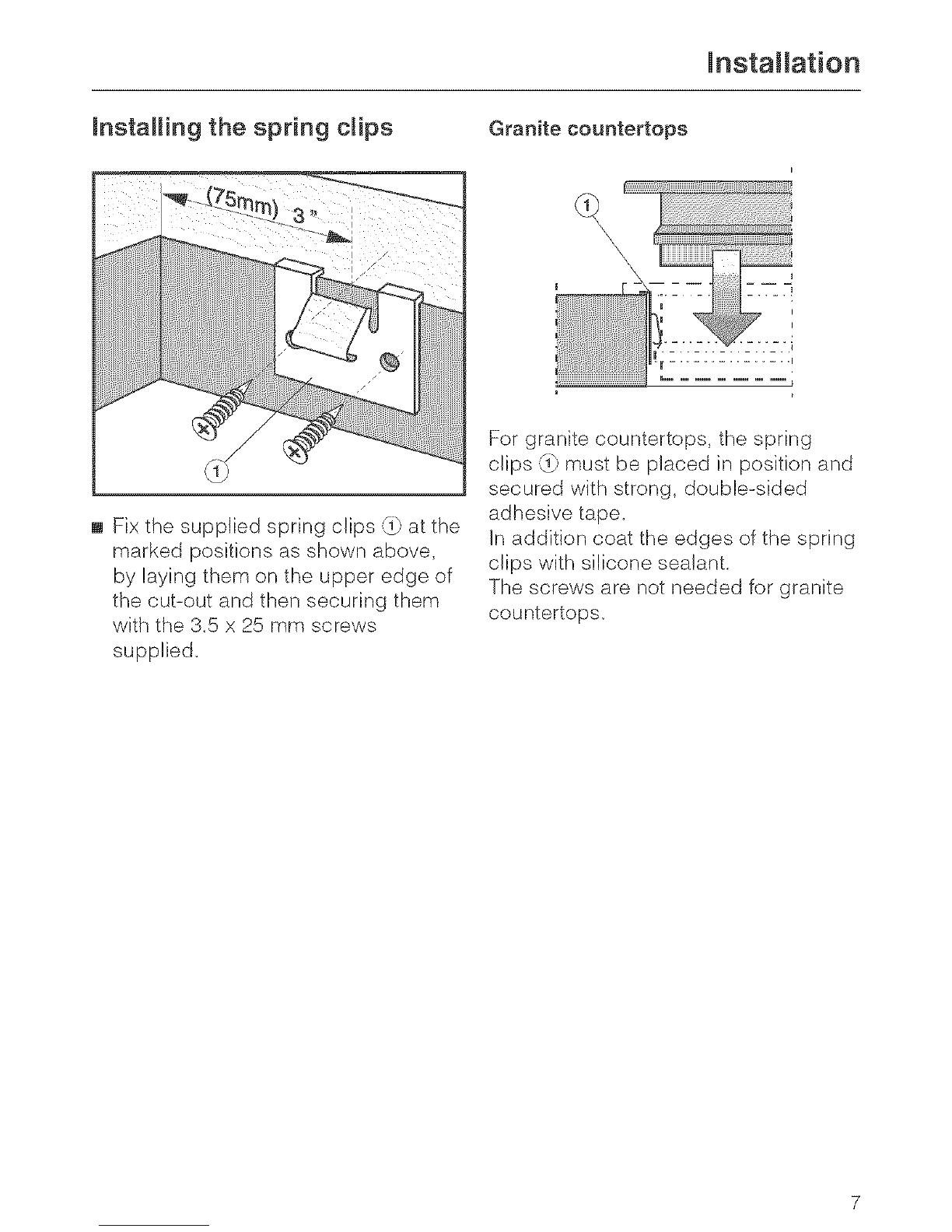

mnstaHing the spring dips Granite countertops

[] Fix the supplied spring clips _ at the

marked positions as shown above,

by laying them on the upper edge of

the cut-out and then securing them

with the 3.5 x 25 mm screws

supplied.

For granite countertops, the spring

clips _ must be placed in position and

secured with strong, double-sided

adhesive tape.

In addition coat the edges of the spring

clips with silicone sealant.

The screws are not needed for granite

cou ntertops.

installation

mnstaHing the cooktop

[] Feed the power cord down through

the cut-out and connect the

appliance to the power supply.

[] Position the cooktop on the spring

clips '_.

[] Then with a hand on each side of the

cooktop press down on the edges

evenly until it clicks into position.

When doing so make sure that the

cooktop seal sits tightly on the

countertop to ensure a correct seal is

provided.

The cooktop can now only be

removed with a special tool.

Thecooktopmustnotbeperm-

anently'sealed into the countertop ;:i

If the cooktop is sealed into position,

the countertop or appliance could be

damaged if the cooktop needs to be

removed for maintenance or service.

The sealing strip under the edge of the

top part of the cooktop provides a

sufficient seal for the countertop.

Electrical connection

@d_i_Qiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiid_J

z_CAUTION: Before servicing,

disconnect the power supply by ......

either removing the fuse, shutting off

the power main or manually

"tripping" the circuit breaker.

i nstallation work and repairs should

only be performed by a qualified

technician in accordance with all

applicable codes and standards.

i epairs and service by unqualified

persons could be dangerous and

the manufacturer will not be held

responsible.

i efore connecting the appliance to

the power supply, make sure that the

voltage and frequency listed on the

data plate correspond with the

household electrical supply. This

data must correspond to prevent

machine damage. Consult an

electrician if in doubt.

Only operate the cooktop after it has

been installed into the countertop.

Installer:

Please _eave these instructions with

the consumer,

Power supply

The cooktop is equipped with a flexible

power cord consisting of 3 wires ready

for connection to a grounded power

supply:

- 120/240 V,60 Hz, 50 A fuse rating

- 120/208 V,60 Hz, 50 A fuse rating

Black wire: connect to L1 (hot)

Red wire: connect to L2 (hot)

Green wire: connect to GND (ground)

A dedicated line and junction box

should be used to connect the cooktop

to a 50 A circuit.

For further information, see the wiring

diagram provided with the appliance.

_WARNING:

THiS APPLIANCE MUST BE

GROUNDED!
