Build In Oven INSTRUCTION MANUAL

▲

Thank you for buying Midea Built-in Oven. Before

unpacking it, please read these instructions carefully.

Only then will you be able to operate your appliance

safely and correctly. Warmly recommend retain the

instruction manual and installation instructions for

future use or for subsequent owners.

The appliance is only intended to be fitted in a kitchen.

Observe the special installation instructions.

Check the appliance if there is any damage after

unpacking it. Do not connect the appliance if it has

been damaged.

Only a licensed professional may connect appliances

without plugs. Damage caused by incorrect connection

is not covered under warranty. Only use this appliance

indoors. The appliance must only be used for the

preparation of food and drink. The appliance must be

supervised during operation.

This appliance may be used by children over the age

of 8 and by persons with reduced physical, sensory

or mental capabilities or by persons with a lack of

experience or knowledge if they are supervised or

are instructed by a person responsible for their safety

how to use the appliance safely and have understood

the associated hazards. Children must not play with,

on, or around the appliance. Children must not clean

the appliance or carry out general maintenance unless

they are at least 8 years old and are being supervised.

Keep children below the age of 8 years old at a safe

distance from the appliance and power cable.

And please always slide accessories into the cavity

the right way round.

intended Use

SAFETY INFORMATION

EN-2

▲WARNING

Risk of electric shock!

1. Incorrect repairs are dangerous. Repairs may only

be carried out and damaged power cables replaced

by one of our trained after-sales technicians. If the

appliance is defective, unplug the appliance from the

mains or switch off the circuit breaker in the fuse box.

Contact the aftersales service.

2. The cable insulation on electrical appliances may

melt when touching hot parts of the appliance.

Never bring electrical appliance cables into contact

with hot parts of the appliance.

3. Do not use any high-pressure cleaners or steam

cleaners, which can result in an electric shock.

4. A defective appliance may cause electric shock.

Never switch on a defective appliance. Unplug the

appliance from the mains or switch off the circuit

breaker in the fuse box. Contact the after-sales

service.

Risk of burns!

1. The appliance becomes very hot. Never touch the

interior surfaces of the appliance or the heating

elements.

2. Always allow the appliance to cool down.

3. Keep children at a safe distance.

use oven gloves to remove accessories or ovenware

from the cavity.

5. Alcoholic vapors may catch fire in the hot cooking

compartment. Never prepare food containing large

quantities of drinks with high alcohol content. Only

use small quantities of drinks with high alcohol

content. Open the appliance door with care.

4. Accessories and ovenware become very hot. Always

EN-3

Risk of scalding!

1. The accessible parts become hot during operation.

Never touch the hot parts. Keep children at a safe

distance.

2. When you open the appliance door, hot steam can

escape. Steam may not be visible, depending on its

temperature. When opening, do not stand too close

to the appliance. Open the appliance door carefully.

Keep children away.

3. Water in a hot cavity may create hot steam. Never

pour water into the hot cavity.

Risk of injury!

1. Scratched glass in the appliance door may develop

into a crack. Do not use a glass scraper, sharp or

abrasive cleaning aids or detergents.

2. The hinges on the appliance door move when

opening and closing the door, and you may be

trapped. Keep your hands away from the hinges.

Risk of ﬁre!

1. Combustible items stored in the cavity may catch

fire. Never store combustible items in the cavity.

Never open the appliance door if there is smoke

inside. Switch off the appliance and unplug it from

the mains or switch off the circuit breaker in the

fuse box.

2. A draught is created when the appliance door is

opened. Greaseproof paper may come into contact

with the heating element and catch fire. Do not

place greaseproof paper loosely over accessories

during preheating. Always weight down the

greaseproof paper with a dish or a baking tin. Only

cover the surface required with greaseproof paper.

Greaseproof paper must not protrude over the

accessories.

EN-4

Hazard due to magnetism!

Permanent magnets are used in the control panel or

in the control elements. They may affect electronic

implants, e.g. heart pacemakers or insulin pumps.

Wearers of electronic implants must stay at least

10 cm away from the control panel.

Causes of Damage

1. Accessories, foil, greaseproof paper or ovenware

on the cavity floor: do not place accessories on

the cavity floor. Do not cover the cavity floor with

any sort of foil or greaseproof paper. Do not place

ovenware on the cavity floor if a temperature of

over 50 0C has been set. This will cause heat to

accumulate. The enamel will be damaged.

2. Aluminum foil: Aluminum foil in the cavity must

not come into contact with the door glass. This

could cause permanent discoloration of the door

glass.

3. Silicone pans: Do not use any silicone pans, or any

mats, covers or accessories that contain silicone.

The oven sensor may be damaged.

4. Water in a hot cooking compartment: do not pour

water into the cavity when it is hot. This will cause

steam. The temperature change can cause damage

to the enamel.

5. Moisture in the cavity: Over an extended period of

time, moisture in the cavity may lead to corrosion.

Allow the appliance to dry after use. Do not keep

moist food in the closed cavity for extended periods

of time. Do not store food in the cavity.

6. Cooling with the appliance door open: Following

operation at high temperatures, only allow the

EN-5

appliance to cool down with the door closed.

Do not trap anything in the appliance door.

Even if the door is only left open a crack, the front

of nearby furniture may become damaged over time.

Only leave the appliance to dry with the door open

if a lot of moisture was produced while the oven was

operating.

7. Fruit juice: when baking particularly juicy fruit pies,

do not pack the baking tray too generously. Fruit

juice dripping from the baking tray leaves stains

that cannot be removed. If possible, use the deeper

universal pan.

8. Extremely dirty seal: If the seal is very dirty, the

appliance door will no longer close properly during

operation. The fronts of adjacent units could be

damaged. Always keep the seal clean.

9. Appliance door as a seat, shelf or worktop: Do not

sit on the appliance door or place or hang anything

on it. Do not place any cookware or accessories on

the appliance door.

10.Inserting accessories: depending on the appliance

model, accessories can scratch the door panel when

closing the appliance door. Always insert the

accessories into the cavity as far as they will go.

11. Carrying the appliance: do not carry or hold the

appliance by the door handle. The door handle

cannot support the weight of the appliance and

could break.

12.If you use the residual heat of the switched off oven

to keep food warm, a high moisture content inside

the cavity can occur. This may lead to condensation

and can cause corrosion damage of your high

quality appliance as well as harm your kitchen.

Avoid condensation by opening the door or use

“Defrost” mode.

EN-6

To operate this appliance safe, please be sure that it has been installed

to a professional standard respecting the installation instructions.

Damages occur because of incorrect installation are not within the

warranty.

While doing the installation, please wear protective gloves to prevent

yourself from getting cut by sharp edges .

Check the appliance if there is any damage before installation and do

not connect the appliance if there is.

Before turning on the appliance, please clean up all the packaging

materials and adhesive film from the appliance.

The dimensions attached are in mm.

It is necessary to have the plug accessible or incorporate a switch in

the fixed wiring, in order to disconnect the appliance from the supply

after installation when necessary.

Warning：The appliance must not be installed behind a decorative

door in order to avoid overheating.

INSTALLATION

566

6755

559955

669955

546

560

min.

600

min.35

560

560 +

006644

500

105

min.

550

55..nniimm

min.35

500

min.35

min.585

max.595 min.

min.

590 550

550 006644

105

min.35

500

560

560+88

55..nniimm

EN-7

03 KNOW YOUR APPLIANCE

▲IDENTIFYING THE APPLIANCE

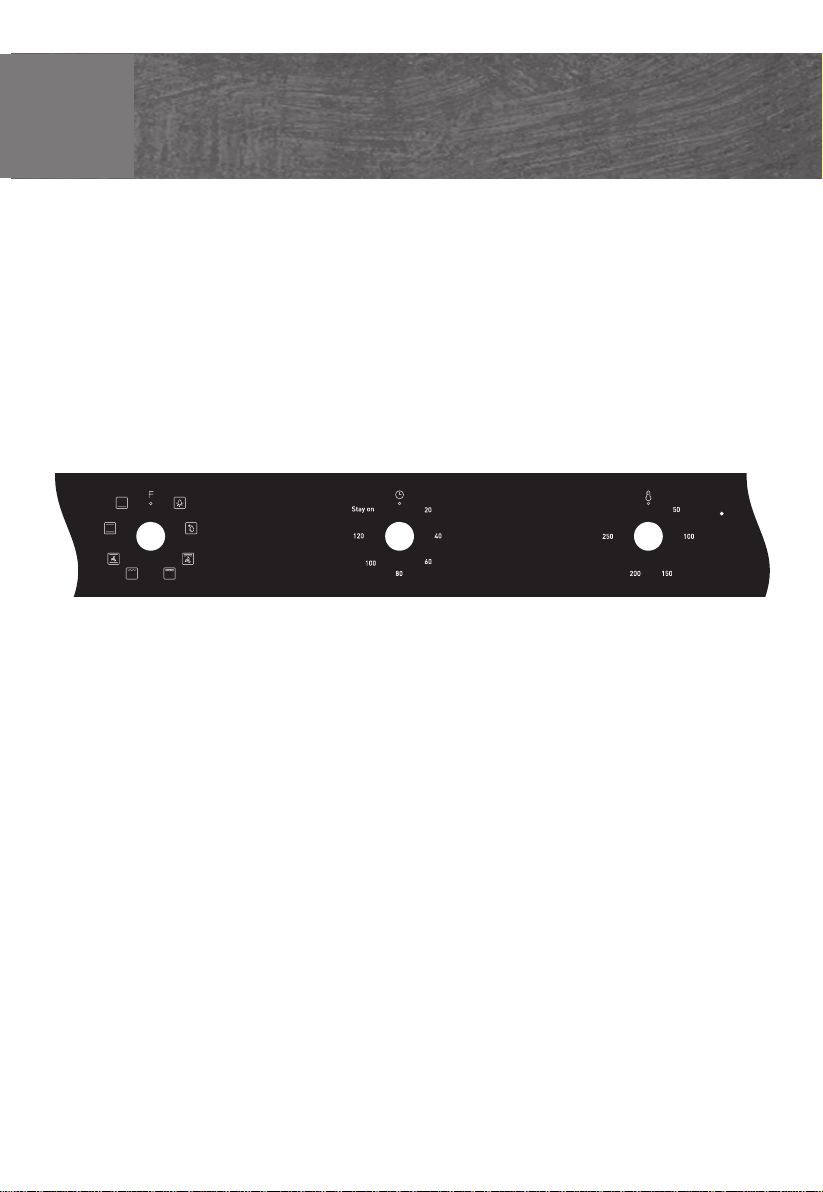

▲CONTROL PANEL

In this chapter, we will explain the control panel and accessories.

At the same time you will also find out about the various functions

of your appliance.

Note: Depending on the appliance model, individual details and

colors may different.

Knobs

Turn these knobs to set operating mode, each knob is well fitted with

the nearby silk-screening icons on the control panel glass so that you

can easily operate your appliance with your fingers.

Indicator light

Indicator is sort of a light that notice you if heaters inside the appliance

are working or not, while the appliance is switched on, the indicator

will be on and off intermittently.

Controls

The individual controls are adapted for the various functions of your

appliance. You can set your appliance simply and directly. There is no

constraint for the orders of operating the knobs, making your-self

fully free while using the appliance.

→"Operate Your Appliance" on page 14

EN-8

▲OPERATING MODES

▲Types of heating

Your appliance has various operating modes which make your appliance

easier to use. To enable you to find the correct type of heating for your

dish, we have explained the differences and scopes of application here.

The symbols for each type help you to remember them.

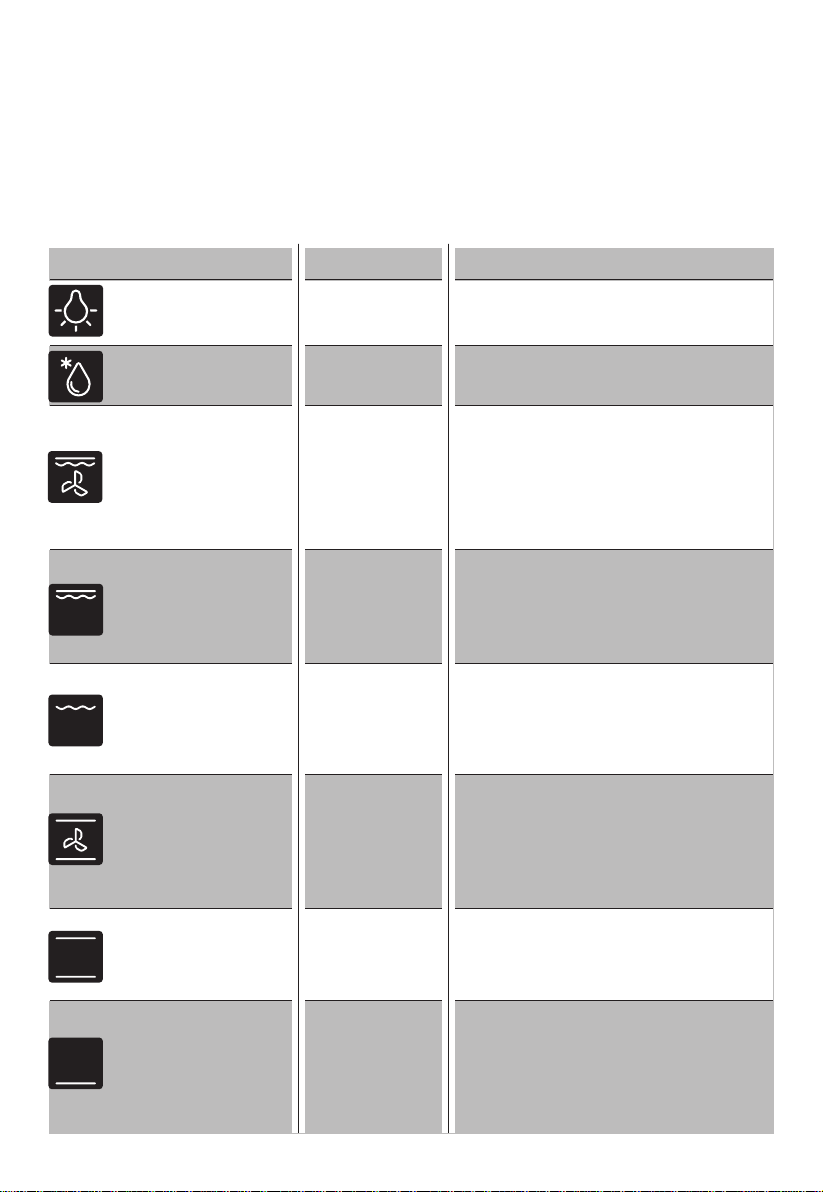

Lamp

Defrost

Double Grill + Fan

Double Grill

Radiant Heat

Conventional + Fan

Conventional

Bottom

50°C~250°C

For lightening the cavity without

any heating element switch on.

For roasting poultry, fish and

larger pieces of meat. The

heating element and the fan

switch on and off alternately.

The fan circulates the hot air

around the food.

For grilling flat items for grilling,

such assteaks,sausages,toast

and so on.

The whole area below the

heating element becomes hot.

For grilling small amounts of

steaks or sausages.

The center area under the

heating heating element

becomes hot.

For baking and roasting on one

or more levels.(But no more than

The fan distributes heat from

heating elements evenly around

the cavity.

For traditional baking and

roasting on one level.

Especially suitable for cakes

with moist toppings.

For preparing pizza and dishes

which require a lot of heat from

underneath.

The bottom heating element

heats up and the fan distributes

heat evenly around the cavity.

For gently defrosting frozen

food.

Heating Mode Temperature Use

EN-9

▲Notes

1. To defrost big portions of food, it is possible to remove the side-racks

and place the container on the cavity floor.

2. To warming tableware, it is beneficial to remove the side-racks and the

heating modes “Hot Air Grilling” and “Fan Heating” with temperature

setting of 50°C are useful. “Hot Air Grilling” should be used, if more

than half of the cavity floor is covered by the tableware.

3. Due to an optimum evenness of heat distribution inside the cavity

during “Fan Heating”, the fan will work at certain times of the heating

process, to guaranty the best possible performance.

▲Caution

1. If you open the appliance door during an on-going operation, the

operation will not be paused. Please be especially careful with the

risk of burns.

2. Do not cover the ventilation slots. Otherwise, the appliance may

overhea.To make the appliance cools down more quickly after the

operation, the cooling fan may continue to run for a period

afterwards.

Lighting

When you switch the appliance on to any mode, the lamp will be always

on until the operation has finished. You can use the main mode: “Lamp”

during different operations, i.e. cleaning, preparing the cooking process,

pause heating modes during opening the door.

Cooling fan

The cooling fan switches on and off as required. The hot air escapes

above the door.

EN-10

Table des matières

Autres manuels Midea Four

Midea

Midea 310715 Manuel utilisateur

Midea

Midea PS2022Z Manuel utilisateur

Midea

Midea MO 655 BK Manuel utilisateur

Midea

Midea AAE40006 Manuel utilisateur

Midea

Midea MEO-32Z25 Manuel utilisateur

Midea

Midea MEO-38GY5 Manuel utilisateur

Midea

Midea B 3.60 IX Manuel utilisateur

Midea

Midea MOP9BL Manuel utilisateur

Midea

Midea 93M90D0 Manuel utilisateur

Midea

Midea 315544 Manuel utilisateur

Midea

Midea TR936T4CR Manuel utilisateur

Midea

Midea MO 729 TDE BK Manuel utilisateur

Midea

Midea 310717 Schéma de câblage

Midea

Midea 7NM30EO Manuel utilisateur

Midea

Midea TJE17GS7-S00N0A Manuel utilisateur

Midea

Midea MO9BL Manuel utilisateur

Midea

Midea MEO-10BDW-BK Manuel utilisateur

Midea

Midea TF044E4MD-SH0DK0 Manuel utilisateur

Midea

Midea MAF-CN20A Manuel utilisateur

Midea

Midea MO 713 TDE BK Manuel utilisateur

Midea

Midea PS2022Z-S1 Manuel utilisateur

Midea

Midea MEO-25EX1 Manuel utilisateur

Midea

Midea MCOS34BL Manuel utilisateur

Midea

Midea 65CME19 series Manuel utilisateur

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
