Microtek XT3300 Mode d’emploi

Install Software

Unpack Contents

Start Here

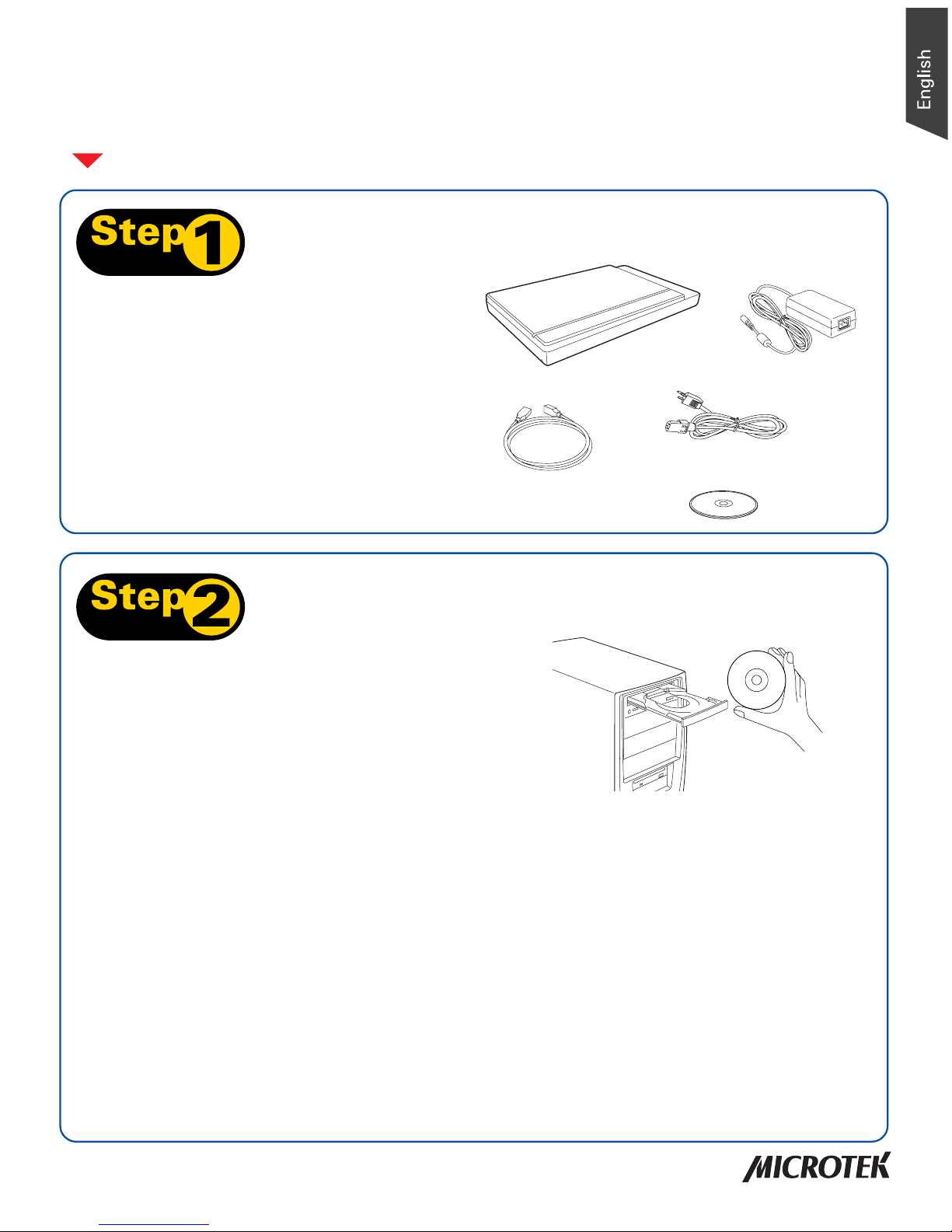

Installing your Microtek XT3300

Unpack your scanner package and check

for major components.

1. Scanner

2. Power adapter

3. Power cord

4. Software CDs/DVDs

5. Hi-Speed USB cable

Important:Do not remove the yellow stickers from your

scanner until you are told to do so. You must install

software before connecting your scanner.

Always close any open programs and turn off Anti-virus

utilities before installing software.

I49-004547 B, September 2013

PC:

A. Place the Microtek Software CD/DVD

into a drive, and follow the on-screen

instructions to install the scanner

driver and software.

B. Restart your computer at the end of

all software installation.

NOTE: If the Microtek Software Installer

screen does not come up automatically,

double-click the following in succession: “My

Computer”; the CD/DVD-ROM icon; then

cdsetup.exe to start the installer program.

MAC:

A. Place the Microtek Software CD/DVD

(ScanPotter) into a drive, and double-

click the ScanPotter installer icon to

install ScanPotter.

B. Install the remaining software

components, then restart your computer

at the end of all software installation.

NOTE: After rebooting your Macintosh, the

Microtek software will attempt to locate your

scanner on the system. Since this is your first

install and you have not yet connected the

scanner, simply ignore the message that appears

and proceed to the next step.

To the power adapter

A. Remove the yellow “Step 4” sticker from your scanner.

B. Connect the power adapter to the back of the scanner.

C. Plug one end of the power cord into the power adapter, and plug the other end of the

power cord into a wall outlet or other power source.

A. Remove the yellow “Step 3” sticker from

your scanner.

B. With the scanner power off, tilt the front

right corner of the scanner to see the

locking switch at the bottom.

C. Push the locking switch to the position as

indicated in the graphic, with the icon on

the lock showing as “Unlocked”.

NOTE: To lock the scanner (for shipping and other

reasons), tilt the scanner and look for the locking

switch on the right front corner at the bottom, then

push the locking switch to the "Locked" position.

DO NOT turn the scanner upside down when

attempting to lock the unit.

Unlock Scanner

Connect Scanner

Unlocked Locked

To the Hi-Speed USB cable

D. Connect one end of the cable to your computer.

E. Connect the other end of the cable to the scanner.

F. Press the power switch at the back of the scanner.

When the scanner is detected by your system,

Power switch

Customize the Function Buttons

The XT3300 is equipped with 3 programmable function buttons (F1, F2, and F3) that can

be customized to automate a number of predefined operations, such as scanning to a file,

sending an image to your printer, scanning for OCR, etc. Customizing is done through the

Save Settings to Function Button command in the ScanWizard DI, refer to the XT3300

User’s Manual for more details.

3 programmable function buttons

•F1, F2, and F3: Customizes the

function buttons to perform your

preferred functions.

F1 F2 F3

Connect Scanner (cont.)

the LED will be lightened up, and the scanner is

ready to scan.

Position Documents

1. Raise the scanner lid.

2. Place the document to be scanned facing down

on the glass surface of the scanner. Center the

top of the document along the horizontal ruler

on the scanner.

3. Lower the scanner lid.

Basic Scanning for PC Users

1. Place the document to be scanned on the scanner’s glass surface.

2. Launch ScanWizard DI (either as a stand-alone by clicking the program icon, or by

using the “File-Import” or “Scan” command from an application program).

3. Specify your scanning requirements in the ScanWizard DI control panel.

a) Select Flatbed as your image input device in the Scan Source drop-down menu.

b) Select your image output type in the Scan Type drop-down menu.

– Select RGB Color (24 bits) to scan the image in color.

– Select Grayscale (8 bits) to scan the image in grayscale.

– Select Black & White (1 bit) to scan the image in black-and-white.

c) Select a dimension in the Paper Size drop-down menu as your preview image size.

d) If the Auto-crop & Auto-deskew option is selected, the scanner automatically

detects the size of the original image, crops the full scan frame to fit the image,

and removes unwanted black borders after the scan, as well as corrects the

distorted image for proper alignment.

e) Select your desired image output resolution in the Resolution drop-down menu.

4. Click the Preview button to perform a preliminary view of the entire image. When

done, a preview image appears in the preview window.

10 20 30 40 50 60 70 80 90 10011 0 120130 140 150 160 170 180 190 200 210

01'

020304050

NOTE: To scan a book or thick

documents, you may lift the scanner

lid out of its hinge sockets. Then,

align the inner margin of a book along

the edge of the scanner glass surface

as indicated in the graphic, using the

arrow printing mark on the horizontal

ruler as a point of reference.

Basic Scanning for PC Users (cont.)

5. If necessary, click the Select Frame tool button to adjust the size of the scan frame

(enclosed within the red dotted lines and labeled with the tag “Main”). Drag on the

edge or corner of the scan frame to resize the scan frame.

6. Select the your image type in the Attribute drop-down menu.

– Select Line Art to scan line art images (images in one color or in black-and-white,

such as logos or mechanical blueprints).

– Select Photo to scan color prints.

– Select Text to scan text.

7. If necessary, adjust image quality by using the image correction tools.

8. Click the Scan or Scan To button to start scanning.

If ScanWizard DI is launched as a Plug-In from an image-editing program, the scanned

image is delivered after the scan to your application, where the image can be saved,

printed, or modified further.

If ScanWizard DI is launched as a stand-alone program, the scanned image can be

saved after the scan to a file, opened in an image-editing program, or sent to a

printer.

Scan frame

(enclosed by dotted

lines and labeled with

the tag “Main”)

Preview window

Preview image (the

enclosed frame bordered

in red)

Image correction

settings

Image type

Scanning settings

NOTE: For details on other scanning scenarios applicable to the XT3300, refer to the XT3300 User’s

Manual.

Window expansion

button

Basic Scanning for Mac Users

1. Place the document to be scanned on the scanner’s glass surface, as detailed in the

“Position Documents” section in this guide.

2. Launch ScanPotter as a stand-alone by clicking on the program icon, or by selecting it

from the application folder in your Mac OS X system.

3. In the Scan Source options menu, choose Reflective.

4. Specify your scanning requirements in the Scanner Settings column.

a) Select the appropriate image type (e.g., RGB Color) in the Color Type as your

image output type.

- Select Color to scan the image in color.

- Select Grayscale to scan the image in grayscale.

- Select Black & White to scan the image in black-and-white.

b) Select a desired resolution in the Resolution for your image output resolution.

c) Select Automatic Detection or a desired dimension in the Scan Frame as your

preview image size.

5. Click the Preview button to perform a preliminary scan of the image in the Preview

window.

6. If necessary, resize the scan frame (floating dotted rectangle) around the image by

dragging on the square spots on the edge or on the corner of the scan frame to

determine the final size of the actual scan.

7. If necessary, specify file settings for your output image files, using the options offered

in the File Saving Settings column.

8. If necessary, click the Image Settings button to switch to a window in which you can

select a preset image effect to the image directly or adjust image quality manually by

using the additional image correction tools.

9. Click the Scan button to start scanning.

NOTE: For more details on using ScanPotter, refer to the ScanPotter Reference Manual in the

Microtek Software CD/DVD.

Click the Image Settings

button to switch to a

window where contains a

composite display of nine-

image-effects (Filter

column) and additional

image correction tools

(Additional Adjustment

column) for your scanned

image.

Click the Scan Settings button

to switch back to the default

control panel of ScanPotter

Scan frame

(enclosed by dotted lines)

Preview

window when

scanning

photos

Problems?

The LED on the front panel indicates the status of the scanner.

First, make sure that you have followed Steps 1 to 4 as described in this guide (unpack,

install, unlock, connect). Then if your problem is listed here, try the suggested solution.

1. No light comes on when the scanner is turned on.

Make sure your scanner is connected to your computer and plugged into a power

source.

Make sure your scanner is detected by your computer.

2. The Add/Remove Hardware Wizard appears on your screen.

Click the “Cancel” button and close the ScanWizard DI or ScanPotter Control Panel.

Disconnect the Hi-Speed USB cable from the back of your computer, and refer to the

installation instructions in this guide.

3. When trying to scan, an error message appears on your screen that reads, “Can’t Find

Scanners”.

Make sure your scanner is unlocked (see Step 3).

Make sure your scanner is connected to your computer and plugged in to a power

source (see Step 4).

Uninstall and reinstall the ScanWizard DI or ScanPotter software.

4. After clicking scan, a blank screen appears.

Make sure your scanner is unlocked (see Step 3).

Uninstall and reinstall the ScanWizard DI or ScanPotter software.

5. Having trouble scanning the documents.

Make sure you place the document to be scanned properly on the scanner glass

surface.

Uninstall and reinstall the ScanWizard DI or ScanPotter software.

On - Ready to scan

Off - Scanner is off

Green Flashing - Scanning

LED indicator

Do You Need Assistance?

Manuals

If you have additional questions and need further instruction or information, we provide

electronic manuals for:

1. Using your XT3300 User’s Manual

2. Using the ScanWizard DI or ScanPotter scanning software

3. Using the bundled third-party software

To access the electronic manuals: Insert the scanner’s software CD/DVD into your

computer’s CD/DVD-ROM drive. Next, locate and click the “Manuals” option when the

software installer window appears on your screen. Finally, select and click the title of the

manual you wish to view.

Missing Items

If your package is missing items, please call the Microtek Customer Service Department.

Drivers & Software Upgrades

After you finish the installation of software, if you found that the installed drivers and

software cannot run your product or your computer system properly later, please go to

the Microtek Download Service site at ww7.microtek.com.tw/service.php to download

and install any updates you may require.

For additional information about Microtek products, please visit our website at

www.microtek.com.

ColoRescue are trademarks or registered trademarks of Microtek International,

Inc. All other trademarks or registered trademarks are the property of their

respective holders. Specifications, software and hardware bundles are subject

to change without notice. Delivery of technical support services subject to

change without notice. Not responsible for typographical errors.

Power Adapter

Use only power supplies (AC/DC adapters) listed below:

Voltage Manufacturer Model No.

100V to 240V HAIDER HDAD38W101

NOTE: Please make sure that the electrical outlet to where the scanner will be

connected is nearby and readily accessible.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Microtek Scanner

Microtek

Microtek ScanMaker 4 Manuel utilisateur

Microtek

Microtek ScanMaker 3800 Manuel utilisateur

Microtek

Microtek ScanMaker i900 Manuel utilisateur

Microtek

Microtek LightLid 35 Manuel utilisateur

Microtek

Microtek ScanMaker i800 Plus Mode d’emploi

Microtek

Microtek ArtixScan 3200XL Manuel utilisateur

Microtek

Microtek ArtixScanDI 2015c Manuel utilisateur

Microtek

Microtek ScanMaker 4 Mode d’emploi

Microtek

Microtek Bio-5000 Manuel utilisateur

Microtek

Microtek ArtixScan 2500 Manuel utilisateur

Microtek

Microtek ArtixScan DI 5230 Mode d’emploi

Microtek

Microtek ArtixScan DI 2015c Mode d’emploi

Microtek

Microtek ArtixScanDI 5230 Manuel utilisateur

Microtek

Microtek ScanMaker i450 Manuel du propriétaire

Microtek

Microtek ArtixScanDI 2015c Manuel utilisateur

Microtek

Microtek ArtixScanDI 2125c Manuel utilisateur

Microtek

Microtek ScanMaker i700 Manuel utilisateur

Microtek

Microtek ScanMaker i460 Manuel du propriétaire

Microtek

Microtek ScanMaker 9800XL Plus Manuel utilisateur

Microtek

Microtek Artix Scan1100 Manuel d'installation

Microtek

Microtek XT5750 HS Manuel utilisateur

Microtek

Microtek ArtixScan DI 2125c Manuel utilisateur

Microtek

Microtek ScanMaker 1000XL Manuel utilisateur

Microtek

Microtek ScanMaker 5700 Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
