Microtek 997M Manuel utilisateur

219-20-990238 X1

FCC Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including

interference that may cause undesired operation.

FCC WARNING

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution:

To comply with the limits for an FCC Class B computing device, always

use the shielded signal cord supplied with this unit.

The Federal Communications Commission warns that changes or

modifications of the unit not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

CE mark for Class B ITE (Following European standard EN55022/1998;

EN61000-3-2/1995; EN61000-3-3/1995, EN55024/1998,

EN60950/1992+A1+A2+A3+A4+A11)



Radio Frequency Interference Statement

Warning:

This is a Class B product. In a domestic environment, this product may

cause radio interference in which case the user may be required to take

adequate measures.

Canadian Doc Notice

For Class B Computing Devices

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the Radio Interference

Regulation of the Canadian Department of Communications.

“Le présent appareil numérique n’èmet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la class B

prescrites dans le Règlement sur le brouillage radioélectrique édicté par le

ministère des Communications du Canada”

iii

TABLE OF CONTENTS

Your New LCD Monitor 1

Unpacking 1

Identifying Components 2

Hot Keys for Quick Adjusting of Monitor Settings 4

Viewing Angle and Free Height adjusting 6

Connecting the Power 7

Connecting the Video 8

Connecting the Stereo Speakers 9

Power Management System 9

The LCD Monitor’s Display Controls 10

Adjusting the Monitor’s Display 10

Appendix A: LCD Monitor Specifications 17

Appendix B: Supported Timing 19

Appendix C: Troubleshooting Procedures 20

219-20-990238 X1

The LCD Monitor

Your New LCD Monitor

Your LCD Monitor has been designed to be versatile, ergonomic and

user-friendly. The LCD Monitor is capable of displaying most

standards, from 640 x 400 VGA to 1280 x 1024 SXGA. The digital

controls located on the front panel allows the user to easily adjust

the Monitor’s display parameters, and the LCD Monitor’s small

footprint allows you more room in your workspace for other

peripherals. Lightweight and compact, the LCD Monitor is the

perfect solution for users on the go. You can use the LCD Monitor

for everything from making business presentations to playing

computer games. The two stereo speakers allow you to further

expand your computer’s multimedia capabilities by connecting your

computer’s Audio out port to the LCD Monitor’s Audio in port. The

Monitor also has a wall-mountable stand for added convenience.

The architecture of the LCD Monitor incorporates an LCD panel that

produces a clear display with low radiation emission. And with its low

power consumption, the LCD Monitor helps you reduce your power

bill.

Unpacking

Before you unpack your LCD Monitor, prepare a suitable workspace

for your LCD Monitor and computer. You need a stable, level and

clean surface near a wall outlet. Even though the LCD Monitor uses

very little power, you should put it in a location which allows

sufficient airflow to ensure that the LCD Monitor and your computer

do not overheat. Set up your LCD Monitor so that the panel is not

facing a window where sunlight often comes in. The glare caused

by sunlight reflecting off of the LCD Monitor’s screen will make it

difficult to use the Monitor for viewing.

Note: Using a computer for an extended period of time with a poor

workstation set-up and incorrect working habits can cause health

problems. The science of ergonomics studies the relationship between

health and a suitable working environment. There is a section on

ergonomics at the end of this chapter. For more information on

ergonomics, contact your nearest computer bookstore, or local library.

The Internet also has information on this and other subjects.

After unpacking your LCD Monitor; make sure the following items are

included in the box and are in good condition:

• LCD Monitor

• Monitor-to-PC Analog signal cable (15-pin)

• Monitor-to-PC Digital signal cable (24-pin)

• Mini stereo audio cable

• AC Adapter

• Power cord

• User’s manual

If you find that any of these items are missing or appear damaged,

contact your dealer immediately. Do not throw away the packing

material or shipping carton in case you need to ship or store the LCD

Monitor in the future.

Identifying Components

This LCD Monitor has been designed to provide easy access to all

controls and peripheral ports. The illustrations below will help you in

identifying the LCD Monitor’s controls and ports.

The LCD Monitor — Front View

Figure 1-1: The LCD Monitor Panel and Controls

1. LCD Screen

The LCD Monitor Screen is a 19” TFT 1280 x 1024

SXGA screen.

2. Function Control Buttons / OSD Menu Button

The 1st button allows you to display the OSD (On-

Screen Display) Menu and to select the function group.

The 2nd button allows you to select one of the control

functions within each function group.

3. Adjustment Control Buttons

These two buttons allow you to adjust the selected

control function to accommodate your specific working

environment. Press the upper button (+) to increase

the setting of the selected control function, and press

the lower (-) button to decrease the setting of the

selected control function.

4. Power-On Indicator

This LED indicator lights up when the power is on, and

blinks when the LED indicator will blink when the LCD

Monitor is in power-saving mode.

5. Power Button

Press this button to turn the Monitor on/off.

6. Monitor Stand

The Monitor Stand supports the LCD Panel. Loop the

VGA signal cable through the hole on the Monitor

Stand.

7. Stereo Speakers

You can connect your PC’s Audio-out port to the LCD

Monitor’s Audio-in port and listen to your PC’s audio

output with these speakers.

Hot Keys for Quick Adjustment of Monitor Settings

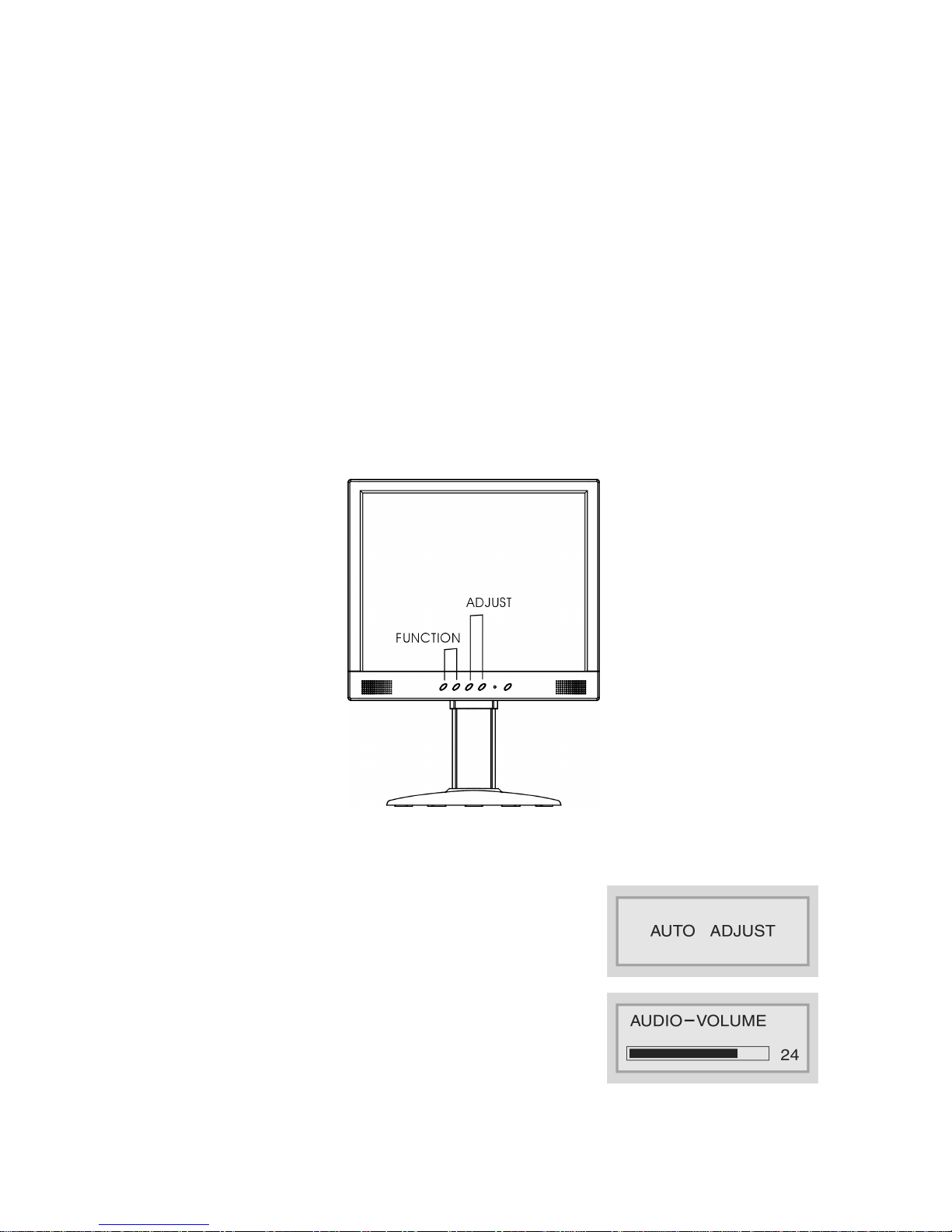

Figure 1-2: Hot Keys

1.”Auto-adjust” hot key:

Press the 2nd function button to apply monitor

settings automatically. A small “AUTO

ADJUST” OSD is also displayed.

2.” Adjust-volume” hot key:

Press the 1st adjustment control button to

adjust the audio volume directly.

3.” Contrast-adjust” hot key:

Press the 2 nd adjustment control button to

adjust the contrast of the display directly.

** To close the OSD windows, press the power button once.

The LCD Monitor — Rear View

Figure 1-3: LCD Monitor’s Rear Ports

1. DC Power Jack for adapter

Connect the AC adapter cable to this jack.

2. Audio Line-in

Connect your PC’s line-out to this jack to listen the

PC’s audio on the LCD monitor’s stereo speakers. (You

can also connect your CD-ROM’s line-out to this jack.)

3. VGA Cable Connector

This 15-pin D-Sub VGA connector is used to connect to

your PC’s VGA card.

4. Digital VGA Cable Connect

This 24-pin DVI connector is used to connect to your

PC’s Graphic card if it is equipped with a DVI connector.
