Microsensor MPM430 Manuel utilisateur
MPM430
Operation Manual
Our company reserves the modification right for this operation manual
due to renovation of production technology and craftwork. If some
information is changed, no more notice will be edited.
Please pay attention to the latest version.
Our company also reserves the right of final explanation for this manual.
Version: V1.0
1
Thank you very much for selecting Micro Sensor’s product, please
take some time to read this operation manual very carefully before
using the product..
1 Introduction
MPM430 lower pressure transmitter is developed especially to measur
every lower pressure. It has good overpressure, good reliability, small
temperature drift, convenient installation and long-term stability.
The Explosion-proof version of MPM430 is an intrinsic safe version,
conforming the standard of GB3836.1-2010 and GB3836.4-2010.
Explode sign is ExiaIICT6Ga.
2 Specifications
Range(FS): -25mbar…-5mbar ~ 5mbar…50mbar(OD)
-100mbar…-10mbar ~ 10mbar…100mbar (OC)
0mbar ~ 20mbar…200mbar (OB)
Over pressure: 1.8bar(OD) 2bar(OC) 6bar(OB)
Power Supply: 12V~28V DC
(Intrinsic safe version is supplied through safe barrier)
Output Signal: 4mA~20mA DC (2-wire)
Accuracy: ±0.5%FS(min.); ±1.0%FS(typ.)
Note: The precision of products is related to the range of
measurement, and the precision of products in different range
is different.
Stability：≤±0.5%FS/year
2
Operating temp.: -30℃~80℃(Plug)
-20℃~70℃(cable material: PE, PVC)
-20℃~80℃(cable material: PUR)
-20℃~60℃(Intrinsic safe version)
Storage Temp.: -40℃~120℃-20℃~85℃(Cable)
Shock Error:≤±0.01%FS (X,Y,Z 200Hz/g)
Temp Error: ≤±0.15%FS/10℃(-20℃~80℃)
≤±0.2%FS/10℃(-30℃~-20℃)
Load: ≤((U–12V)/20mA)–Rwire(kΩ)
(Rwire is lead resistance(kΩ), U is power supply voltage(V))
Protection: IP65
3 Outline Construction and Installation
3.1 Outline dimension Unit:mm
5 0
Ø 19
Ø42
SW2 7
12
～120
～87
M20×1.5
12
SW45
Ø19
50
～92
～57
Ø43
M 42×1 .5
1 2
Ø 42
SW45
～49
～74
M42 ×1.5
Type I Type II Type III
Figure 1
3
3.2 Installation
3.2.1 Attention before installation
a) Please be sure the measuring pressure will not exceed the
transmitter measurement range;
b) Please be sure the measuring media is compatible with the
construction material;
c) Please be sure the measuring media will not jam the liquid
leading hole.
3.2.2 Installation Method
Usually the transmitter should be mounted vertically up to the horizontal
direction. In order to install and maintain conveniently, it is recommended
to install a cut-off value between the transmitter and the measuring point.
3.2.3 The pressure port can be customized for users
according to special request.
4 Electric Connection
4.1 The transmitter could be connected with the external
circuit through socket, cable or connection box.
Table 1
4.2 Typical electrical connection method
Wire Color Plug Elctric connection
Red Pin 1 +V
Black Pin 2 0V/+OUT
4
a) The electric connection method of transmitter with Cable
Connection to see Figure2:
P
I
P/I Transmitter
P
Input 0V/OUT
+V +
U
DC current
+
-
-
R
Load
I
4mA
～
20mA
Figure 2
b) The Electrical Connection Method of Explosion Proof Version
Transmitter to see Figure3:
P
I
Dangerous Area
+V
OV
Safe
Barrier Load
Power
24VDC
+
-
Safe Area
P
Input
ExiaIICT6 Ga [Exia] IIC
Transmitter explosion proof parameter: Safe barrier output
explosion proof parameter:
Ui=28VDC Ii=93mADC Uo=28VDC Io=93mADC
Li=0mH Ci=0.044μF Po=0.65W
Pi=0.65W
Figure 3
5
5 Unpacking, Shipment Enclosed and Storage
5.1 Unpacking
a) Please be sure that the package is complete, and the package is
put as the sign “UP”;
b) Please be sure do not knock at the package violently, and
protect the housing jacket and rubber bushing.
5.2 Thipment Enclosed
MPM430 lower pressure transmitter 1
Specified Plug(for the Plug Type) 1
PVC or polyethylene cable(for the Cable Type) 1.5m or required
as the contract
Sealed gasket(assembly in the thread interface) 1
Production Manual 1
Product Qualification Certificate 1
5.3 Storage
The transmitter should be stored in dry & ventilate room with
environment temperature -40℃~120℃、-20℃~85℃（Cable）, relative
humility ≤85%, and no corrosive gas.
6 Responsibility
Within one year from the delivery date, we shall repair or replace the
instrument with any quality fault caused by material parts or our
manufacturing technique free of charge. For non-quality malfunction
during user’s operation, we are in charge of repair. The material cost and
the shuttle transportation fees should be borne by users.
Table des matières
Autres manuels Microsensor Instrument de mesure
Microsensor
Microsensor MFE600H Series Manuel utilisateur
Microsensor
Microsensor MFE600C Manuel utilisateur
Microsensor
Microsensor MPM486 Manuel utilisateur
Microsensor

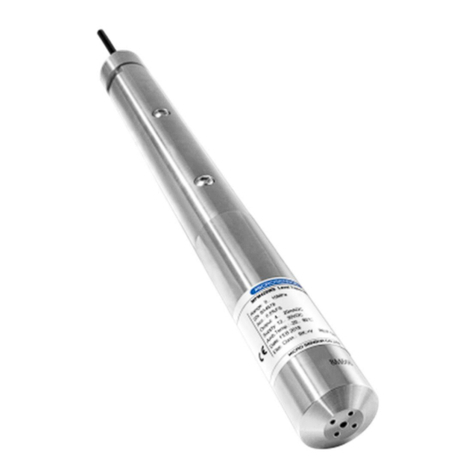

Microsensor MPM426WS Manuel utilisateur
