Microsemi FlashPro5 Manuel technique

July 2014 1

FlashPro5 Device Programmer Quickstart Card

This quickstart card applies only to the FlashPro5 device programmer.

Kit Contents

Software Installation

FlashPro or FlashPro Express software is automatically installed as part of the Libero® System-on-Chip (SoC)

software. If you are using the FlashPro5 device programmer for standalone programming or on a dedicated machine,

download and install the latest release of the FlashPro or FlashPro Express from the Microsemi®website.

The installation will guide you through the setup. Complete the software installation before connecting the FlashPro5

device programmer to your PC.

Note: The minimum version requirements to run FlashPro5 on Windows are Libero SoC v11.3/ FlashPro v11.3 and on

Linux are Libero SoC v 11.4/ FlashPro v11.4:

www.microsemi.com/products/fpga-soc/design-resources/programming/flashpro

Hardware Installation

After installing the software successfully, connect one end of the USB cable to the FlashPro5 device programmer and

the other end to your PC’s USB port. The Found Hardware Wizard will open twice. Use the wizard to install the driver

automatically (recommended). If the Found Hardware Wizard cannot find the drivers automatically, then ensure you

have properly installed the FlashPro software prior to installing the hardware. If the drivers still cannot be installed

automatically, then install them from a list or specific location (advanced).

If FlashPro was installed as part of the Libero SoC default installation, the drivers are located at

C:/Libero/Designer/Drivers/Manual. For a standalone Libero SoC FlashPro default installation, the drivers are located

at C:/Microsemi/FlashPro_<ver>/Drivers/. Microsemi recommends the automatic driver installation.

Note: FlashPro5 uses pin 4 of the JTAG connector whereas FlashPro3 had no connection to this pin. FlashPro5 pin 4

of the JTAG header is a PROG_MODE output drive signal. PROG_MODE toggles between programming and normal

operation. The PROG_MODE signal is intended to drive an N or P Channel MOSFET to control the output of a voltage

regulator between the programming voltage of 1.5 V and normal operation voltage of 1.2 V. This is required for

ProASIC®3L, IGLOO®V2, and IGLOO PLUS V2 devices because, although they can operate at 1.2 V, they must be

programmed with a VCC core voltage of 1.5 V.

Quantity Description

1 FlashPro5 programmer standalone unit

1 USB A to mini-B USB cable

1 FlashPro5 10-pin ribbon cable

Figure 1 • Pin Assignments

Pin 4 on FlashPro5 programmers MUST NOT be connected or used for anything other than its intended purpose.

50200545-1/07.14

Microsemi Corporation. All other trademarks and service marks are the property of their respective owners.

Microsemi Corporation (Nasdaq: MSCC) offers a comprehensive portfolio of semiconductor

and system solutions for communications, defense & security, aerospace and industrial

markets. Products include high-performance and radiation-hardened analog mixed-signal

integrated circuits, FPGAs, SoCs and ASICs; power management products; timing and

synchronization devices and precise time solutions, setting the world's standard for time; voice

processing devices; RF solutions; discrete components; security technologies and scalable

anti-tamper products; Power-over-Ethernet ICs and midspans; as well as custom design

capabilities and services. Microsemi is headquartered in Aliso Viejo, Calif., and has

approximately 3,400 employees globally. Learn more at www.microsemi.com.

Microsemi Corporate Headquarters

One Enterprise, Aliso Viejo CA 92656 USA

Within the USA: +1 (800) 713-4113

Outside the USA: +1 (949) 380-6100

Sales: +1 (949) 380-6136

Fax: +1 (949) 215-4996

E-mail: [email protected]

Common Issues

If the On LED does not light up after FlashPro5 driver installation, the driver might not be installed correctly and you

must troubleshoot the installation. For more information, refer to the FlashPro Software and Hardware Installation

Guide and the “Known Issues and Workarounds” section of the FlashPro software release notes:

www.microsemi.com/products/fpga-soc/design-resources/programming/flashpro.

FlashPro5 may not operate correctly if pin 4 of the JTAG connector is improperly used.

Documentation Resources

Refer to the FlashPro software page for further information:

www.microsemi.com/products/fpga-soc/design-resources/programming/flashpro

Technical Support and Contacts

Technical support is available online and by email.To find your local representative visit Microsemi SoC Sales offices,

including Representatives and Distributors whichare located worldwide.

CE (European Conformance)

This product complies with the requirements specified in EMC Directive 2004/108/IEC and RoHS Directive

2011/65/EU.

Table des matières

Autres manuels Microsemi Carte mère

Microsemi

Microsemi LX7186A Manuel utilisateur

Microsemi

Microsemi VSC8502 Manuel utilisateur

Microsemi

Microsemi LX23224IDB Manuel utilisateur

Microsemi

Microsemi VSC8489 Manuel utilisateur

Microsemi

Microsemi SmartFusion2 MSS Manuel utilisateur

Microsemi

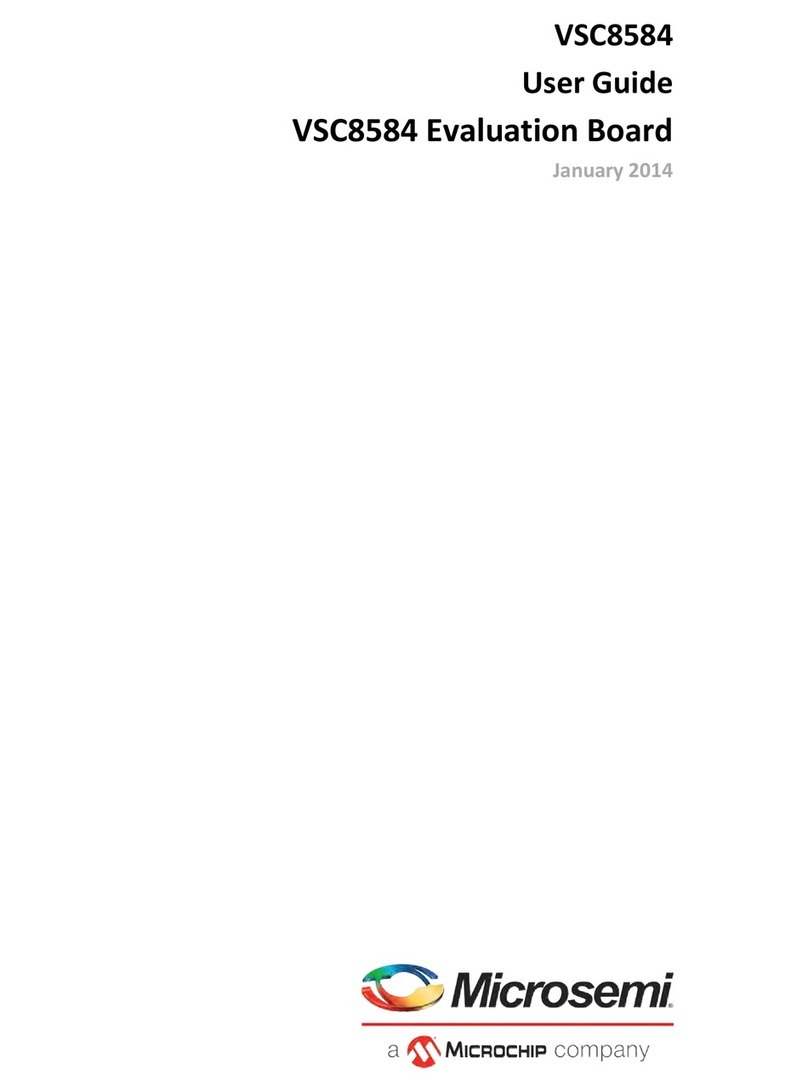

Microsemi VSC8584 Manuel utilisateur
