KSZ8081MNX / KSZ8091MNX

10Base-T/100Base-TX

Physical Layer Transceiver

Evaluation Board User’s Guide

Revision 1.0 / August 2012

Micrel is a registered trademark of Micrel and its subsidiaries in the

United States and certain other countries. All other trademarks are the

property of their respective owners.

The information furnished by Micrel in this datasheet is believed to be accurate and reliable. However, no responsibility is

assumed by Micrel for its use. Micrel reserves the right to change circuitry and specifications at any time without

notification to the customer. Micrel Products are not designed or authorized for use as components in life support

appliances, devices or systems where malfunction of a product can reasonably be expected to result in personal injury.

Life support devices or systems are devices or systems that (a) are intended for surgical implant into the body or (b)

support or sustain life, and whose failure to perform can be reasonably expected to result in a significant injury to the user.

A Purchaser's use or sale of Micrel Products for use in life support appliances, devices or systems is at Purchaser's own

risk and Purchaser agrees to fully indemnify Micrel for any damages resulting from such use or sale.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

2/13

Revision History

Revision Date Summary of Changes

1.0 8/15/12 Initial Release

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

3/13

Table of Contents

1.0Introduction ............................................................................. 5

2.0Board Features........................................................................ 5

3.0Evaluation Kit Contents.......................................................... 5

4.0Hardware Description............................................................. 6

4.1MII (Media Independent Interface)......................................................................... 7

4.2Jumper Setting & Definition .................................................................................. 9

4.3Test Point Definition............................................................................................. 12

4.4RJ-45 Connector................................................................................................... 12

4.5LED Indicators ...................................................................................................... 12

5.0Bill of Materials......................................................................13

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

4/13

List of Figures

Figure 1. KSZ8081MNX Evaluation Board..................................................................................... 6

Figure 2. KSZ8081MNX-EVAL interfacing with KSZ8463MLI Evaluation Board........................... 7

List of Tables

Table 1. Connector J2 - MII Pin Definition...................................................................................... 8

Table 2. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Strapping Jumper Definition...................... 9

Table 3. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Loopback Jumper Definition...................... 9

Table 4. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Miscellaneous Jumper Definition ............ 10

Table 5. Strapping Pin Definitions for KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Jumpers..... 11

Table 6. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Test Point Definition................................ 12

Table 7. KSZ8081MNX / KSZ8091MNX LED Definition .............................................................. 12

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

5/13

1.0 Introduction

The KSZ8081MNX / KSZ8091MNX is a 10Base-T/100Base-TX Physical Layer Transceiver with

an MII MAC interface. It utilizes a unique mixed-signal design to extend signaling distance while

reducing power consumption, and offers HP Auto MDI/MDI-X for reliable detection of and

correction for crossover and straight-through cables, eliminating the need to differentiate between

crossover and straight-through cables.

The KSZ8091MNX has all the identical rich features of the KSZ8081MNX plus support for Energy

Efficient Ethernet (EEE) and Wake-on-LAN (WOL). The KSZ8081MNX / KSZ8091MNX come in a

32-pin, lead-free QFN package and provides an ideal solution for 10Base-T/100Base-TX

applications that have tight PCB board space.

The KSZ8081MNX and KSZ8091MNX Eval Boards (KSZ8081MNX-EVAL and KSZ8091MNX-

EVAL) provide a convenient platform to evaluate the features of the device. All configuration pins

are accessible either by jumpers, test points or interface connectors.

2.0 Board Features

Micrel KSZ8081MNX or KSZ8091MNX 10Base-T/100Base-TX Physical Layer

Transceiver

RJ-45 Jack for Fast Ethernet cable interface

HP Auto MDI/MDI-X for automatic detection and correction for straight-through and

crossover cables

MII (Media Independent Interface) Connector to interface with a MAC controller

2 LED Indicators for status and activity

Jumpers to configure strapping pins

Manual Reset Button for quick reboot after re-configuration of strapping pins

3.0 Evaluation Kit Contents

The KSZ8081MNX and KSZ8091MNX Evaluation Kits include the following hardware:

KSZ8081MNX or KSZ8091MNX Evaluation Board

A design package with the following collaterals that can be downloaded from Micrel’s website at

http://www.micrel.com

KSZ8081MNX / KSZ8091MNX Eval Board Schematic (PDF and OrCAD DSN file)

KSZ80x1 (32-QFN) Eval Board Gerber Files (PDF version included)

KSZ8081MNX / KSZ8091MNX Eval Board User’s Guide (this document)

KSZ8081MNX and KSZ8091MNX IBIS Models

and the KSZ8081MNX / KSZ8081RNB and KSZ8091MNX / KSZ8091RNB Datasheets which are

also available from Micrel’s website.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

6/13

4.0 Hardware Description

The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL (shown in Figure 1) comes in a compact form

factor and plugs directly into boards with Ethernet MACs that expose the MII interface.

Configuration of the KSZ8081MNX / KSZ8091MNX is accomplished through on-board jumper

selections and/or by PHY register access via the MDC/MDIO management pins of the MII

Interface.

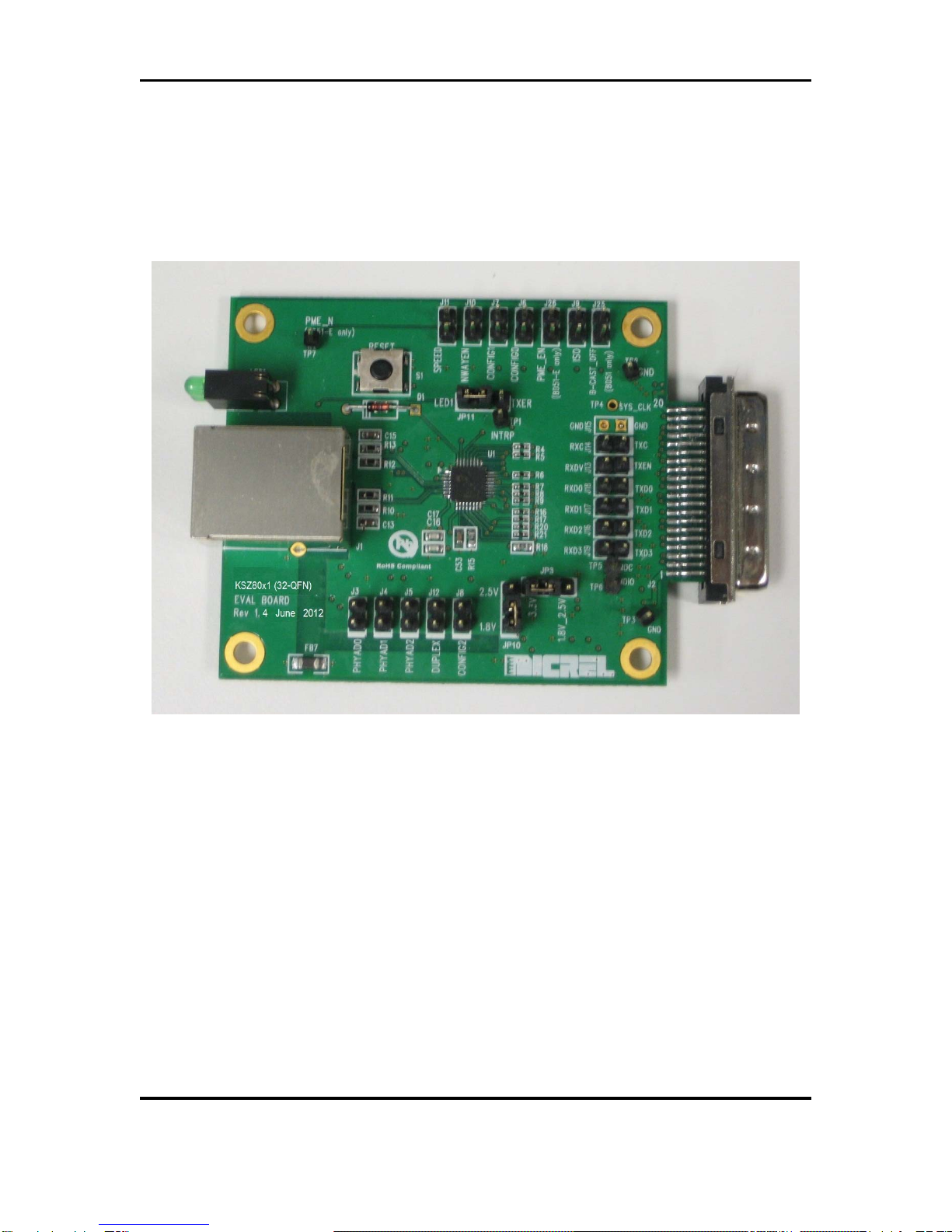

Figure 1. KSZ8081MNX Evaluation Board

Features include an RJ-45 Jack for Fast Ethernet cable connection, programmable LED

indicators for reporting link status and activity, and a manual reset button for quick reboot after re-

configuration of strapping pins.

The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL receives +5V DC input power through its MII

connector.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

7/13

4.1 MII (Media Independent Interface)

The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL receives power and accesses MII data and

management information from the MII connector J2. Figure 2 shows the KSZ8081MNX-EVAL /

KSZ8091MNX-EVAL connected to the Micrel KSZ8463MLI Evaluation Board.

Figure 2. KSZ8081MNX-EVAL interfacing with KSZ8463MLI Evaluation Board

The MII interface is defined by Clause 22 of the IEEE 802.3 Specification. MII Management

(MIIM) is conducted thru pins MDC (clock line) and MDIO (data line). MIIM allows upper-layer

devices to monitor and control the states of the KSZ8081MNX / KSZ8091MNX. An external

device with MDC/MDIO capability can be used to read the PHY status or configure the PHY

registers. The MIIM frame format and timing information can be found in the KSZ8081MNX and

KSZ8091MNX datasheets and in Clause 22 of the IEEE 802.3 Specification.

The Eval Board has a 40-pin male edge connector that interfaces with and plugs directly into Fast

Ethernet MAC boards with the mating AMP 787170-4 (40-pin, right angle, female) connector.

Table 1 lists the pin outs for the MII interface on connector J2.

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

8/13

Pin # Signal Pin # Signal

1 +5V 21 +5V

2 MDIO 22 Ground

3 MDC 23 Ground

4 RXD3 24 Ground

5 RXD2 25 Ground

6 RXD1 26 Ground

7 RXD0 27 Ground

8 RXDV 28 Ground

9 RXCLK 29 Ground

10 RXER 30 Ground

11 TXER 31 Ground

12 TXCLK 32 Ground

13 TXEN 33 Ground

14 TXD0 34 Ground

15 TXD1 35 Ground

16 TXD2 36 Ground

17 TXD3 37 Ground

18 COL 38 Ground

19 CRS 39 Ground

20 +5V 40 +5V

Table 1. Connector J2 - MII Pin Definition

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

9/13

4.2 Jumper Setting & Definition

At power-up, the KSZ8081MNX / KSZ8091MNX is configured using the chip’s internal pull-up and

pull-down resistors with its default strapping pin values. Jumpers are provided to override the

default settings, allowing for quick configuration and re-configuration of the board. To override the

default settings, simply select and close the desired jumper setting(s) and toggle the on-board

manual reset button (S1) for the new setting(s) to take effect. The KSZ8081MNX-EVAL /

KSZ8091MNX-EVAL strapping jumper settings are defined in Table 2 below.

Jumper Definition Open (default) Close

J3 PHYAD0 1 0

J4 PHYAD1 0 1

J5 PHYAD2 0 1

J6 CONFIG0 CONFIG[2:0] Mode

[open, open, open] MII (default)

[close, close, open] MII Back-to-Back

All other CONFIG[2:0] settings not listed are

reserved (not used).

J7 CONFIG1

J8 CONFIG2

J9 Isolate Mode Disable Enable

J10 Nway Auto-Negotiation Enable Disable

J11 Forced Speed (KSZ8081 only) 100Base-TX 10Base-T

J12 Forced Duplex Half Full

J25 Broadcast Off – for PHY Address 0 Broadcast PHY address Unique PHY address

J26 PME_N Pin Enable (KSZ8091 only) Disable Enable

Table 2. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Strapping Jumper Definition

The KSZ8081MNX-EVAL / KSZ8091MNX-EVAL has another set of jumpers that may be used to

loopback the MII interface. To loopback, all six jumpers must be installed. The individual jumpers

are defined in Table 3.

Jumper MII Signals Normal Operation MII Loopback Mode

J13 RXDV / TXEN Open Close

J14 RXC / TXC Open Close

J16 RXD2 / TXD2 Open Close

J17 RXD1 / TXD1 Open Close

J18 RXD0 / TXD0 Open Close

J19 RXD3 / TXD3 Open Close

Table 3. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Loopback Jumper Definition

KSZ8081MNX / KSZ8091MNX 10Base-T/100Base-TX Evaluation Board User’s Guide

Micrel, Inc. August 15, 2012

Rev. 1.0

10/13

The last group of jumpers is defined in Table 4 below. These jumpers are not related to reset

strapping, nor to loopback. Two jumpers are used to set the VDDIO voltage, and one jumper is

used to route pin 31 as dependent on the device part number.

Note that for the eval board to function, a jumper must be installed on JP3. If pins 1 & 2 of JP3

are closed, then a jumper must also be installed on JP10.

For the KSZ8091MNX, a jumper must be installed on pins 2 & 3 of JP11.

Jumper Definition Close pins 1, 2 Close pins 2, 3

JP3 VDDIO voltage selection: 3.3V / low VDDIO set by JP10 VDDIO = 3.3V

JP10 VDDIO low voltage selection 1.8V_2.5V = 1.8V 1.8V_2.5V = 2.5V

JP11 Pin 31 connection (LED1 or TXER) For KSZ8081 only

(pin 31 = LED1) For KSZ8091 only

(pin 31 = TXER)

Table 4. KSZ8081MNX-EVAL / KSZ8091MNX-EVAL Miscellaneous Jumper Definition

Table 5 lists the strapping pin definitions for the KSZ8081MNX-EVAL / KSZ8091MNX-EVAL

jumpers.

Jumper Pin Pin Name Pin Function

PHYAD2

PHYAD1

PHYAD0

The PHY Address is latched at power-up / reset and is

configurable to any value from 0 to 7.

The default PHY Address is 00001.

PHY Address 00000 is enabled only if the B-CAST_OFF

strapping pin is pulled high.

PHY Address bits [4:3] are always set to ‘00’.

CONFIG2

CONFIG1

CONFIG0

The CONFIG[2:0] strap-in pins are latched at power-up /

reset and are defined as follows:

CONFIG[2:0] Mode

000 MII (default)

110 MII Back-to-Back

All other CONFIG[2:0] settings not listed are reserved (not

used).

J9 20 ISO ISOLATE mode

Pull-up = Enable

Pull-down (default) = Disable

At the de-assertion of reset, this pin value is latched into

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Micrel Carte mère

Micrel

Micrel MIC33050 Manuel utilisateur

Micrel

Micrel SY88216L Manuel utilisateur

Micrel

Micrel MIC45208 Manuel utilisateur

Micrel

Micrel SY87729L Manuel utilisateur

Micrel

Micrel KSZ8873MML Manuel utilisateur

Micrel

Micrel MIC24056 Manuel utilisateur

Micrel

Micrel KSZ9021RL-EVAL Manuel utilisateur

Micrel

Micrel SY88147DL Instructions d'utilisation et d'entretien

Micrel

Micrel MIC23031-4YMT EV Manuel utilisateur

Micrel

Micrel MIC2786 Manuel utilisateur

Micrel

Micrel KS8721BL/SL Manuel utilisateur

Micrel

Micrel KS8995MA Manuel utilisateur

Micrel

Micrel mic28510 Manuel utilisateur

Micrel

Micrel KSZ8895 Manuel utilisateur

Micrel

Micrel KSZ8862-16 MQL Manuel utilisateur

Micrel

Micrel KSZ8873MLL Manuel utilisateur

Micrel

Micrel KSZ8841-PMQL Manuel utilisateur

Micrel

Micrel SY87725L Manuel utilisateur

Micrel

Micrel KSZ8851SNL Manuel utilisateur

Micrel

Micrel ULDO MIC5301/18 Manuel utilisateur

Micrel

Micrel MIC24055 Manuel utilisateur

Micrel

Micrel KSZ9031MNX Manuel utilisateur

Micrel

Micrel MIC7401 Manuel utilisateur

Micrel

Micrel SY88212L Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
