Mi K010-201611-007V1 Guide d'installation

MI scooter FAQ

K010-201611-007V1

20180319

1:Frequently questions 5

1. Q: What is the difference between MI scooter and MI scooter youth

limited edition？5

2. Q：How to ride MI scooter？5

3. Q：What is scooter require for the rider？6

4. Q： Max load is 100kg，if I am over 100kg，can I ride this unit？6

5. Q： Can I riding while raining？6

6. Q： Is there any accessories in the unsealed box？6

7. Q： Where is the screws which fasten the stem assembly? 6

8. Q: Why there’s scratch on stem assembly？7

9. Q： How to activate cruise control？7

10. Q： How to use energy recovery function？7

11. Q： What kind of battery does MI scooter use? How long it should be

charged? How long is the battery life? 8

12. Q：？Why there are two temperatures in APP battery information？8

13. Q： Is miniLITE detachable？9

14. Q：How if I forgot my Bluetooth password？9

15. Q： How many riding modes MI scooter have？How to switch mode？9

16. Q： How much is the safety turning angle？Will it be dangerous while

driving too aggressive？10

17. Q: Why MI scooter will stop while climbing？why there’s no enough

power in winter？10

二、Functional Questions 11

18. Q： What is the diameter of front and rear wheel？11

19. Q： What isthe tire pressure while inflating？11

20. Q： Why the tire blew while riding？Is this quality problem？11

21. Q： While folding the unit，it can not be hanged to the hook or hanged

not tight ，how to solve this？12

22. Q： How to solve the lower part of handle bar shake while riding? 12

23. Q： How to solve the folding wrench is too loose or tight 12

24. Q： How to solve head light not bright or abnormal？13

25. Q： How to solve can not brake？13

26. Q： Why the unit can not be charged？14

27. Q： How to solve dashboard no light？14

28. Q： Why does taillight not bright? 14

29. Q：How to solve the wheel not stable while riding？15

30. Q： Why does throttle malfunction？15

31. Q： How to judge error code？15

1:Frequently questions

1. youth limited edition？（Only for China）

A: Below is the difference ：

2. Q：How to ride MI scooter？

A：Two hands hold the handle，one foot stand on the foot pedal ，the other foot take a

run up ，while the speed over 5km/h，let your two feet on the pedal，press the electric

throttle to speed up，if the speed not reach 5knm/h，throttle will not be triggered.

3. Q：What is scooter require for the rider？

A：Suitable age is 16-50，suitable height 120-200cm，max load 100kg

4. Q： Max load is 100kg，if I am over 100kg，can I ride this unit？

A： If your weight is over limit，it’s not mean you can not completely use the unit，the

more your weight more gentle riding you should be，if your weight is over 100kg，

climb and cross barrier performance will be reduce，please take care while riding,

5. Q： Can I riding while raining？

A：MI scooter’s waterproof is IP54，riding in the rain is forbidden, for your safety，

please do not ride while the weather is bad.

6. Q： Is there any accessories in the unsealed box？

A: Accessories include：user manual，legal declaration，tips card，valve steam

extension，screws*4，Allen wrench，charger adapter.

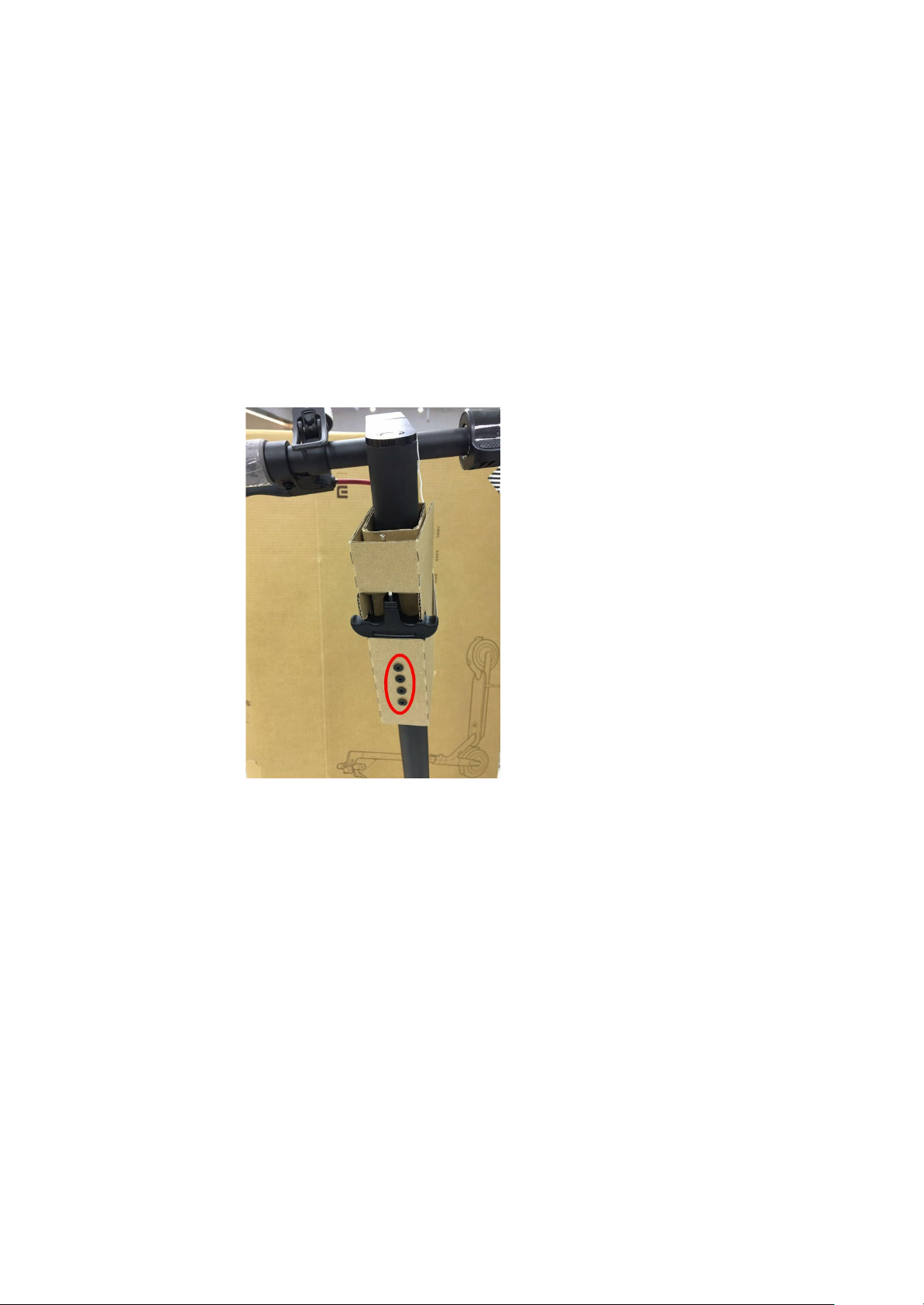

7. Q： Where is the screws which fasten the stem assembly?

A：The screws are in the picture

8. Q: Why there’s scratch on stem assembly？

A: It was caused by riding test by factory inspection，it’s regular.

9. Q： How to activate cruise control？

A： The new unit default cruise control was shut，please activate cruise control by

app.keep the throttle position for over 5s till it beeps，then release the throttle，the

unit will keep the current speed， you can cancen it by brake or press throttle again.

10. Q： How to use energy recovery function？

A： Turn on the energy recovery function on APP first，when you press throttle or

brake while riding，energy recovery system will convert some of the kinetic energy

into electricity for storage. Energy recovery system will improve emergency brake

experience，that means the unit will braking quicker and faster（it can be adjusted by

APP）

11. Q： What kind of battery does MI scooter use? How long it should be

charged? How long is the battery life?

A：MI scooter using lithium-ion battery，charge whenever you need，charger rated

power is 71W，from 0 to 100% need charge for 5hours，after completely charged for

500 times the battery can still keep over 70% capacity，please avoid using from lower

than -10° or above 40°，or avoid store the battery in lower than -20°/above 50°，if you

will not use for over 30 days，please charge the battery at least 80%，and store it at

cool and dry place，fully charge the battery every 3 months can extend battery life.

Notice：if you do not charge in time，the battery will overdischarge，this damage can

not recover，and it is not under warranty anymore.

12. Q：？Why there are two temperatures in APP battery information？

A： There’s two probes on the upper and lower battery，for more accurate test the

temperature

13. Q： Is miniLITE detachable？

A: it is not allowed to disassemble the battery without official permission，if you do so

，the battery will not under warranty，because it will expose interior circuit if you

remove the battery，there’s a chance to get shock if you touch interior circuit，to

avoid to get dangerous please do not remove the battery.

14. Q：How if I forgot my Bluetooth password？

A：Press the brake and throttle to the end together，then re-start the unit，password

will be cleared.

15. Q： How many riding modes MI scooter have？How to switch mode？

A： There are two riding modes，normal mode and energy conservation mode（speed

limit mode）

1）Normal mode：max speed 25km/h

2）Energy conservation mode（speed limit mode）：max speed 18km/h，suitable for

new users.

Normal mode is default mode，on the dashboard is white light，quick press 2 times

power button，if the light turns to green means switch to energy conservation mode，

quick press 2 times power button will turn back to normal mode

16. Q： How much is the safety turning angle？Will it be dangerous while

driving too aggressive？

A：MI scooter turning angle is 60°，need to speed down while turning，if

turning angle over 60° please contact service center.

17. Q: Why MI scooter will stop while climbing？why there’s no enough

power in winter？

A：

1) The reason for suddenly stop while climbing：MI scooter rated power is 250W，

max climbing angle is 14°，while climbing angle is over limited，the unit output

power over limit.

2) The reason for no enough power in winter：temperature has big influence for

output power，low temperature will reduce power and endurance. When it’s 0°，

control board allow 70% output power， and while with low temperature，battery

voltage will reduce fast，and it will cause control board power limit.

二、Functional Questions

18. Q： What is the diameter of front and rear wheel？

A：Both 8.5 inches.

19. Q： What isthe tire pressure while inflating？

A： Both tire pressure should be 45-50PSI，and we suggest you test the tire

pressure every 20-30days.

20. Q： Why the tire blew while riding？Is this quality problem？

A: Tire blew is not caused by quality problem. Because MI scooter uses inflatable

wheel，so there’s air loose phenomenon while storage or using，if riding the unit with

the low pressure，the subsidence area of the tire becomes larger，inner tire and outer

tire cause big rub，and MI scooter diameter is too small ，in order to reach the riding

speed，the wheel spin fast，increase rub cause the tire blew，please check tire

pressure frequently keep tire pressure 45-50PSI.

21. Q： While folding the unit，it can not be hanged to the hook or hanged

not tight ，how to solve this？

A： Please use 3mm allen wrench in the box to adjust the screws position till the best

place.

22. Q： How to solve the lower part of handle bar shake while riding?

A： Fasten the screws on the front fork and lower handle bar connection place.

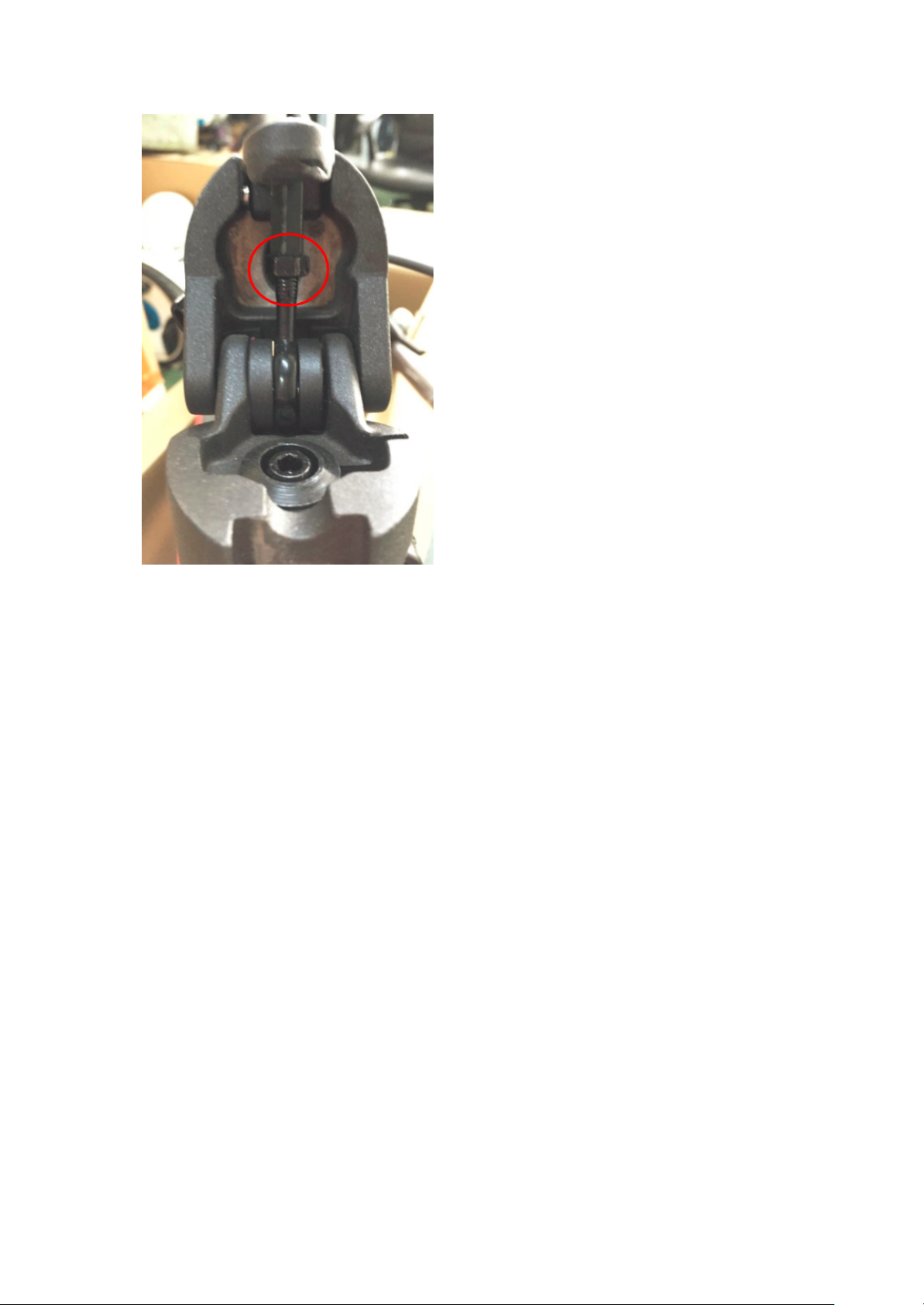

23. Q： How to solve the folding wrench is too loose or tight

A： if folding wrench is too loose or tight，need adjust folding wrench subassembly

nuts while the unit under folded，like the picture：

24. Q： How to solve head light not bright or abnormal？

A： While the unit turned on，press the power button，check if the headlight bright，if

not bright try more times，and clean the dust in the lamp holder，if still not bright

please contact service center.

25. Q： How to solve can not brake？

A： Follow the test step：

1) Check the electric brake：Turn on the unit，push the unit and lift the front ，press

power button，and clamp brake，if the wheel stop means electric brake work OK

，if not please contact service center.

2) Check mechanical brake：Turn off the unit，clamp the brake and push the unit，if

there’s obviously resistance from rear wheel means mechanical brake work OK，
