MG R3-CT4B Manuel utilisateur

EM-8445 Rev.4 P. 1 / 3

INSTRUCTION MANUAL

MG CO., LTD. www.mgco.jp

5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

AC CURRENT INPUT MODULE

(4 points, isolated, clamp-on current sensor type CLSB use) MODEL R3-CT4B

BEFORE USE ....

Thank you for choosing us. Before use, please check con-

tents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact our sales ofﬁce or representatives.

■PACKAGE INCLUDES:

AC current input module....................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■HOT SWAPPABLE MODULES

• Replacing the module does not affect other modules on

the same base. Thus, the module can be replaced while

the power is ON. However, replacing multiple modules

at once may greatly change live voltage levels. We highly

recommend to replace them one by one.

■GENERAL PRECAUTIONS

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3-CT4B

EM-8445 Rev.4 P. 2 / 3

MG CO., LTD. www.mgco.jp

5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

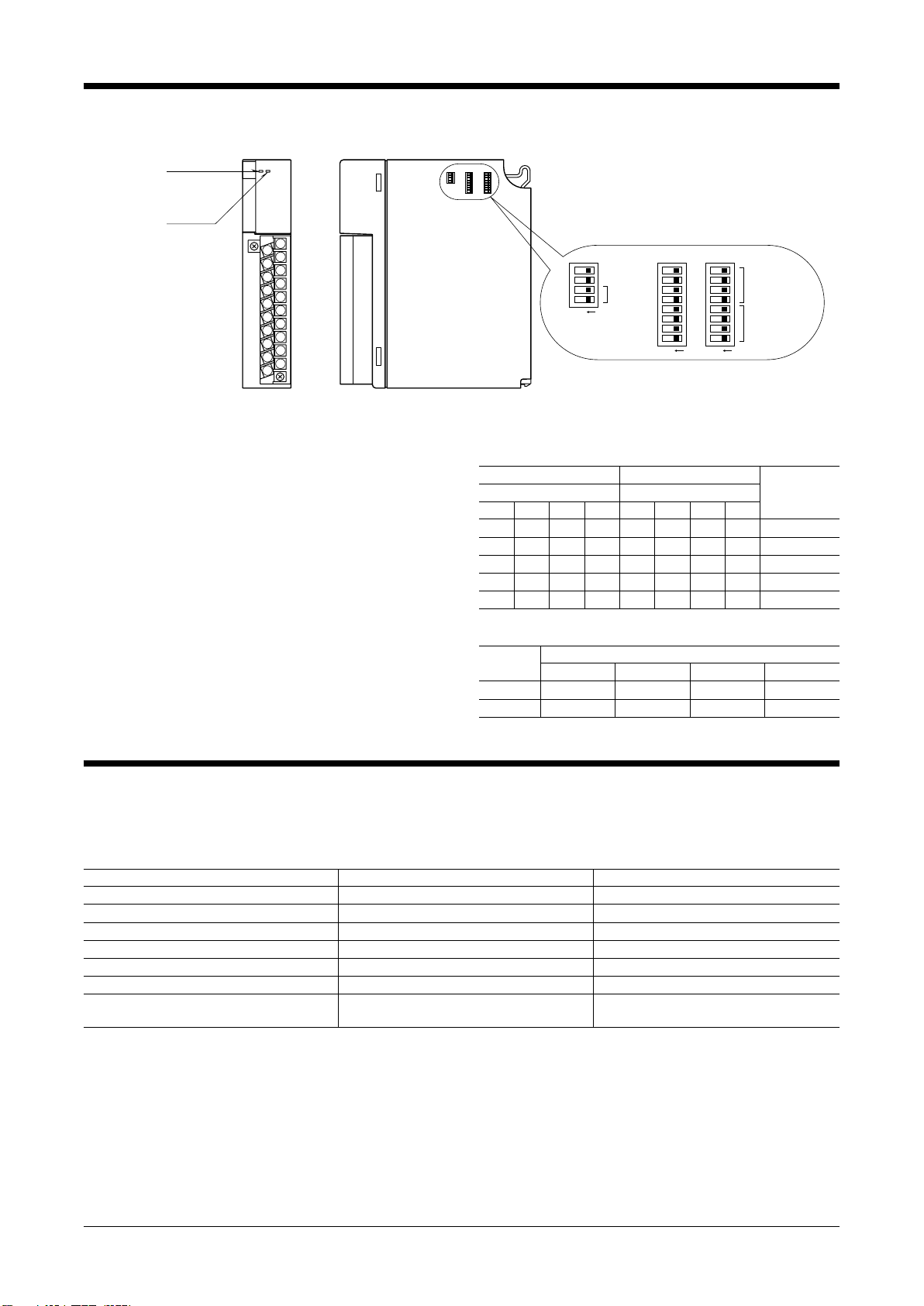

COMPONENT IDENTIFICATION

SW1SW2

SW3

■ FRONT VIEW ■ SIDE VIEW

ERR LED

RUN LED

Conv.

Rate

Input 2 (SW1)

Input 4 (SW2)

Range

Input 1 (SW1)

Input 3 (SW2)

Functions

■STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Bi-color (red/green) LED;

Red with input abnormality;

Green in normal operating conditions.

■SIDE DIP SW

(*) Factory setting

• Input Range: SW1, SW2

INPUT 1 (SW1) INPUT 2 (SW1)

RANGEINPUT 3 (SW2) INPUT 4 (SW2)

12345678

OFF OFF OFF OFF OFF OFF OFF OFF CLSB-60 (*)

ON OFF OFF OFF ON OFF OFF OFF CLSB-40

OFF ON OFF OFF OFF ON OFF OFF CLSB-20

ON ON OFF OFF ON ON OFF OFF CLSB-10

OFF OFF ON OFF OFF OFF ON OFF CLSB-05

• Conversion Rate: SW3-1, 3-2

SW CONVERSION RATE

80 ms (*)40 ms 20 ms 10 ms

SW3-1 OFF ON OFF ON

SW3-2 OFF OFF ON ON

Note: Be sure to set unused SW3-3 and 3-4 to OFF.

PC CONFIGURATOR

With conﬁgurator software, settings shown below are available.

Refer to the software manual of R3CON for detailed operation.

■CHANNEL INDIVIDUAL SETTING

PARAMETER AVAILABLE RANGE DEFAULT SETTING

Zero Scale -32000 to +32000 0

Full Scale -32000 to +32000 10000

Zero Adjust -320.00 to +320.00 0.00

Full Adjust -32000 to +32000 1.0000

Zero Base Depends on sensor type 0.00

Full Base Depends on sensor type 0.00

Unused 0: Enable

1: Disable

0: Enable

R3-CT4B

EM-8445 Rev.4 P. 3 / 3

MG CO., LTD. www.mgco.jp

5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

130 (5.12)

27.5 (1.08) 109 (4.29) POSITIONING

GUIDE

TERMINAL

COVER

20–M3

SCREW

6.2

(.24)

■CONNECTION DIAGRAM

BUS CONNECTOR

INTERNAL

POWER

INTERNAL

BUS A

INTERNAL

BUS B*

*For dual redundant communication.

INPUT 1

INPUT 2

LOAD

SOURCE

LOAD

SOURCE

INPUT 3

INPUT 4

LOAD

SOURCE

LOAD

SOURCE

CLAMP-ON SENSOR

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.3 – 0.75 mm2

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd., Nichifu Co., Ltd.

12max

6max

3max 4min

3.2 dia.

(mm)
