MF DIGITAL P-55 Manuel utilisateur

Rev. 6-22-07

Unpacking and Inspection

The packing-case contains the following items, as well as the P-55 itself. Please make certain that

all the items are present.

Accessories for P-55

"Before Getting Started" x1 Utility Software CD-ROM x1

(including Operation Manual, Printer

Driver and Disc Label Editor)

Printed by P-55 (PHOTO)

Ribbon set x1

(Set of ink ribbon and re-transfer ribbon)

Label print sample printed by P-55

Printed by P-55 (COLOR)

Blank media (CD-R) 10-pack of discs x1 Printer cable x1, USB cable x1

AC power cable

(For U.S.A. and Canada) (For Europe)

Unpacking and Inspection

To prevent the product from being damaged in shipment, cushioning materials and xing metal are

used to secure the internal parts to the unit. Make sure all those protection materials are removed

before use. For the future shipment, keep the xing metal and packing (3 types) in the packaging

box along with packing materials.

To prevent the product from being damaged in shipment, install the shipping protection materials in

reverse order to the removal procedure.

The P-55 is a precision machine. Be careful not to drop or subject the unit to severe impact (it

weighs more than 22 kg).

This product internally reaches a high temperature when in use. Before installing the shipping

materials in the unit, leave it turned o for a while (1 hour) to cool it o completely.

Make sure the ink ribbon and transfer ribbon are removed when the shipping protection materials

are installed in the unit. Note

1. Peel o adhesive tape Afrom the top left of the unit and press unlock button Bto open side door

2. Loosen the screw Dand pull out the metallic bar E. Insert the removed metallic bar into position

marked Fto keep it for future use.

3. Peel o adhesive tape G, ip up lock lever Hto unlock the ribbon cartridge and remove two

cushions Iby pulling them toward you.

4. Pull out ribbon cartridge J, remove cushion Kand then put back the ribbon cartridge to its place

for the moment.

5. Flip down lock lever Hto lock the ribbon cartridge in place and lift up the side door until it locks.

Do not try to forcibly close the side door without ipping down the lock lever, or the side door may

be damaged.

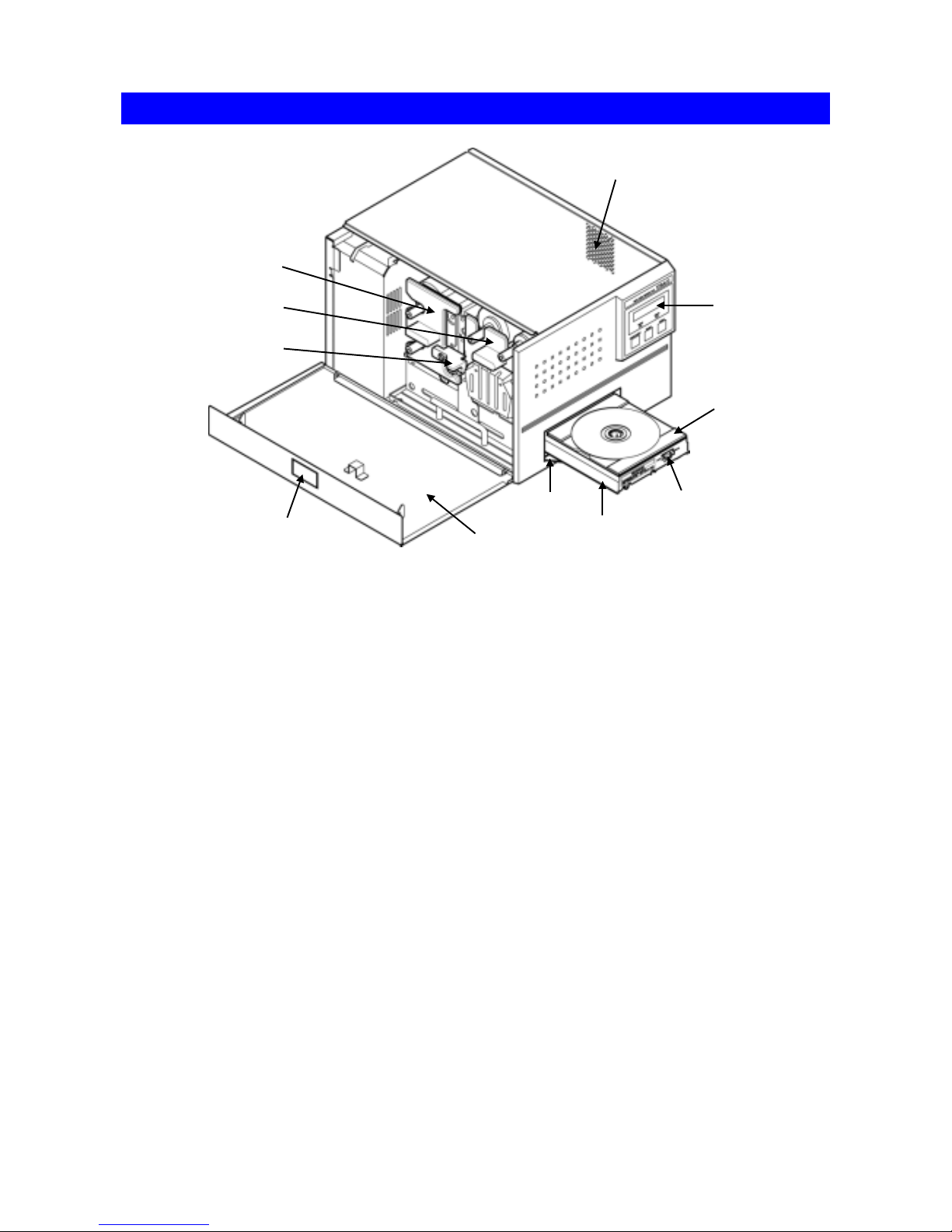

Identifying the Parts

1Exhaust Fan (on the right side)

This is an air outlet for dropping the temperature inside the unit. Do not let foreign objects get in

through this opening, or the results may be damage to the unit and could hazardous to the

operator. Place the unit in an adequate location.

2Side Door Unlocking Button

Pressing this button opens the side door. The side door is locked when the unit is turned on

3Side Door

You need to open this door when changing ink cartridges.

Keep this door closed when the unit is functioning.

4Ink Ribbon Cartridge

This is a cartridge for ink ribbon.

(As shipped from the factory, the cartridge does not contain ink ribbon.)

5Re-transfer Ribbon Cartridge

This is a cartridge for re-transfer ribbon.

(As shipped from the factory, the cartridge does not contain re-transfer ribbon.)

6Lock Lever

This is for locking the ribbon cartridge in place.

7Tray Door

The tray slides out. Do not place any objects in front of this door.

8Tray

9Tray Adapter Lock Switch

10 Tray Adapter

11 Control Panel

Identifying the Parts

12 STATUS AUX Connector (optional)

This connector allows connection of the P-55 to an external device for the combined use with the robotics system.

*Please contact us before use.

13 Parallel Port Multi-connector

This provides a parallel interface between your PC's printer port and the P-55 over the supplied

printer cable.

14 Intake Fan (with lter)

This opening is for dropping the temperature inside the unit. Obstructing this opening may

result in failures. Place the unit in an adequate location.

15 Power Switch

This rocker switch turns power to the unit on and o.

end of the switch, and powers down when pressing “ ” end.

(The internal cooling fan stops only in about 10-20 minutes after the unit switches into the Standby ode.)

16 AC Power Input Socket

Plug in here the power cable. (To drop the tem perature inside the unit, the fan continues

to rotate for about 10 to 20 minutes after switching o the power. For this interval of time,

do not unplug the power cable.)

Connections .

17 Heater Voltage Selector Switch

This selects the voltage to supply to the internal heater.

For U.S.A. and Canada

The Heater Voltage Selector Switch is preset to “100-120V” at the factory.

Selecting a wrong voltage may cause the printer to malfunction.

For Europe

The Heater Voltage Selector Switch is preset to “220-240V” at the factory.

Selecting a wrong voltage may cause the printer to malfunction.

18 USB 2.0 Compatible Connector (Hi-Speed support)

15 13

SECTION 10 : Installing the Printer Driver

If both the PC and P-55 are on before installing the driver, turn o the PC rst and then the P-55,

Then, turn on the P-55 rst and then the PC again.

The window Found New Hardware Wizard appears on

the screen.

If you are asked, “Can Windows connect to Windows

update to search for software?” select No, not at this

time and then click Next .

Select Install the software automatically

(Recommended) and click Next .

The window Hardware Installation appears on the

screen. Click Continue Anyway .

The window Please wait while the wizard installs

the software appears on the screen. Wait until the

window appears indicating the wizard is completed.

SECTION 10 : Installing the Printer Driver

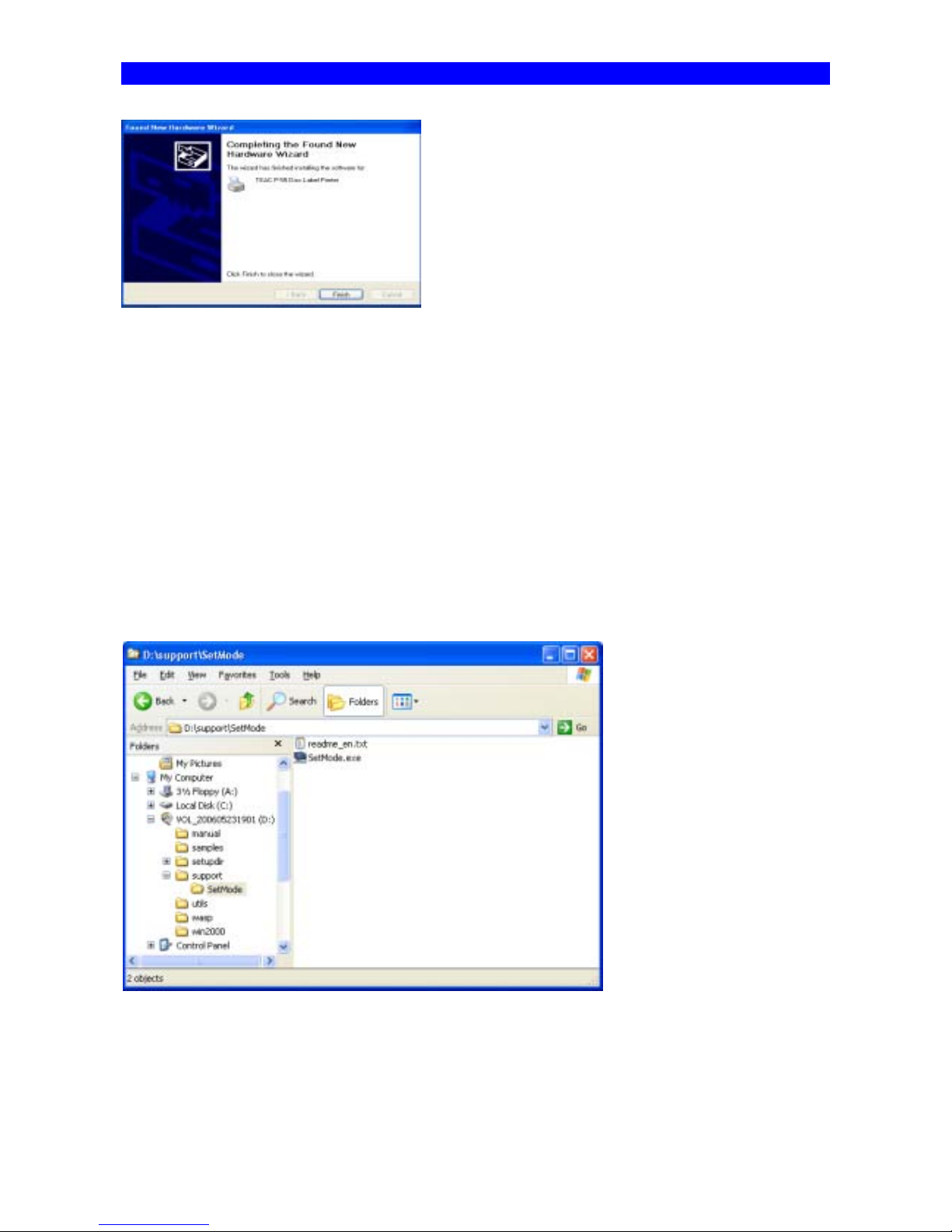

The message indicates the software has been installed

successfully. Click Finish .

*In Windows, click Start , select Printers and Faxes ,and

make sure the icon representing TEAC P-55 Disc Label

Printer is displayed on the screen.

To restart the computer, in Windows, click Start and

then Shut Down . Select Restart from the pull-down

menu, and click OK .

NOTE

[Printer driver operation modes]

The P-55 printer driver has the two modes.

1. [Standard Mode]

Allows the P-55 to print when the P-55 is online or connected to your Windows computer.

The computer communicates with the P-55 to obtain the info rmation such as ribbon type, remaining ribbon amount and

operation status.

2. [Remote Mode]

Allows the P-55 to create PRN les (*Note1) when the P-55 is oine or not connected to your Windows computer.

You need to specify the ribbon type you want to use in Printing Preferences as the P-55 does not communicate directly

with your PC for the information.

To switch the P-55 printer driver between standard mode and remote mode, execute the application tool setmode.exe. To

locate the tool, double-click the icon for the attached CD-ROM “P-55 UTILITY SOFTWARE” to open. Double-click the

folder “Support” and then “SetMode.”

When The P-55 and Duplicator Are Purchased Together

The SureThing Software Is Pre-Installed At The Factory*

*2000 & 9000 Series Only

1. Place CD in Drive. Installation will start automatically.

2. Click“I Accept” to the licensing and warranty information.

3. Click “Next”to begin software installation.

4. Click “Next”to add a shortcut to your desktop and start menu.

5. Click“Next”to Complete the software installation.

6. When installation is complete, click “Finish” to exit,

and Double Click the Sure Thing icon on your desktop.
