Metrohm 846 Manuel utilisateur

846 Dosing Interface

Manual

8.846.8001EN / 2020-02-10

Metrohm AG

CH-9100 Herisau

Switzerland

Phone +41 71 353 85 85

Fax +41 71 353 89 01

[email protected]

www.metrohm.com

846 Dosing Interface

Manual

8.846.8001EN / 2020-02-10

Technical Communication

Metrohm AG

CH-9100 Herisau

[email protected]

This documentation has been prepared with great care. However, errors

can never be entirely ruled out. Please send comments regarding possible

errors to the address above.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents

846 Dosing Interface ￭￭￭￭￭￭￭￭ III

Table of contents

1 Introduction 1

1.1 The 846 Dosing Interface in the Titrando system ............. 1

1.2 Instrument description ......................................................... 2

1.3 Commands ............................................................................. 3

1.4 Intended use ......................................................................... 3

1.5 About the documentation ................................................... 3

1.5.1 Symbols and conventions ........................................................ 3

1.6 Safety instructions ................................................................ 5

1.6.1 General notes on safety ........................................................... 5

1.6.2 Electrical safety ........................................................................ 5

1.6.3 Tubing and capillary connections ............................................. 6

1.6.4 Flammable solvents and chemicals ........................................... 6

1.6.5 Recycling and disposal ............................................................. 6

2 Overview of the instrument 8

3 Installation 10

3.1 Setting up the instrument .................................................. 10

3.1.1 Packaging .............................................................................. 10

3.1.2 Checks .................................................................................. 10

3.1.3 Location ................................................................................ 10

3.2 Stacking instruments ......................................................... 10

3.3 Connecting the instrument to the power grid ................. 11

3.4 Connecting a computer ...................................................... 12

3.5 Connecting MSB devices .................................................... 14

3.5.1 Connecting a dosing device ................................................... 15

3.5.2 Connecting a stirrer or titration stand .................................... 16

3.5.3 Connecting a Remote Box ..................................................... 17

3.6 Connecting USB devices ..................................................... 18

3.6.1 General ................................................................................. 18

3.6.2 Connecting a USB hub ........................................................... 19

3.6.3 Connecting a printer .............................................................. 19

3.6.4 Connecting a balance ............................................................ 20

3.6.5 Connecting a PC keyboard (only for operation with Touch

Control) ................................................................................. 21

3.6.6 Connecting a barcode reader ................................................. 22

4 Handling and maintenance 24

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

IV ￭￭￭￭￭￭￭￭ 846 Dosing Interface

5 Appendix 25

5.1 Remote interface ................................................................ 25

5.1.1 Pin assignment of the remote interfaces ................................ 25

5.2 Stirring rate ......................................................................... 27

6 Technical specifications 28

6.1 Mains connection ............................................................... 28

6.2 Interfaces and connectors ................................................. 28

6.3 Ambient temperature ......................................................... 29

6.4 Reference conditions .......................................................... 29

6.5 Dimensions .......................................................................... 29

7 Accessories 30

Index 31

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of figures

846 Dosing Interface ￭￭￭￭￭￭￭￭ V

Table of figures

Figure 1 The 846 Dosing Interface in the Titrando system ............................... 1

Figure 2 846 Dosing Interface Front ................................................................ 8

Figure 3 846 Dosing Interface Rear ................................................................. 9

Figure 4 846 Dosing Interfaces with bottle holder 6.2061.010 or with Titrando,

respectively ..................................................................................... 11

Figure 5 Connecting the computer ................................................................ 13

Figure 6 MSB connections ............................................................................ 14

Figure 7 Connecting a dosing device ............................................................. 16

Figure 8 Connecting an MSB stirrer ............................................................... 17

Figure 9 Connecting the rod stirrer to the titration stand ............................... 17

Figure 10 Connecting the Remote Box ............................................................ 18

Figure 11 Connecting a printer ....................................................................... 20

Figure 12 Connectors of the Remote Box ........................................................ 25

Figure 13 Pin assignment of remote socket and remote plug ........................... 25

Figure 14 Rotational speed depending on the stirring rate ............................... 27

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction

846 Dosing Interface ￭￭￭￭￭￭￭￭ 1

1 Introduction

1.1 The 846 Dosing Interface in the Titrando system

The 846 Dosing Interface is a component of the modular Titrando system.

It is operated either by means of a Touch Control with a touch-sensitive

screen or through a computer with a corresponding software, e.g.

tiamo™ or MagIC Net™.

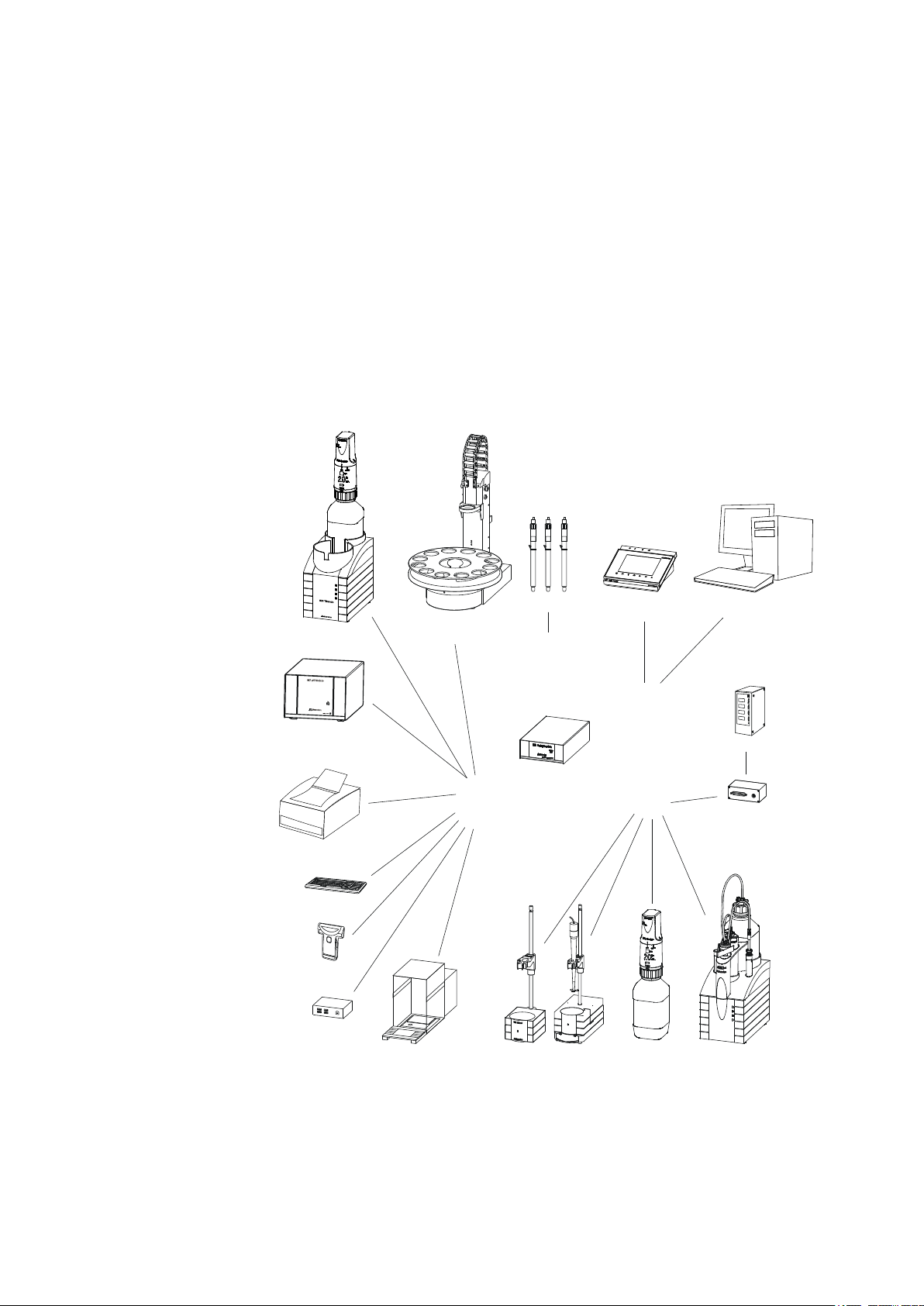

A Titrando system can contain numerous, various kinds of instruments.

The following figure provides an overview of the peripheral devices you

can connect to the 846 Dosing Interface.

MSB

USB

Controller

Input 1 / 2

Sensors

PC Keyboard

Barcode

Reader

USB Hub

Balance

Touch Control

USB Sample Processor

Robotic Titrosampler

Printer

Personal Computer

Relay Box

Remote Box

846 Dosing Interface

Stirrer / Ti Stand Dosino Dosimat

USB/RS-232 Converter

867 pH Module

Titrando

Figure 1 The 846 Dosing Interface in the Titrando system

1.2 Instrument description ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭

2￭￭￭￭￭￭￭￭ 846 Dosing Interface

When a Touch Control is used as the operating unit, up to three control

devices (Titrandos, Dosing Interfaces, USB Sample Processors, etc.) can be

controlled via USB connection. If a PC software (tiamo™ or

MagIC Net™) is used, then there is no limit to the number of control

devices that can be used to extend the system.

Updating the device software is described in the manual for the Touch

Control or in the online help for the control software.

1.2 Instrument description

The 846 Dosing Interface is a very versatile instrument. It was designed

exclusively for operational and laboratory use and covers a wide spectrum

of applications in this context.

Because it is equipped with high-performance USB interfaces, it can be fit-

ted seamlessly in a Titrando system from Metrohm. The versatile commu-

nications options of the Titrando system (Remote Box, LIMS link, etc.) can

thus all be used. Thanks to these capabilities, a 846 Dosing Interface is

predestined for all imaginable dosing and Liquid Handling tasks in modern

laboratory operations, particularly within highly integrated laboratory data

systems.

The user interface of the Touch Control or of the tiamo™ or

MagIC Net™ software ensures convenient operation and programming

of the 846 Dosing Interface. The integration in the Titrando system also

ensures 100%conformance with the guidelines of the FDA (Food and

Drug Administration) for the entire instrument system, in particular with

Guideline 21 CFR, Part 11, Electronic records and signatures.

The 846 Dosing Interface has the following characteristics:

￭Operation

Operation is carried out by means of a touch-sensitive Touch Control or

with a high-performance PC software, e.g. tiamo™.

￭Dosing

Dosinos and Dosimats can be used for dosing. These enable the dosing

of auxiliary solutions or the carrying out of complex Liquid Handling

tasks.

￭MSB connectors

Four MSB connectors (Metrohm Serial Bus) are available for controlling

Dosinos, stirrers and Remote Boxes.

￭USB connectors

Two USB connectors, through which devices such as printers, PC key-

boards, barcode readers or additional control devices (Titrando, USB

Sample Processor, Dosing Interface, etc.) can be connected.
