Metra Electronics 95-6545B Manuel utilisateur

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 1/17/18 INST95-6545B

INSTALLATION INSTRUCTIONS

95-6545B

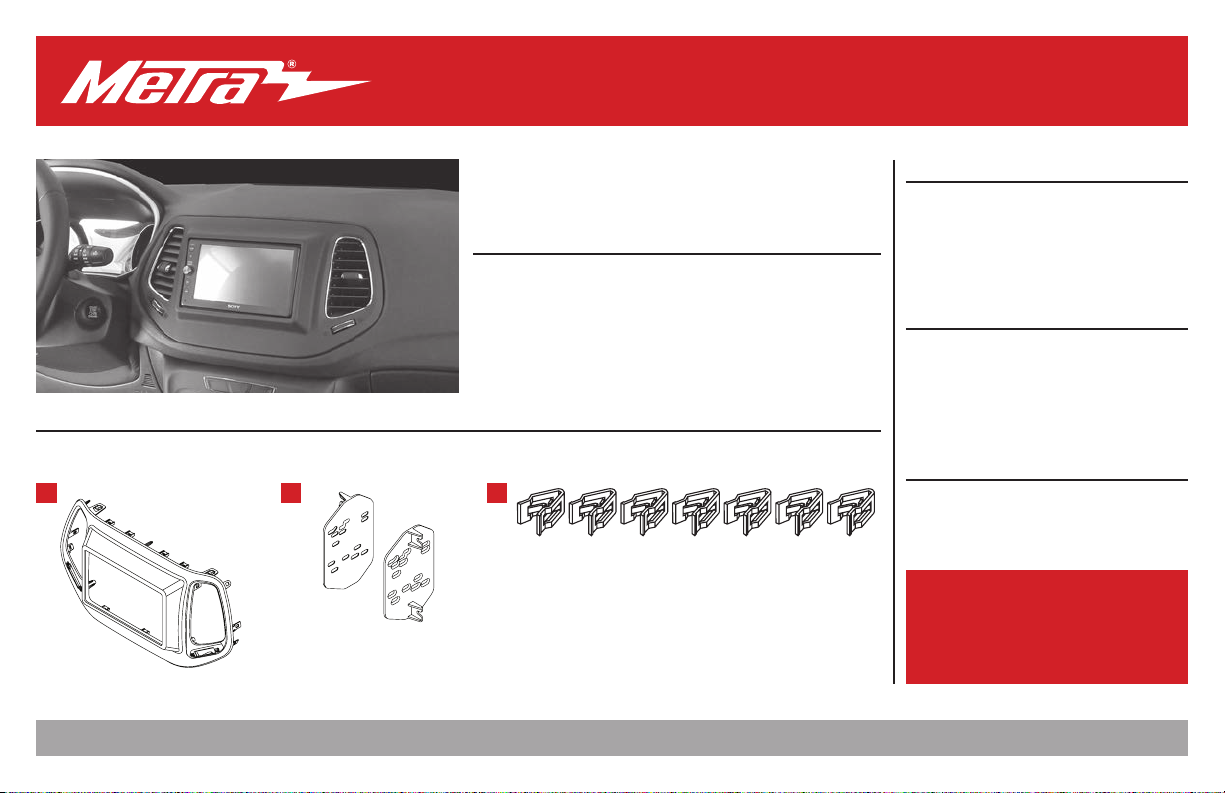

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) (7) Panel clips

A B C

Jeep Compass 2017.5-up*

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wire harness: • XSVI-6523-NAV

Antenna adapter: • 40-EU10

Steering wheel control interface: ASWC-1

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly ..........................................................3

DASH DISASSEMBLY

1. Unclip and remove the a/c vent panel

surrounding the radio.

2. Remove (4) 9/32” screws securing the

radio, then unplug and remove the radio.

Continue to Kit Preparation

KIT PREPARATION

(Figure A)

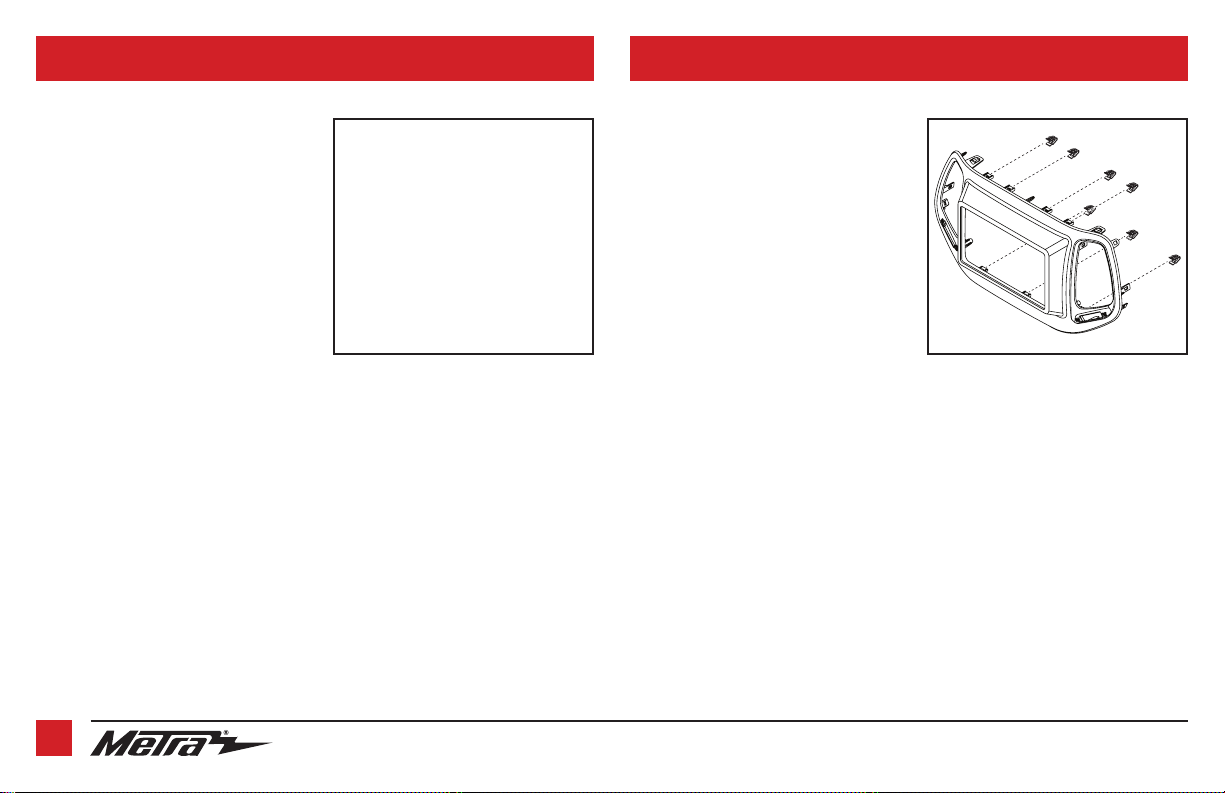

1. Attach the

(7)

panel clips

to the

radio

trim panel

(Figure A)

Continue to Kit Assembly

REV. 1/17/2018 INST95-6545B 3

(Figure A)

KIT ASSEMBLY

ISO DDIN radio provision

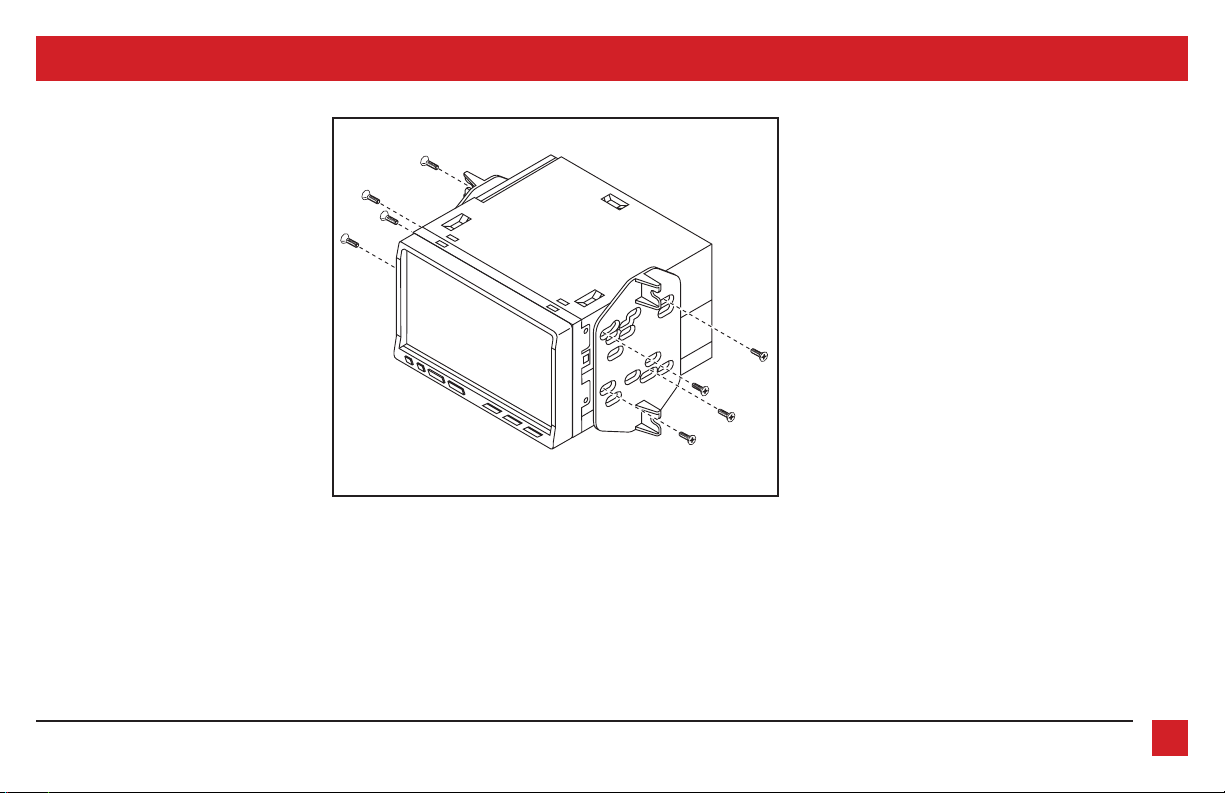

1. Attach the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or Axxess.

3. Test the radio for proper operation.

4. Secure the radio assembly to the dash

using the factory screws.

5. Snap the

radio trim panel

over the radio

assembly to complete the installation.
