INSTALLATION INSTRUCTIONS

99-7389B

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

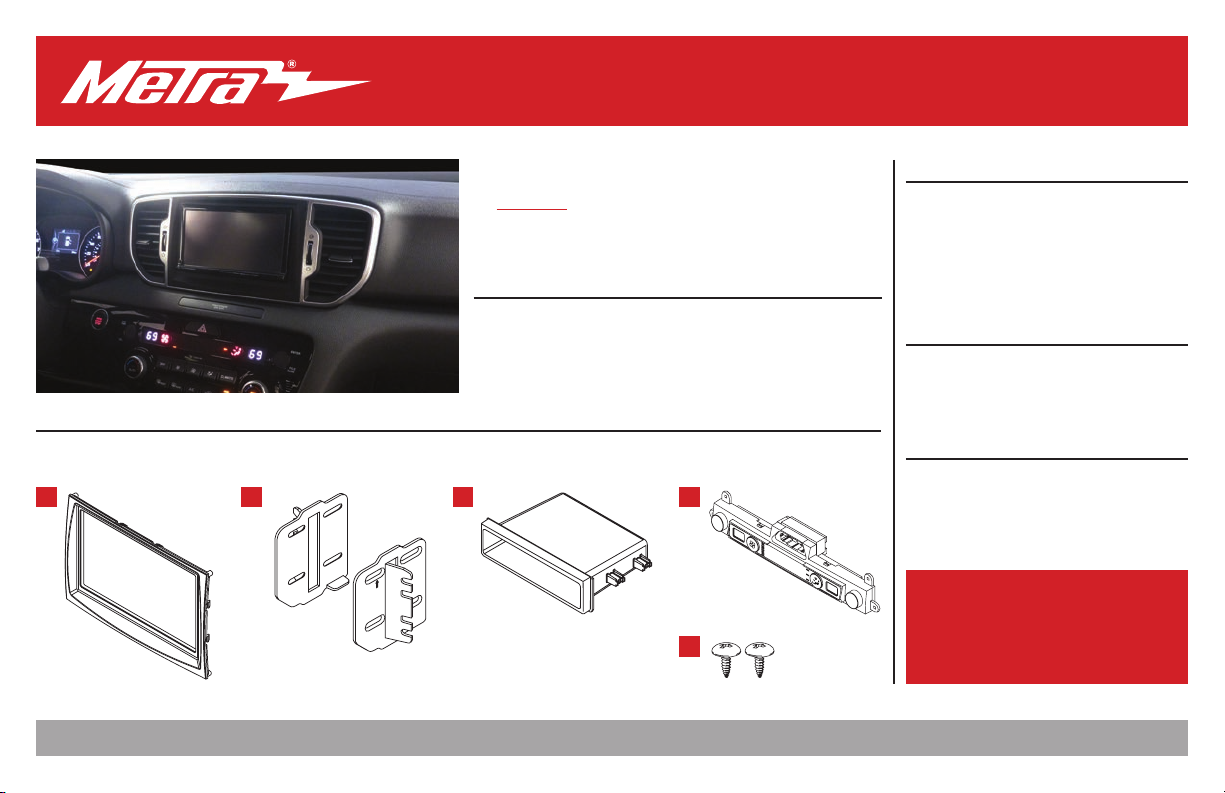

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Includes an ASWC-1, AX-CAM6V, antenna adapter, and wiring

harness for a complete installation

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Pocket • D) Climate display • E) (2) #8 x 3/8” Phillips screws • F) Wiring harness (not shown) TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Pick tool

TABLE OF CONTENTS

Dash Disassembly ...............................................2-3

Kit Preparation ...................................................4-6

Kit Assembly ..........................................................7

Wiring Instructions ...........................................8-15

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with kit

Antenna Adapter: Included with kit

Kia Sportage (without NAV, with Display radio†) 2017-2019

† Display radio is an Android Auto/Apple CarPlay radio

A CB D

*Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

1.800.221.0932

MetraOnline.com

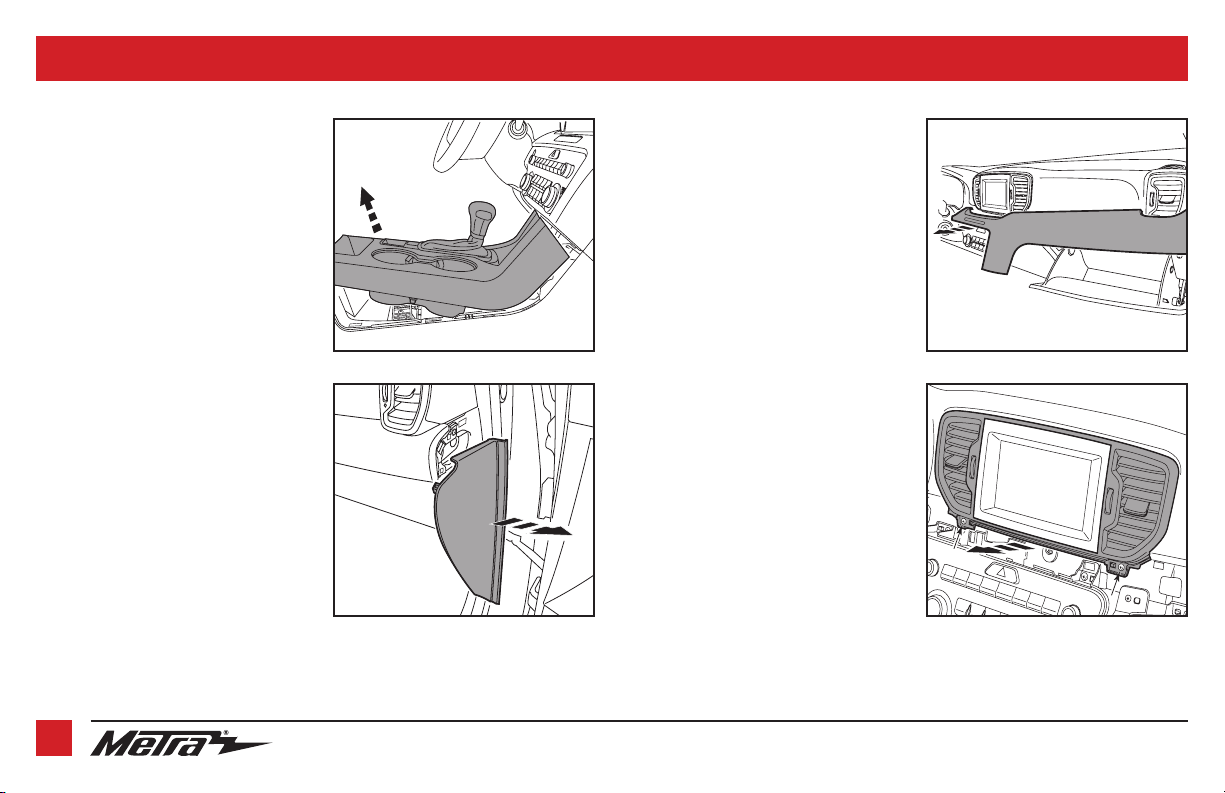

DASH DISASSEMBLY

1. Unclip and slide the top of the center

console back slightly. (Figure A)

2. Unclip and remove the panel on the

end of the passenger side of the dash,

then remove (1) Phillips screw exposed.

(Figure B)

3. Unclip the panel above the glove box.

Unplug the passenger airbag light, then

remove the panel. (Figure C)

4. Remove (2) Phillips screws securing the

radio display and a/c vent panel, then

unclip and remove the panel. (Figure D)

Continued on the next page

(Figure A) (Figure C)

(Figure B) (Figure D)

REV. 12/4/2019 INST99-7389B 3

(Figure E) (Figure G)

(Figure F) (Figure H)

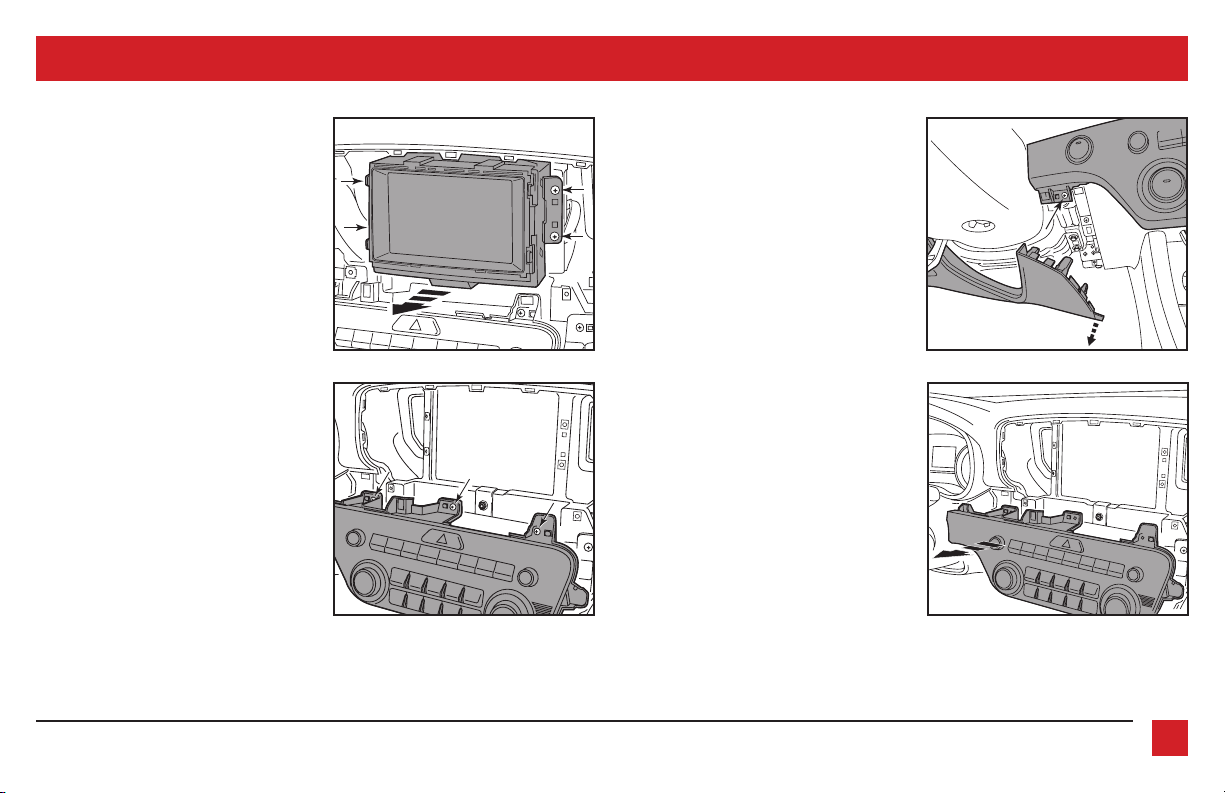

DASH DISASSEMBLY (CONT.)

5. Remove (4) Phillips screws securing the

radio. Slide the radio out, then unplug

and remove the radio. (Figure E)

6. Remove (3) Phillips screw securing the

climate control panel. (Figure F)

7. Remove (1) Phillips screw securing the

lower right side drivers knee bolster.

Unsnap the bolster just enough to

access the (1) Phillips screw securing the

climate control panel, then remove the

screw. (Figure G)

8. Unclip the climate/radio control panel

from the dash, unplug the connectors,

then remove the panel. (Figure H)

Continue to Kit Preparation

1.800.221.0932

MetraOnline.com

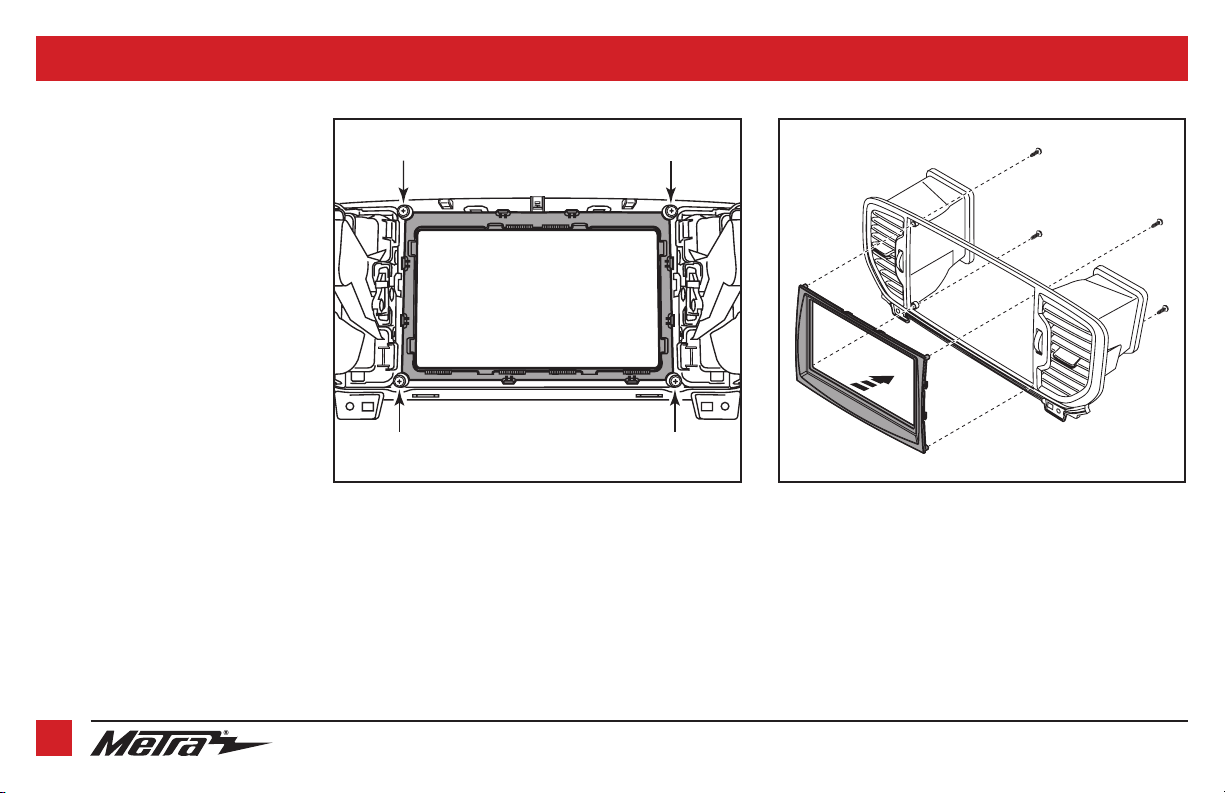

KIT PREPARATION

Radio Trim Panel Installation

From the factory radio trim panel:

1. Remove (4) Phillips screws securing the

inner trim panel, then remove the panel.

(Figure A)

To the factory radio trim panel:

2. Secure the 99-7389B r

adio trim panel

the panel using with the factory screws.

(Figure B)

Continued on the next page

(Figure A) (Figure B)

REV. 12/4/2019 INST99-7389B 5

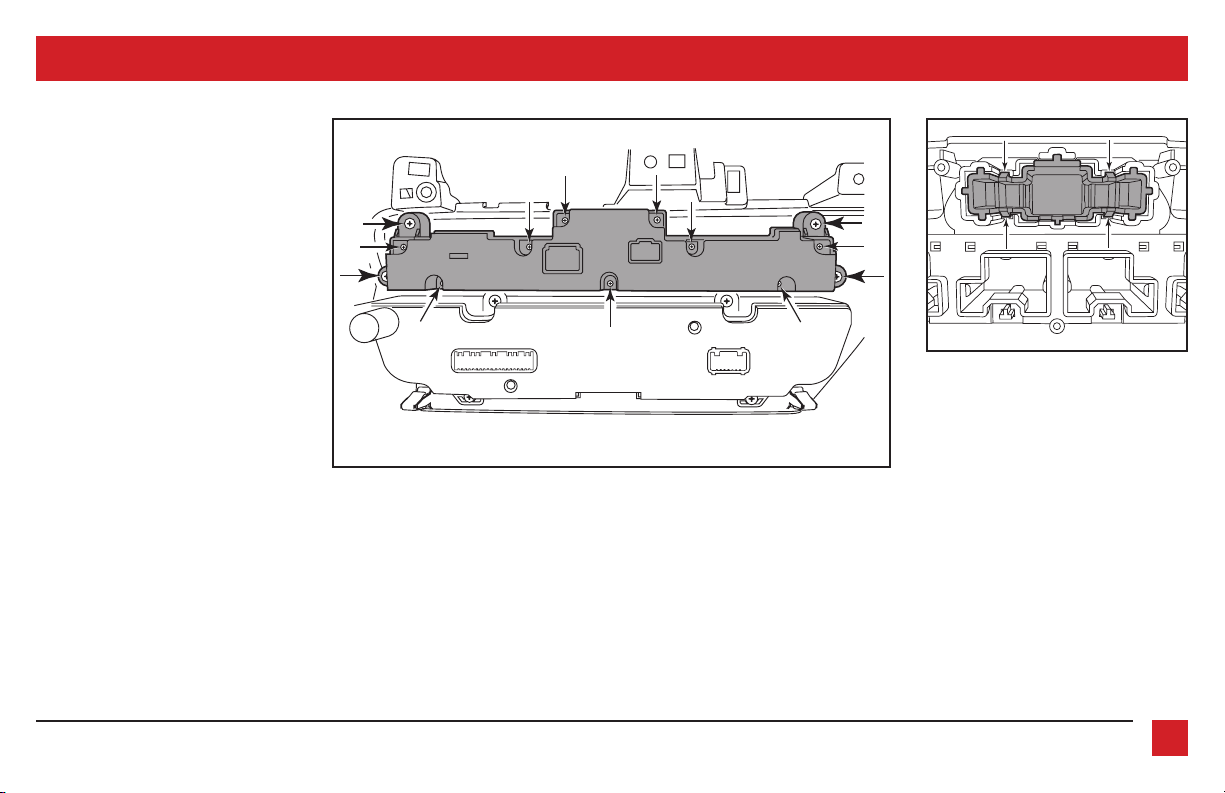

KIT PREPARATION (CONT.)

Climate Display Installation

1. Remove (4) Phillips screws securing the

radio/hazard assembly to the climate/

radio control panel, then unclip and

remove the assembly.

(Figure C, heavier arrows)

2. Remove (9) Phillips screws securing

the back cover to the radio/hazard

assembly, then remove the cover.

(Figure C)

3. Using a pick tool, gently release (4)

clips holding the hazard switch to the

assembly, then remove the switch.

(Figure D)

Continued on the next page

(Figure D)

(Figure C)

1.800.221.0932

MetraOnline.com

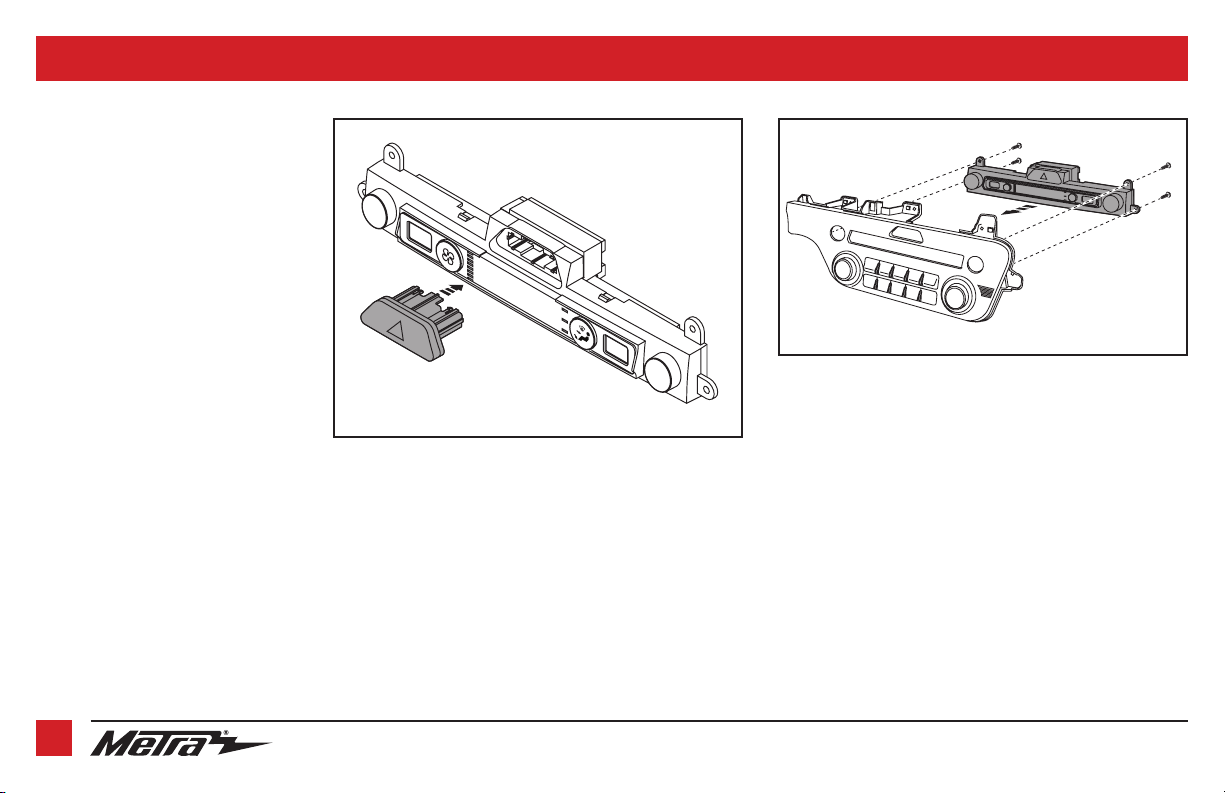

KIT PREPARATION (CONT.)

(Figure E)

(Figure F)

4. Clip the hazard switch into the

climate

display

. (Figure E)

5. Secure the climate-display/hazard-

switch assembly to the climate control

panel using the factory screws.

(Figure F)

Continue to Kit Assembly

REV. 12/4/2019 INST99-7389B 7

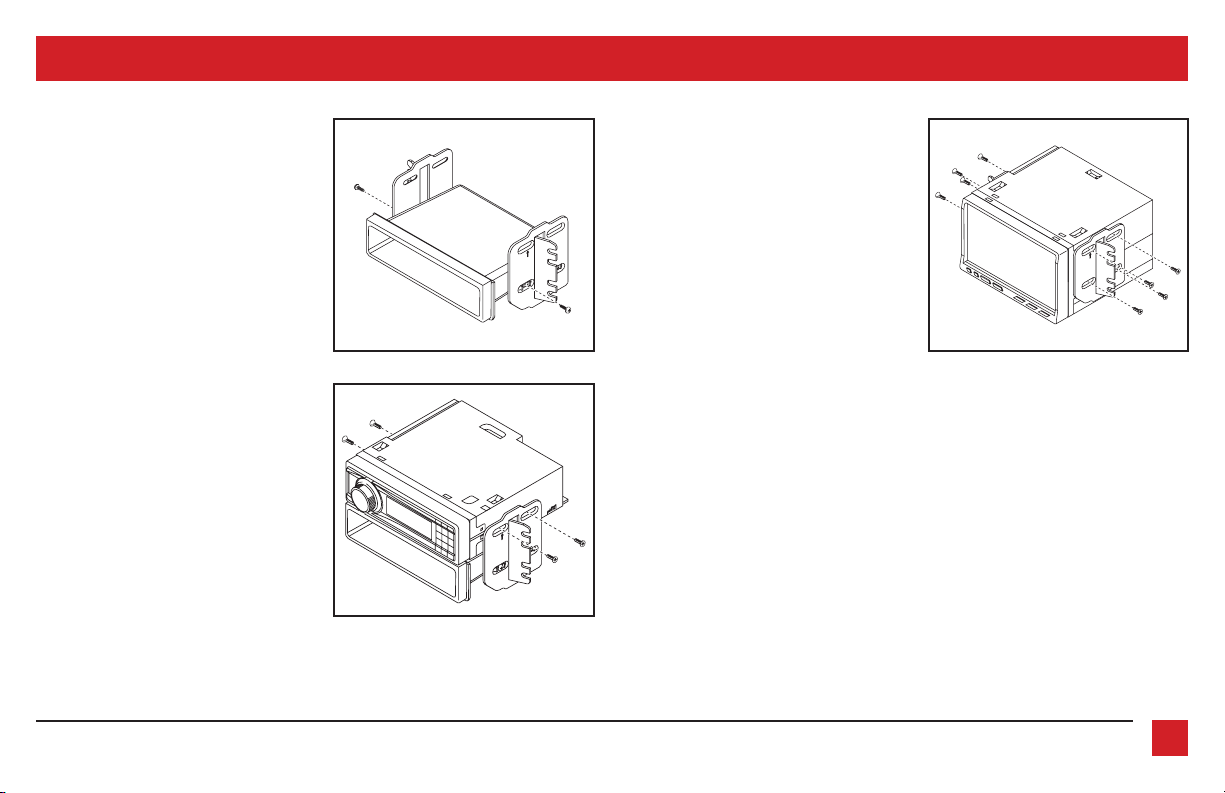

KIT ASSEMBLY

ISO DDIN radio provision

1. Secure the

radio brackets

to the radio

using the screws supplied with the

radio. (Figure A)

Continue to Wiring Instructions

ISO DIN radio provision with pocket

1. Secure the

radio brackets

to the

pocket

using the (2) #8 x 3/8” Phillips screws

provided. (Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the radio into the bracket/pocket

assembly, then secure it to the assembly

using the screws supplied with the

radio. (Figure B)

Continue to Wiring Instructions

(Figure A)

(Figure B)

(Figure A)

1.800.221.0932

MetraOnline.com

FEATURES

COMPONENTS

• Female 3.5mm connector with stripped leads

• ASWC-1

• AX-CAM6V

• Wiring harness

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections ..............................................................................................................................9-10

Installation ...................................................................................................................................10

Final Assembly ..............................................................................................................................11

Programming the ASWC-1 and climate display ..........................................................................11

(ASWC-1) Steering wheel control settings .............................................................................12-15

- L.E.D. feedback

- Changing radio type

- Remapping the steering wheel control buttons

- Dual assignment instructions (long button press)

• Retains audio controls on the steering wheel via an ASWC-1

• Provides NAV outputs (speed sense)

• Retains the factory AUX-IN jack

• Retains the factory backup camera

• Includes an AX-CAM6V 12-to-6V step-down for the factory camera

• Retains balance and fade

WIRING INSTRUCTIONS

REV. 12/4/2019 INST99-7389B 9

CONNECTIONS

The following (1) wire is only for a multimedia/navigation radio that requires this wire.

• Connect the Blue/Pink wire to the VSS/speed sense wire.

• Connect the Blue/White wire from the AX-CAM6V to a wire that has power while the vehicle

is in reverse. This wire will have to be located in the vehicle.

• If retaining the factory AUX-In jack, connect the Red and White RCA jacks to the audio

AUX-IN jacks from the aftermarket radio.

• Connect the Yellow RCA jack to the backup camera input.

Continued on the next page

From the wiring harness included with the kit to the aftermarket radio:

• Connect the (2) Black wires, the Black wire labeled “CAMERA GROUND”, and also the

Black wire from the AX-CAM6V, to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the Red wire to the accessory wire.

• Connect the Red wire labeled “CAMERA POWER 6V” to the Blue/Red wire from the AX-CAM6V.

• Connect the Blue wire to the power antenna wire.

• If the aftermarket radio has an illumination wire, connect the Orange wire to it.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative output.

1.800.221.0932

MetraOnline.com

CONNECTIONS (CONT.)

3.5mm jack steering wheel control retention:

The 3.5mm jack is to be used to retain audio controls on the steering wheel.

• For the radios listed below, connect the

female 3.5mm connector with stripped leads

, to the male

3.5mm SWC jack from the wiring harness included with the kit. Any remaining wires tape off

and disregard:

•

Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/White wire

of the connector. Then connect the remaining steering wheel control wire, normally Brown/

White, to the Brown wire of the connector

•

Metra OE:

Connect the steering wheel control Key 1 wire

(Gray)

to the

Brown

wire.

•

Kenwood or select JVC with a steering wheel control wire:

Connect the

Blue/Yellow

wire to

the

Brown

wire.

Note:

If your Kenwood radio auto detects as a JVC, manually set the radio type to Kenwood.

See the instructions under changing radio type.

•

XITE:

Connect the steering wheel control SWC-2 wire from the radio to the

Brown

wire.

•

Parrot Asteroid Smart or Tablet:

Connect the 3.5mm jack into the AX-SWC-PARROT (sold

separately), and then connect the 4-pin connector from the AX-SWC-PARROT into the radio.

Note:

The radio must be updated to rev. 2.1.4 or higher software.

•

Universal “2 or 3 wire” radio:

Connect the steering wheel control wire, referred to as Key-A

or SWC-1, to the

Brown

wire of the connector. Then connect the remaining steering wheel

control wire, referred to as Key-B or SWC-2, to the

Brown/White

wire of the connector. If the

radio comes with a third wire for ground, disregard this wire

Note:

After the interface has

been programmed to the vehicle, refer to the manual provided with the radio for assigning

the SWC buttons. Contact the radio manufacturer for more information

• For all other radios: Connect the 3.5mm jack from the wiring harness included with the kit into

the jack on the aftermarket radio designated for an external steering wheel control interface.

Please refer to the aftermarket radios manual if in doubt as to where the 3.5mm jack goes to.

I N S TAL L ATI O N

With the key in the off position:

1. Connect the wiring harness included with the kit to the climate-display/hazard-switch

assembly, and then to the wiring harness in the vehicle.

2. Locate the factory antenna connector in the dash and complete all necessary connections

to the radio. Use the antenna adapter provided to adapt the factory antenna connector to

the aftermarket radio.

3. Connect the wiring harness included with the kit to the ASWC-1.

Attention! If retaining steering wheel controls, ensure that the SWC jack/wire is connected to the

radio before proceeding. If this step is skipped, the ASWC-1 will need to be reset for the steering

wheel controls to function.

Table des matières

Autres manuels Metra Electronics Accessoires automobiles

Metra Electronics

Metra Electronics 99-7319 Manuel utilisateur

Metra Electronics

Metra Electronics 107-KI2HG Manuel utilisateur

Metra Electronics

Metra Electronics GMOS-06 Manuel utilisateur

Metra Electronics

Metra Electronics 99-3309B-LC Manuel utilisateur

Metra Electronics

Metra Electronics 99-8227S Manuel utilisateur

Metra Electronics

Metra Electronics LEXUS 99-8156 Manuel utilisateur

Metra Electronics

Metra Electronics 95-6542 Manuel utilisateur

Metra Electronics

Metra Electronics CHTO-01 Manuel utilisateur

Metra Electronics

Metra Electronics 95-6546B Manuel utilisateur

Metra Electronics

Metra Electronics GMOS-06 Manuel utilisateur

Metra Electronics

Metra Electronics 70-6514 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7388HG Manuel utilisateur

Metra Electronics

Metra Electronics 108-GM3B Manuel utilisateur

Metra Electronics

Metra Electronics 99-8244HG Manuel utilisateur

Metra Electronics

Metra Electronics 99-8245CHG Manuel utilisateur

Metra Electronics

Metra Electronics 108-TO7HG Manuel utilisateur

Metra Electronics

Metra Electronics 99-7424 Manuel utilisateur

Metra Electronics

Metra Electronics 70-1787 Manuel utilisateur

Metra Electronics

Metra Electronics 99-5026 Manuel utilisateur

Metra Electronics

Metra Electronics 107-HY1 Manuel utilisateur

Metra Electronics

Metra Electronics XIAH-FD4 Manuel utilisateur

Metra Electronics

Metra Electronics 99-3300 Manuel utilisateur

Metra Electronics

Metra Electronics 99-7340B Manuel utilisateur

Metra Electronics

Metra Electronics 107-FD1B Manuel utilisateur

Manuels Accessoires automobiles populaires d'autres marques

James Baroud

James Baroud Odyssey Manuel utilisateur

Motorola

Motorola i50sx Manuel utilisateur

Yakima

Yakima 9MM STANDARD BIKE MOUNT Manuel utilisateur

Feniex

Feniex T3 Manuel utilisateur

Renault

Renault 77 11 423 180 Manuel utilisateur

Kia

Kia E8300-4D000 Manuel utilisateur

Brink

Brink 756843 Manuel utilisateur

Whispbar

Whispbar K085W Manuel utilisateur

v.link

v.link CI-VL2-PC-HSD Manuel utilisateur

Viking

Viking Stack-Rack Guide de configuration rapide

Aries

Aries 203015 Manuel utilisateur

Choetech

Choetech AT0005 Manuel utilisateur

ZZ2

ZZ2 ZZAIR-PRO Manuel utilisateur

Holman

Holman 4A80L Manuel utilisateur

Thule

Thule 2075 Manuel utilisateur

Motorola

Motorola T325 Manuel utilisateur

TAUBENREUTHER

TAUBENREUTHER 16-3950 Guide d'installation

DV8

DV8 FBJL-02 Manuel utilisateur
