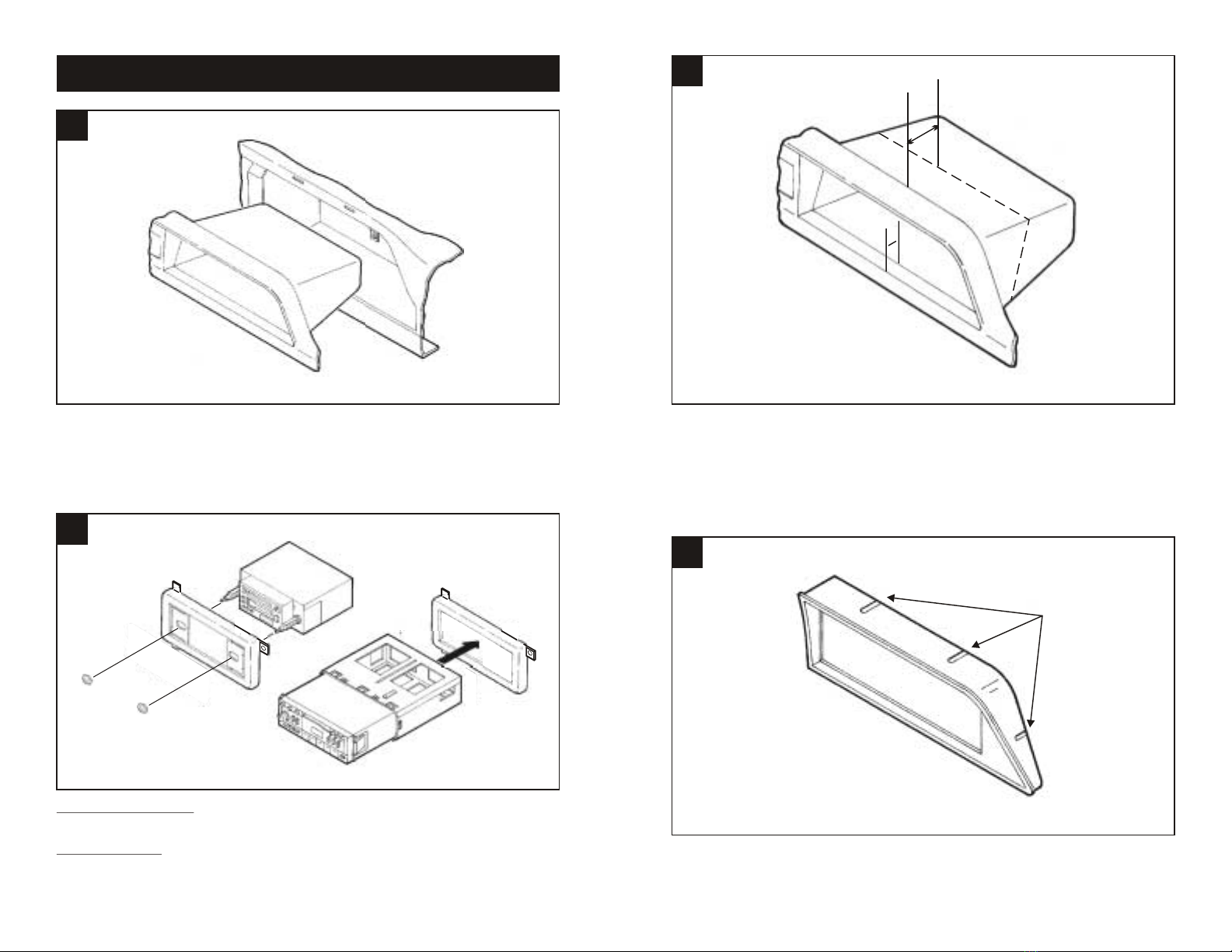

Disconnect the negative battery terminal to prevent an accidental short circuit. Open the glove

box and remove (2) Phillips screws securing the right edge of the dash trim bezel. Remove (5)

screws from the bottom of the dash trim bezel. Pull out on the upper edge of the bezel and

remove.

Using the dimensions above, cut and remove the rear portion of the factory pocket from the

radio trim bezel.

2-SHAFT HEAD UNITS: Slide the aftermarket head unit into the kit and secure with shaft

nuts. (see Fig. A)

DIN HEAD UNITS: Cut and remove the shaft supports from the Radio Housing. Slide the

DIN cage into the kit and secure by bending the metal locking tabs down. Slide the aftermarket

head unit into the cage until secure. (see Fig. B)

Locate the recessed slots on the top of the Faceplate and drill (1) 3/16" hole into each slot.

ALL VEHICLES

1

3

2

4

1½"

3/8"

APPLICATIONS

CAR PAGE

DODGE

Van (full size) 1990-97.............................................1-3

KIT COMPONENTS

KIT FEATURES

Shaft and

DIN unit

provisions 99-6540

INSTALLATION

INSTRUCTIONS

Radio Housing

Re-connect the battery terminal and test the unit for proper operation. Mount the head unit/kit

assembly to the sub-dash with (2) screws. Place the Faceplate into the dash trim bezel and

mount with (3) 3/8" Phillips screws supplied.

7

5

Locate the factory wiring harness in the

dash. Metra recommends using the

proper mating adaptor and making

connections as shown. (Isolate and

individually tape off the ends of any

unused wires to prevent electrical short

circuit).

A

B

C

D

A) Strip wire ends back ½"

B) Twist ends together

C) Solder

D) Tape

6

Locate the upper dash tab in the sub-dash and

bend the tab down. ("A")

3

"A"

Faceplate

(3) 3/8" Phillips

Screws

TOOLS REQUIRED

Cutting tool

Drill

Phillips screwdriver

1-800-221-0932 www.metraonline.com

© COPYRIGHT 2001 METRA ELECTRONICS CORPORATION

rev. 100103
