I. Introduction

A. General Description

The MS4500E-HC is a hand-held, battery powered, corrosion meter capable of measuring and storing data

from all types of electrical resistance (ER) corrosion probes. The instrument is light weight,

microprocessor-based, and features a simple, menu-driven interface using a keypad and a backlit

graphical LCD display.

Corrosion rate measurements are made using the electrical resistance method. Essentially, the instrument

measures the resistance of the probe element which changes over time, as metal loss occurs. The rate of

change is directly proportional to corrosion rate. This method finds a wide variety of applications since it

can be used in conductive and nonconductive environments such as petroleum, chemical, water, soil, or

even atmosphere. The new high-resolution measurement of the MS4500E-HC detects smaller increments

of metal loss, providing faster response than traditional ER instruments.

After taking a reading, the instrument displays metal loss in mils and corrosion rate in mils per year (mpy).

The reading can then be stored to memory or discarded. All stored readings are automatically time and

date stamped. Readings are stored to non-volatile Flash memory which retains data without the need for

a battery backup.

The MS4500E-HC High Resolution ER Data Logger can store 16,000 readings per probe on up to 250

different probes (4 million total). Stored data can be downloaded directly to a USB Flash (“jump”) drive in

non-hazardous areas. Data can be opened and charted using the provided CDMS software, or can be

imported into any standard data analysis (spreadsheet) program such as Microsoft Excel. Data can also be

reviewed and charted on the instrument’s LCD display for quick reference.

B. Principles of Operation

The MS4500E-HC High Resolution ER Data Logger operates on the Electrical Resistance (ER) technique

and is used in conjunction with an ER probe. The ER probe utilizes a resistive sensing element

manufactured from the material of interest (or a close approximation) which is exposed to a corroding

environment. This is called the Exposed or Corroding Element. The resistance of the Exposed Element

is directly related to its thickness, so as the element corrodes the resulting loss of metal causes a

proportional

increase in

the element’s resistance. The probe also contains an internal Reference

Element which is used to compensate for the influences of temperature on the Exposed Element.

The MS4500E-HC High Resolution ER Data Logger is designed to work with any standard ER probe,

but it is recommended that Cylindrical and Large Flush type probes be used to ensure optimum

performance. Their physical design places the Reference Element in closer proximity to the Exposed

Element compared to other probe types, providing more effective temperature compensation and

thus reducing the effects of thermal noise.

Because they are designed to corrode, ER probes are sacrificial in nature. Each ER probe will have a

finite life that is based on the element thickness. ER probes are available in a number of geometries

and thicknesses designed to suit a wide variety of applications. Table 1 lists the common ER element

options available from Metal Samples and the effective life of each.

Element Type Compatibility Thickness

Probe Life

(Span)

Tubular Loop Compatible 4 2

8 4

Wire Loop Compatible

40 10

80 20

Flush (Small) Compatible

8 4

Cylindrical Preferred

20 10

Flush (Large) Preferred

2.5

40 20

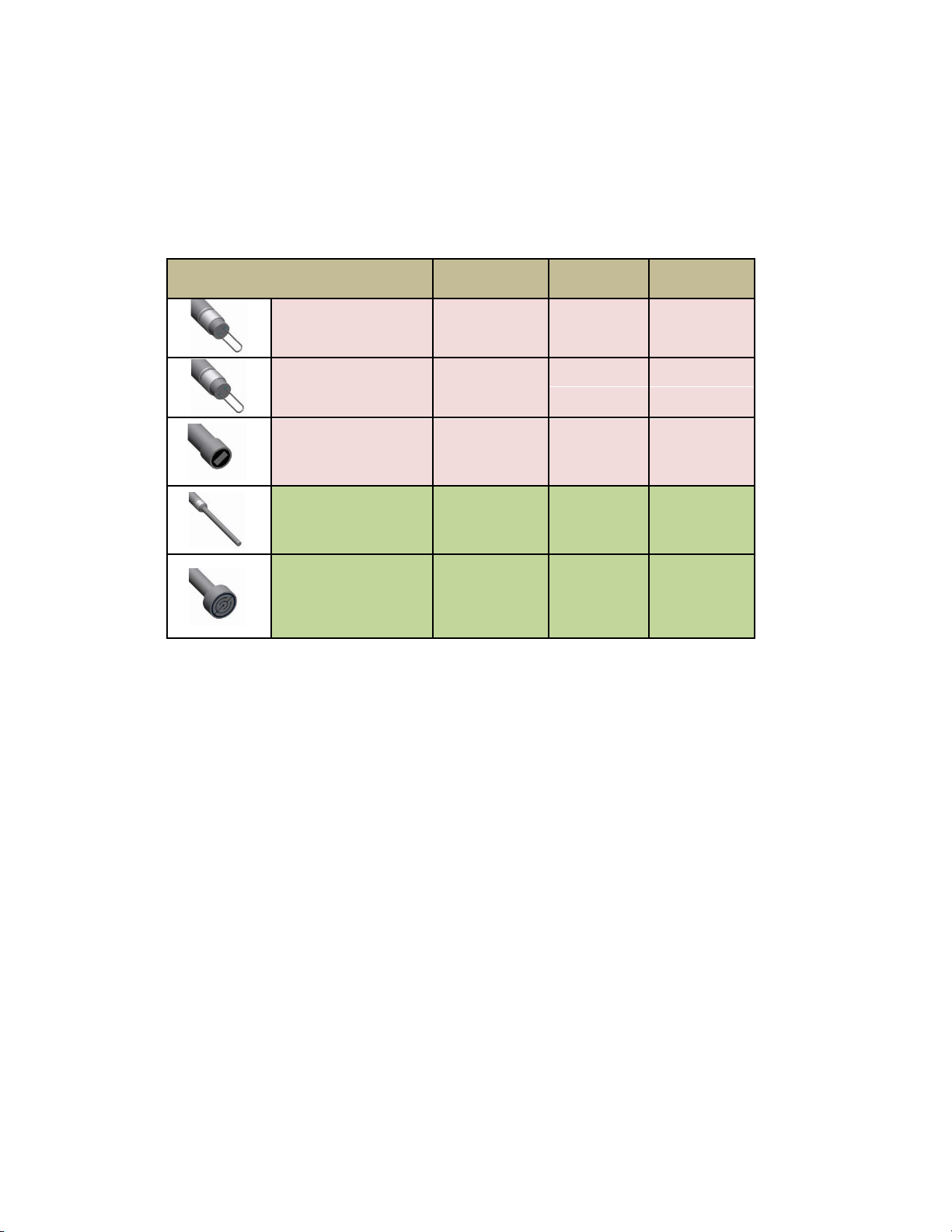

Table 1. Standard ER Probe Elements

The MS4500E-HC High Resolution ER Data Logger measures an ER probe utilizing a high-resolution, 16-

bit measurement. This allows the unit to detect much smaller amounts of metal loss, thus

responding faster to corrosion events and upsets. At 16-bit resolution the MS4500E-HC ER Data

Logger can measure metal loss amounts as small as 0.004% of the probe life. For highly sensitive

probes such as the 5-mil large flush shown above, that results in a detection limit of less than one

angstrom.

C. Technical Specifications

Model MS4500E-HCHigh Resolution ER Data Logger

Physical Data

Instrument Weight (w/ boot):

1.71 lb. (0.78 kg)

Total Weight w/ Case & Accessories:

6.96 lb. (3.16 kg)

Instrument Dimensions (w/ boot):

8.75"L x 4.54"W x 2.20"D (21.77cm x 11.53cm x 5.59cm)

Instrument Dimensions (w/o boot):

7.50"L x 4.00"W x 2.00"D (19.05cm x 10.16cm x 5.08cm)

Carrying Case Dimensions:

14.50"L x 11.38"W x 5.88"D (36.83cm x 28.89cm x 14.92cm)

Operating Temperature:

-4° to 130°F (-40° to 70°C)

Storage Temperature:

-4° to 158°F (-40° to 85°C)

Operating Humidity Range:

30% - 95%

Performance Data

Measurement Type:

ER measurement using any standard ER Probe Types

Preferred Probe Types: Cylindrical, Flush(Large)

Compatible probe types: Tube Loop, Wire Loop, Flush (Small)

Range:

0 - 25,000 probe life units (displayed as 0.00 to 1000.00 PLU’s in

0.04 increments)

Resolution:

0.004% of Probe Life

Repeatability:

± 0.1% of Full Scale

Cycle Time:

25 Seconds

Electrical Data

Power Requirements:

Two (2) C Type Batteries

Maximum Probe Cable Distance:

200 ft. (61 m)

Download Method:

Directly to USB Flash drive (Certified USB Drive)

Hazardous Location Certifications –IntrinsicSafety

Europe and Worldwide Class1, Zone 0 AEx ia [ia] IIC T4 Ga

(

ATEX and IECEx) MS4500E-HC

‐40°C ≤ Ta ≤ + 70°C

(for use with Xeno Energy XL-145F or Tadiran TL-4920)

Europe and Worldwide II 1 G Ex ia IIC T4 Ga

(

ATEX and IECEx) MS4500E-HC

-40°C ≤ Ta ≤ + 70°C

(for use with Xeno Energy XL-145F or Tadiran TL-4920)

ATEX Certificate No: ITS18ATEX203161X

IECEx Certificate No: IECEx ETL 18.0007X

X – see Special Conditions (page 8)

Included Accessories

Carrying case, Probe Cable (1’ coiled -6’ extended), Meter Prover, Operation Manual, Corrosion Data

Management Software, Protective Boot.

II. Start-up and Operation

A. Receiving the MS4500E-HCHigh Resolution ERData Logger

Check the MS4500E-HC High Resolution Data Logger for any shipping damage when it is first received.

When the unit is unpacked, verify that the following items are included:

•Carrying Case

•Data Logger

•Meter Prover

•User’s Manual

•Probe Cable

In theevent of shipping damage, quantity shortage, or missing items, it is recommended that the

event is documented immediately and that digital photographs are taken. Any shortages or missing

items should be reported to Metal Samples immediately. In the event of shipping damage, a claim

should be opened with the responsible carrier.

B. Start-Up

CAUTION: Using this product in any way other than that specified within this manual may impair the

intrinsic safety protection.

ATTENTION : l'utilisation de ce produit de toute autre manière que celle spécifiée dans le présent manuel

peut altérer la protection de sécurité intrinsèque.

Start-up of the MS4500E-HC High Resolution Data Logger involves the following steps:

1. Port Details and Probe Connection

2. Power-Up

3. Setup and Operation

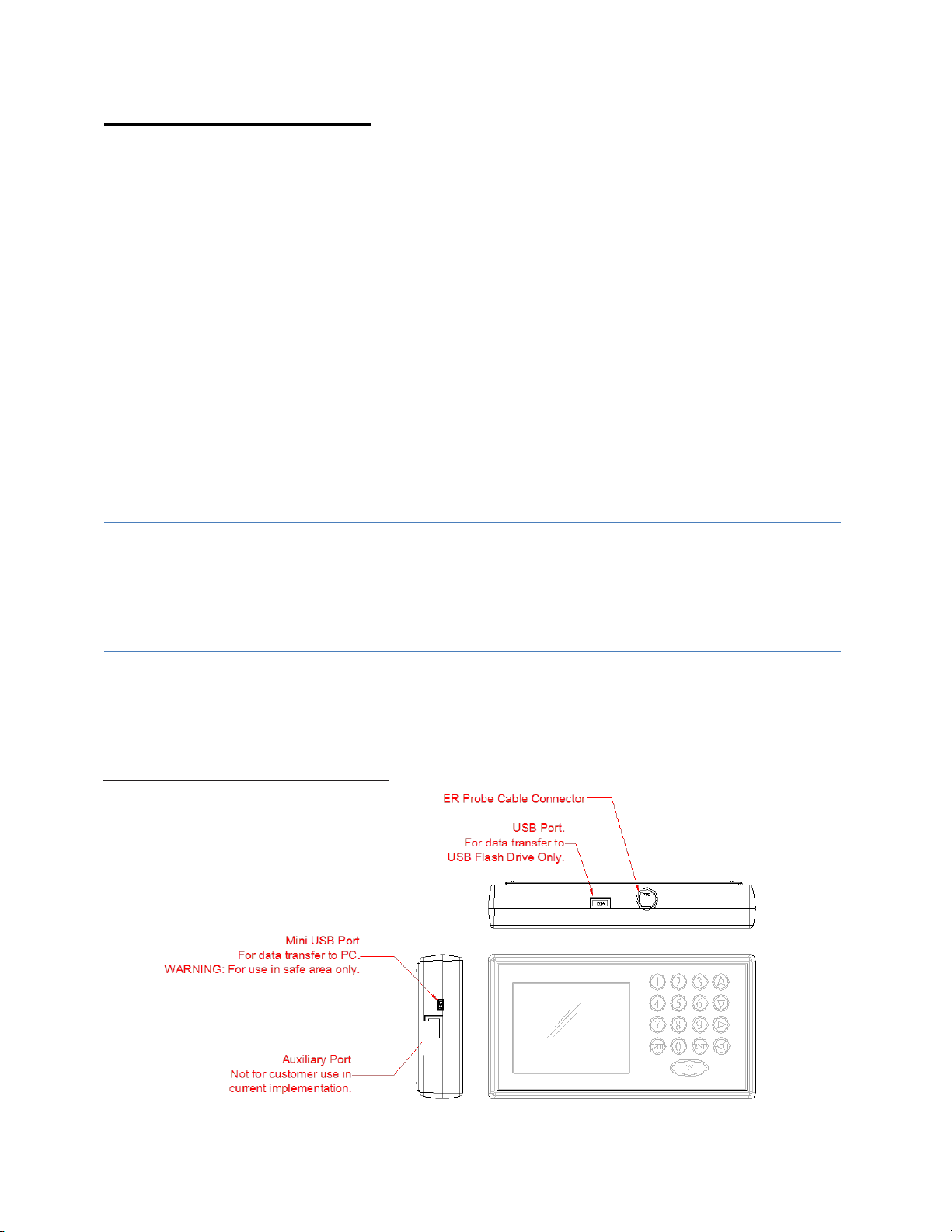

1. Port Details and Probe Connection

Attention: Utilisez Seulement

dans des endroits Sécurisés

The MS4500E-HC High Resolution Data Logger is supplied with a probe cable and it can be

connected to the probe whose metal loss value needs to be measured, no additional hardware is

necessary. Connect the probe cable ‘Lemo’ connector end to the data logger probe connector ‘J9’

available on top of the data logger. Connect the other end of the probe cable i.e. probe connector

(MS Connector) to the probe.

2. Power-Up

The unit is supplied with two (2) C type batteries installed. The instrument can bepowered upby

pressing the ‘ON’ button on the Keypad .The Start-upscreen with the Metal Samples logo will appear

on the screen; the start-upscreen confirms the software version currently running andthe SD card

status.

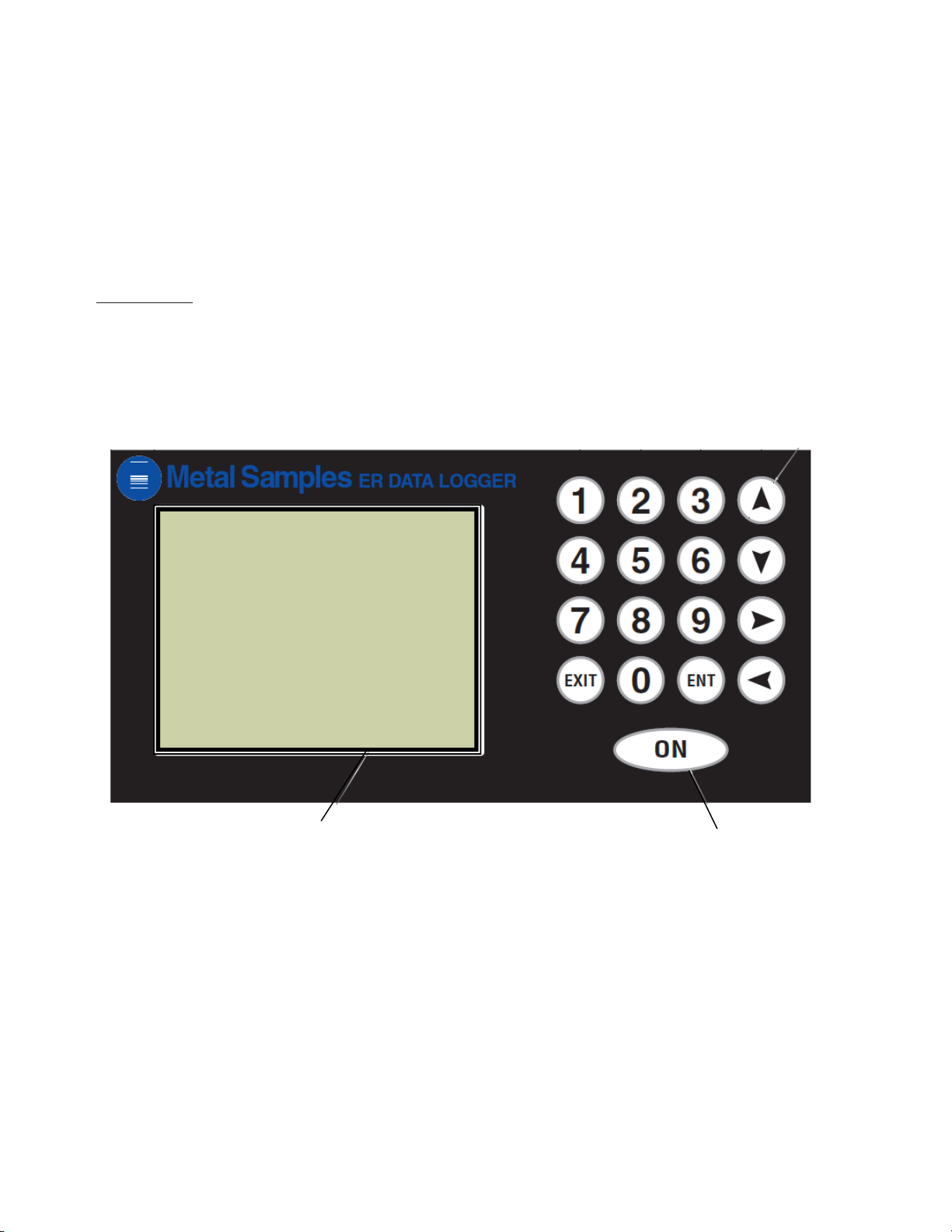

Power On Button

Display Window

1. SELECT PROBE

2. MAKE MEASUREMENT

3. RECALL READINGS

4. DELETE READINGS

5. SET TIME & DATE

6. SET MEASUREMENT TIMER

7. COMMUNICATIONS

8. LANGUAGE / IDIOMA / LINGUAGEM

9. POWER OFF

10. BACKLIGHT ON/OFF

a. Safe Area Usage

The MS4500E-HC High Resolution Data Logger is approved for use in hazardous areas, but

can be used in non-hazardous areas as well.

The data transfer from the unit to PC should be done in a safe area. A certified USB isolator/

Barrier should be used between the unit and PC for data transfer.

b. Hazardous Area Usage

CAUTION:This section provides general guidelines for hazardous areausage. However,

regardless of anythingstated here, the MS4500E-HC High Resolution Data Logger must be used

in full compliance with the control drawing located in Appendix A and all of the local area

requirements. The entity parameters ofthe unitaregiven below.

ATTENTION :Cette section fount des directives générales pour l’utilisation enzone dangereuse

Toutefois, et indépendamment de toute déclaration faite ici, L’enregistreur de données de

haute résolution MS4500E-HC doit être utilise en pleine conformité avec le schéma de

contrôle donne enpage 20 et avec toutes les exigences du locale zone dangereuse.

J9-USB Port J8 – Mini USB Port Entity Parameters):

Uo= 4.94V Uo= 4.94V

Io= 0.332A Io= 0.215A

Po= 0.410 W Po= 0.322 W

Co= 1.0 uF

Lo= 100 uH

SPECIAL CONDITIONS

•Connection of the equipment to the ET1867 USB barrier (or any other certified barrier used with the

equipment) may only be made whilst both the barrier and the equipment are located in the non-

hazardous area.

•External non-metallic materials utilize a conductive coating to prevent the risk of electrostatic charging.

The equipment shall be removed from service if damage to this coating is observed. Refer to the

manufacturer’s instruction manual for further information on the durability and any chemical vulnerability

of this coating.

CONDITIONS PARTICULIERES

• La connexion de l'équipement à la barrière USB ET1867 (ou toute autre barrière certifiée

utilisée avec l'équipement) ne doit être effectuée que lorsque la barrière et l'équipement sont

situés dans une zone non dangereuse.

• Les matériaux externes non métalliques utilisent un revêtement conducteur pour éviter le

risque de charge électrostatique. L'équipement doit être retiré du service si des dommages à ce

revêtement sont observés. Reportez-vous au manuel d'instructions du fabricant pour plus

d'informations sur la durabilité et la vulnérabilité chimique de ce revêtement.

CAUTION

1. Mini USB port to transfer the data from the Data Logger to PC allowed only in safe area

through certified USB barrier.

2. Connection of the equipment to the Metal Samples # ET1867 USB barrier (or any other

certified barrier used with the equipment) may only be made whilst both the barrier and the

equipment are located in the non-hazardous area.

3. Only Certified USB flash drives are allowed to use in Hazardous locations.

4. Conductive coating utilized on the equipment is permanently static dissipative and humidity

independent, no further maintenance is necessary. The unit needs to be returned to

manufacturer if any damages/scratches noticed on the outer surface of the equipment.

* DO NOT USE CHEMICAL SOLVENTS TO CLEAN THE OUTER SUFRACE OF THE EQUIPMENT OR BOOT.

ATTENTION :

1. Mini port USB pour transférer les données de l'enregistreur de données au PC autorisé

uniquement dans une zone sûre grâce à une barrière USB certifiée.

2. Connexion de l'équipement aux échantillons métalliques # ET1867 La barrière USB (ou toute

autre barrière certifiée utilisée avec l'équipement) ne peut être fabriquée que si la barrière

et l'équipement sont situés dans une zone non dangereuse.

3. Seuls les lecteurs flash USB certifiés sont autorisés à utiliser dans des endroits dangereux.

4. Le revêtement conducteur utilisé sur l'équipement est en permanence antistatique et

indépendant de l'humidité, aucun entretien supplémentaire n'est nécessaire. L'unité doit

être retournée au fabricant si des dommages / rayures ont été constatés sur la surface

extérieure de l'équipement.

* N'UTILISEZ PAS DE SOLVANTS CHIMIQUES POUR NETTOYER LE SUFRACE EXTERNE DE L'ÉQUIPEMENT

OU DE LA BOTTE.

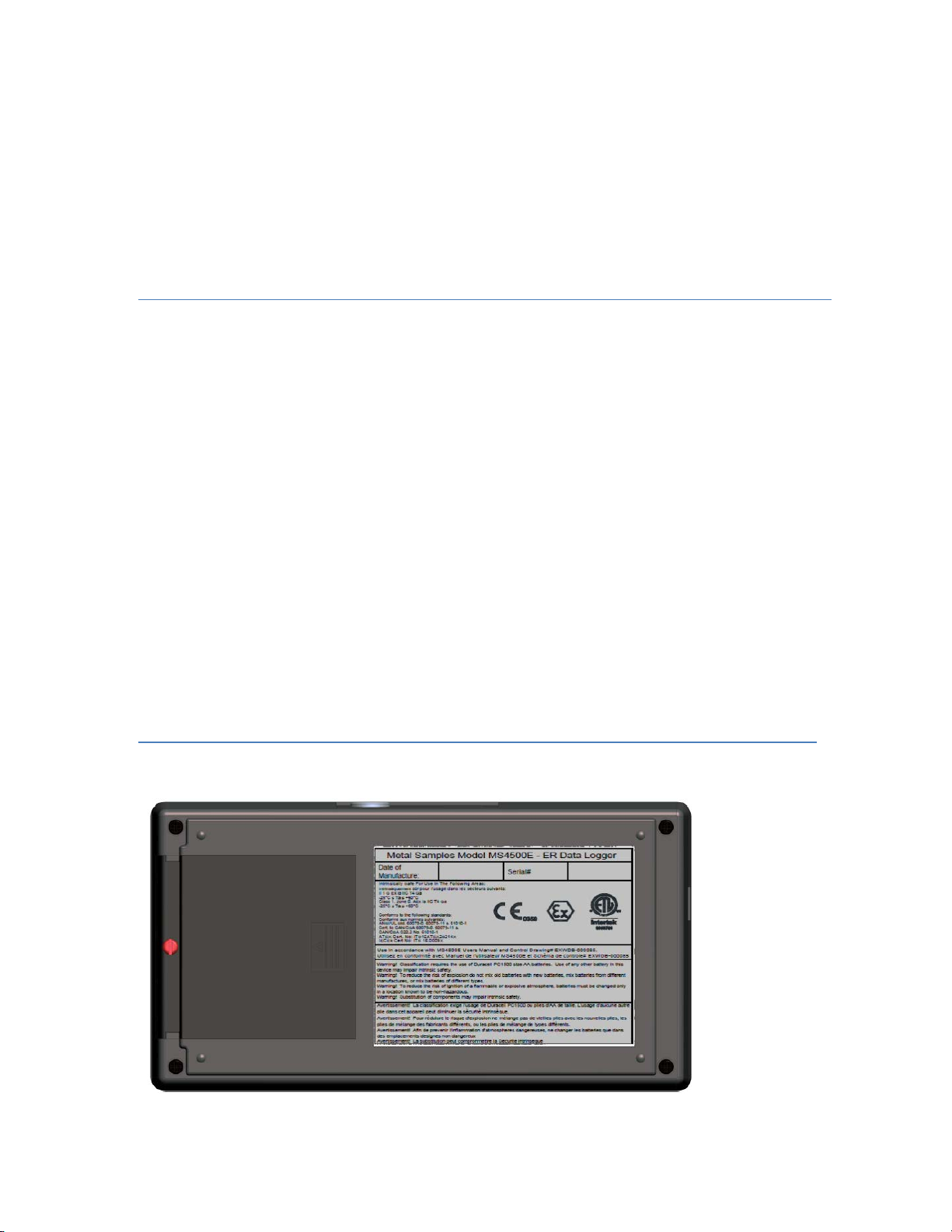

c. Battery Replacement

The battery compartment is located on the back of the instrument. You must first remove it to access

the battery compartment.

To replace the batteries, first loosen and remove the cover screw, then remove the battery cover to

expose the batteries. Remove the old batteries and replace them with two new3.6V ‘C’ size

batteries for MS4500-HC,being sure tofollow the polarity (+/-) symbols in the battery compartment.

Replace the battery cover and cover screw.

WARNING:

•Do not mix old and new batteries.

•Do not mix batteries of different types (such as alkaline and lithium.)

•MS4500E-HC



Xeno XL-145F / Tadiran TL4920 battery is required for intrinsic safety.

•The cover screw is used to prevent unauthorized tampering of the batteries and is required to ensure

intrinsic safety.

•Do not over-tighten the cover screw, as this may damage the instrument case.

ATTENTION:

•Avertissement ! Ne mélangez pas des piles neuves et usées.

•Avertissement ! Ne mélangez pas des piles de types différents (telles que des piles alcalines etdes

piles lithium.)

•Avertissement ! MS4500E-HC



La pile Xeno XL-145F / Tadiran TL4920 est requise pour la

sécurité intrinsèque

•Avertissement ! La vis du couvercle est utilisé pour éviter toute manipulation non autorisée des

batteries, et est nécessaire pour assurer la sécurité intrinsèque.

•Avertissement ! Ne pas trop serrer les vis du couvercle, pour ne pas endommager le boîtier de

l'instrument

Table des matières

Autres manuels Metal Samples Company Enregistreur de données

Metal Samples Company

Metal Samples Company MS3500E Manuel utilisateur

Manuels Enregistreur de données populaires d'autres marques

TESTO

TESTO 176 Manuel utilisateur

HT Italia

HT Italia XL421 Manuel utilisateur

HBM

HBM SOMAT XR CX22B-R Manuel utilisateur

Agtrix

Agtrix 380i Manuel utilisateur

Hobo

Hobo H8 Pro Manuel utilisateur

Beijing ART Tech

Beijing ART Tech PCI2320 Manuel utilisateur

Athena

Athena GET SL1 Manuel utilisateur

Motec Systems

Motec Systems C185 Manuel utilisateur

Beijing ART Tech

Beijing ART Tech USB2832 Manuel utilisateur

Rotronic

Rotronic HygroLog HL20 Manuel utilisateur

MRC

MRC DW-6092 Manuel utilisateur

Racelogic

Racelogic VBOX LapTimer Manuel utilisateur

Edu-Logger

Edu-Logger 900-240 Manuel utilisateur

Elma

Elma DT173 Manuel utilisateur

MadgeTech

MadgeTech PRTemp140 Fiche technique

Comet

Comet U0121M Manuel utilisateur

pico Technology

pico Technology PT-104 Manuel utilisateur

Soil Instruments

Soil Instruments GTecLink Manuel utilisateur
