Merrithew Wall Unit Manuel utilisateur

Please review this important assembly, safety and warranty information about your new

Merrithew™equipment and keep it handy for future reference.

OWNER’S MANUAL

Wall Unit

Wall Unit Owner’s Manual2

WALL UNIT OWNER’S MANUAL

IMPORTANT!

This manual contains important assembly, safety and

warranty information. Read the manual carefully

before using your new equipment and keep the

manual on hand for future reference.

UNSAFE OR IMPROPER USE OF THIS EQUIPMENT

BY FAILING TO READ AND COMPLYWITH ALL

REQUIREMENTS ANDWARNINGS COULD RESULT

INSERIOUSINJURY.

It is impossible to predict every situation and

condition that can occur while using this equipment.

Merrithew makes no representation about the

safe use of any exercise equipment that cannot be

predicted or avoided.

PLEASE DO NOT ATTEMPT TO ASSEMBLE ON YOUR

OWN. SOME OF THESE STEPS REQUIRE TWO PEOPLE.

PLEASEREAD THESE INSTRUCTIONS COMPLETELY

BEFOREBEGINNING ASSEMBLY.

Merrithew recommends cautious assembly and

usage andwishesyou many hours of safe and

effectiveexercise.

CAUTION IMPROPER USE OF EXERCISE EQUIPMENT MAY CAUSE SERIOUS BODILY INJURY.

TO REDUCE RISK, PLEASE READ THE FOLLOWING:

wSet up and operate the Wall Unit on a solid, level surface.

Do not position on loose rugs or uneven surfaces.

wBefore starting any exercise program, consult a physician.

wAlways choose the workout which best fits your physical

strength and flexibility level. Know your limits and train

within them. Always use common sense when exercising.

wBefore using equipment, read and follow the safety

instructions provided and obtain thorough instruction

from a qualified trainer.

wEnsure equipment is properly adjusted for your size and

abilitylevel. Use only for intended exercises and under the

supervision of a trained professional.

wStop exercising if you experience chest pain, feel faint,

have difficulty breathing or experience musculoskeletal

discomfort.

wDo not wear loose clothing while using the Wall Unit.

Keep body, clothing and hair free from all moving parts.

wDo not use if equipment appears worn, broken or damaged.

wDo not attempt to repair equipment yourself without

consulting Merrithew.

wDo not allow children to use or be around equipment

withoutadult supervision.

wThe Wall Unit should only be used by one person at a time,

not weighing over350 lbs / 159 kgs.

wDo not hang from the Horizontal Frame as it is not intended

to support full body weight.

wBe careful to maintain your balance while using, mounting,

dismounting or assembling the Wall Unit, loss of balance

may result in a fall and serious injury.

wAll springs must be replaced every 24 months or as needed

within that period.

wAll spring clips must be replaced every 12 months or

as needed within that period.

WARNING: As with any athletic activity, the use of

exercise equipment involves risk of injury, damage and/

or death.

By choosing to use Merrithew equipment, you and/or

your clients/patients assume responsibility for that risk,

not the people who sell, distribute and/or manufacture

thisequipment.

Mechanical SafetyCheck

Proper maintenance and timely replacement of your equipment or component parts is your responsibility.

Conduct a regular inspection of the following:

Daily: Clean all surface areas after each use

Weekly: Inspect all springs for wear and damage and replace

immediately as needed.

Monthly: wEnsure eyehooks are securely fastened.

wEnsure all nuts, bolts and screws are securely fastened.

wConfirm push-thru bar nuts are secure.

Yearly: Replace all spring clips.

Every Two Years: Replace all springs.

FAILURE TO PERFORM RECOMMENDED SAFETY CHECKS,

OR USINGEQUIPMENT WITH IMPROPERLY ADJUSTED,

BROKEN OR WORN PARTS, COULD RESULT IN SERIOUS

BODILY INJURY.

User Guidelines

Pilates equipment when used effectively can faciliate many

Pilates exercises safely and effectively. However, care and caution

must be taken as there are some inherent dangers when using

any exercise equipment — especially when spring resistance

isinvolved.

For inexperienced or first-time users, this equipment

should only be used under the supervision of a

trainedprofessional.

Please ensure that you and your clients/patients have

receivedproper instruction regarding the correct and safe

useofthis equipment.

Many exercises performed on the Spring Wall are part of

the Cadillacrepertoire. Full instructions are provided in

STOTTPILATESCadillac manuals.

This manual includes general guidelines for setup and usage.

To get the most out of this equipment, Merrithew offers

instructional DVDs and manuals. Personalized training is offered

through our Corporate, Licensed and Host Training Centers.

Visit merrithew.com for more information.

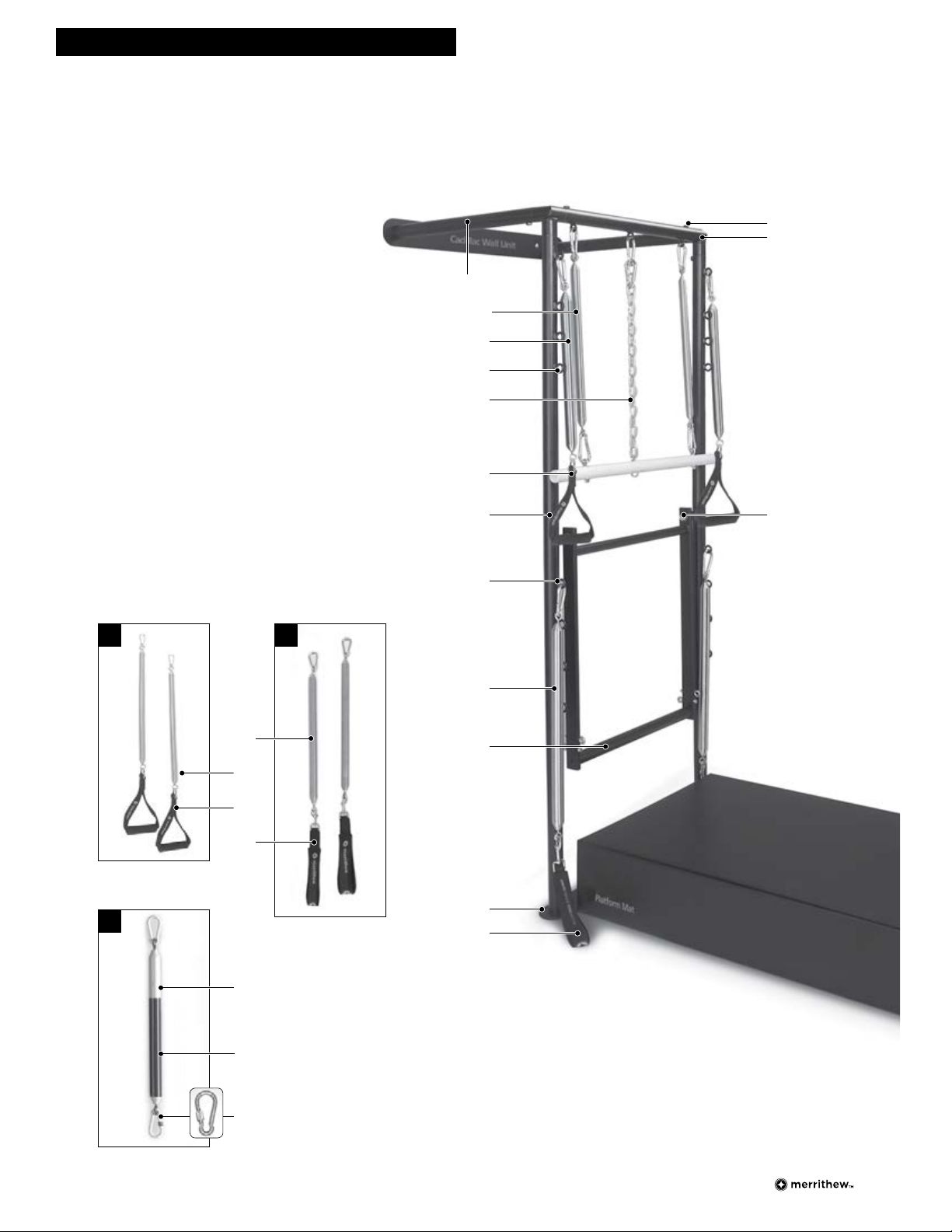

Wall Unit

1Horizontal Frame Assembly

2Roll-Down Springs (2) (black)

3Arm Springs (2) (yellow) [fig. A]

4 Eyehooks, Upper

5Safety Chain

6Roll-Down Bar

7 Vertical Frame

8 Eyehooks, Lower

9Leg Springs (2) (green) [fig. B]

10 Push-Thru Bar

11 Base Plate

12 Padded Long Spine Straps [fig. B]

13 3⁄8" Hex Bolts (pre-set)

14 Three-Way Joint

15 1⁄2" Hex Bolts (pre-set)

16 Foam Grip Handles [fig. A]

17 Push-Thru Springs (2) (blue) [fig. C]

18 Push-Thru Spring Cover [fig. C]

19 Locking Spring Clip [fig. C]

PART IDENTIFICATION

The Wall Unit image shown here includes a Platform Mat,

available as an optional purchase.

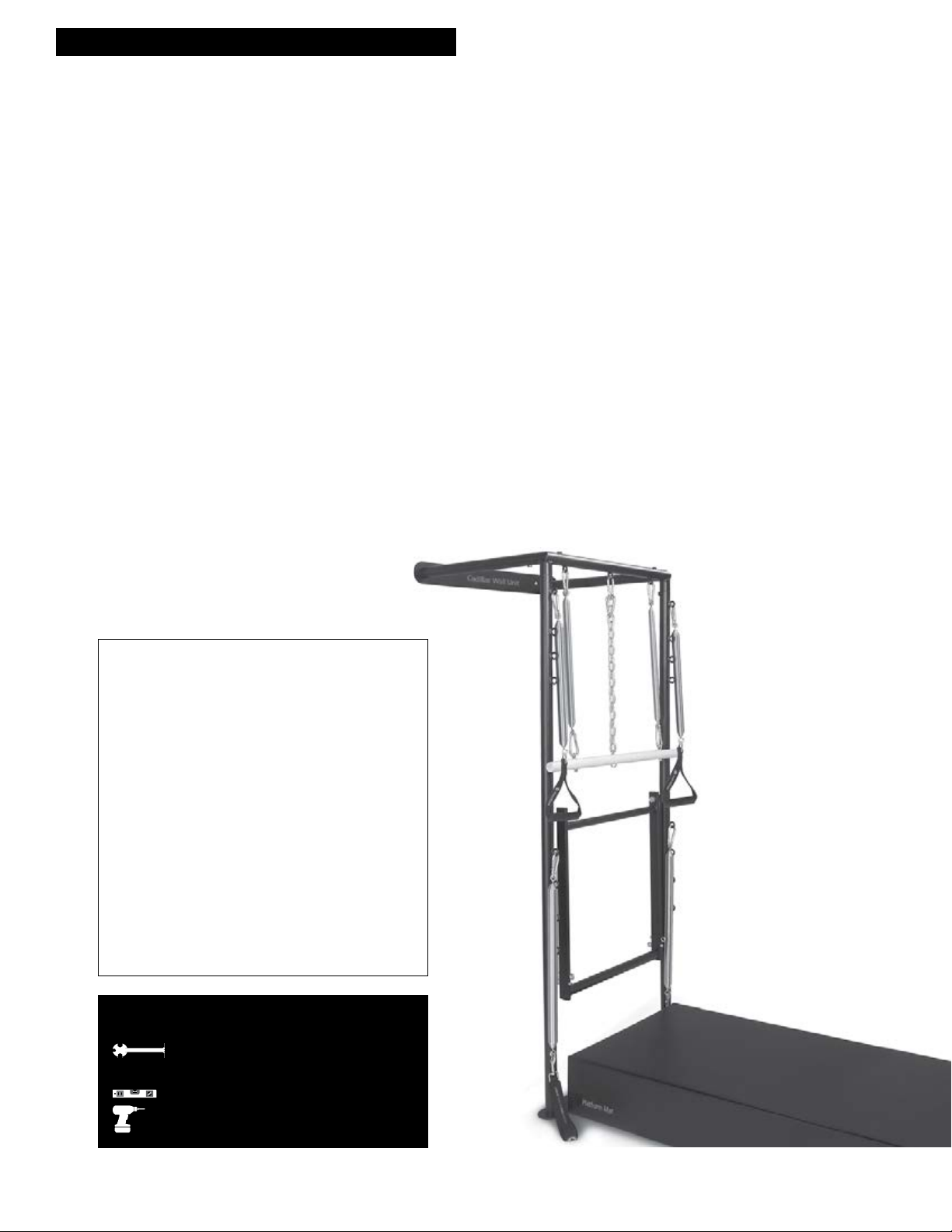

ASSEMBLY INSTRUCTIONS

Assembling the Wall Unit

PLEASE DO NOT ATTEMPT TO ASSEMBLE ON YOUR OWN.

Installation of this product requires a minimum of two people. We highly recommend that you have this product installed by

a professional contractor. Read instructions completely beforebeginning assembly. Improper installation voids equipment

warranty. Merrithew will not be responsible for any injuryor damage resulting from improper installation.

wPlace all parts from the box in a cleared area and position

themon the floor in front of you.

wRemove all packing material from your area and place

themback into the box.

wDo not dispose of the packing materials until assembly

iscompleted.

wTo prevent unsafe or improper use, please read each

stepcarefully before beginning or consult our online assembly

video atmerrithew.com/eq-assembly.

1. Remove the 3⁄8"x 3⁄4" hex bolts [13](plain) from the three-

way joint [14]on the horizontal frame [1].

2. Place the open end of the 3-way joint [14]onto the vertical

frame [7]. Tighten both 3⁄8"x 3⁄4" hex bolts [13]fully to

complete the frame.

3. Find support studs in wall (typically 16"/ 40.64 cm apart)

NOTE: On a standard drywall surface, when only one

supportstud can be found, affixthe remaining hole of the

wall plate to the wall using butterfly toggle anchors, slotted

hex head wall anchors or other appropriate heavy-duty

drywallanchor fasteners.

4. Place frame against wall, using a “square” or level to ensure

frame is at a 90° angle. To adjust, hold base plate [11]of

horizontal frame [1] against wall and move vertical frame [7].

5. Mark holes on wall and floor to mount plates. Select

appropriate hardware and attachthe frame to wall and floor.

6. Attach all springs as pictured.

7. Test the stability and solidness of the Wall Unit before using.

Wall Unit Owner’s Manual4

Hardware Required

not included

Specific bolts and/or screws used in the installation of

this equipment depends on the type of surface it is

being affixed to, although it is always recommended

that you try to attachto a wall stud.

Your local hardware store or contractor will be able

toassist you in selecting the appropriate hardware for

yourspecific needs.

Affixing to Drywall

Butterfly toggle or slotted hex head wall anchors

Affixing to Brick Wall

Masonry fasteners

Affixing to Ceramic Tile Floor

Masonry fasteners

Affixing to Wood Floor/Carpeting

Wood screws

Required Tools

included

Universal Assembly Tool

not included

Builder’s Level

Electric Drill

SAFETY & USAGE

Wall Unit Owner’s Manual6

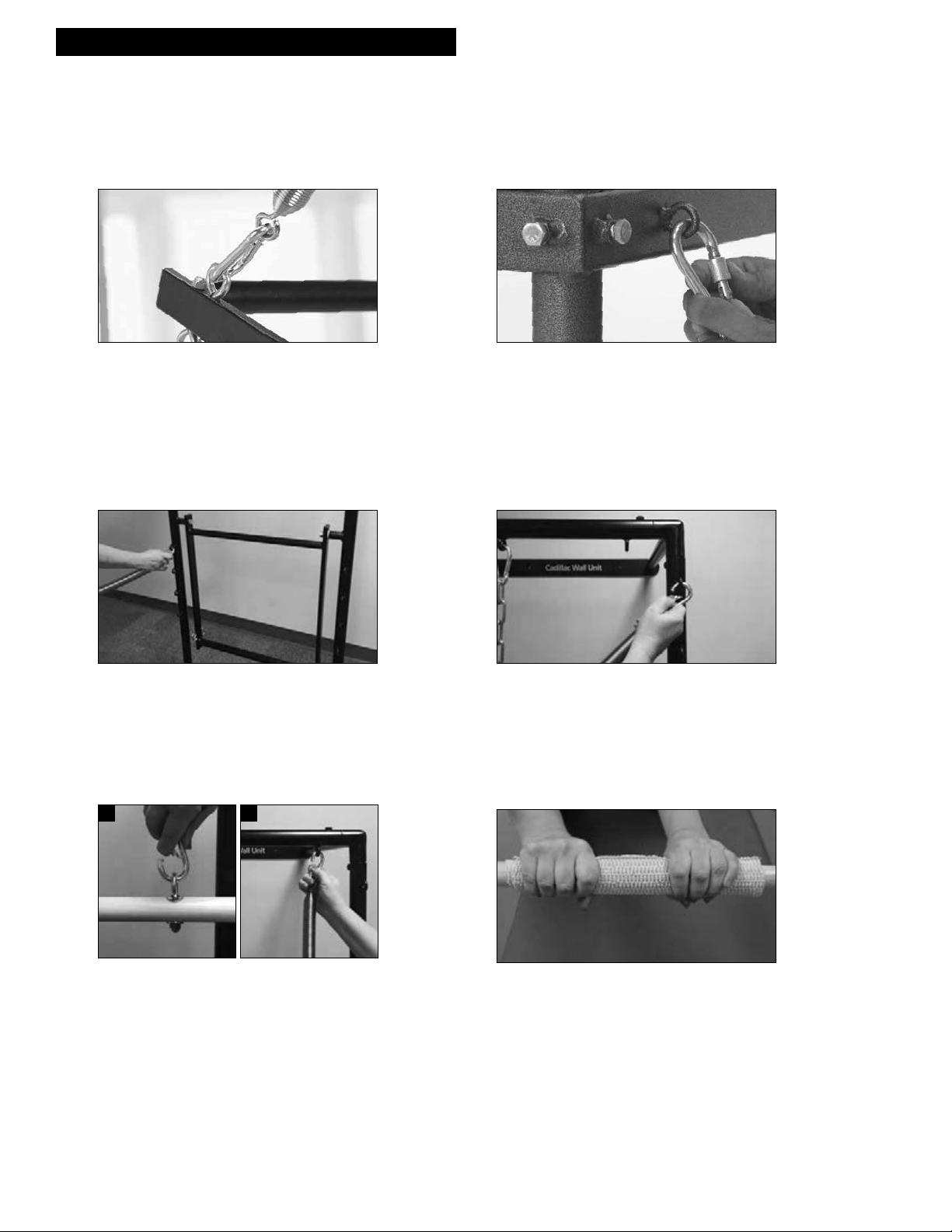

Safety Cautions

Improper use of exercise equipment may cause serious injury. To reduce risk, please observe the following:

Leg Springs

Attach leg springs [9] to eyehooks [8] at desired height.

Ensurespring clips are completely closed and secure.

Roll-Down Bar

A B

Attach roll-down springs [2] to roll-down bar [6] [figA],

then to the fixedeyehooks on the frame assembly

[fig B]. Both springs must be attached. To decrease or

increase spring tension, substitute lightarm springs [3]

or leg springs [9] respectively. Makesurespring clips

arecompletely closed and secure.

CAUTION: The roll-down bar can release at high

velocity due to spring tension. Ensure a secure

gripat all times. Gripper Mats may be used.

Spring Clips

Ensure spring clips are closed completely. If a spring clip is only

half closed,itmaycome undone and detach with high force.

IMPORTANT: Replace all spring clips every 12 months,

orasneededwithinthatperiod.

Arm Springs

Attach Arm Springs [3] to eyehooks [4] at desired height.

Ensure spring clips are completely closed and secure.

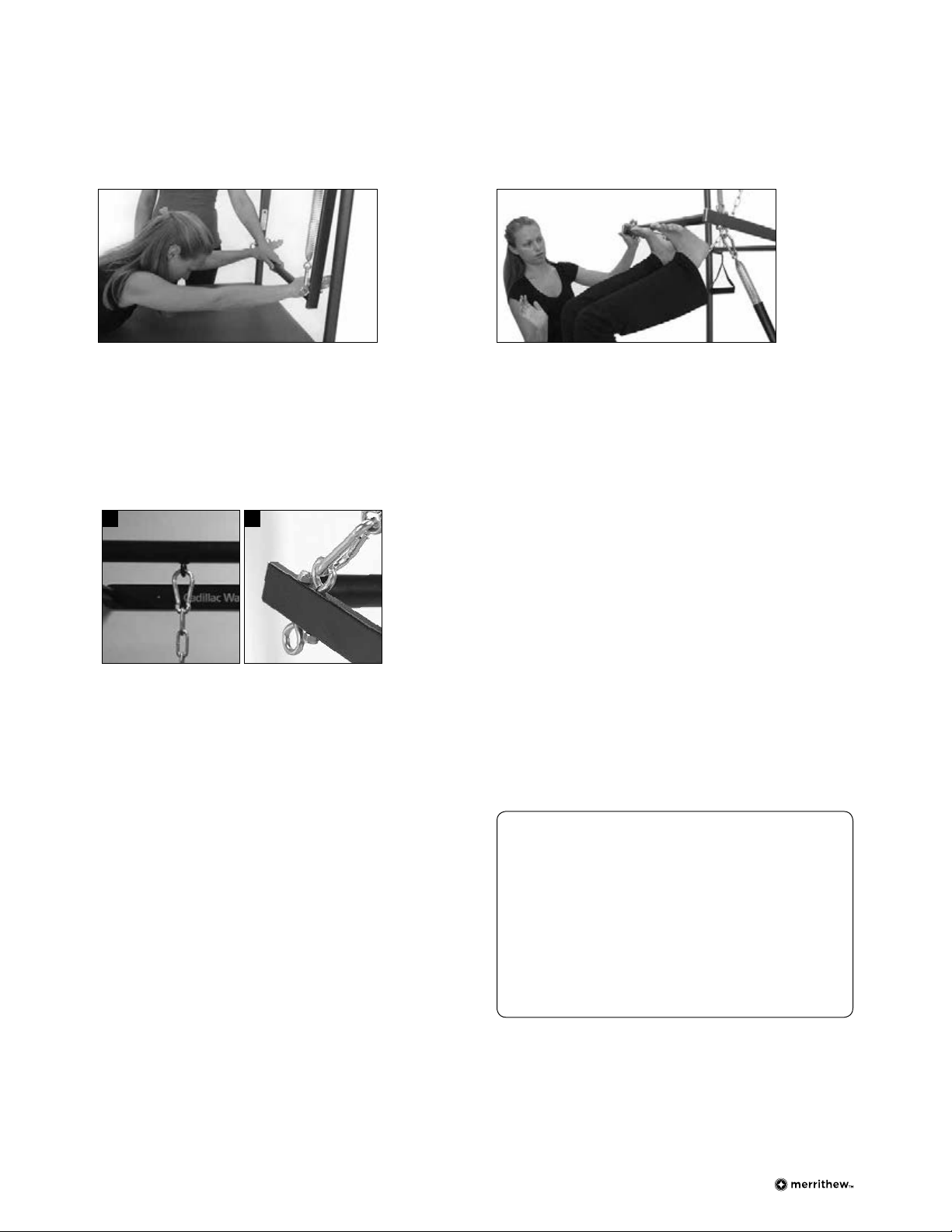

Locking Spring Clips

CAUTION: When using the push-thru bar with springs

frombelow, locking spring clips must be used.

DO NOT use non-locking spring clips.

Grip

Ensure a secure grip when using the Push-Thru Bar

or Roll-Down Bar on the Wall Unit. Gripper Mats

may be used to increase traction.

Care and Cleaning

Wipe vinyl surfaces using warm water with mild soap and

clear water rinses for day-to-day cleaning. Ensure soap does

not leave an oily residue, or make surfaces slippery.

Clean all metal surface areas as required, using a soft cloth

and gentle cleaner.

CAUTION: We do not recommend using chemical-

basedproducts.

Safety Chain

Safety chain must be attached when using push-thru bar

withsprings frombelow. Attach safety chain [5] firstto

middleeyehook on the Horizontal Frame Assembly [fig C], and

otherendto either uppereyehook of push-thru bar. [fig D]

Ensurespring clips arecompletely closed and secure.

Push-Thru Bar, Springs from Below

IMPORTANT: When using the push-thru bar with springs

frombelow, attach safety chain first. Adjust length of

SafetyChain as required for the intended exercise.

Attach push-thru springs [17]toeyehooks at the base of

the Vertical Frame [7]using locking spring clips. Then,

attach one or two springs to eyehooks on lower side of bar.

Ensure spring clips are completely closed andsecure.

CAUTION: To prevent accidental injury, never put yourface

above the push-thru or roll-down bars while spotting an exercise.

Push-Thru Bar, Springs from Above

CAUTION: A trained professional must keep a hand

on the push-thrubar forany exercises.

Attach push-thru springs to eyehooks at the top of the

VerticalFrame [7] using locking spring clips [19].

Next, attach one or two springs to the eyehooks on

the upper side of the bar, ensuring spring clips are

completely closed and secure.

Replacement Spring Package

Replace springs every 24 months, or as

needed within that period. A complete

package is available andincludes:

wroll-down springs (2)

wleg springs (2)

wlight arm springs (2)

wpush-thru springs (4)

wspring clips (18)

wlocking spring clips (2)

Roll-Down Springs – Black

with Roll-Down Bar

Can also function as regular arm springs.

Shown with roll-down bar attached

(sold separately).

Push-Thru Springs – Blue

For use with push-thru bar.

Safety Chain

CAUTION: Safety chain must be in place

when using push-thru springs from below

Spring Covers, Vinyl

Durable vinyl covers for use with push-thru

springs and trapeze springs. Sold individually.

Replacement Parts

To order, visit merrithew.com/replacementparts or email customercare@merrithew.com

MAINTENANCE & REPLACEMENT PARTS

Foam Grip Handles

Cushioned and rounded, these provide

extracomfort.

Padded Long Spine Straps

Also available without padding.

Leg Springs – Green

Shown here with padded long spine

strapsattached

Light Arm Springs – Yellow

Shown here with foam grip handles.

Spring Clips

SPRING CLIP LOCKING SPRING CLIP

Used to connect springs to equipment.

Two types available. Locking spring clips

are required for the push-thru bar with

springs from below.

Always ensure spring clips are closed

completely. It may otherwise come

undone and detach with high force.

Wall Unit Owner’s Manual8

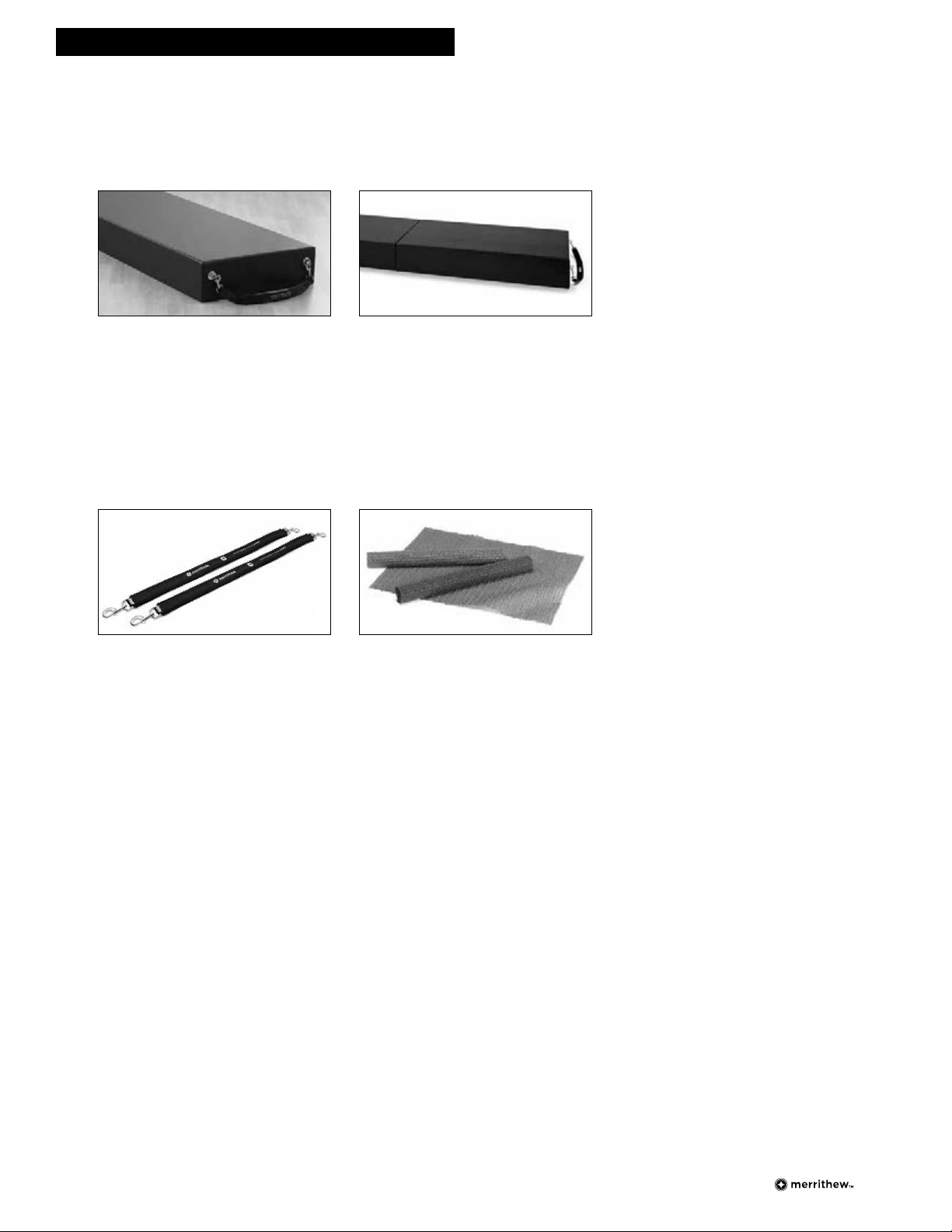

ACCESSORIES

Platform Mat

Features dense foam padding and a

supportive surface that provides

faithful proprioceptive feedback.

Footstrapincluded.

Split Platform Mat

The same dense mat surface as our

Platform Mat, but arrives in two sections

for ease of shipping and storage.

Footstrap included.

Extension Straps

Assists alignment of the knee joint.

Available in two lengths: 24" is standard

and 26" is recommended for those with

athletic thighs.

Gripper Mat

Non-slip rubber mats are handy to

increase traction and prevent slipping.

A gripper mat can be wrapped around

push-thru bar, roll-down bar, uprights

or placed on upholstered bed.

Optional Items

IMPORTANT

Please keep this manual in a safe place.

If you have questions, issues or are missing parts:

Do NOT return this unit to your local retailer,

please contact the manufacturer directly.

customercare@merrithew.com

416.482.4050 |1.800.910.0001 |0800.328.5676 UK |ext. 0907

Wall Unit Owner’s Manual10

Warranty

Merrithew™warrants that all new equipment is free of manufacturing defects in workmanship and materials, subject to the terms below.

Thiswarranty becomes effective at the invoice date of the original purchase. Parts repaired or replaced under the terms of this warranty willbe

warranted for the remainder of the original warranty period.

It is the purchaser’s responsibility to notify the Company of any change of contact information. This ensures, that in the unlikely event

ofareplacement or safety notice, we are able to contact you immediately.

This warranty applies to equipment only:

wWhile it remains in the possession of the original purchaser

and proof of purchase is demonstrated

wIf claims are made within the part-specific warranty period

wIf upgrades are made as required by Merrithew

This warranty shall be null and void if:

wEquipment failure is a result of improper assembly,

installationormaintenance

wThe equipment is used for any other purpose other than

asintended, or is stored or used outdoors, or in environments

without adequate climate/humidity controls

wEquipment has been subjected to accident, misuse, abuse,improper

service, or any modification not authorizedbyMerrithew

This warranty does not cover damage to the finish of any equipment

nor shipping charges, customs clearance fees (if applicable), or any costs

incurred in installing repaired or replacement parts shipped under the

provisions of this warranty.

Failure to change springs every two (2) years may void warranty.

Limited Lifetime Warranty

Merrithew will, at its option, repair or replace any of the parts listed below,

provided that the part(s) fail due to a defectin workmanship

ormaterials and provided such failure occurs andisreportedwith

part-specific warranty period.

w Vertical bars and overhead frame

w Components of the frame and related welding

Two (2) Year Limited Warranty

Merrithew will, at its option, repair or replace all other components other

than upholstery, that fail for any reason, provided such failure is reported

to Merrithew within a period of two years from the invoice date of the

originalpurchase.

One (1) Year Limited Warranty

On straps and spring clips. We recommend spring clips be

changedannually.

90-Day Upholstery Fabric Warranty

The vinyl fabric upholstery and spring sleeves will be replaced if they fail

to give normal wear for 90 days after delivery. Proof of damage may be

required. This warranty does not cover cuts, burns, stains, soiling, pet

damage or damage caused by other unreasonable use. This warranty does

not apply to fabrics cleaned with abrasive, corrosive or chemical cleansers.

Ifthe identical fabric is not available, Merrithew will provide anequivalent.

Disclaimer of Implied Warranties and LimitationofRemedies

Repair or replacement of defective parts is your exclusive remedy under

the terms of this limited warranty. In the event of parts availability issues,

Merrithew will not be responsible for any consequential or incidental

damages arising from the breach of either this limited warranty or any

applicable implied warranty, or for failure or damage resulting from acts

ofnature, improper care and maintenance, accident, alteration, replacement

of parts by anyone other than Merrithew, misuse, transportation, abuse,

hostile environments (inclement weather, acts of nature), improper

installation or installation not in accordance with local codes or

printedinstructions.

This limited warranty is the sole express warranty given by

Merrithew. No product performance, specification or description

wherever appearing is warranted by Merrithewexcept to the extent

set forth in this limited warranty. Any implied warranty protection

arising under the laws of any state, provinceor territory including

implied warranty of merchantability or fitness for a particular

purpose, oruse, is hereby limited in duration to the duration of this

limited warranty.

Neither distributors, dealers, web resellers, nor the retailers selling this

product have any authority to make any additional warranties or to

promise remedies in addition to, or inconsistent with those stated above.

Merrithew’s maximum liability, in any event, shall not exceed the purchase

price of the product paid by the originalpurchaser.

THE FINE PRINT

Autres manuels Merrithew Équipement de fitness

Merrithew

Merrithew PROFESSIONAL Series Manuel utilisateur

Merrithew

Merrithew V2 MAX PRO Manuel utilisateur

Merrithew

Merrithew Arc Barrel Manuel utilisateur

Merrithew

Merrithew At Home SPX Reformer Standard Manuel utilisateur

Merrithew

Merrithew Stability Barre Manuel utilisateur

Merrithew

Merrithew Mat Hanger Manuel utilisateur

Merrithew

Merrithew SPX REFORMER STOTT PILATES Manuel utilisateur

Merrithew

Merrithew STOTT PILATES STABILITY CHAIR Manuel utilisateur

Merrithew

Merrithew Reformer Manuel de la liste des pièces

Merrithew

Merrithew Cardio-Tramp Manuel utilisateur

Merrithew

Merrithew Tower Trainer Manuel utilisateur

Merrithew

Merrithew STABILITY BARREL Manuel utilisateur

Merrithew

Merrithew Reformer Manuel de la liste des pièces

Merrithew

Merrithew Cardio-Tramp Webbing Manuel utilisateur

Merrithew

Merrithew Spring Wall Manuel utilisateur

Merrithew

Merrithew Mini Stability Barrel Lite Manuel utilisateur

Merrithew

Merrithew Halo Trainer Plus Manuel utilisateur

Merrithew

Merrithew Flex-Band Handles Manuel utilisateur

Merrithew

Merrithew SPX Reformers Manuel utilisateur

Merrithew

Merrithew STOTT PILATES Roll-Up Pole Manuel utilisateur

Merrithew

Merrithew Rotational Diskboard Manuel utilisateur

Merrithew

Merrithew Spine Supporter Manuel utilisateur

Merrithew

Merrithew Mini Stability Ball Manuel utilisateur

Merrithew

Merrithew SPX Max Reformer Guide de configuration

Manuels Équipement de fitness populaires d'autres marques

NSD

NSD PB-188P Manuel utilisateur

Performance

Performance HyperVibe Manuel utilisateur

Scalamobil

Scalamobil S27 Manuel utilisateur

Precor

Precor Experience Series Manuel utilisateur

FYTTER

FYTTER RedMIUM BENCH BE-T6R Manuel utilisateur

Taurus

Taurus TF-RK1312 Manuel utilisateur

Nustep

Nustep T5 Manuel utilisateur

Precor

Precor CW-507 Manuel utilisateur

Movement

Movement BICEPS Idea Manuel utilisateur

Kegel8

Kegel8 V For Men Manuel utilisateur

Skandika

Skandika Styrke II Manuel utilisateur

BLK BOX

BLK BOX 21-0122-0B Manuel utilisateur

Stamina

Stamina aeropilates premier 299 Manuel utilisateur

SPORTSTECH

SPORTSTECH PBX300 Manuel utilisateur

ParaBody

ParaBody Serious Steel 877102 Manuel utilisateur

Weslo

Weslo Gym 650 Manuel utilisateur

Rebel

Rebel ACTIVE RBA-1011 Manuel utilisateur

4iiii

4iiii FLiiiight Manuel utilisateur
