MegaLite HELIUS L Series Mode d’emploi

7002017506

W-CM011/01Doc. No. Tracking Code: 1400-2460CM-94-452No. Minutes: 05/09/2015Execution Date:

[email protected]www.megalite.com

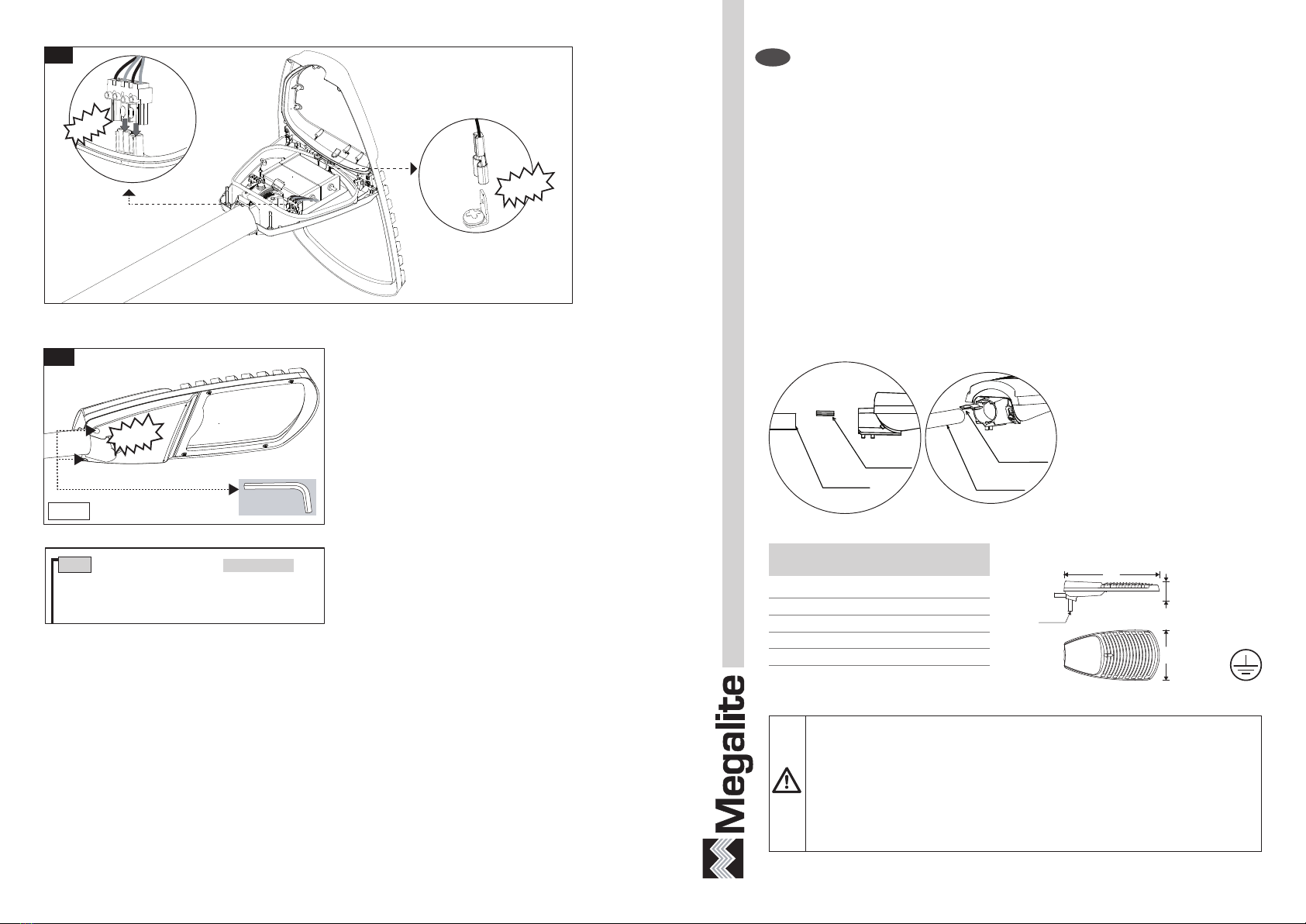

Instruction for Installation and Utilization of HELIUS L

1- For proper utilization of this product and safety, it is mandatory to closely

comply with the directions and notes in this instruction and guide.

2- Earth connection as provided is mandatory.

3- Do not directly touch or impact LED module.

4- Do not stare at LED light source.

The light source contained in this luminaire shall only be replaced by the

manufacturer or his service agent or a similar qualified person. Always switch

off the power prior to installa-tion, maintenance or repair activities.

Close!

5 Nm

400 160

760

Ø48/60

M314LU3LED7730-S

M314LU3LED7740-S

M314LU4LED9730-S

M314LU4LED9740-S

M314LU5LED10730-S

M314LU5LED10740-S

10.3

10.8

11.3

(kg)

Cat. No.

Mounting Height

Cx. S = 0.074 m2

max: 15 m

Ø48 mm

G314PJ45

Ø48 mm

G314PJ45

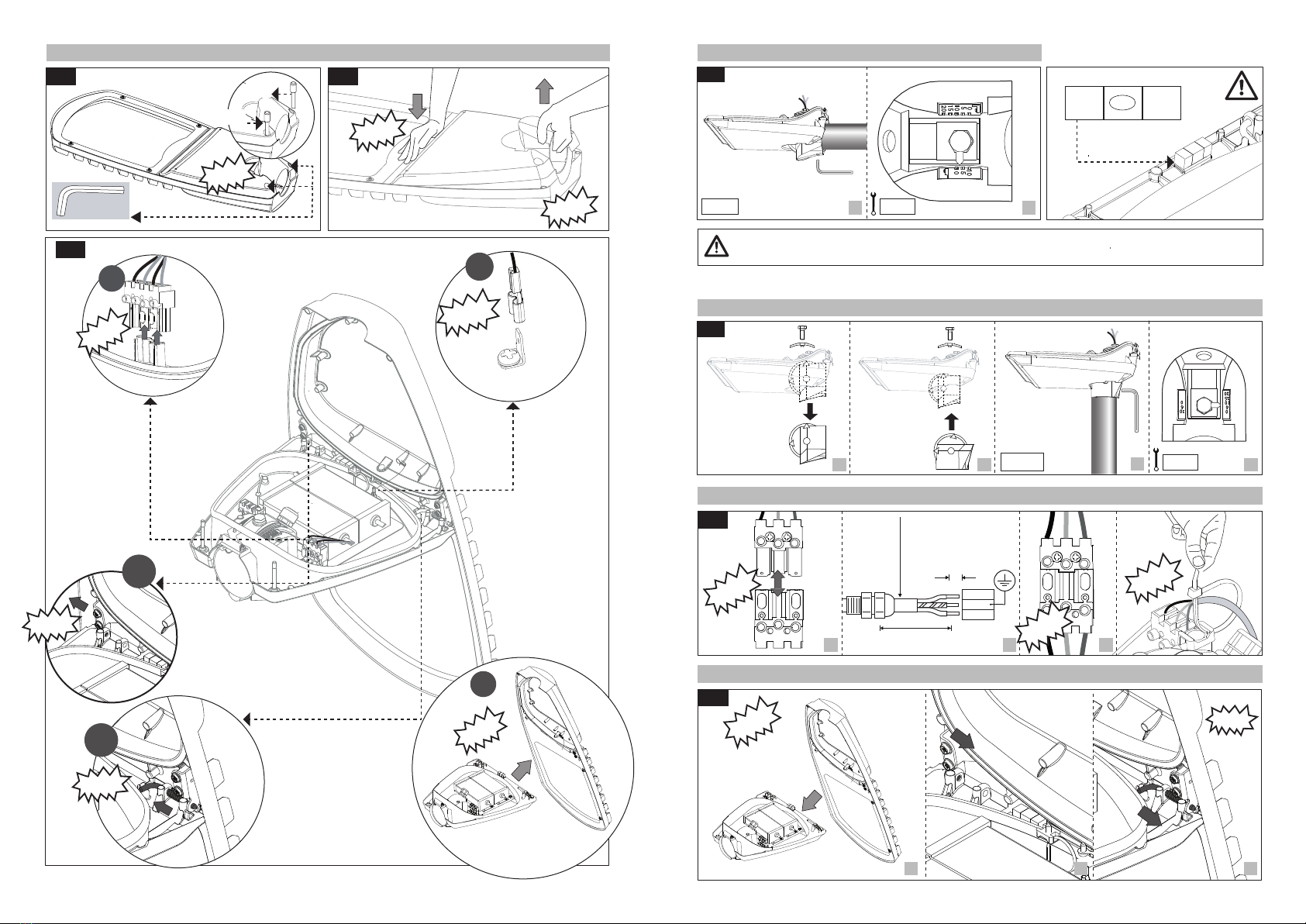

Open the luminaire door:

Open!

Push!

Pull!

Open!

Pull!

C/1

Open!

C/2

Close!

10 Nm

Horizontal pole mounting:

Close the luminaire door:

1 2

Vertical pole mounting:

10 Nm

1 2 4

Pull!

Open!

Electrical connections:

max.150 mm

Ø 8-12 mm

3X1.5 mm

3X2.5 mm

60245 IEC 57

7 mm

1 2 3

Close!

Bubble level feature to precisely align luminaire with horizontal plane

Push!

15 Nm
