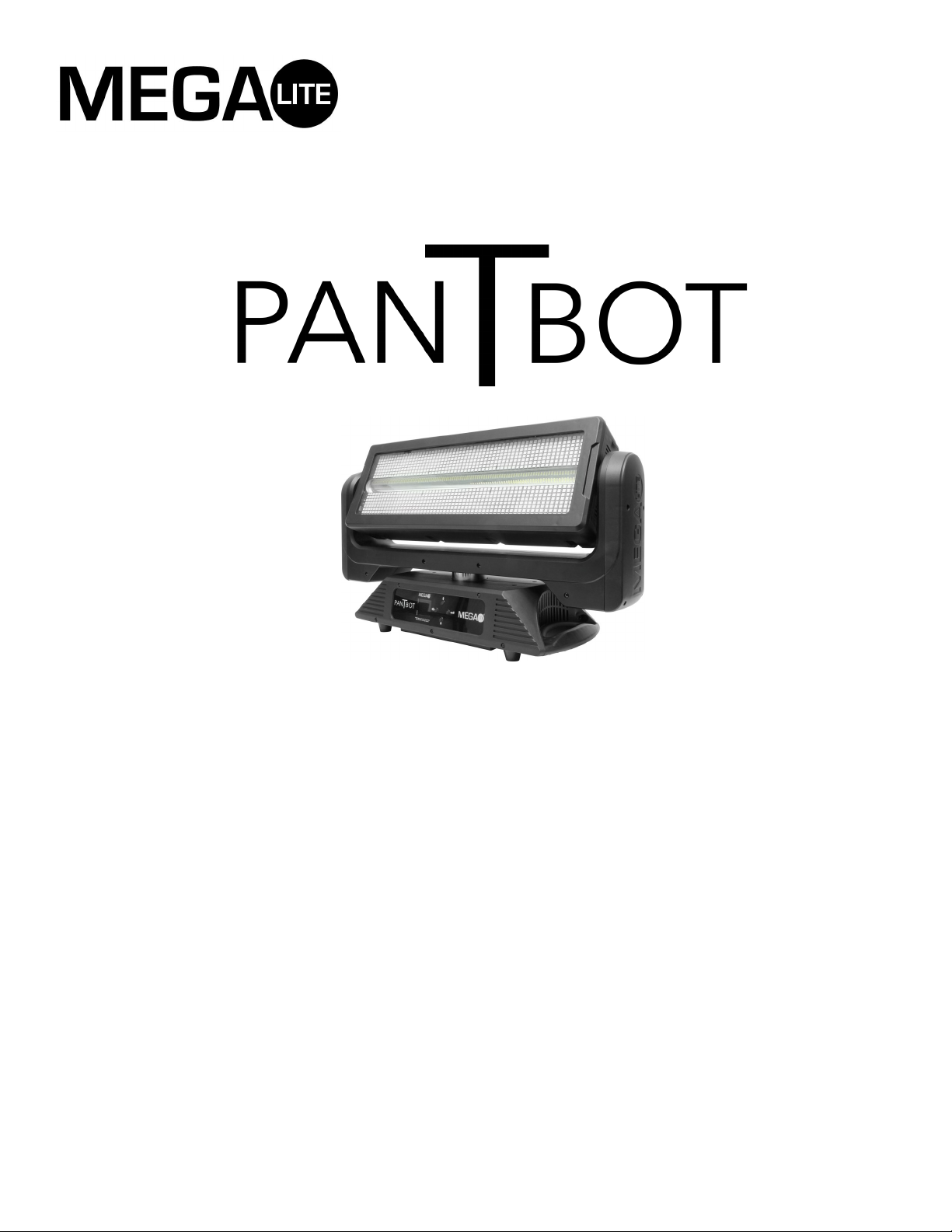

MegaLite PAN T BOT Manuel utilisateur

Table of Contents

Safety Information 2

Technical Information 3

Main Power Connection 4

DMX-512 Connection 4

Segment Position 5

Size and Weight 6

Main Control Menu 7

DMX Profile 9

Item List 12

Rigging the Fixture 13

Cleaning & Maintenance 13

USER MANUAL

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 2 foot distance from any type of flame.

2. For indoor use only do not expose unit to rain or moisture.

3. Replace fuse only with the specified type and rating.

4. Do not install the unit to close to a heat source.

5. Make sure cable are properly secured

6. Maximum surface operating temperature 130º.

Protection Against Electrical Fire

1. Disconnect power before servicing.

2. For connection to main power supply proceed to page 5.

3. This unit must be earthed. (electronically grounded)

4. This fixture must not be left on for long periods of time.

Protection Against Mechanical Hazards

1. Use secondary safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit

3. Do not open unit while it is on, risk of electrical shock.

Check that the unit has not been damaged during transport

Protection Against Fire

Protection Against Electrical Fire

Protection Against Mechanical Hazards

What is Included

1pc Pan T Bot Fixture

1pc Power Con (type) to Nema 5-15 Cable

2pc Quick Connect Clamp Mounts

1pc User Manual

Technical Information

Part Numbers

Fixture Road Case

1187-Pan T Bot CAS-1187-2 2 Unit Road Case

Mechanical Specifications

Pan Angle: 540° 8/16 bit

Tilt Angle: 270° 8/16 bit

DMX Connectors: Panel Mounted 3 and 5-pin XLR connectors in/out

Artnet Connection: Panel Mounted RJ45 In and Out

Power Connections: Panel Mounted Power Conn (Type) Power in/out connection. (Nema 5-15 to Power Conn (Type) cable included)

Thermal: Maximum ambient temperature 104°f

Maximum surface temperature 140°f

Display:Digital

Fastening System: 2 Quick Connect Clamp Mount

Lens Angle: 89° RGB Emitters, 40° White Emitters

Electrical Specifications

LED: 960 RGB 0.5 Watts / 300 White 1 Watt (6670K)

Lumen Output: 28,595lm (All Emitters)

Power Input: Universal 100 - 240V 50/60 Hz

Color Rendering: 6911K (White Center Emitter Only)

Ballast: Electronic

Power Consumption:

Watts: 590W

Amps: 5.04A @110V

RDM: Yes

Protocol: DMX 512

RDM: Yes

DMX Channels: 2 Modes of Operation

Mode: 23 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Dimmer, Red, Green, Blue, Strobe, Shutter Macro, Macro Speed,

Color Macro, Macro Speed, Alpha numeric Display, Background Red, Background Green, Background Blue, White Dimmer, White

Strobe, White Macro, Macro Speed, Control

Mode: 256 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Control, RGB X 80, White X 10

Operating Mode: Stand alone 255 step dimmer setting via display

Auto preprogram via display

Control & Programming

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit has Auto switching power supply. It will respond to 110V or 240V automatically

3. This unit must be earthed. (electronically grounded)

4. Replace fuse only with the specified type and rating.

5. Power Link max 3 units at 110V and 6 units at 220V.

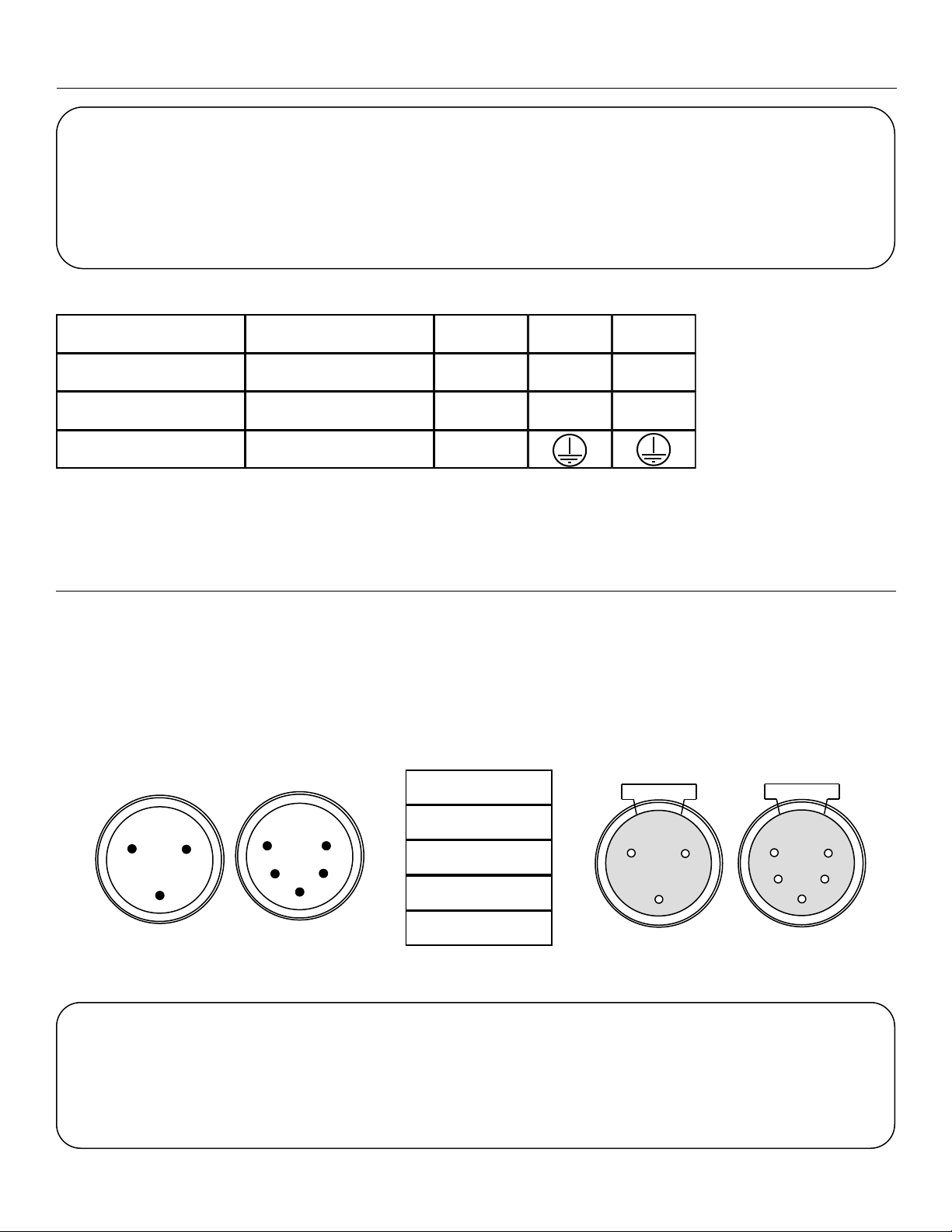

The occupation of the connection-cable is as follows:

DMX-512 Connection

This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz

Caution!

At the last fixture the DMX signal needs to be terminated with a terminator. Solder a 120 Ohm re-

sistor between the (-) and the (+) signal into a 3 or 5 pin XLR plug and plug it in to the last fixture

on the signal run. Pre-manufactured terminator plugs are available for purchase from your Mega-

Lite dealer (P-DMXT).

Cable (USA) Cable (EU) Pin 110V

Black Brown

White

Green

Light Blue

Yellow/Green

Live

Neutral

Ground

220V

The fixture is equipped with 3 & 5 pin XLR cable mounted sockets for DMX input and output. The sockets are wired in

parallel. Only use a shielded twisted pair cable designed for RS-485 3 and 5 pin XLR plugs and connectors in order to

connect the controller with the fixture or the fixture with another.

DMX—Input DMX—Output

1. Shield

2. Signal (-)

3. Signal (+)

4. N/A

5. N/A

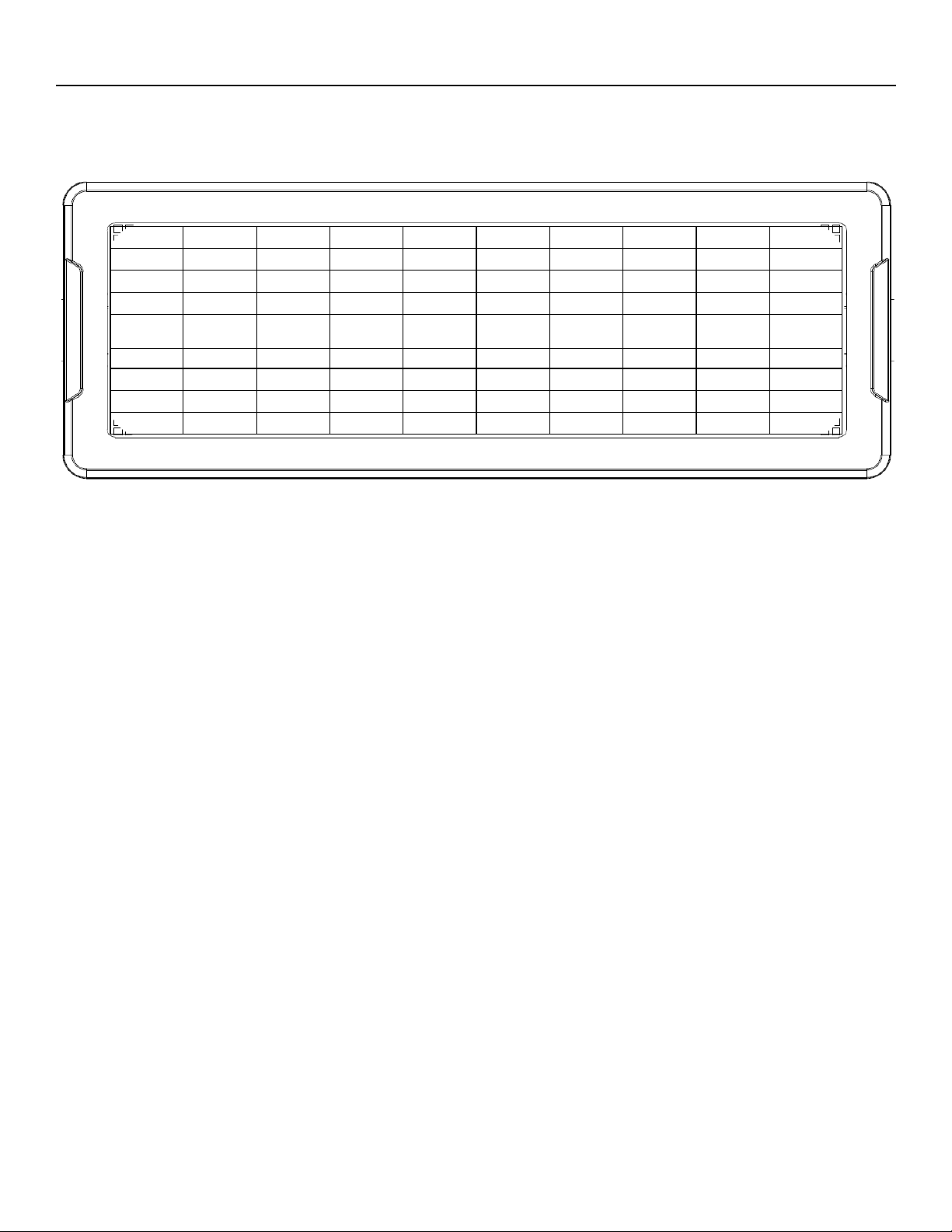

Segment Positions

12345678910

11 12 13 14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30

31 32 33 34 35 36 37 38 39 40

White

41 42 43 44 45 46 47 48 49 50

51 52 53 54 55 56 57 58 59 60

61 62 63 64 65 66 67 68 69 70

71 72 73 74 75 76 77 78 79 80

Size and Weight

Size 24.5" X 7.6" X 14.5"

Weight 36lb

Packaged 28" X 18" X 11.5" 38.6lb

7.6”

4.4”

24.5”

14.5”

20.9” 1.8”1.8”

4.3”

8.35”

19” 2.75”

2.75”

4.2”

1.85”

Main Control Menu

The control board on the fixture is your interface to access and control

all the functions on the unit. Its digital display gives you a code view of

the options and functions. The following will explain each function and

its options.

18668 Highway 16 N Helotes TX 78023

866-460-MEGA www.mega-lite.com

001

DMX

CH15

DMX Address

Press Home button. Use the up/down to select the DMX Address function

press Enter to engage

Use the up/down arrows to select the desired DMX start Channel. Please con-

sult your DMX Controller's Manual to find the correct DMX Start Channel

Systems Settings

DMX Address

Mode

Settings

System Info

001

23Ch

001

Mode

DMX: Allows you to select from the DMX Channel control method, Linebot offers 2 control methods Standard 15 Ch

and Extended 63 Ch. Please select one

Mode: 23 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Dimmer, Red, Green, Blue, Strobe, Shutter Macro, Macro Speed, Color Macro, Mac-

ro Speed, Alpha numeric Display, Background Red, Background Green, Background Blue, White Dimmer, White Strobe, White Macro, Macro Speed,

Control

Mode: 256 Ch: Pan, Pan Fine, Tilt , Tilt Fine, Pan and Tilt Speed, Control, RGB X 80, White X 10

Auto: Allows you to select from the 17 preprogram patterns that are built into the fixture. It also allows you to control

the speed of those programs from 01 to 99

Manual: Allows you to control each of the fixtures functions via the display menu. Control from 000 to 255 for each func-

tion

(note if fixture is powered off and back on the fixture will return to the last set mode function)

Remote: Fixture will copy the same functions as the Main unit. (Master Fixture must be in home screen setting to en-

gage)

Systems Settings

DMX Address

Mode

Settings

System Info

001

255Ch

Press Home button. Use the up/down to select the Mode function press Enter

to engage. Select from the 2 different operating modes.

DMX DMX 23Ch

Auto PRO 01 SP 90

Manual

Remote

Settings

Artnet: Please follow your lighting controllers instruction for artnet connection. As each controller has different

procedure for connection. (note: Fixture has a maximum 16 universe setting)

For Mega Control settings please set fixture to this setting:

IP Address

002.168.052.253

SubNet Mask

255.000.000.000

Net 000 Subnet 000

Universe 01

Display: Display On will keep the display on for the entire time the fixtures is powered on. Display Off will auto-

matically turn off the display if there is no changes after 30sec.

Display Rev: Allows you to select from the 17 preprogram patterns that are built into the fixture. It also allows you to

control the speed of those programs from 01 to 99

Pan Rev: Inverts Pan Position

Tilt Rev: Inverts Tilt Position

DMX Fail: This function will allow you to set a default setting if the DMX signal is ever lost or stops working.

Black Out: Will set all channel to 000 and turn light off

Manual: Will go to the set position set on your manual display setting

Auto: Will go to the selected Auto Preset and speed setting set in your auto option

Hold: Will hold last DMX commend until a new command signal is received

Language: Select ether English or Chinese

Systems Settings

DMX Address

Mode

Settings

System Info

001

23Ch

Press Home button. Use the up/down to select the Settings function press En-

ter to engage. Select from the 5 different setting options.

Artnet

Display On

Display Rev Off

Pan Rev N

Tilt Rev N

DMX Fail Bl

Language

Press Home button. Use the up/down to select the System Info function press

Enter to engage. Receive information on 3 different parameters

Firmware V1.1

Time Info 100H

Temp: B38C

Systems Settings

DMX Address

Mode

Settings

System Info

001

23Ch

System Info

Firmware: Gives you information on the software version being used in the fixture.

Time Info: Provides information on the fixture usage, by counting the hours the fixture is powered on

Temp: Gives you fixture internal temperature information.

DMX Profile

Pan T Bot 23Channel Mode

DMX Channel Function Description Value Init

1Pan Pan 0-255 127

2Pan Fine Pan Fine 0-255 127

3Tilt Tilt 0-255 127

4Tilt Fine Tilt Fine 0-255 127

5Speed Pan and Tilt Speed (fast to slow) 0-255 0

6Dimmer Dimmer (off to full) 0-255 255

7LED Color Red LED Intensity 0-255 255

8LED Color Green LED Intensity 0-255 255

9LED Color Blue LED Intensity 0-255 255

No Function 0-1

Strobe (slow to fast) 2-127

10 Strobe Strobe Pulse (slow to fast) 128-170 0

RGB Random Strobe All (slow to fast) 171-213

Random 1-80 Strobe (slow to fast) 214-255

No Function 0-1

Macro 1 2-12

Macro 2 13-23

Macro 3 24-34

Macro 4 35-45

Macro 5 46-56

Macro 6 57-67

Macro 7 68-78

Macro 8 79-89

Macro 9 90-100

Macro 10 101-111

11 Shutter Macro Macro 11 112-122 0

(Select Color) Macro 12 123-133

Macro 13 134-144

Macro 14 145-155

Macro 15 156-166

Macro 16 167-177

Macro 17 178-188

Macro 18 189-199

Macro 19 200-210

Macro 20 211-221

Macro 21 222-232

Macro 22 232-255

12 Macro Speed Shutter Macro Speed (slow to fast) 0-255 0

No Function 0-1

Macro 1 2-12

Macro 2 13-23

Macro 3 24-34

Macro 4 35-45

Macro 5 46-56

Macro 6 57-67

Macro 7 68-78

Macro 8 79-89

Macro 9 90-100

Macro 10 101-111 0

13 Multy Color Macro Macro 11 112-122

Macro 12 123-133

Macro 13 134-144

Macro 14 145-155

Macro 15 156-166

Macro 16 167-177

Macro 17 178-188

Macro 18 189-199

Macro 19 200-210

Macro 20 211-221

Macro 21 222-232

Macro 22 232-255

14 Macro Speed Color Macro Speed (slow to fast) 0-255 0

No Function 0-1

02-6

17-12

213-18

319-24

425-30

531-36

637-52

743-48

849-54

955-60

A61-66

B67-72

C73-78

D79-84

E85-90

F91-96

G97-102

H103-108

15 Alpha Numeric I109-114 0

Display J115-120

K121-126

L127-132

M133-138

N139-144

O145-150

P151-156

Q157-162

R163-168

S169-174

T175-180

U181-186

V187-192

W193-198

X199-204

Y205-210

Z211-216

Right Arrow 217-222

Down Arrow 223-228

Up Arrow 229-234

Left Arrow 235-255

16 Back Red Background Red 0-255 0

17 Back Green Background Green 0-255 0

18 Back Blue Background Blue 0-255 0

19 White Dimmer White 0-255 255

No Function 0-1

Strobe (slow to fast) 2-127

20 Strobe Strobe Pulse (slow to fast) 128-170 0

Random Strobe All (slow to fast) 171-213

Random 1-10 Strobe (slow to fast) 214-255

No Function 0-1

Macro 1 2-19

Macro 2 20-39

Macro 3 40-59

Macro 4 60-89

21 White Macro Macro 5 90-109 0

(Responds to Macro 6 110-139

White Dimmer) Macro 7 140-159

Macro 8 160-189

Macro 9 190-209

Macro 10 210-239

Macro 11 240-255

22 Macro Speed White Macro Speed (slow to fast) 0-255 0

23 Control No Function 0-127 0

Reset 128-255

Table des matières

Autres manuels MegaLite Équipement d'éclairage

MegaLite

MegaLite baby color Q70 IR Manuel utilisateur

MegaLite

MegaLite Linebot Q480 Manuel utilisateur

MegaLite

MegaLite DECO Cove Q18 Manuel utilisateur

MegaLite

MegaLite DECO CITYSCAPE Q30 Manuel utilisateur

MegaLite

MegaLite Drama Profile VW2 Manuel utilisateur

MegaLite

MegaLite DECO Driver CV4 Manuel utilisateur

MegaLite

MegaLite Axis LED Manuel utilisateur

MegaLite

MegaLite Deco Pendant Q20 Manuel utilisateur

MegaLite

MegaLite dreambeam nine Manuel utilisateur

MegaLite

MegaLite LEDiLINE M485 Series Mode d’emploi

MegaLite

MegaLite Outerbot WASH 340 Manuel utilisateur

MegaLite

MegaLite Drama LED Q170 Manuel utilisateur

MegaLite

MegaLite IDOL-LITE P24 Manuel utilisateur

MegaLite

MegaLite LIGHT PIPE 5049-03 Manuel utilisateur

MegaLite

MegaLite 44010- Vazt UV50 Manuel utilisateur

MegaLite

MegaLite Drama W50 LED Manuel utilisateur

MegaLite

MegaLite N-E Color FX18 Manuel utilisateur

MegaLite

MegaLite Drama Strip P840 Manuel utilisateur

MegaLite

MegaLite AXIS 250 Manuel utilisateur

MegaLite

MegaLite Pro Color Cannon 3000 Manuel utilisateur

MegaLite

MegaLite Deco Vintage Scoop Q32 Manuel utilisateur

MegaLite

MegaLite N-E COLOR Cannon Manuel utilisateur

MegaLite

MegaLite AXIS 500 Manuel utilisateur

MegaLite

MegaLite EB1 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
