MegaLite Outerbot WASH 340 Manuel utilisateur

USER MANUAL

Table of Contents

Safety Information.........................2

What’s Included.............................2

Specifications................................3

Main Power Connection................4

DMX Connection...........................4

Display Control .............................5

DMX Profile ..................................8

Size & Weight................................15

Segments......................................16

Cleaning & Maintenance...............16

Warranty........................................17

Customer Service.........................18

Protection Against Fire

Protection Against Electrical Fire

Protection Against Mechanical Hazards

1. Maintain a minimum of 1 foot distance from any type of flame.

2. Fixture is designed for temporary outdoor use.

3. Do not install the unit too close to a heat source.

4. Make sure cables are properly secured.

5. Maximum surface operating temperature: 130º.

6. Make sure fixture lens are not pointing towards the sun or direct light input.

1. Disconnect power before servicing.

2. For connection to main power supply, proceed to page 4.

3. The power supply must be earthed (electronically grounded).

4. This fixture must not be left on for long periods of time.

1. Use secondary safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit.

3. Do not open unit while it is on. Risk of electrical shock.

Check that the unit has not been damaged during transport.

Fire

Electrical

Mechanical

The IP rating is commonly expressed as IP (Ingress Protection) is followed by 2

numbers (i.e. 65) where the numbers define the fixture rating. The first number

indicates the size of a particle that can enter the fixture. The second number

indicates the extent of protection against water entering the fixture. An IP65 rating

in this fixture indicates that dust particles can not enter the fixture, and there is

protection against powerful water spray from entering the fixture from any direction.

Ingree Protection

What is Included

1pc Outerbot Wash 340 fixture

1pc Power Cable

2pc Quick Release Clamp Mount

1pc Safety Cable

1pc User Manual

Specifications

Part Numbers

Mechanical Specifications

Electrical Specifications

Fixture

1313 - Outerbot Wash 340

Housing: Die Cast Aluminum

IP Rating: IP65

Fastening System: Quick Release Clamp Mount, Bidirectional

Power Connection: Seetronics SACX3FX IP 65 Panel Mount Connection Input

Signal Connection: 5 Pin XLR In and Out & Artnet RJ45 In and Out

Pan Movement: 540° (16 bit, 3 Phase Stepper Motor)

Tilt Movement: 220° (16 bit, 3 Phase Stepper Motor)

Zoom Angle: 7° Beam Angle to 33° Field Angle (16-bit)

Operating Temp: -4°F - 113°F

Fuse: Panel Mount Fuse (5x20mm T6.5A250V)

7 Outer LED’s

Light Source: Seven 40W RGBW LED (16-bit Dimming)

Color Temp White: 8436K (White Emitter Only)

CRI: (Warm White) 73

Segments: 7

Lumen Output: 5654lm (Narrow)

3546lm (Wide)

1 Center LED:

Light Source: One 60W RGBW LED

Color Temp White: 8380K

Prism: Bi Directional, Speed Control

1 RGB Halo LED’s:

Light Source: 68 RGB SMD LED

Power Supply: Electronic 100-240V AC 50/60

Power Consumption: 2.86 Amps / 338 Watts @120V

Control System:

Control Protocols: DMX 512, Artnet, sACN

RDM: Yes

Channel Modes: SSP 25CH, TOUR 30CH, TR16 37CH

CMY 31CH, HSIC 27CH, PIXEL 52CH

Display: Auto Flip Display

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (Electronically grounded)

3. Replace fuse only with the specified type and rating. (F6.5A 250V)

4. This device is equipped with auto switching power supply that will allow the fixture to work from

100-240V AC 50/60Hz

5. Power Link max 6 units at 110V and 12 units at 220V

DMX-512 Connection

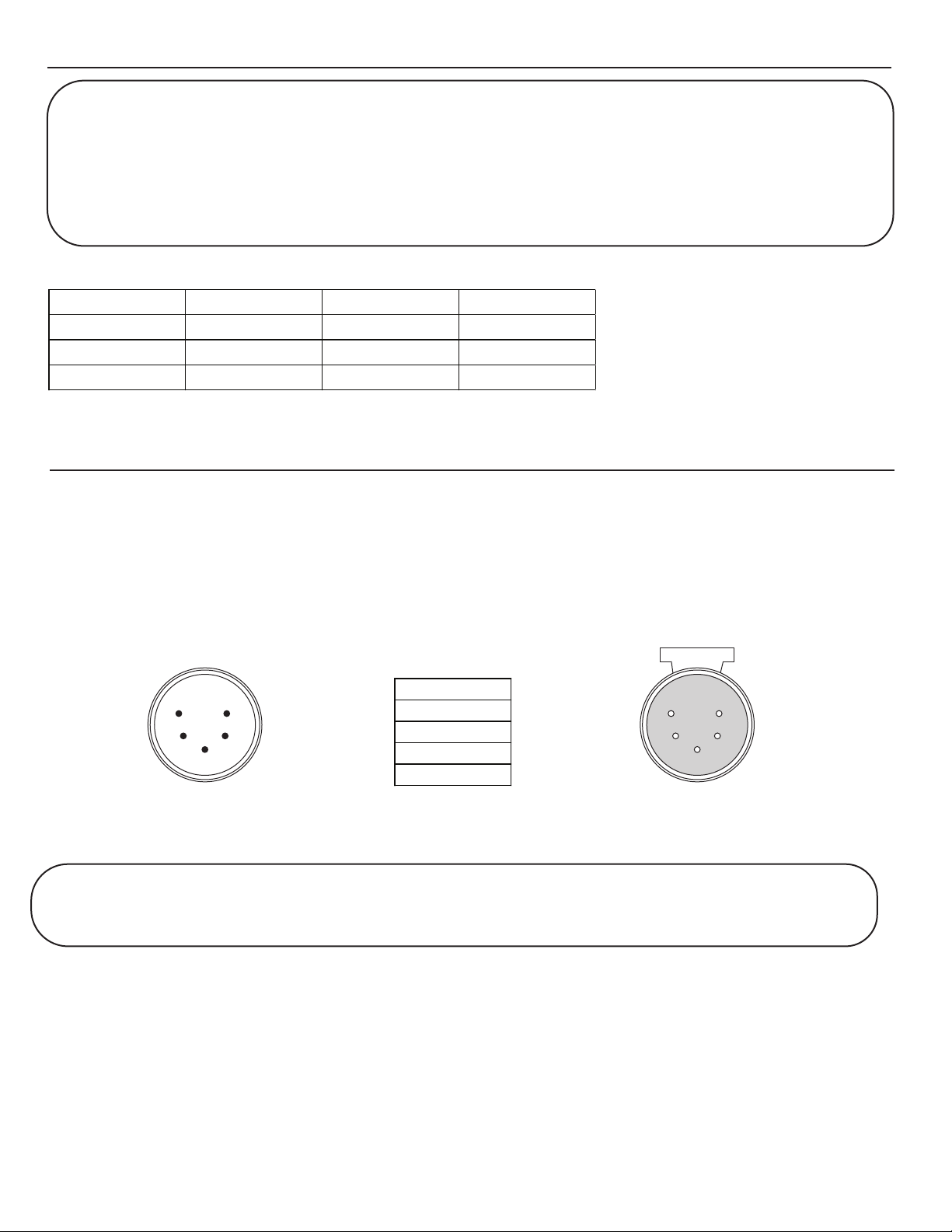

The fixture is equipped with 5 pin XLR Sockets for DMX input and output connection. The sockets are wired in parallel. Only

use a shielded twisted pair cable designed for RS-485 and 5 pin XLR plugs and connectors in order to connect the control-

ler with the fixture or the fixture with another.

Cable USA Cable EU 110V 220V

Black Brown Live Live

White Light Blue Neutral Live

Green Yellow / Green Ground Ground

DMX - Input

DMX - Output

1.Shield (Grd)

2. Signal (-)

3. Signal (+)

N/A

Caution!

On the last fixture the DMX signal needs to be terminated with a terminator. Pre-manufactured terminator

are available for purchase from your Mega-Lite dealer item #P-DMX-T.

Display Control

The control board on the fixture base is your interface

to access and control all the functions on the unit.

The LCD display gives you a code view of the options

and functions. The following will explain each function.

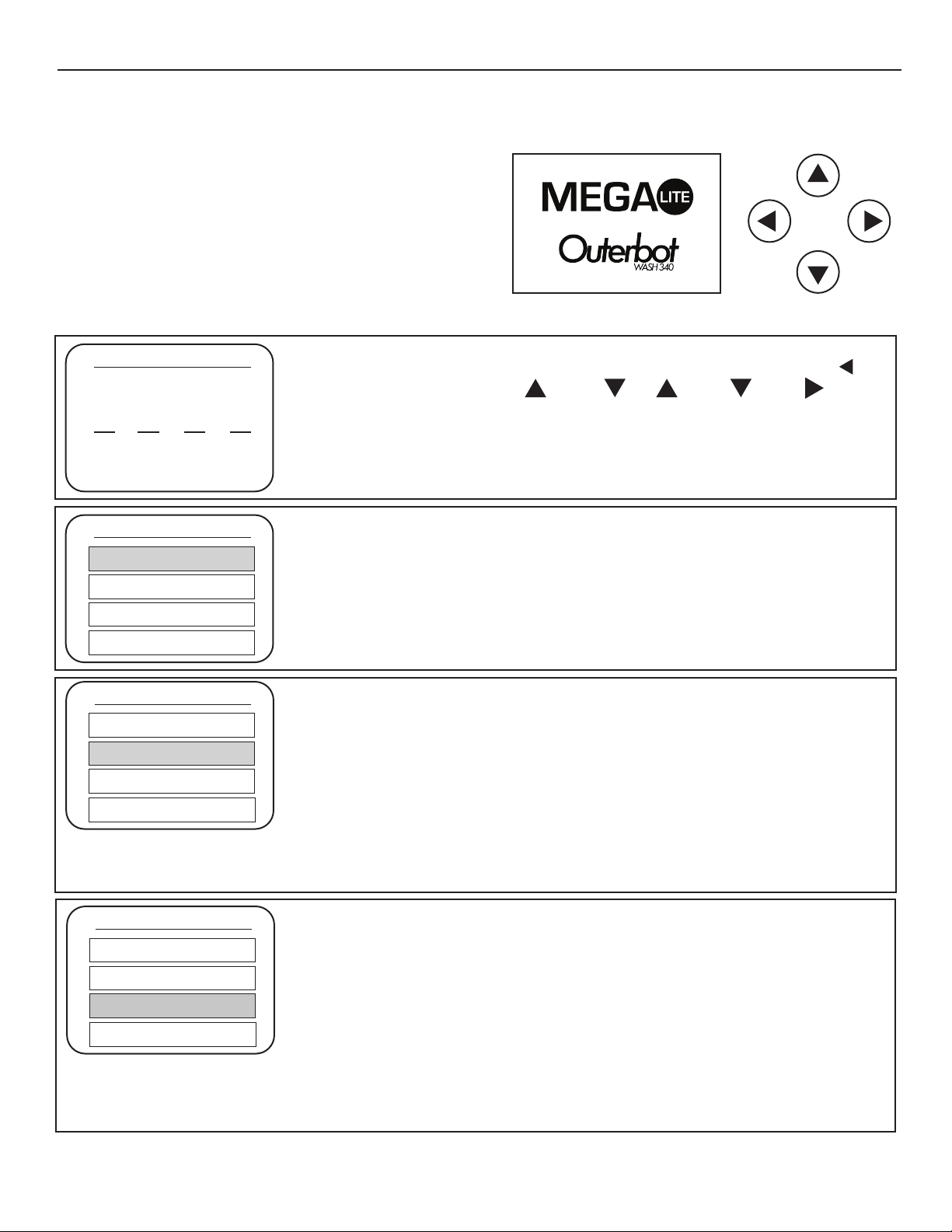

Main Control

PASSWORD: To unlock the fixture display press and hold the Back

Arrow. Use Password Up Down Up Down Enter to

access the display settings. (Password requirements may be turned off in

the Options menu under Display Lock setting)

PASSWORD

ADDRESS: Press Enter to view the fixture start Channel. Press Enter

again to make adjustment to the fixture address using the up/down

buttons. Press Enter to confirm or Mode to go back. The fixtures start

address will need to match the DMX Controllers assigned DMX start

channel.

Main Menu

ADDRESS

CHANNEL MODE

RUN MODE

OPTIONS

Channel Mode: Channel operating mode must match the DMX Control-

lers operating mode.

HSIC: 27 Channel

SSP: 25 Channel

TOUR: 30 Channel

TR16: 37 Channel

PIXEL:52 Channel

CMY: 31 Channel

Main Menu

ADDRESS

CHANNEL MODE

RUN MODE

OPTIONS

(Down)

(Up)

(Back) (Enter)

RUN MODE: DMX512: Fixture connected via DMX signal

ARTNET: Fixture connected via Artnet connection (check

with controller manufacture for artnet set up)

ARTNET TO DMX: Fixture connected via Artnet connection

with DMX outputs engaged

sACN: Fixture connected to controller via sACN signal

AUTO: Fixture will run built in Pre Programs

CUSTOM 1: Fixture will run program created on the Edit

portion of the display setting (see page 7)

CUSTOM 2: (Same as custom 1)

Main Menu

ADDRESS

CHANNEL MODE

RUN MODE

OPTIONS

OPTIONS: Fixture Settings

PAN INVERT: Inverts heads Pan movement

TILT INVERT: Inverts heads Tilt movement

PERFORMANCE: Fixture cooling settings

STUDIO: LED Intensity will decrease fan noise at 45dB

POWER: LED Intensity at max fan always engaged

LIVE: Fan will engage as needed

BLACKOUT: LED will turn off when head is in motion

DIMMER: Dimming setting 0-4

LED PWM: LED Pulse Wave Modulation refresh settings

1200HZ-XFINE+-200

2400HZ-XFINE+-200

4000HZ

6000HZ

25000HZ

FULL POWER CCT: All LED emitters maximum default to full setting

3200K

4200K

5600K

10000K

NORMAL: No limitation

XY OFFSET: Show and Hide setting for the refresh frequency

DMX ERROR: If DMX Signal is lost fixture will either

Save: Hold the last DMX Command

Black: All DMX channels will be turn down to 0 value

DISPLAY ON: Display Time out setting

Off: Will leave display on

On: Will activate time out setting which will turn of display

after inactivity

DISPLAY LOCK: Requires Password to open display setting

LOAD PARA: Fixture firmware update (manufacture setting)

SETTING: Fixture Clearing Settings

Recovery: Returns Fixture to original factory settings

Clean Edit 1: Erases Edit 1 Program setting

Clean Edit 2: Erases Edit 2 Program setting

NETWORK:

Net Switch: Network settings switch 2. or 10.

Universes: Sets fixture Universe 0-255

IP Mode: Sets Default IP Setting or Customized

PT ENCODER: Engages or Disengages Pan & Tilts encoder functions.

Main Menu

ADDRESS

CHANNEL MODE

RUN MODE

OPTIONS

EDIT: Fixture Editor for programmed Scenes or Chase

EDIT 1: Edit 1 or 2 can be played back on the Runmode section of the display

control. under custom 1 or custome 2

STEP: Select from a single step scene or multiple step chase. (1-30)

Select fixture attributes that would like to be adjusted

PAN: (0-255)

TILT: (0-255)

ZOOM: (0-255)

RED WASH (0-255)

GREEN WASH (0-255)

BLUE WASH (0-255)

WHITE WASH (0-255)

STROBE (0-255)

RED CENTER (0-255)

GREEN CENTER (0-255)

BLUE CENTER (0-255)

WHITE CENTER (0-255)

PRISM (0-255)

RED RING (0-255)

GREEN RING (0-255)

BLUE RING (0-255)

TIME (0-255 SECONDS)

USE ( YES/NO ) ACTIVATE SCENE: SCENE

NEEDS TO BE ACTIVATED TO BE PART

OF THE SCENE OR CHASE

Main Menu

EDIT

MANUAL

INFO

SERVICE

MANUAL: Fixtures Manual Settings

AUTO TEST: Runs fixture test for all functions

CHANNEL: Gives control over every function via display

DEBUG HIDE: Manufacture Setting

RESET:

ALL: All fixture function to be reset to home position

PT: Pan & Tilt reset to home position

Main Menu

EDIT

MANUAL

INFO

SERVICE

INFO: Fixture Operating information

FIXTURE HOURS: Gives control over every function via display

LED USE HOURS: Manufacture Setting

TEMPERATURE: Current fixtures operating internal temperature

INFO: operating software version and update date

Main Menu

EDIT

MANUAL

INFO

SERVICE

SERVICE: Manufafactures function adjustment setting (password

protected)

Main Menu

EDIT

MANUAL

INFO

SERVICE

Outerbot Wash 340

25 CH

SSP

30 CH

TOUR

37 CH

TR16

Function Description Value Init

1 1 1 Pan Pan 0-255 127

2 Pan Fine Pan Fine 0-255 127

2 2 3 Tilt Tilt 0-255 127

4 Tilt Fine Tilt Fine 0-255 127

3 3 5 Pan Tilt Speed Pan & Tilt Speed (fast to slow) 0-255 0

4 4 6 LED Intensity Red Wash 0-255 255

7 LED Intensity Red Wash Fine 0-255 127

5 5 8 LED Intensity Green Wash 0-255 255

9 LED Intensity Green Wash Fine 0-255 127

6 6 10 LED Intensity Blue Wash 0-255 255

11 LED Intensity Blue Wash Fine 0-255 127

7 7 12 LED Intensity White Wash 0-255 255

13 LED Intensity White Wash Fine 0-255 127

8 8 14 Dimmer Dimmer (off to full) 0-255 255

15 Dimmer Fine Dimmer Fine 0-255 127

No Function 0-9

Strobe (slow to fast) 10-99

9 9 16 Wash Strobe No Function 100-109 0

Lighting Strobe 110-179

No Function 180-189

Random Strobe 190-255

Open 0-10

Red 100% / Green Ramp Up / Blue 0% 11-30

Red Ramp Down / Green 100% / Blue 0% 31-50

Red 0% / Green 100% / Blue Ramp Up 51-70

Red 0% / Green Ramp Down / Blue Ramp Up 71-90

Red Ramp Up / Green 0% / Blue 100% 91-110

Red 100% / Green 0% / Blue Ramp Down 111-130

Red 100% / Green Ramp Up / Blue Ramp Up 131-150

Red Ramp Down / Green Ramp Down / Blue 100% 151-170

Full White 171-195

1800K 196-199

10 17 Wash Color Macro 2200K 200-203 0

2700K 204-207

3000K 208-211

3200K 212-215

3500K 216-219

4000K 220-223

4200K 224-227

4500K 228-231

5600K 232-235

6000K 236-239

6500K 240-243

7200K 244-247

8000K 248-255

No Function 0-9

Pixel 1 10-15

Pixel 2 16-21

Pixel 3 22-27

Pixel 4 28-33

Pixel 5 34-39

Pixel 6 40-45

Pixel 7 46-51 0

Pixel 1&2 52-57

Pixel 1&3 58-63

Pixel 1&4 64-69

Pixel 1&5 70-75

Pixel 1&6 76-85

Pixel 1&7 86-90

Pixel 2&3 91-95

Pixel 2&4 96-100

Pixel 2&5 101-105

Pixel 2&6 106-110

Pixel 2&7 111-115

Pixel 3&4 116-120

11 18 Wash Pixel Pixel 3&5 121-125 0

Pixel 3&6 126-130

Pixel 3&7 131-135

Pixel 4&5 136-140

Pixel 4&6 141-145

Pixel 4&7 146-150

Pixel 5&6 151-155

Pixel 5&7 156-160

Pixel 6&7 161-165

Pixel 1,2,3 166-170

Pixel 1,4,5 171-175

Pixel 1,6,7 176-180

Pixel 2,3,4 181-185

Pixel 5,6,7 186-190

Pixel 4,5,6 191-195

Pixel 7,2,3 196-200

Pixel 1,2,3,4 201-205

Pixel 1,5,6,7 206-210

Pixel 1,3,5,7 211-215

Pixel 3,4,5,6 216-220

Pixel 1,2,3,4,5 221-225

Pixel 1,4,5,6,7 226-230

Pixel 3,4,5,6,7 231-235

Pixel 1,2,3,4,5,6 236-240

Pixel 2,3,4,5,6 241-245

Pixel 1,2,3,5,6,7 246-250

Off 251-255

DMX Profile

No Function 0-9

Macro 1 (led intensity must be activated) 10-13

Macro 2 (led intensity must be activated) 14-17

Macro 3 (led intensity must be activated) 18-21

Macro 4 (led intensity must be activated) 22-25

Macro 5 (led intensity must be activated) 26-29

Macro 6(led intensity must be activated) 30-33

Macro 7(led intensity must be activated) 34-37

Macro 8 (led intensity must be activated) 38-41

Macro 9 (led intensity must be activated) 42-45

Macro 10 (led intensity must be activated) 46-49

Macro 11(led intensity must be activated) 50-53

Macro 12 (led intensity must be activated) 54-57

Macro 13 (led intensity must be activated) 58-61

Macro 14 (led intensity must be activated) 62-65

Macro 15 66-69

Macro 16 70-73

Macro 17 74-77

Macro 18 (led intensity must be activated) 78-81

Macro 19 82-85

Macro 20 86-89

Macro 21 90-93

Macro 22 (led intensity must be activated) 94-97

Macro 23 98-101

Macro 24 102-105

Macro 25 106-109

Macro 26 (led intensity must be activated) 110-113

Macro 27 114-117

Macro 28 118-121

12 19 Wash Macro Macro 30 122-125 0

Macro 31(led intensity must be activated) 126-129

Macro 32 130-133

Macro 33 134-137

Macro 34 138-141

Macro 35 (led intensity must be activated) 142-145

Macro 36 146-149

Macro 37 150-153

Macro 38 154-157

Macro 39 (led intensity must be activated) 158-161

Macro 40 162-165

Macro 41 166-169

Macro 42 170-173

Macro 43 (led intensity must be activated) 174-177

Macro 44 178-181

Macro 45 182-185

Macro 46 186-189

Macro 47 (led intensity must be activated) 190-193

Macro 48 194-197

Macro 49 198-201

Macro 50 202-205

Macro 51 (led intensity must be activated) 206-209

Macro 52 210-215

Macro 53 216-221

Macro 54 222-227

Macro 55 228-230

Macro 56 231-233

Macro 57 234-236

Macro 58 237-239

Macro 59 240-242

Macro 60 243-245

Macro 61 246-248

Macro 62 249-251

Macro 63 252-254

Macro 64 255

13 20 Macro Speed Macro Speed (slow to fast) 0-255 0

10 14 21 Zoom Zoom (narrow to wide) 0-255 255

11 15 22 Center Intensity Red Center 0-255 255

12 16 23 Center Intensity Green Center 0-255 255

13 17 24 Center Intensity Blue Center 0-255 255

14 18 25 Center Intensity White Center 0-255 255

15 19 26 Center Dimmer Dimmer Center 0-255 255

No Function 0-9

Strobe (slow to fast) 10-99

16 20 27 Center Strobe No Function 100-109 0

Lighting Strobe 110-179

No Function 180-189

Random Strobe 190-255

No Function 0-9

Center Macro 1 10-25

Center Macro 2 26-41

Center Macro 3 42-57

Center Macro 4 58-73

Center Macro 5 74-89

Center Macro 6 90-105

Center Macro 7 106-121

21 28 Center Color Macro Center Macro 8 122-137 0

Center Macro 9 138-153

Center Macro 10 154-169

Center Macro 11 170-185

Center Macro 12 186-201

Center Macro 13 202-217

Center Macro 14 218-233

Center Macro 15 234-255

Rotation Index 0-120

Stop 121-125

Prism Shake (slow to fast) 126-165

17 22 29 Center Prism Rotation Stop 166-170 0

Prism Clockwise Rotation (fast to slow) 171-210

Stop 211-215

Prism Counter Clockwise Rotation (slow to fast) 216-255

18 23 30 Ring Intensity Red Ring 0-255 255

19 24 31 Ring Intensity Green Ring 0-255 255

20 25 32 Ring Intensity Blue Ring 0-255 255

No Function 0-9

Red Ring 10-14

Green Ring 15-19

Blue Ring 20-24

Yellow Ring 25-29

Magenta Ring 30-34

Cyan Ring 35-39

White Ring 40-44

Violet Blue Ring 45-49

Light Blue Ring 50-54

Wine Red Ring 55-59

May Green Ring 60-64

Reseda Green Ring 65-69

Blue Lilac Ring 70-74

Moss Green Ring 75-79

Signal Violet Ring 80-84

Red Lilac Ring 85-89

21 26 33 Ring Color Preset Purple Red Ring 90-94 0

Green Brown Ring 95-99

Pale Green Ring 100-104

Ruby Red Ring 105-109

Flame Red Ring 110-114

Red Orange Ring 115-119

Rose Ring 120-124

Honey Yellow Ring 125-129

Light Pink Ring 130-134

Deep Orange Ring 135-139

Lemmom Ring 140-144

Golden Ring 145-149

Pastel Orange Ring 150-154

Cream Ring 155-159

Melon Yellow Ring 160-164

Luminouse Orange Ring 165-169

Luminouse Yellow Ring 170-174

No Function 175-255

No Function 0-9

Ring Macro 1 10-23

Ring Macro 2 24-37

Ring Macro 3 38-51

Ring Macro 4 52-65

Ring Macro 5 66-79

Ring Macro 6 80-93

Ring Macro 7 94-107

22 27 34 Ring Macro Effect Ring Macro 8 108-121

Ring Macro 9 122-135

Ring Macro 10 136-149

Ring Macro 11 150-163

Ring Macro 12 164-177

Ring Macro 13 178-191

Ring Macro 14 192-205

Ring Macro 15 206-219

Ring Macro 16 220-233

Ring Macro 17 234-247

No Function 248-255

23 28 35 Ring Macro Speed Ring Macro Speed (slow to fast) 0-255 0

24 29 36 Ring Dimmer Ring Dimmer 0-255 255

No Function 0-9

Blackout Activated with Pan or Tilt 10-19

No Function 20-29

Dim 0 30-59

Dim 1 60-69

Dim 2 70-79

Dim 3 80-89

Dim 4 90-99

PWM 1200Hz 100-139

25 30 37 Control PWM 2400Hz 140-149 0

(hold for 5 seconds) PWM 4000Hz 150-159

PWM 6000Hz 160-169

PWM 25000Hz 170-179

Cooling Mode Stidio 180-189

Cooling Mode Power 190-199

Cooling Mode Live 200-219

All Functions Reset 220-229

Motor Functions Reset 230-239

No Function 240-255

Table des matières

Autres manuels MegaLite Équipement d'éclairage

MegaLite

MegaLite HELIUS M Manuel utilisateur

MegaLite

MegaLite Pro Color Cannon 3000 Manuel utilisateur

MegaLite

MegaLite N-E COLOR Cannon Manuel utilisateur

MegaLite

MegaLite Drama Strip P840 Manuel utilisateur

MegaLite

MegaLite TUFFBABYVW-42 Manuel utilisateur

MegaLite

MegaLite Followbot 1000W LED Manuel utilisateur

MegaLite

MegaLite AXIS CYCLOPS Manuel utilisateur

MegaLite

MegaLite Tuff Baby Q60 Manuel utilisateur

MegaLite

MegaLite LIGHT PIPE 5049-03 Manuel utilisateur

MegaLite

MegaLite outshine ww100 Manuel utilisateur

MegaLite

MegaLite Drama Profile VW2 Manuel utilisateur

MegaLite

MegaLite baby color Q70 IR Manuel utilisateur

MegaLite

MegaLite DECO CITYSCAPE Q30 Manuel utilisateur

MegaLite

MegaLite Deco Vintage Scoop Q32 Manuel utilisateur

MegaLite

MegaLite IDOL-LITE P24 Manuel utilisateur

MegaLite

MegaLite Axis LED Manuel utilisateur

MegaLite

MegaLite DECO Cove Q18 Manuel utilisateur

MegaLite

MegaLite DECO Driver CV4 Manuel utilisateur

MegaLite

MegaLite DECO TENTACLE Manuel utilisateur

MegaLite

MegaLite Circa Manuel utilisateur

MegaLite

MegaLite Pro Color Strip Manuel utilisateur

MegaLite

MegaLite Drama W50 LED Manuel utilisateur

MegaLite

MegaLite XWITCH Manuel utilisateur

MegaLite

MegaLite N-E Color FX9 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
