MegaLite AXIS CYCLOPS Manuel utilisateur

USER MANUAL

Table of Contents

Safety Information……………………………………...………………3

Specifications………………………………………...…………………4

Main Power Connection…………………………...…………………..5

DMX-512 Connection……………………………..…………………...6

Rigging the Fixture……………………………….…………………….6

Main Control Menu……………..…………………………………..….7

DMX Profile...................................................................................10

Cleaning & Maintenance...............................................................11

Parts List.......................................................................................11

Check that the unit has not been damaged during transport

Protection Against Fire

1. Maintain a minimum of 1 foot distance from any type of flame.

3. Replace fuse only with the specified type and rating.

4. Do Not install the unit to close to a heat source.

5. Make sure cable are properly secured away from unit movement.

6. Maximum surface operating temperature 104º.

Protection Against Fire

1. Disconnect power before lamp replacement or servicing.

2. For connection to main power supply proceed to page 6.

3. This unit must be earthed. (electronically grounded)

4. Do not expose unit to rain or moisture.

Protection Against Mechanical Hazards

1. Use safety chain when hanging unit.

2. Use quality clamps or bolts when positioning unit

3. Do not open unit risk of electrical shock.

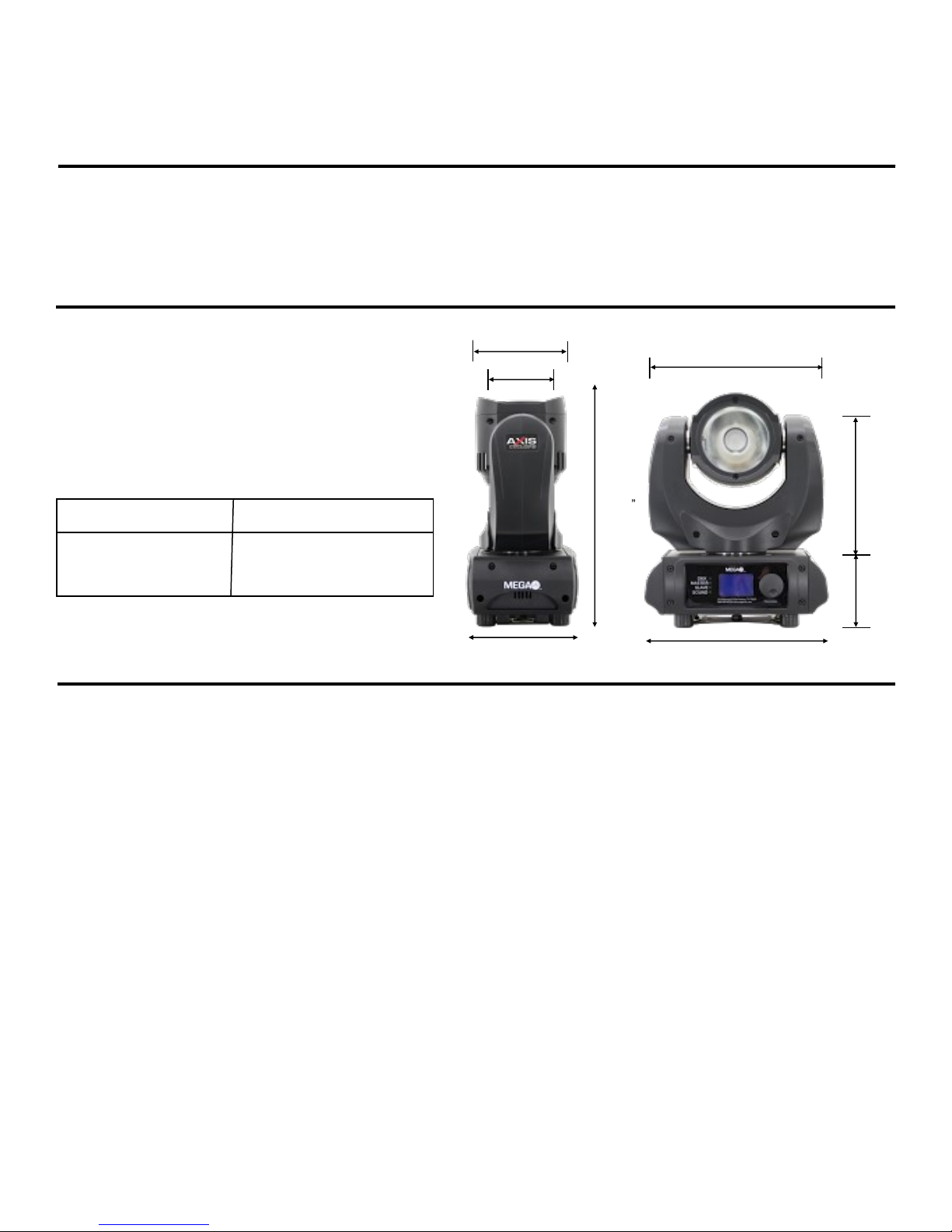

Specifications

Part Numbers

Fixture Lamp Flight Case

1160 - AXIS Cyclops Osram 60W RGBW LED 1160-RC4 4 Unit Road Case

Mechanical Specifications

Fixture Packaged for Shipping

Size: 9.5” x 6” x 12.25”

Weight: 11.5 lb

Pan: Infinite° Tilt: Infinite°

DMX Connectors: 3 and 5-pin XLR connectors

Power Connectors: Power Con type in and out

Thermal: Maximum ambient temperature 100° F

Maximum surface temperature 130° F

Fastening System: Single Quick Release Clamp Mounts

Lens Angle: 4.5º

Electrical Specifications

Power supply: Auto Switch100V-240V 50/60 HZ

Power consumption: Amps .62

Watts 73

Ballast: Electronic

LAMP: Osram 60W RGBW LED

Display: LCD Display

9.5 ” ( with handles )

5”

3.75 ”

7.5 ”

12.25 ”

9.25 ”

Size: 12.75” x 9” x 19”

Weight: 15 lb

6”

3.5 ”

Main Power Connection

Caution!

1. Do not connect fixture to a dimmer system.

2. This unit must be earthed. (electronically grounded)

3. Replace fuse only with the specified type and rating.

The occupation of the connection-cable is as follows:

This device is equipped with a auto switching power supply that will allow you to work from 100V-240V 50/60Hz

Cable (USA) Cable (EU) Pin 110V

Black Brown

White

Green

Light Blue

Yellow/Green

Live

Neutral

Ground

220V

110V

Connec-

220V

Connec-

Rigging the fixture

Caution!

1. The installations must be carried out by an authorized dealer or trained professional.

2. Unit may cause severe injures if you have doubts concerning the safety do not install.

3. Unit is to be 24inches away from flammable materials (decoration material)

4. Use high quality installation equipment to hang unit.

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-

ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you

lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector

has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be

checked at least one time a year by a skilled person.

Rigging the

Caution!

1. The installations must be carried out by an authorized dealer or trained professional.

2. Unit may cause severe injures if you have doubts concerning the safety do not install.

3. Unit is to be 24inches away from flammable materials (decoration material)

4. Use high quality installation equipment to hang unit.

When rigging a unit it is very important that you follow common safety procedures. Rigging requires extensive experi-

ence including but not limited to calculating working loads, material being used and periodic safety inspections. If you

lack these qualifications, do not attempt the installation yourself, instead use a professional structural rigger.

When rigging the unit always be secured with a secondary safety attachment. The installation location of the projector

has got to be built in the way that it can hold 10 times the weight for 1 hour with out any harming. Installation should be

checked at least one time a year by a skilled person.

DMX-512 Connection

The fixture is equipped with 3 and 5 pin XLR Sockets for DMX input and output. The sockets are wired in parallel. Only

use a shielded twisted pair cable designed for RS-485 and 3 or 5 pin XLR plugs and connectors in order to connect the

controller with the fixture or the fixture with another.

Caution!

At the last fixture the DMX signal needs to be terminated with a terminator. Solder a

120 Ohm resistor between the (-) and the (+) signal into a 5 pin XLR plug and plug it

in to the last fixture on the signal run. Pre-manufactured terminator plugs are availa-

ble for purchase from your Mega-Lite dealer (P-DMX-T).

DMX—Input DMX—Output

1. Shield

2. Signal (-)

3. Signal (+)

4. N/A

5. N/A

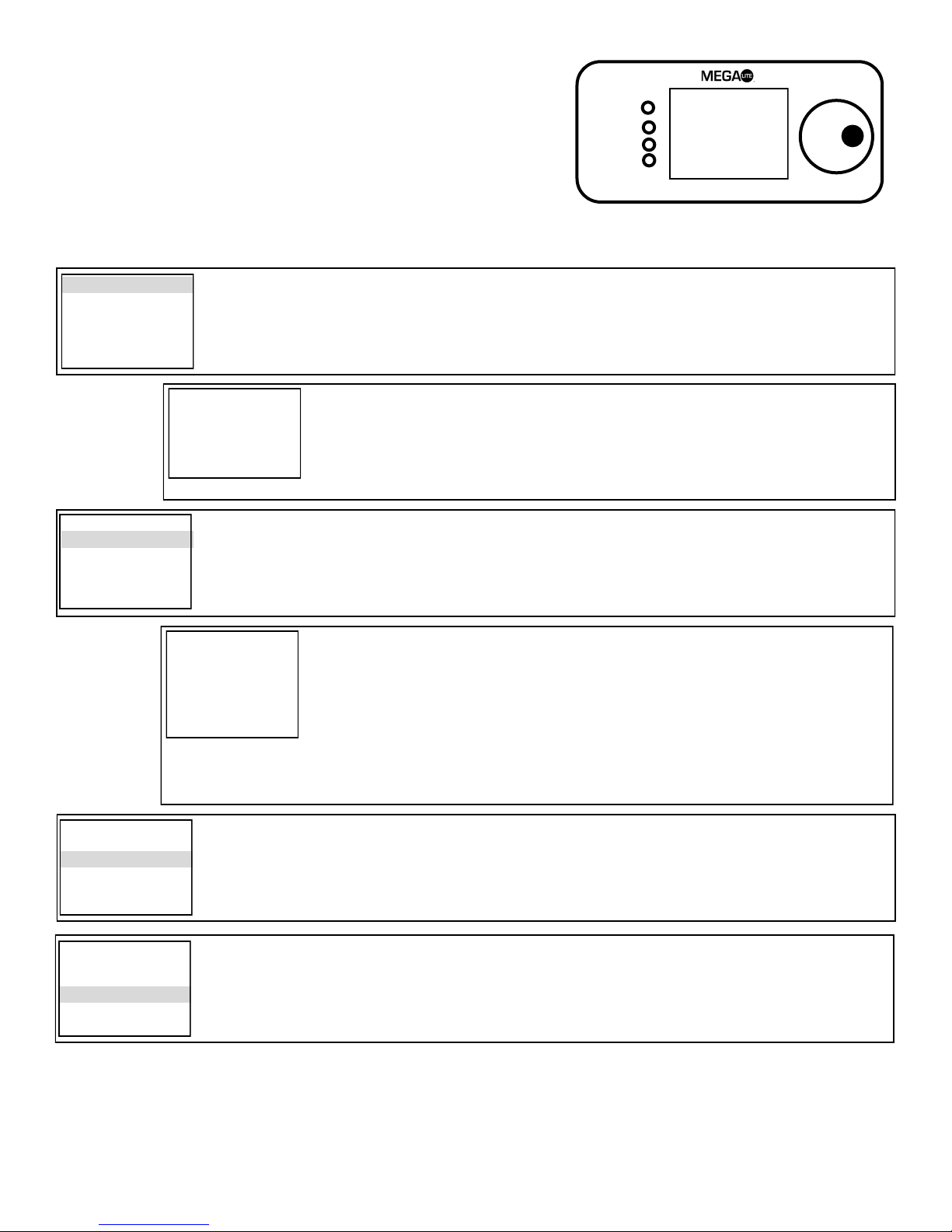

Main Control Menu

The control board on the fixture base is your interface to access and

control all the functions on the unit. Its LCD display gives you views of

the options and functions. The following will explain each function and

its options. Turn the rotary knob to see options and press the knob to

Enter

Press the knob to select Set Up options.

Setup Menu

1 DMX Address

2 Channel Mode

3 Dimmer Curve

4 Demo Mode

5Manual Control

6Slave Mode

Press the knob to select the DMX start address. Turn knob Left or Right to select desired start address.

DMX Address

Press the knob to select fixture profile operating mode

Channel Mode

9 Ch

(9 Ch)

(15 Ch)

15 Ch

001

1 DMX Address

2 Channel Mode

3 Dimmer Curve

4 Demo Mode

5Manual Control

6Slave Mode

1. Pan

2. Tilt

3. Dimmer

4.Red Intensity

5. Green Intensity

6. Blue Intensity

7. White Intensity

8.Shutter / Strobe

9. Control

1. Pan

2. Pan Fine

3. Tilt

4. Tilt Fine

5. Pan & Tilt Speed

6. Infinity Pan

7. Infinity Tilt

8. Dimmer

9.Red Intensity

10. Green Intensity

11. Blue Intensity

12. White Intensity

13.Shutter / Strobe

14. Color Macro

15. Control

15Ch 54ºC

Press the knob to select fixtures dimming curve from Fastest Mode 1 to Slowest Mode 4

Dimming Curve

1 DMX Address

2 Channel Mode

3 Dimmer Curve

4 Demo Mode

5Manual Control

6Slave Mode

Mega-Lite

Axis Cyclops

Press to Enter

18668 Hwy 16 N., Helotes, TX 78023

866-460-MEGA www.mega-lite.com

DMX

Master

Slave

Sound

Press the knob to select fixtures Pre-recorded demo program Demo Mode 1 or 2 (Note DMX signal must not be connected for this

function to work).

Demo Mode

1 DMX Address

2 Channel Mode

3 Dimmer Curve

4 Demo Mode

5Manual Control

6Slave Mode

Press the knob to select Manual control Functions. Select the fixtures function you would like to manually control . (Note The fixture

will recall the set manual control attributes even after the fixture is turned off and on)

Manual Control

1 DMX Address

2 Channel Mode

3 Dimmer Curve

4 Demo Mode

5Manual Control

6Slave Mode

Press the knob to select Slave mode function

Slave Mode

1 DMX Address

2 Channel Mode

3 Dimmer Curve

4 Demo Mode

5Manual Control

6Slave Mode

Press the knob to select Sound Mode option Select yes or no. Pre Program will change scene to the sound of audio.

Sound Mode

7 Sound Mode

8 Pan Inverse

9 Tilt Inverse

10 DMX Clear

11 P/T Degree

12 P/T Fedback

Press the knob to select Pan Invert option Select yes or no

Pan Invert

7 Sound Mode

8 Pan Invert

9 Tilt Invert

10 DMX Clear

11 P/T Degree

12 P/T Fedback

Press the knob to select DMX Clear. Select yes if you would like to bring DMX attributes to zero if DMX signal is lost. Select no if

you would like DMX attributes to be kept to the last position if DMX signal is lost.

DMX Clear

7 Sound Mode

8 Pan Invert

9 Tilt Invert

10 DMX Clear

11 P/T Degree

12 P/T Fedback

Press the knob to select Pan and Tilt extreme positions from 540 x 270 or 360x360

P/T Degree

7 Sound Mode

8 Pan Invert

9 Tilt Invert

10 DMX Clear

11 P/T Degree

12 P/T Fedback

Press the knob to select yes or no if you would like for the pan and tilt to return to set position after it has been physically moved.

P/T Feedback

7 Sound Mode

8 Pan Invert

9 Tilt Invert

10 DMX Clear

11 P/T Degree

12 P/T Feedback

Press the knob to select the display orientation. Select from Inverted , Auto (will automatically invert the display depending in the

fixtures orientation or Normal (default position)

Display Rotate

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

Press the knob to select the Back Light option yes to leave light on or No to have the back light turn off after no display movement

for 15 seconds

Back Light

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

Press the knob and select yes to restore the fixture to the factory settings

Factory Setting

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

Press the knob and select yes to reset the fixture’s motor and dimmer settings

Reset

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

Press the knob to find out what version of software is being used

Version

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

This function is for factory trained technician.

Calibration

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

Press the knob and select yes to have the fixture run throw a built in program testing all functions

Auto Test

13 Display Rotate

14 Back Light

15 Version

16 Factory Set

17 Reset

18 Calibration

19 Auto Test

DMX Profile

Axis Cyclops 9 Ch Mode

DMX Channel Function Description Value Init Value

Pan Course 0-127

1Pan Forward (fast to slow) 128-191 43

Backwards (slow to fast) 192-255

Tilt Course 0-127

2Tilt Forward (fast to slow) 128-191 64

Backwards (slow to fast) 192-255

3Dimmer Dimmer off to full 0-255 255

4LED Intensity Red Dimmer 0-255 255

5LED Intensity Green Dimmer 0-255 255

6LED Intensity Blue Dimmer 0-255 255

7LED Intensity White Dimmer 0-255 255

No Function 0-6

8Shutter Random Strobe (slow to fast) 7-128 0

Strobe slow to fast 129-255

No Function 0-9

9Control Reset all functions 10-20 0

No Function 21-255

Axis Cyclops 15 Ch Mode

DMX Channel Function Description Value Init Value

1Pan Pan Course 0-255 128

2Pan Fine Pan Fine 0-255 128

3Tilt Tilt Course 0-255 128

4Tilt Fine Tilt Fine 0-255 128

5Pan & Tilt Speed Pan Speed (fast to slow) 0-255 0

No Function 0-15

6Infinity Pan Forward (fast to slow) 16-135 0

Backwards (slow to fast) 136-255

No Function 0-15

7Infinity Tilt Forward (fast to slow) 16-135 0

Backwards slow to fast 136-255

8Dimmer Dimmer off to full 0-255 255

9LED Intensity Red Dimmer 0-255 255

10 LED Intensity Green Dimmer 0-255 255

11 LED Intensity Blue Dimmer 0-255 255

12 LED Intensity White Dimmer 0-255 255

No Function 0-6

13 Shutter Random Strobe slow to fast 7-128 0

Strobe slow to fast 129-255

No Function 0-1

14 Color Macro Color Snap (slow to fast) 2-126 0

Color Fade (slow to fast) 127-255

No Function 0-9

15 Control Reset all functions 10-20 0

No Function 21-255

Table des matières

Autres manuels MegaLite Équipement d'éclairage

MegaLite

MegaLite EB1 Manuel utilisateur

MegaLite

MegaLite LEDiLINE M485 Series Mode d’emploi

MegaLite

MegaLite IDOL-LITE P24 Manuel utilisateur

MegaLite

MegaLite Tuff Baby P-84 Manuel utilisateur

MegaLite

MegaLite Pro Color Cannon 3000 Manuel utilisateur

MegaLite

MegaLite N-E Color FX9 Manuel utilisateur

MegaLite

MegaLite Deco Vintage Scoop Q32 Manuel utilisateur

MegaLite

MegaLite Framebot 600 Manuel utilisateur

MegaLite

MegaLite AXIS 500 Manuel utilisateur

MegaLite

MegaLite DECO Driver CV4 Manuel utilisateur

MegaLite

MegaLite N-E PIXSTRIP H216 Manuel utilisateur

MegaLite

MegaLite DECO TENTACLE Manuel utilisateur

MegaLite

MegaLite DECO Cove Q18 Manuel utilisateur

MegaLite

MegaLite HELIUS M Manuel utilisateur

MegaLite

MegaLite ARFlood Manuel utilisateur

MegaLite

MegaLite Linebot Q480 Manuel utilisateur

MegaLite

MegaLite XWITCH Manuel utilisateur

MegaLite

MegaLite TUFFBABYVW-42 Manuel utilisateur

MegaLite

MegaLite Drama Strip P840 Manuel utilisateur

MegaLite

MegaLite Followbot 1000W LED Manuel utilisateur

MegaLite

MegaLite DECO Driver CV4 Manuel utilisateur

MegaLite

MegaLite Evricolor Manuel utilisateur

MegaLite

MegaLite PARAMOUNT PENDANT Q350 Manuel utilisateur

MegaLite

MegaLite Tuff Baby Q60 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
