TRAINING MANUAL

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

This Page Left Intentionally Blank

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

Contents

Introduction …………………………………………………………………………………………......

AVANT™ Audiometer Software Overview …………………………………………………………. 5

AVANT™ Audiometer Software Options …………………………………………………………… 6

Preparing for Testing …………………………………………………………………………………..

Pure Tone Audiometry …………………………………………………………………………………

Speech Audiometry …………………………………………………………………………………….

Hearing Loss Simulator ………………………………………………………………………………. 18

Master Hearing Aid ……………………………………………………………………………………..

Printing …………………………………………………………………………………………………..

Limited Warranty ………………………………………………………………………………………. 21

#0086

www.medrx-usa.com

1200 Starkey Rd., #105, Largo FL 33771

Toll Free: (888) 392-1234 • (727) 584-9600

Fax: (727) 584-9602 • Email: medrx@medrx-usa.com

MedRx's Authorized Representative in Europe

(Regulatory affairs only)

Emergo Europe, Molenstraat 15

2513 BH The Hague, The Netherlands

Tel: (31) (0) 70 345-8570 • Fax: (31) (0) 70 346-7299

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

Introduction

The AVANT Audiometer represents a new era of PC-based diagnostic audiometry for your office. This

PC-Based system supports current ANSI and IEC audiometric tests. This manual assumes that the

system hardware, software and drivers are installed and working properly. Please refer to the MedRx

AVANT Audiometer Installation Manual for assistance. The AVANT Audiometer Installation Manual is

included in the original AVANT Audiometer packaging in both printed and PDF formats.

The scope of this manual is to get you “up and running” with the AVANT Audiometer System. Please

consult the interactive Help System within the software for more detailed information of features and

functionality. To access this tool, press the F1 key at any time, or click the Help icon or text menu with

your mouse.

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

The AVANT Audiometer

Software

General Overview

The AVANT Audiometer software can run stand-alone or from NOAH System or the TIMS NOAH-

Compatible Office System.

Launching the Software

Stand Alone NOAH and TIMS

1. Double click the Avant AUD shortcut

on your Windows Desktop

1. Launch NOAH

2. Open the Module Selection screen

3. Click the Measurement Tab

4. Double click the AvantAUD icon

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

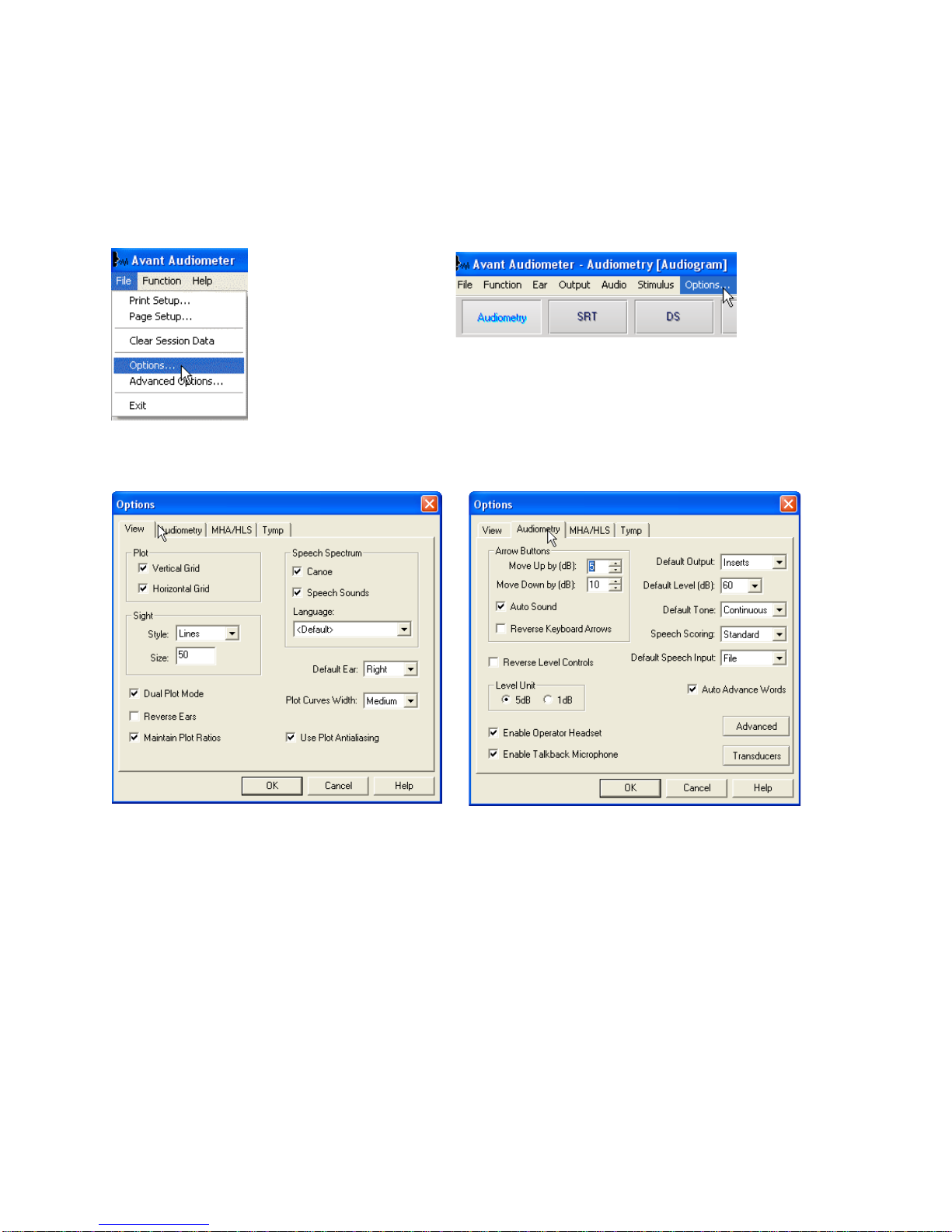

Software Options

Basic Options

Several options are available which allow the user to customize the AVANT Audiometer Software to meet

their needs.

Access these options from the File Menu on

the AVANT Audiometer Main Screen as shown

below.

The Options may also be accessed

from the Audio screen by clicking on

the Options text menu as shown below

The screen shots below detail the Basic Options available in the AVANT Audiometer software.

The View tab allows you to set the default

appearance of the test environment.

The Audiometry tab sets the look and

behavior of the AVANT Audiometer.

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

The MHA/HLS tab sets the default look

and behavior of the Master Hearing Aid

and Hearing Loss Simulator.

If your system has a Tympanometer

connected, this tab will assist in

configuring the look of the display.

NOTE: Remember, that more information is always available in the Interactive Help System by clicking

the Help Icon or pressing the F1 key.

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

Advanced Options

The Advanced Options screen allows you to

configure your system to meet your individual

clinical needs. It also provides MedRx

Technical Support with tools for helping you

troubleshoot technical issues. Access this

screen from the File Menu on the Avant Main

Screen as shown to the right.

The key features of each tab are described below. For more in-depth information, consult the

interactive Help system within the software by pressing the F1 key or clicking the Help icon.

The General Tab configures the overall AVANT

Audiometer behavior with respect to other

Windows programs, specifically NOAH.

Use the Audio Tab to select the proper audio

device for your AVANT Audiometer. This tab

also provides access to the Windows Audio

controls.

If your system has a Video Otoscope, the

Video Tab allows you to select the appropriate

device driver.

If your system has a Tympanometer

connected, use this tab to identify it and ensure

the driver and software that control it are

correctly installed.

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

Preparing for Testing

Connecting the Peripherals

After you install the drivers for your AVANT Audiometer (See AVANT Audiometer Installation Manual) you

need to AVANT Audiometer connect the rest of the peripherals before testing a patient. Using the pictures

below, locate each of the accessories and plug them into the labeled jacks above

If you are installing the AVANT Audiometer outside a sound booth, connect the Patient Response, Talkback

Mic, Bone Conductor, Speakers and Earphone cables to the inside of the patch panel and then connect your

patch cables from the outside of the patch panel to the AVANT Audiometer as shown. If your booth did not

include patch cables these are readily available from electronics or stereo stores, or from MedRx.

To install the AVANT Audiometer inside the booth, simply reverse the above, connecting the operator side

cables (USB, Operator Mic, and Monitor) to the patch panel. In most booths, the USB cable will need to pass

through the booth and be packed with foam and caulking. Consult your booth installer for specific

instructions.

Insert Earphones TDH-39 Earphones Bone Conductor Talkback Microphone

Patient Response

Switch Operator Mic & Monitor

USB Cable Optional HDA 200

High Frequency

AD-I-MAASW-3 Avant Audiometer Training Manual

Effective Date: 09/07/07

Earphones

Placing the Earphones on the Patient

The AVANT Audiometer standard configuration includes Eartone 3A Insert Earphones. TDH 39

earphones are also available by request. The figures below illustrate how to properly place these

earphones on the patient.

Eartone 3A Insert Earphones

IMPORTANT: The foam tips used for the Eartone 3A earphones are for SINGLE PATIENT USE ONLY.

Do not attempt to wash and re-use them.

1. Place a new set of foam tips on the earphone tubes as shown.

These tips are designed for single patient use and should not be

washed and reused.

•NOTE: When removing foam tips after use, be sure the clear

plastic tubing nipple remains attached to the long earphone

tube.

2. Carefully compress the tip between your

fingers to allow it to fit into the patient’s

ear canal as shown. Do not roll the tip

between your fingers.

3. Pull up and back on the patient’s pinna to

straighten the ear canal.

4. Place the compressed foam tip deep

within the ear canal.

5. When properly placed, the outer surface

of the insert tip will be flush with the

opening of the ear canal as shown.
