Medline MDS86850ESAR Manuel utilisateur

STEP-BY-STEP

ASSEMBLY GUIDE.

GUIDE D’ASSEMBLAGE

ÉTAPE PAR ÉTAPE.

GUÍA DE MONTAJE

PASO A PASO.

Basic Steel Knockdown Rollator With 6" Wheels

Déambulateur démontable de base en acier à roulettes de 6 po

Andador básico de acero con ruedas de 6" que requiere montaje

MDS86850ESAR, MDS86850ESAB

2MEDLINE |MDS86850ESAR, MDS86850ESAB | PIC-00311 (Rev: 10-10-18)

F F

What’s Included:

1-800-MEDLINE (633-5463) |medline.com 3

A2 Four Point

Knobs

B4 Triangular Knobs

C2 Screws &

Curved Washers

DBag

ERollator Frame

F2 Handle Bars with

Brake assembly

GBackrest

H2 Front Wheels

IStep-by-Step

Assembly Guide

JGeneral Warnings

STEP-BY-STEP

ASSEMBLY GUIDE.

GUIDE D’ASSEMBLAGE

ÉTAPE PAR ÉTAPE.

GUÍA DE MONTAJE

PASO A PASO.

Basic Steel Knockdown Rollator With 6" Wheels

Déambulateur démontable de base en acier à roulettes de 6 po

Andador básico de acero con ruedas de 6” que requiere montaje

MDS86850ESAR, MDS86850ESAB 1-800-MEDLINE (633-5463) | medline.com 1

Medline Rollator

SAFETY

GUIDELINES

To ensure your safety in using the Medline rollator, the following

safety information and all instructions must be followed.

» DO NOT use this product without ﬁrst reading and understanding

the instructions contained in this booklet. If you are unable to

understand the warnings, cautions, or instructions, contact a

healthcare professional, dealer, or technical personnel before use-

otherwise serious bodily injury and damage may occur.

» Consult with your doctor, physical, or occupational therapist or other

qualiﬁed professional to assure the proper height adjustment.

» Rollators are for individual use only and are NOT to be used as a

wheelchair.

» DO NOT attempt to move the rollator while you or anyone is sitting

on the seat.

» DO NOT self-propel the rollator while seated. Brakes must always be

locked while the seat is in use.

» Serious injury to you and/or damage to the rollator frame or wheels

may result from improper use.

» DO NOT use the seat to transport people or objects. DO NOT use the

seat to carry or move anything.

» DO NOT sit on the rollator while it is being loaded into a vehicle or

while it is being transported in a vehicle.

» DO NOT exceed the maximum weight capacity (including bag

contents). As stated in the assembly guide and on the device itself or

serious injury could result.

This guide applies to the following rollator:

Item Number Description Frame

Color Weight

Capacity

MDS86850ESAR

Steel rollator with 6"

wheels, knockdown.

Handles are in 1"

increments from

31" – 35". Includes

nylon bag under seat

Burgundy 350 lbs.

(159 kg)

MDS86850ESAB

Steel rollator with 6”

wheels, knockdown.

Handles are in 1”

increments from

31” – 35”. Includes

nylon bag under seat

Blue 350 lbs.

(159 kg)

4MEDLINE |MDS86850ESAR, MDS86850ESAB | PIC-00311 (Rev: 10-10-18)

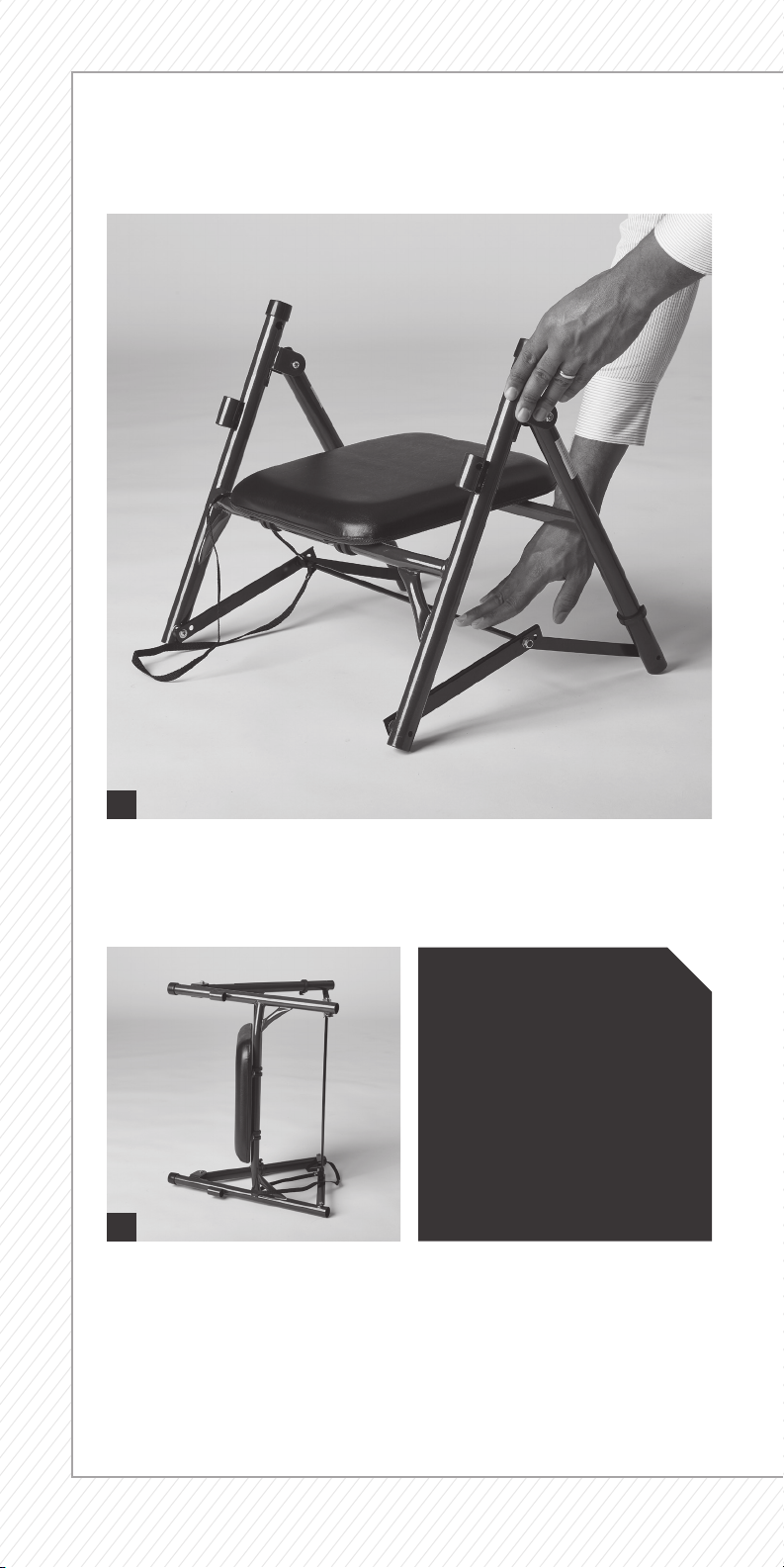

Place the rollator on its side.

First: Open the Rollator

IMPORTANT NOTE:

Proceed with caution

when opening the rollator

as there are areas around

the moving parts that

could potentially pinch

ﬁngers.

Remove the rollator components from shipping carton. Then, in

an upright position, unfold the rollator by pushing down on the

folding bracket until the frame is in full extension.

1-800-MEDLINE (633-5463) |medline.com 5

Now: Install the Wheels

Front Wheels

Use the triangular knob to screw the front legs in place.

Repeat steps 1-3 for the other front leg extension without brakes.

Remove the four black

plastic plugs from the

outer tubes and discard.

Attach front legs without

brakes to the front of the

rollator. The front legs are

marked ‘Front Left’ & ‘Front

Right’.

6MEDLINE |MDS86850ESAR, MDS86850ESAB | PIC-00311 (Rev: 10-10-18)

With the rollator still on its side, attach rear wheels with

brakes. Make sure that the rear wheels and brake shoe are on

the outside of the rollator and brake handle (See above). Use

the triangular knobs to thread the rear legs in place.

Rear Wheels & Brakes

1-800-MEDLINE (633-5463) |medline.com 7

On the same side insert the brake handle assembly into the

frame and set to desired height. Brake cables should be on the

outside of the handle bars and frame.

Insert the screw into the 6 sided hole in the frame. Make sure

the screw head recesses into the frame.

8MEDLINE |MDS86850ESAR, MDS86850ESAB | PIC-00311 (Rev: 10-10-18)

Slide the curved washer onto the other end of the screw with

the curved side facing the frame.

Turn the rollator onto the other side so that the wheels that

were just installed are now on the ﬂoor. Then, repeat steps 1-4.

on the other side.

Screw on the four point knob.

1-800-MEDLINE (633-5463) |medline.com 9

Finally Install Backrestngage both wheel

locks before entering or exiting the transport chair, when leaning

forward, or while in an elevator or wheelchair lift.

Stand the rollator up so all 4 wheels are on the ﬂoor.

Insert the backrest so that the curved portion faces the front of

the unit. Make sure that the button snaps ﬁrmly into the hole so

the back is secure.

Loop the cloth hooks onto the seat frame and make sure the

bag is centered.

10 MEDLINE |MDS86850ESAR, MDS86850ESAB | PIC-00311 (Rev: 10-10-18)
