Medline MDS86000G3 Manuel utilisateur

STEP-BY-STEP

ASSEMBLY GUIDE.

GUÍA DE MONTAJE

PASO A PASO.

GUIDE D’ASSEMBLAGE

ÉTAPE PAR ÉTAPE.

The Kneewalker

Andador de rodilla

Le déambulateur à repose-genou

MDS86000G3

2MEDLINE |MDS86000G3 | PIC-00311 (Rev: 04-26-17)

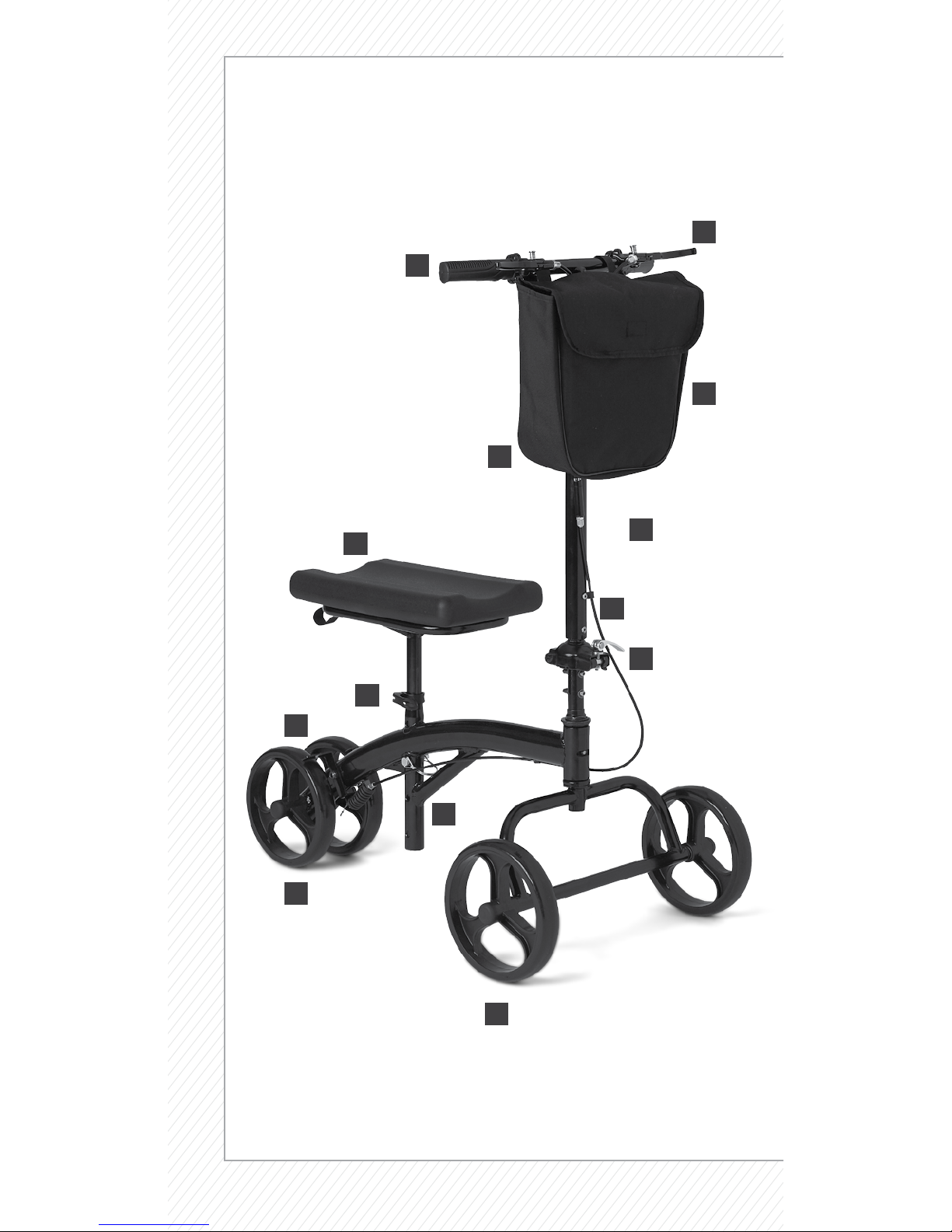

What’s Included:

1-800-MEDLINE (633-5463) |medline.com 3

AHand Brakes

BHand Grips

CBrake Cables

DHandle Height

Adjust Knob

EHandle Bar

FTiller Cam Lock

GKneepad

HBrake Blade

IRear Wheels

JFront

Wheels

This guide applies to the following kneewalker:

Item Number Description Frame

Color

Weight

Capacity

MDS86000G3

4 wheel knee walker with

padded foam knee rest and

front storage bag.

Black 300 lbs

(136 kg)

KSeat Cam Lock

LSeat Height Adjust Pin

Storage bag

Step-By-Step

Assembly Guide

General Warnings

4MEDLINE |MDS86000G3 | PIC-00311 (Rev: 04-26-17)

First: Open and secure handle bar

1Remove contents from carton.

Unfasten the hook and loop strap that holds the tiller down to the kneepad.

Raise the tiller to the upright position. The tiller will snap into position and

lock when it reaches its full upright position.

1-800-MEDLINE (633-5463) |medline.com 5

Lift Tiller Cam Lock and rotate it up and over the Tiller ﬂange. Then

press down to secure.

Next: Set Desired Kneepad Height

Raise the Kneepad to desired height.

6MEDLINE |MDS86000G3 | PIC-00311 (Rev: 04-26-17)

Insert the wheel stem into the tube, making sure to align the hole in the

wheel stem with the hole in the tube.

Insert the Seat Height Adjust Pin into the hole. Lock pin in place by

sliding the loop over the protruding end of the pin.

1-800-MEDLINE (633-5463) |medline.com 7

Adjusting The Knee Pad Height

Loosen the Seat Cam Lock under the knee pad and remove locking pin.

9Adjust pad to the desired height.

Reinstall the locking pin and secure it in place with the retainer tab.

Next tighten the Seat Cam Lock to lock pad in place.

8MEDLINE |MDS86000G3 | PIC-00311 (Rev: 04-26-17)

To apply the brakes, simply pull one or both of the hand brake

levers with your ﬁngertips toward the hand grip. Either lever

will operate the brake by itself.

To lock the brake, squeeze and hold one of the hand brake levers to

the Hand Grip and push and hold down the spring loaded push button

(located on top of brake). Release the hand brake lever. When done

correctly, push button with remain down and the hand brake lever

will be locked in place. Rear wheels should not be able to rotate.

Now: Using the Hand Brakes

1-800-MEDLINE (633-5463) |medline.com 9

To release the brake, pull the lever towards the hand grip. Push pin

will pop up automatically.

For minor adjustment use the brake adjuster located on the front of the tiller.

Next: Adjusting the Hand Brakes

Turn the thumbscrew counterclockwise to tighten the brake or

clockwise to loosen the brake. When done, tighten the adjustment nut

back to the brake adjuster housing without turning the thumbscrew.

10 MEDLINE |MDS86000G3 | PIC-00311 (Rev: 04-26-17)

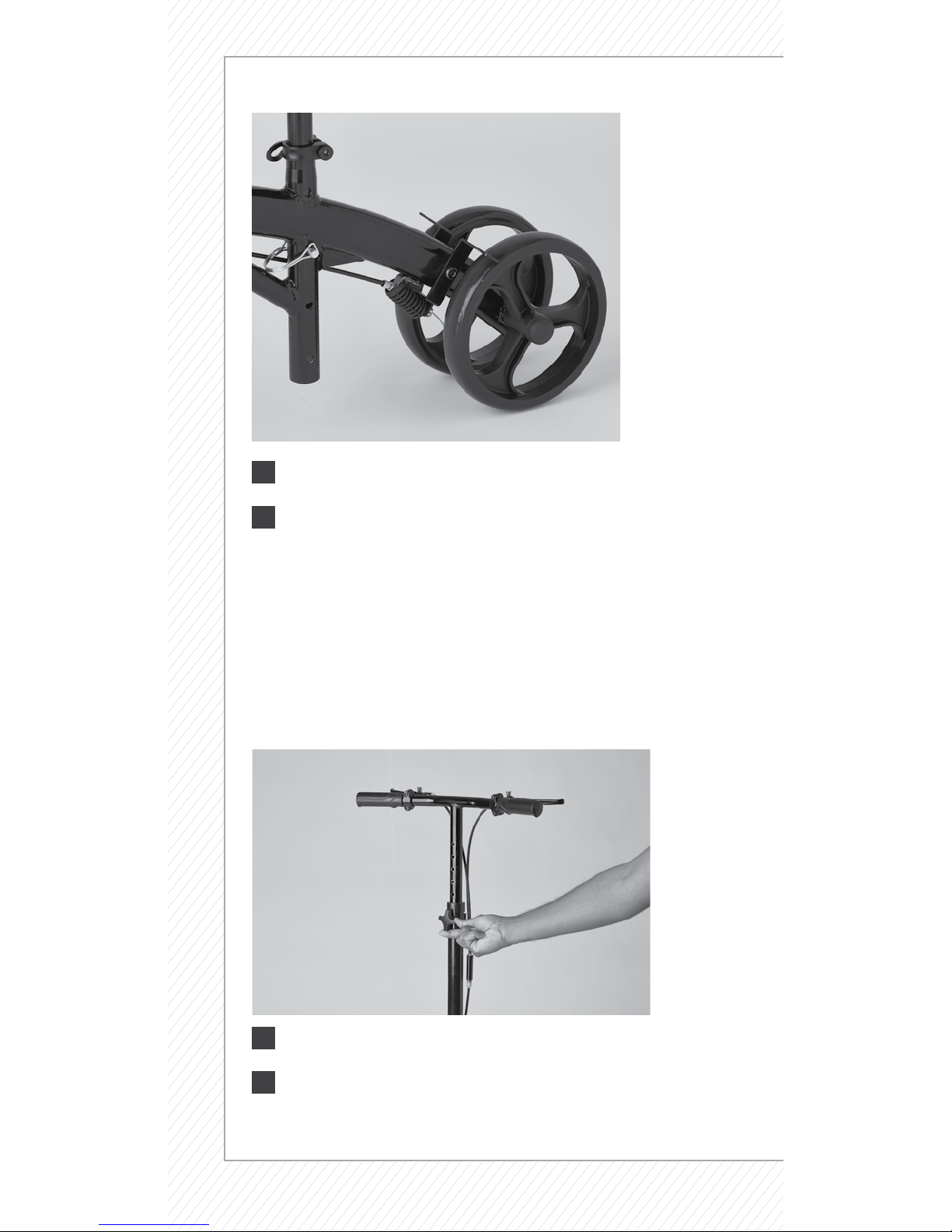

If further adjustment is required, apply the same method of adjustment

at the lower cable adjuster above the brake.

As you adjust the cable thumbscrew and the adjustment nut away from

each other the brakes will tighten, and as you adjust them closer the

brakes will loosen.

To adjust the handle height, loosen the adjustment screw on the tiller

below the handle by turning it counterclockwise until it can be removed.

Adjust the hand grip to the desired height and reinstall the adjustment

screw by turning it clockwise until it is tightened.

Finally: Adjust Handle Height
