McCulloch MC11T94 Manuel du propriétaire
REPAIR PARTS MANUAL
MODEL NO. MC11T94 (96011001501)
Lawn Tractor
532 19 69-98 1.12.05 RD
PRINTED IN U.S.A.
McCulloch
www.electrolux.com/mcculloch
2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,
it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “Tractor”
• Model Number - “
MC11T94 (96011001501)
”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................ 3
ELECTRICAL............................................................................................................4-5
CHASSIS...................................................................................................................6-7
DRIVE........................................................................................................................8-9
STEERING ............................................................................................................10-11
ENGINE.................................................................................................................12-13
SEAT .......................................................................................................................... 14
DECALS..................................................................................................................... 15
MOWER DECK .....................................................................................................16-17
MOWER LIFT.............................................................................................................18
3
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15

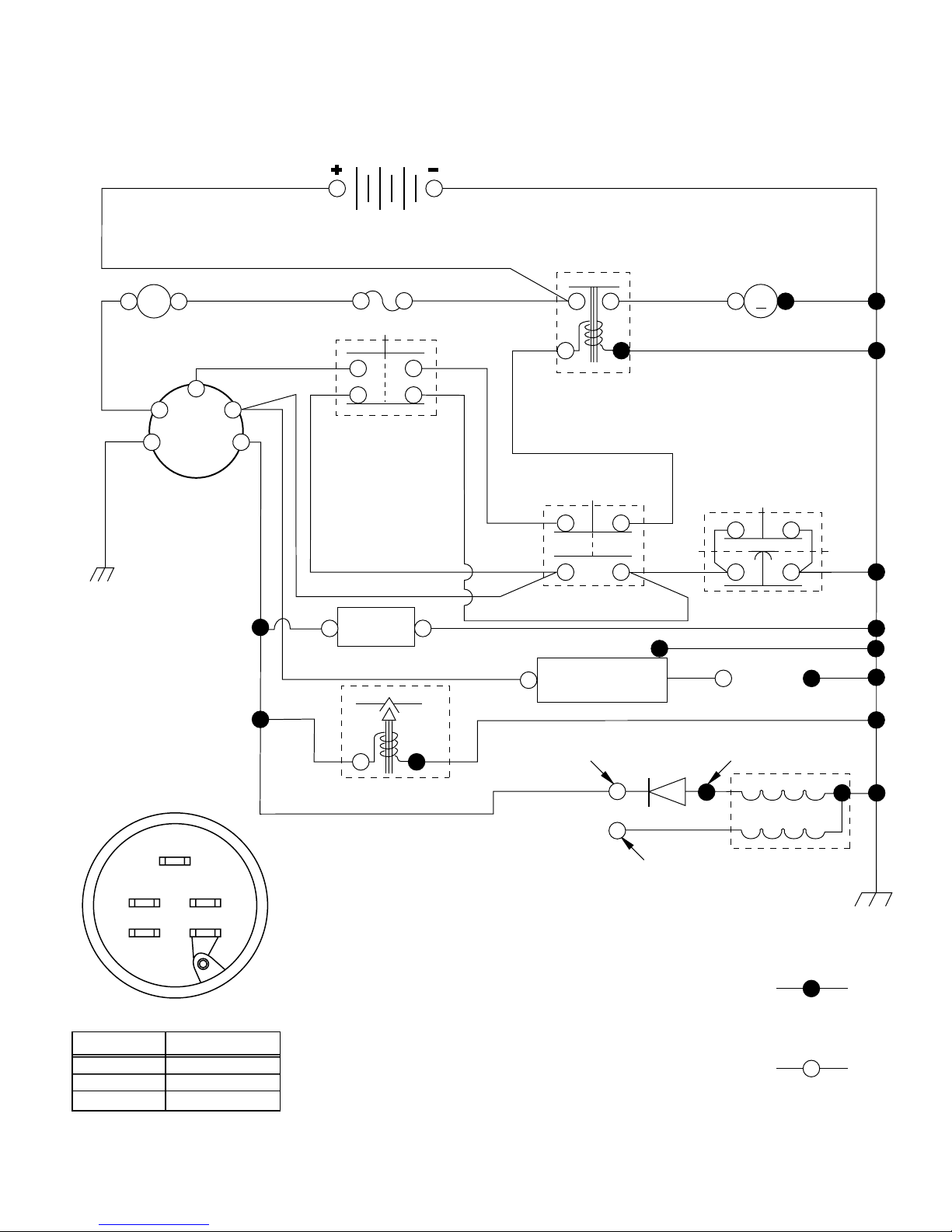

SCHEMATIC
BATTERY
FUSE
IGNITION
SWITCH
RED RED
RED BLACK
IGNITION
UNIT
REMOVABLE
CONNECTIONS
BLACK
BLACK BLACK
WHITE
WHITE
WHITE
RED
BLACK
BLACK
BLACK
BLACK
STARTER
M
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
ATT'MENT CLUTCH
(CLUTCH OFF)
CLUTCH / BRAKE
(PEDAL UP)
SOLENOID
BLACK
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
A
AMMETER
RED
G
BSM
L
HOUR
METER
(OPTIONAL)
(OPTIONAL)
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(IF SO EQUIPPED)
NON-REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
IGNITION SWITCH
CIRCUITPOSITION
OFF
B+LON
B+S+LSTART
M+G
S
B
G
M
L
02492
BLUE
FUEL SHUT-OFF SOLENOID
FUEL
LINE
4
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15

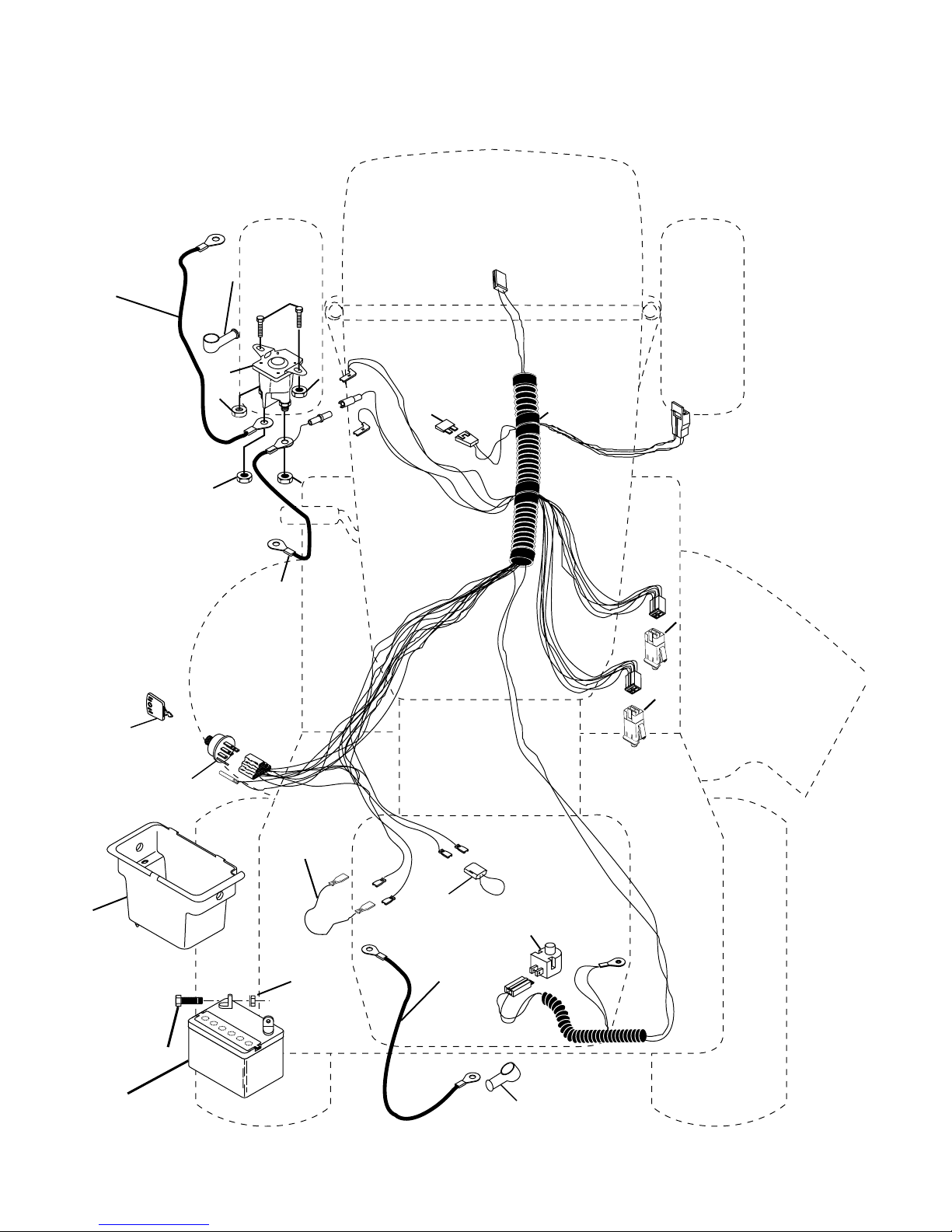

ELECTRICAL
28
29
26
24
42
43
27
27
25
41
27
27
40
33
90
30
8
2
1
27
48
16
52
16
5
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15
ELECTRICAL
1 532 16 34-65 Battery 12 Volt 25 Amp
2 874 76 04-12 Bolt Hex Hd 1/4-20 Unc x 3/4
8 532 17 66-89 Battery Box
16 532 17 61-38 Switch Interlock Push-In
24 532 12 47-80 Cable Battery 6 Ga. 11"red
25 532 14 61-47 Cable Battery
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 47-73 Cable Ground 6 Ga. 12"black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-67 Switch Ign
33 532 14 04-01 Key Ign
40 532 17 97-30 Harness Ign
41 871 11 04-08 Bolt Blk Fin Hex 1/4-20
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
48 532 14 08-44 Adapter Ammeter
52 532 14 19-40 Protection Wire Loop
90 532 18 04-49 Cover Terminal Battery
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm.
6
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15

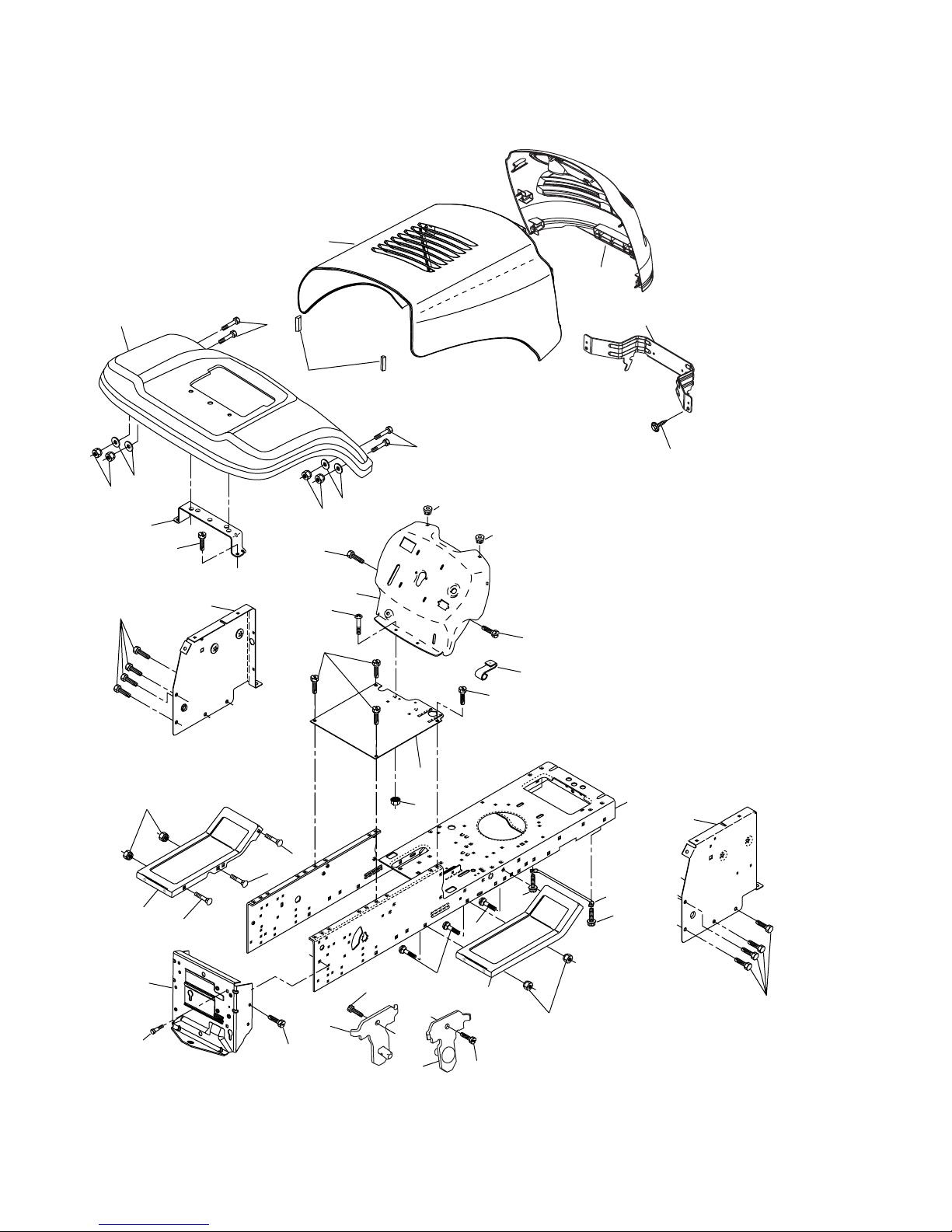

CHASSIS AND ENCLOSURES
209
235
209
26
35
209
26
33
10
34
1
208 11
208
13
209
8
209
6
16
9
15
209
209
5
5
145
37
37
18
206
205
205
38
38
17
28
278
39
Chassis-Alpha_LT_3
26
25
24
26
25
209
31
24
30
7
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
1 532 17 46-20 Chassis
2 532 17 65-54 Drawbar
5 532 15 52-72 Bumper, Hood/Dash
6 532 18 25-34 Saddle
8 532 15 51-38 Clip Retainer Slide-On
9 532 19 46-88 Dash
10 872 14 06-08 Bolt, Carriage 3/8-16 x 1
11 532 17 49-96 Panel Dash LH
13 532 18 17-19 Panel Slkscr Dash RH
15 874 18 05-12 Screw Mach TRHD 5/16-18 unc x 3/4
16 873 51 05-00 Nut Keps 5/16-18 Unc
17 532 19 55-50 Hood
18 532 12 69-38 Bumper Hood
24 874 78 06-16 Bolt Fin Hex 3/8-16 unc x 1 Gr. 5
25 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
26 873 80 06-00 Nut Lock Hex w/Ins 3/8-16 unc
28 532 19 47-98 Grille
30 532 18 12-72 Fender
31 532 13 66-19 Bracket Fender Repl 109873x
33 532 18 30-81 Footrest Pnt LH
34 532 18 30-80 Footrest Pnt RH
35 872 11 06-06 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm. Pivot Mower Rear
39 532 18 75-68 Bracket Pivot
145 532 15 65-24 Rod Pivot Chassis/Hood
205 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
206 532 17 01-65 Bolt Shoulder 5/16-18
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2
209 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16
278 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex
- - 532 00 54-79 Plug Button Blk 359 Dia Choke
- - 532 19 39-35 Plug Switch Light
- - 532 18 78-01 Plug Dome Plasitc (choke Hole)
8
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15

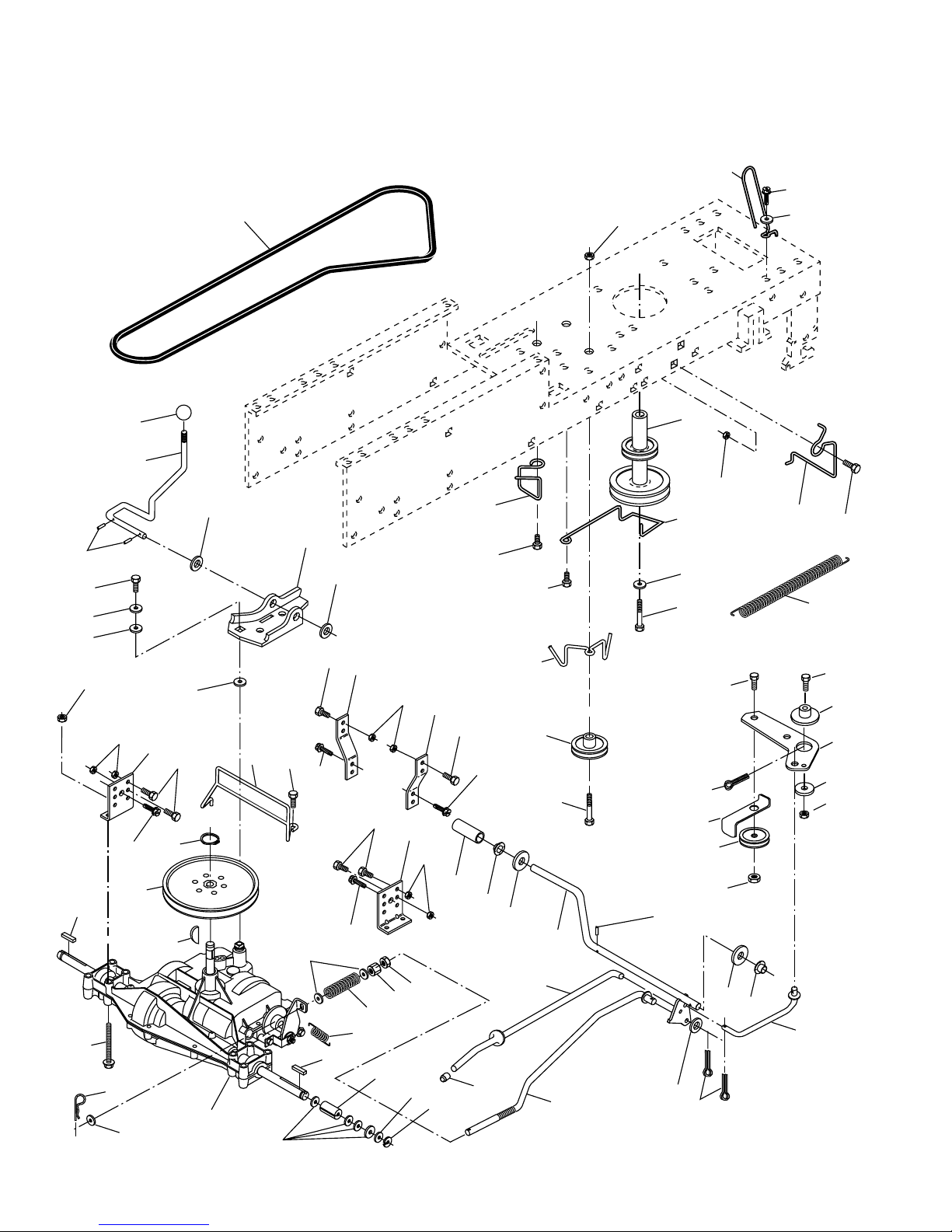

DRIVE
29
28
112
14
41
38
39
57 120
74
75
7876
77
25
19
24
253
35
34
37
36 35
62
36
64
65
59
56
212
55
63
116
70
77
61
22 27
26
6
113
18
51 5
18
6
52 30
32
32
30
52
11
21
4
3
13
10
8
12
12
7
263
26
263
1
15
96
26
79
16
66
27 51
48
151
202
49
47
50
120
150
6
170
263
275
268
drive-saddle_31
9
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15
DRIVE
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - - Transaxle, Peerless 205-544C
(Order parts from transaxle manu-
facturer)
2 532 14 66-82 Spring Return Brake T/a Zinc
3 532 12 36-66 Pulley Transaxle 18" tires
4 812 00 00-28 Ring Retainer # 5100-62
5 532 12 15-20 Strap Torque 30 Degrees
6 817 00 05-12 Screw 5/16-18 x 3/4
7 532 16 22-40 Bracket T/A Saddle Shift
8 532 13 16-79 Rod Shifter
10 876 02 04-16 Pin Cotter 1/8 x 1 Cad
11 532 10 57-01 Washer Plate Shf 388 Sq Hole
12 819 15 12-16 Washer 15/32 x 3/4 x 16
13 874 55 04-12 Bolt 1/4-28 Unf Gr 8 W/Patch
14 810 04 04-00 Washer Lock Hvy Helical 1/4
15 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5
16 873 80 05-00 Nut Lock Hx W/Ins 5/16-18 Unc
18 874 78 06-16 Bolt, Fin Hex 3/8-16 Unc x 1 Gr. 5
19 873 80 06-00 Nut Lock 3/8-16 Unc
21 532 10 69-33 Knob
22 532 13 08-04 Rod Brake Blk Zinc 26 840
24 873 35 06-00 Nut Hex Jam 3/8-16 Unc
25 532 10 68-88 Spring Rod Brake 2 00 Zinc
26 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga
27 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad
28 532 17 57-65 Rod Brake Parking
29 532 07 16-73 Cap Brake Parking
30 532 17 49-73 Bracket Mtg Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18unc x 3/4
34 532 17 55-78 Shaft Asm Pedal Foot
35 532 12 01-83 Bearing Nylon Blk 629 Id
36 819 21 16-16 Washer 21/32 x 1 x 16 Ga
37 532 12 49-63 Pin Roll 3/16 x 1"
38 532 17 91-14 Pulley Idler Composite
39 872 11 06-22 Bolt Rdhd 3/8-16 Unc x 2-3/4 Gr. 5
41 532 17 55-56 Keeper Belt Retainer Idler
47 532 12 77-83 Pulley Idler V Groove Plastic
48 532 15 44-07 Bellcrank Asm
49 532 12 32-05 Retainer Belt Style Spring
50 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut Crownlock 3/8-16 Unc
52 873 68 05-00 Nut Crownlock 5/16-18 Unc
53 532 10 57-10 Link Clutch
55 532 10 57-09 Spring Return Clutch 6 75
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 13 08-01 V-Belt Ground Drive
59 532 16 96-91 Keeper Belt Span Ctr
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover Pedal Blk Round
63 532 18 02-19 Engine Pulley
64 532 17 39-37 Bolt Hex
65 810 04 07-00 Washer Lock Hvy Hlcl Spr 7/16
66 532 15 47-78 Keeper Belt Engine Foolproof
70 532 18 02-18 Guide Belt Mower Drive RH
74 532 13 70-57 Spacer Axle
75 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga
76 812 00 00-01 E-ring #5133-75
77 532 12 35-83 Key Square 2 0 x 1845/ 1865
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga
79 532 12 50-96 Key Woodruff
96 532 12 47-88 Retainer Spring 1"
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
113 532 12 72-85 Strap Torque Lh
116 872 14 06-08 Bolt Rdhd Sq Neck 3/8-16 x 1.00
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10
170 532 18 74-14 Keeper Belt T/A
202 872 11 06-14 Bolt, 3/8 - 16 x 1-3/4 Gr. 5
212 532 14 52-12 Nut Flange Hex Lock
263 817 00 06-12 Screw 3/8-16 x 3/4
268 532 18 24-02 Guard Muffler
275 819 13 16-14 Washer 13/32 x 1 x 14 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
10
REPAIR PARTS
TRACTOR - - MODEL NUMBER MC11T94 (96011001501), PRODUCT NO. 960 11 00-15

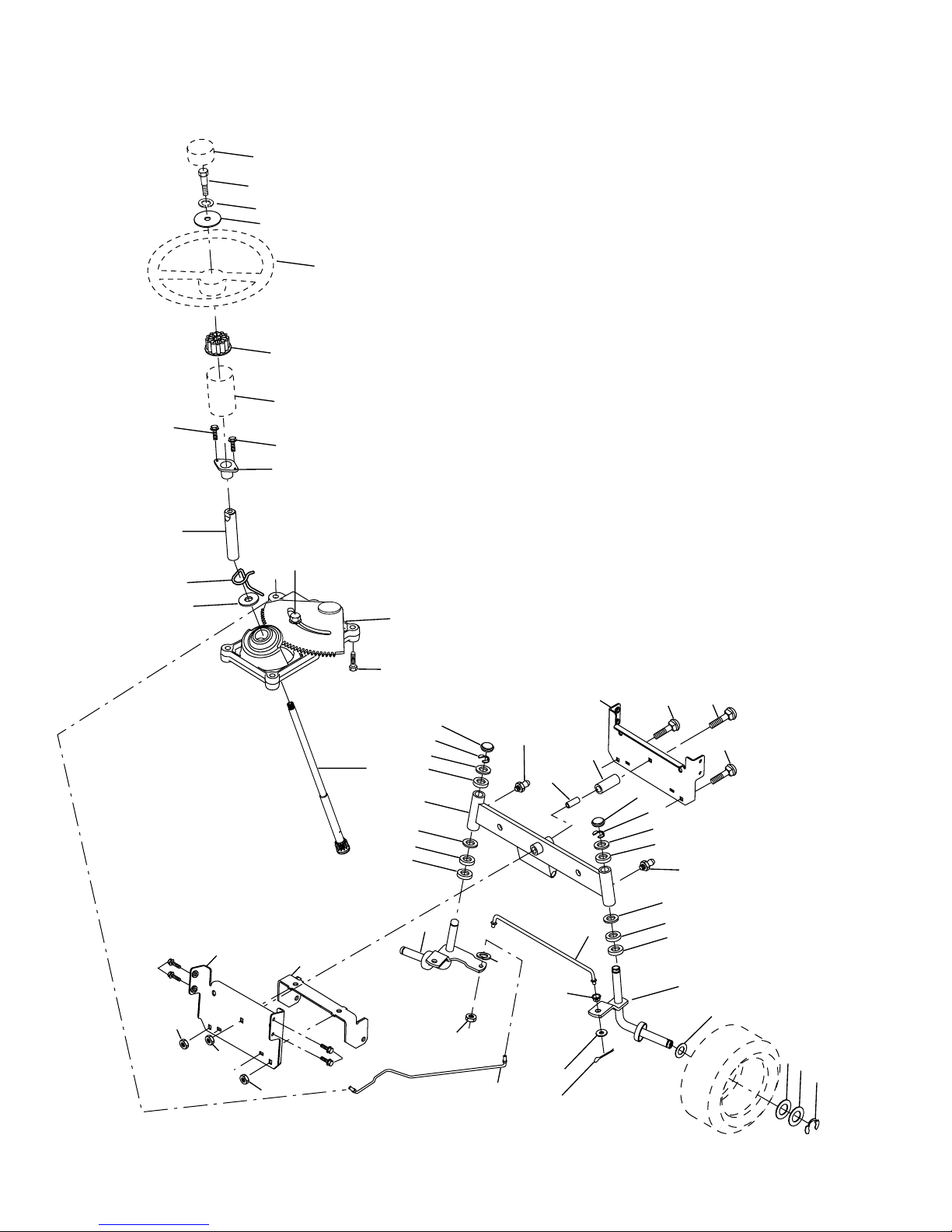

STEERING
44
5
9
5
7
7
9
4
332
43
95
43
8
10
40
11
8
6
9
46
46
8
6
9
2
47
47
26
30
28
1
41
42
37
36
37
38
97
39
34
68 67
67
67
13
65
68
15
15
15
29
29 82
88
71
17
29
43
91
steering_pl.lt_58
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels McCulloch Tondeuse à gazon
McCulloch
McCulloch M125-97TC Manuel utilisateur
McCulloch
McCulloch M40-125 CLASSIC+ Manuel utilisateur
McCulloch
McCulloch M46-125WR Manuel utilisateur
McCulloch
McCulloch MC16H38ST Manuel utilisateur
McCulloch
McCulloch RE20H107RBK Manuel utilisateur
McCulloch
McCulloch M53-190ER Manuel utilisateur
McCulloch
McCulloch M55H53HW Manuel utilisateur
McCulloch
McCulloch M105-77X Manuel utilisateur
McCulloch
McCulloch M53-625DE Manuel utilisateur
McCulloch
McCulloch M53-190AREPX Manuel utilisateur
McCulloch
McCulloch M155-107HRB Manuel utilisateur
McCulloch
McCulloch 96041011600 Manuel utilisateur
McCulloch
McCulloch M125-97FH Manuel d'instructions
McCulloch
McCulloch M675T53FD Manuel utilisateur
McCulloch
McCulloch MC2042YT Manuel du propriétaire
McCulloch
McCulloch M56-150WF Manuel utilisateur
McCulloch
McCulloch MC195H42LT Manuel du propriétaire
McCulloch
McCulloch M56-140WF Manuel utilisateur
McCulloch
McCulloch M125107 Manuel utilisateur
McCulloch
McCulloch ST 76EP Manuel utilisateur
Manuels Tondeuse à gazon populaires d'autres marques
RHINO
RHINO 1958 Manuel utilisateur
Wolf Garten
Wolf Garten Compact plus 40 B Manuel utilisateur
Cub Cadet
Cub Cadet LTX 1045 Manuel utilisateur
Craftsman
Craftsman 917.378461 Manuel utilisateur
GGP ITALY SPA
GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur
Challenge
Challenge CH18V2 Instructions de fonctionnement
TALEN TOOLS
TALEN TOOLS AVR HGM30 Manuel utilisateur
DEWEZE
DEWEZE ATM-725 Manuel d'utilisation
Weed Eater
Weed Eater 180083 Manuel utilisateur
Husqvarna
Husqvarna Poulan Pro PP185A42 Manuel utilisateur
Better Outdoor Products
Better Outdoor Products Quick Series Manuel utilisateur
Cub Cadet
Cub Cadet 23HP Z-Force 60 Manuel d'utilisation
