McCulloch MC195H42LT Manuel du propriétaire

532 43 25-37

REPAIR PARTS MANUAL

MODEL NO. MC195H42LT (96042011400)

Lawn Tractor

www.mcculloch.biz

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her tractor

when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,

it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some

hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “Tractor”

• Model Number - “

MC195H42LT 96042011400

”

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC ................................................................................................................ 3

ELECTRICAL............................................................................................................4-5

CHASSIS ..................................................................................................................6-7

DRIVE........................................................................................................................8-9

STEERING ............................................................................................................10-11

ENGINE.................................................................................................................12-13

SEAT .......................................................................................................................... 14

DECALS..................................................................................................................... 15

MOWER DECK .....................................................................................................16-17

MOWER LIFT............................................................................................................. 18

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

SCHEMATIC

79 21

T02S

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4

8 532 19 32-28 Battery Box

16 532 17 61-38 Switch Interlock

21 532 18 37-59 Harness Socket Light

22 532 00 41-52 Bulb, Light #1156

25 532 41 28-94 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable Ground

29 532 40 15-45 Switch Seat

30 532 19 33-50 Switch Ign

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ign. Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover Terminal Red

43 532 19 25-07 Solenoid

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4

71 532 40 04-49 Harness Chassis

79 532 17 52-42 Socket Asm. Bulb

87 532 19 78-02 Switch Interlock Clutch

90 532 40 07-25 Cover Terminal Battery

92 532 19 66-15 Harness Pigtail Console ROS

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

ELECTRICAL

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

CHASSIS AND ENCLOSURES

181

194

162

181

196

287

138

182

176

175

177

176

130

151

137

176

153

302

Chassis-tex_elite basic_5_r1

130

150

183

236

235

217

189

152

213

218

189

228

194

159

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

CHASSIS AND ENCLOSURES

5 532 41 17-64 Dash

14 532 18 65-80 Hood

18 532 42 67-92 Grille

34 532 19 61-25 Plate Engine

36 817 06 05-12 Screw 5/16-18 x 3/4

37 532 42 09-86 Fender

52 873 68 05-00 Nut Lock 5/16-18

58 532 41 22-80 Drawbar Upper

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

130 532 41 63-58 Screw #10 x 0.750

137 532 18 49-21 Bumper Hood

138 532 40 97-30 Cupholder

150 532 18 44-61 Duct Heat Hood

151 532 40 78-07 Bracket Pivot

152 532 19 95-35 Shield Browning

153 532 18 98-37 Lens Grille

159 817 00 06-12 Screw Hexwsh Thdrol 3/8-16 x 3/4

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2

175 532 19 32-43 Crossmember

176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx

177 532 19 52-28 Bushing Steering

180 532 41 50-63 Chassis

181 532 40 47-96 Bushing Mtg. Fender Crgo.

182 532 19 30-57 Dash Lower

183 874 78 05-20 Bolt Fin Hex 5/16-18 x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4

194 873 90 05-00 Nut Lock Hex Flange 5/16-18

196 532 41 45-79 Console Asm. Deck Lift

213 874 76 05-12 Bolt 5/16-18 x 3/4

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Step

228 532 19 51-61 Stud Fastener

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Center Lock 5/16-18

287 817 60 04-06 Screw 1/4-20 x 3/8

302 532 18 38-23 Insert Lens Reflective

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

185

231

170

161

184

216

143

125

226

125

80 125

221

211

175

279 176

178

174

166

232

153 233

166

159

167

160

188

186

189

187

190

185

159

116

drive-tex_K46_fender_18

225

125

205

230

183

205

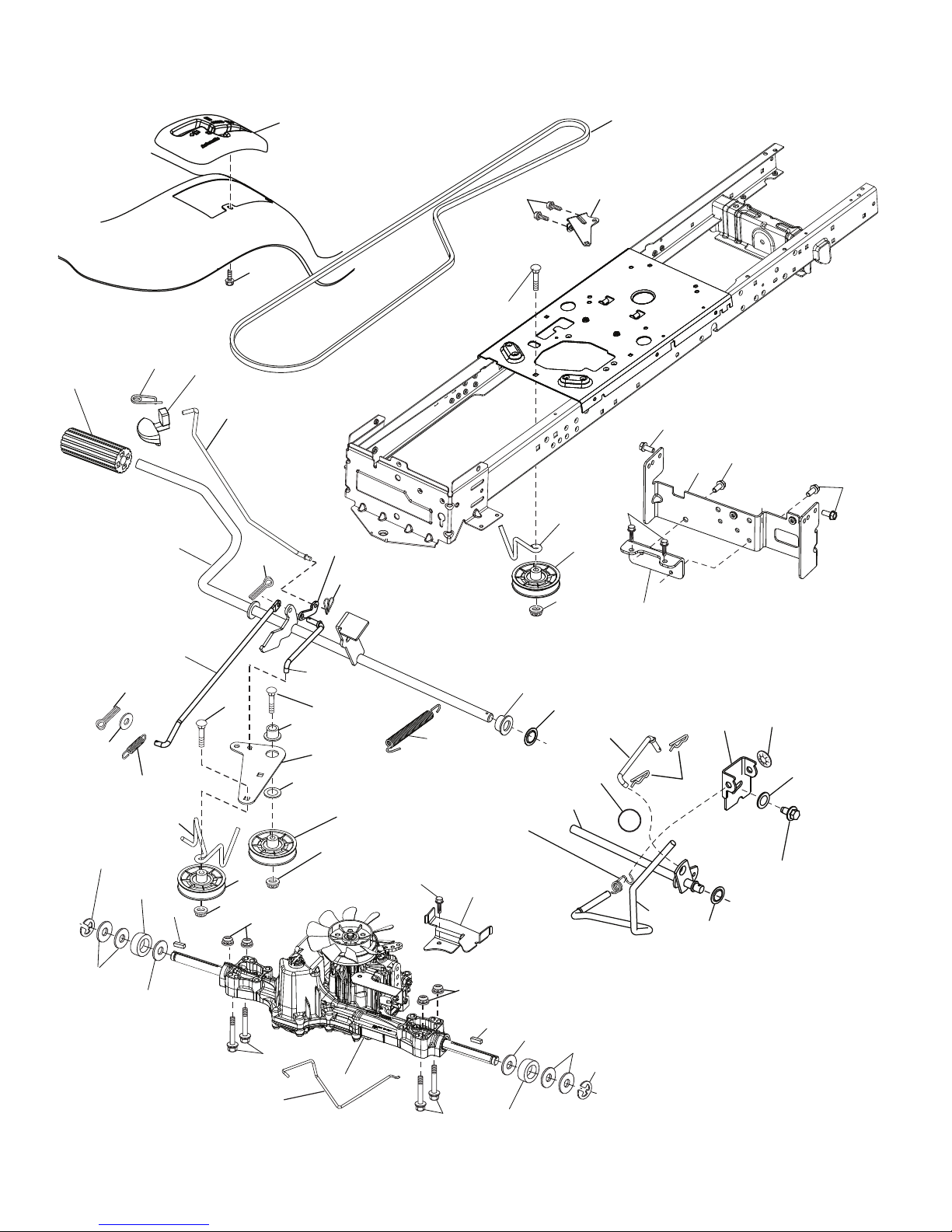

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

DRIVE

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - - - - Transaxle, TUFFTORQ K46 BA

2 532 12 35-83 Key

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 41 36-78 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 14 08-45 Knob

29 532 40 38-06 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 77-22 Rod, Brake, Park

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove 910" Offset

56 532 13 09-69 V-Belt, Drive

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 13-29 Console

73 874 49 05-44 Bolt Hex Flghd 5/16-18 Gr. 5

74 532 14 24-32 Screw 1/4 x 1/2

80 532 41 00-24 Strap Torque

99 532 41 57-42 Rod Bypass

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2

153 532 12 47-88 Retainer Spring

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

166 532 42 83-05 Nut Push

167 532 40 52-57 Latch Brake Parking

170 532 41 34-30 Keeper Belt Centerspan

174 532 19 72-89 Nut Push

175 532 40 85-39 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer Split

184 532 41 12-89 Handle Parking Brake

185 872 11 06-22 Bolt Rdhd Sqnk 3/8-16 x 2-3/4

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

205 532 12 17-48 Washer

211 532 19 62-12 Bushing Brake Shaft

216 532 19 61-31 Bracket Pulley Idler

221 532 40 31-87 Retainer Spring Clip Handle

225 532 40 33-19 Keeper Belt Trans.

226 532 40 15-64 Bracket Mount Touque

230 532 18 89-67 Washer Hardened

231 532 40 72-87 Idler V-Groove 1.688" Offset

232 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5

233 532 40 52-96 Washer Serrated

279 532 41 57-42 Link Shift

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

DRIVE

steering-tex_STDHRR_5_r1

TRACTOR - - MODEL NO. MC195H42LT (96042011400), PRODUCT NO. 960 42 01-14

STEERING ASSEMBLY

Table des matières

Autres manuels McCulloch Tondeuse à gazon

McCulloch

McCulloch LT2213C Manuel utilisateur

McCulloch

McCulloch 96041016500 Manuel utilisateur

McCulloch

McCulloch 96041018001 Manuel utilisateur

McCulloch

McCulloch 107HRB Manuel utilisateur

McCulloch

McCulloch M145-97T Manuel utilisateur

McCulloch

McCulloch 960510061 Manuel utilisateur

McCulloch

McCulloch M125-97FH Manuel d'instructions

McCulloch

McCulloch 96141011700 Manuel utilisateur

McCulloch

McCulloch M46-125WR Manuel utilisateur

McCulloch

McCulloch MC13538LT Manuel du propriétaire

McCulloch

McCulloch MC19538LT Manuel du propriétaire

McCulloch

McCulloch ZM3016BF/966564001 Manuel utilisateur

McCulloch

McCulloch EDITION 96141012700 Manuel utilisateur

McCulloch

McCulloch M19542H Manuel utilisateur

McCulloch

McCulloch M125B92RB Manuel utilisateur

McCulloch

McCulloch M125-107T Manuel utilisateur

McCulloch

McCulloch M185-107T Manuel utilisateur

McCulloch

McCulloch ROB S600 Manuel utilisateur

McCulloch

McCulloch MC20V42YT Manuel utilisateur

McCulloch

McCulloch 532 43 45-09 Rev. 1 Manuel utilisateur

McCulloch

McCulloch 532 42 41-96 Manuel utilisateur

McCulloch

McCulloch M53-190AWFEPX Manuel utilisateur

McCulloch

McCulloch 960410377 Manuel utilisateur

McCulloch

McCulloch ROB R600 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
