McCulloch MC2042YT Manuel du propriétaire

REPAIR PARTS MANUAL

MODEL NO. MC2042YT (96042011500)

Lawn Tractor

www.mcculloch.biz

532 43 25-64

HOW TO USE THIS MANUAL

This manual is designed to provide the customer with a means to identify the parts on his/her tractor

when ordering repair parts. The illustrations may or may not represent the actual assemblies; therefore,

it is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some

hardware and parts are drawn larger in order to more readily identify them.

Each tractor has its own model number.

The model number for your tractor can be found on the fender under the seat.

When ordering parts, always give the following information:

• Product - “TRACTOR”

• MODEL NUMBER - “MC2042YT (96042011500)”

• Part Number

• Part Description

TABLE OF CONTENTS

SCHEMATIC ................................................................................................................ 3

ELECTRICAL............................................................................................................4-5

CHASSIS ..................................................................................................................6-7

DRIVE........................................................................................................................8-9

ENGINE.................................................................................................................10-11

STEERING ............................................................................................................12-13

MOWER DECK .....................................................................................................14-15

MOWER LIFT............................................................................................................. 16

SEAT .......................................................................................................................... 17

DECALS..................................................................................................................... 18

WARRANTY............................................................................................................... 20

FUSE

STARTER

SOLENOID

BATTERY

CLUTCH/BRAKE

(PEDAL UP)

REVERSE SWITCH

(NOT IN REVERSE)

SEAT SWITCH

(NOT OCCUPIED)

SHORTING

CONNECTOR

CHASSIS

HARNESS

IGNITION

UNIT

HOUR

METER

CHASSIS HARNESS

CONNECTOR

(MATING SIDE)

DASH HARNESS

CONNECTOR

(MATING SIDE)

FUEL

LINE

FUEL SHUT-OFF

SOLENOID

(IF SO EQUIPPED)

JUNCTION

CONNECTOR

SPARK

PLUGS GAP

(2 PLUGS ON

TWIN CYL. ENGINES)

(OPTIONAL)

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE RE-INSTALLED TO

PROPERLY SECURE YOUR

WIRING.

SCH11

IGNITION SWITCH

CIRCUIT

POSITION

OFF

B+A1

RUN/OVERRIDE

B+S+A1START

M+G+A1

B+A1RUN

“MAKE”

L+A2

ATTACHMENT CLUTCH

(CLUTCH OFF)

BLACK

BLACK /WHITE

BLUE

BLUE BLACK

BLACKBLACK

BLACK

RED

WHITE

GRAY

BLACK

POWER OUTLET

(OPTIONAL)

12V

BLACK

AMMETER

(OPTIONAL)

RED

BLACK

BROWN

HEADLIGHTS

LIGHT SWITCH

ORANGE

LIGHTING SYSTEM OUTPUT

5 AMP AC @ 3600 RPM

ALTERNATOR

14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)

DIODE

28 VOLTS AC MIN. @ 3600 RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3AMPDC@3600RPM

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR

BRIGHTEST.

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

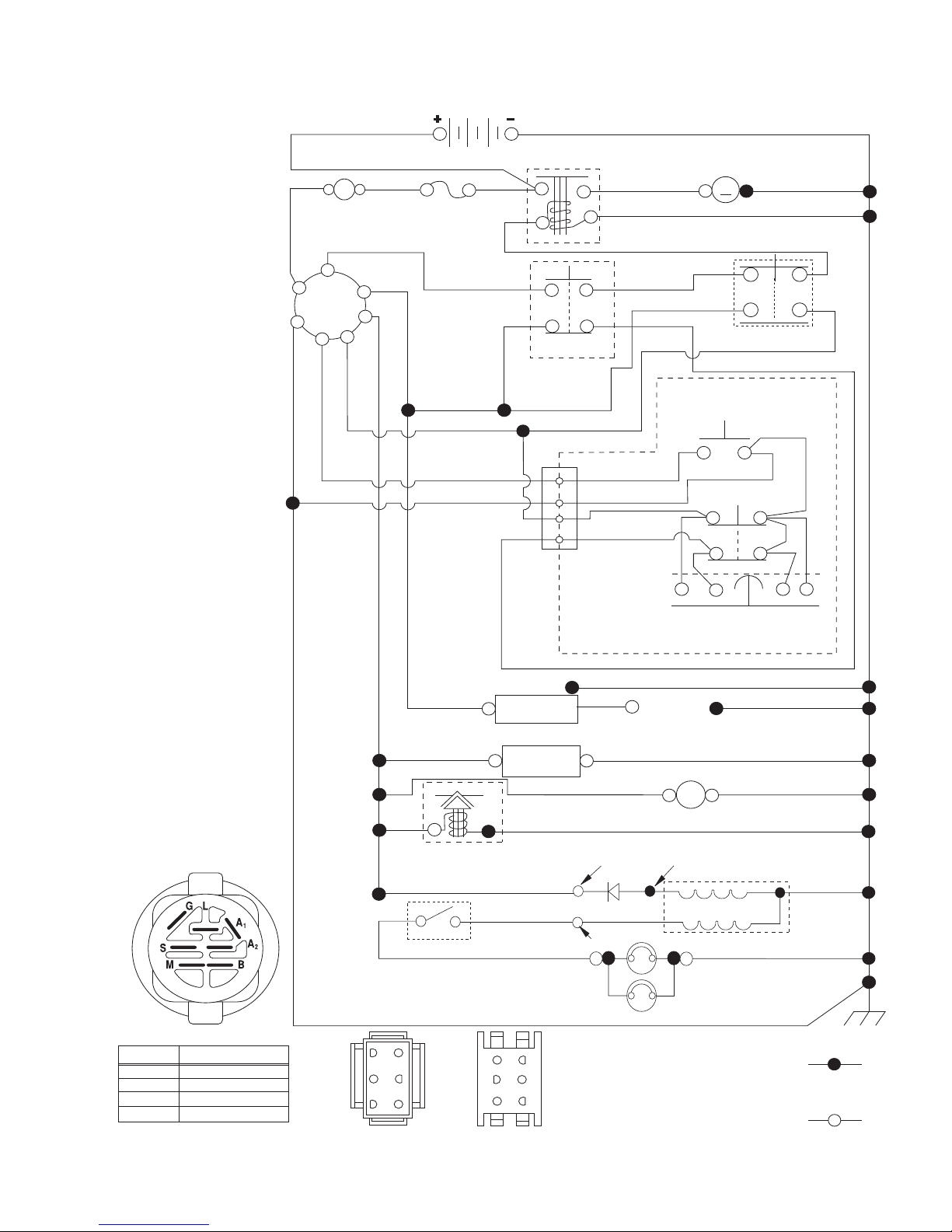

SCHEMATIC

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

ELECTRICAL

79 21

T02S

With 12V Outlet Option

103

With Service Minder Option

4646

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 532 16 34-65 Battery

2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4

8 532 19 32-28 Box Battery

16 532 17 61-38 Switch Interlock Push-In

21 532 18 37-59 Harness Socket Light w/4152J

22 532 00 41-52 Bulb Light

25 532 41 28-94 Cable Starter

26 532 17 51-58 Fuse

27 873 51 04-00 Nut Keps Hex 1/4-20 unc

28 532 19 88-85 Cable, Ground

29 532 40 15-45 Switch, Seat

30 532 19 33-50 Switch, Ignition

33 532 41 19-33 Key/Chain

34 532 11 07-12 Switch Light/Reset

40 532 40 10-98 Harness Ignition Dash

41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2

42 532 13 15-63 Cover, Terminal

43 532 19 25-07 Solenoid

46 532 40 17-63 Gauge SRVCMNDR HRMTR

55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4 TYTT

71 532 40 04-49 Harness Ignition

79 532 17 52-42 Socket Asm Bulb Twistlock

87 532 19 78-02 Switch Interlock Clutch Cable

90 532 40 07-25 Cover Terminal Battery

92 532 19 66-15 Harness Pigtail Console ROS

93 532 19 25-40 Screw Plastite 10-14 x 2.0

94 532 19 18-34 Module Reverse ROS

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

CHASSIS

183

236

chassis-tex_elite-husq_5

159

228

180

213

218

189

152 217

235

189

159

194

150

151

130

182

176

175

177

181

194

162

196

287

138

137

130

297

191

205

206

176

289

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

CHASSIS

5 532 43 27-79 Dash Upper

14 532 43 27-74 Hood

15 532 18 99-82 Lens Elite-Husq Clear LH

18 532 43 27-78 Grille

25 532 18 99-81 Lens Elite-Husq Clear RH

34 532 19 61-25 Plate Engine Welded Chassis

36 817 06 05-12 Screw 5/16-18 x 3/4 Smgml Tap/R

37 532 42 09-86 Fender

52 873 68 05-00 Nut, Hex, Crownlock 5/16-18

58 532 41 22-80 Drawbar Upper 2pc Sml Fender

68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2 tytt

130 532 41 63-58 Screw

137 532 18 49-21 Bumper Hood Large 1 75"

138 532 40 97-30 Cupholder TL Tex 428

150 532 43 16-32 Air Duct

151 532 40 78-07 Bracket Pivot Lasr/Elte/Husq LT

152 532 19 95-35 Shield browning w/tex

159 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4

162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc

175 532 19 32-43 Crossmember LT

176 532 40 07-76 Screw #10-24x5/8 Rnd Qudrx Gim

177 532 19 52-27 Bushing Steering YT/GT

180 532 41 50-63 Chass Wldmt TL 12 Ga/2pc 18/22"

181 532 40 47-96 Bushing Mnt Fend Crgo Blk Tex

182 532 19 30-57 Dash Lower LT ccs

183 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4

189 817 00 05-12 Screw 5/16-18 x 3/4 Smgml Tap/Bl

191 532 41 65-00 Insert reflective RH

194 873 90 05-00 Nut, Lock Hex Flange 5/16-18 unc

196 532 41 45-79 Console Asm Decklft Bl/Rbt Tlt

205 532 42 47-47 Skirt Side RH

206 532 42 47-48 Skirt Side LH

213 874 76 05-12 Bolt, Hex Head 5/16-18 x 3/4

217 532 40 91-67 Rod Pivot Hood

218 532 19 63-95 X-Piece Hood Stop Non/Stealth

228 532 19 51-61 Stud Fastner w/'D'anti-Rotatio

235 532 40 61-29 Spacer Fender

236 873 93 05-00 Nut Center Lock 5/16-18 unc

287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8

289 532 43 27-81 Plug Cruise Hook Phone

297 532 18 82-67 Insert Lens Rflct LH

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

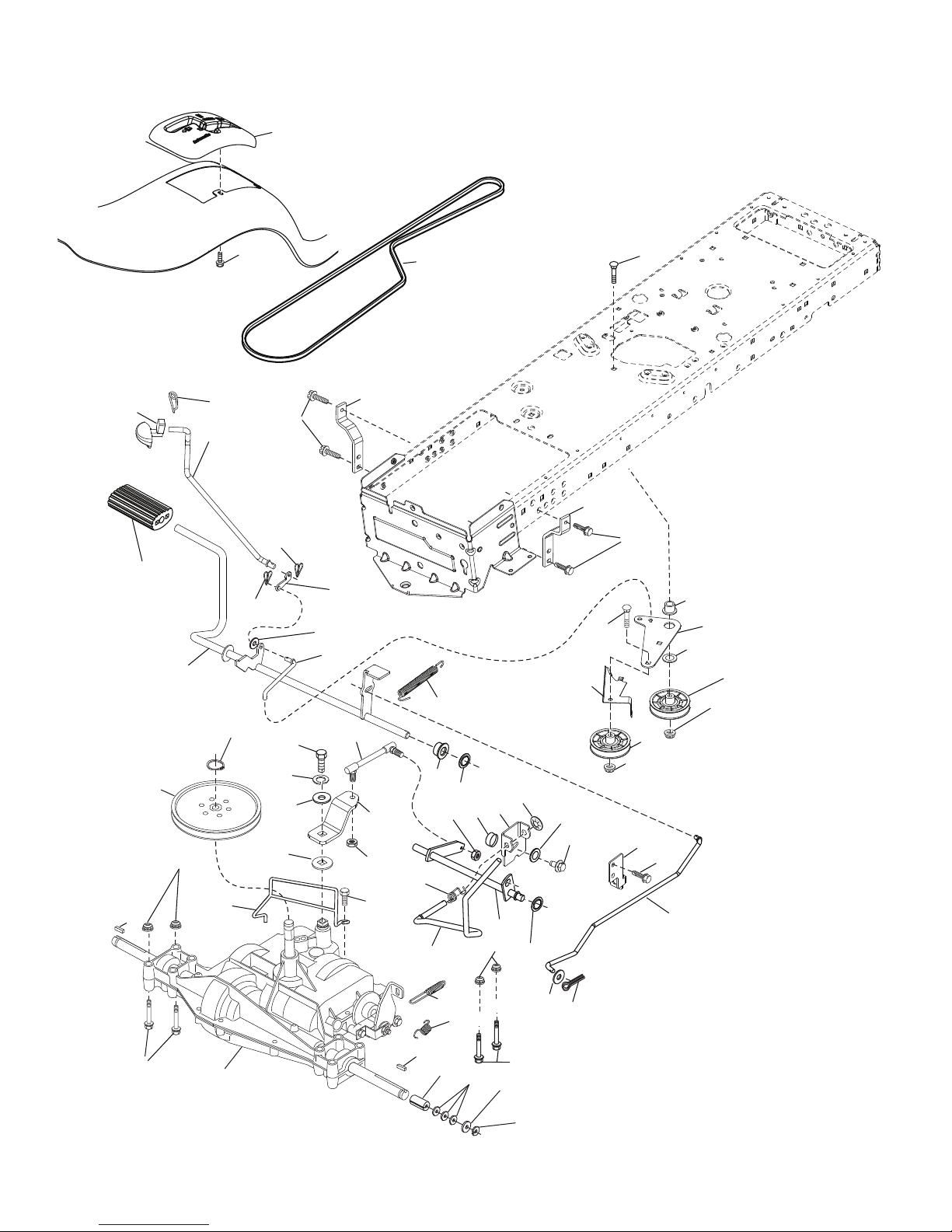

DRIVE

165

166

188

172

125

161

203

184 221

167

160

134

192

157

141

140

139 202

232

175

192 176

178

174

22 166

15 159

195

125

158

1183 37 205

155

193

186

189

187

190

116

drive-tex_peerless_fender_41

233

116

74 185

172

125

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

DRIVE

KEY PART

NO. NO. DESCRIPTION

1 - - - - - - Transaxle, Peerless 206-565

2 532 12 35-83 Key Square

15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.

17 532 19 72-97 Spring, Brake

22 532 19 76-60 Rod Shift

23 532 10 69-33 Knob

26 532 19 74-55 Spring Brake RTN

29 532 19 72-67 Rod, Brake

33 812 00 00-01 Ring E

35 532 19 77-22 Rod, Brake, Park

37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.

42 532 12 48-72 Cover, Foot Pedal

49 872 11 06-14 Bolt

50 532 19 43-27 Pulley Idler Flat

51 873 90 06-00 Lock Nut 3/8-16

52 532 19 43-26 Idler V-Groove

56 532 19 43-46 V-Belt, Drive

61 532 12 36-66 Pulley Transaxle

64 532 19 62-00 Shaft Asm. Pedal Brake Control

70 532 41 12-90 Console

73 874 49 05-44 Bolt 5/16-18 Gr. 5

74 532 14 24-32 Screw 1/4 x 1/2

116 873 90 05-00 Nut Lock Hex Flange 5/16-18

125 817 00 05-12 Screw 5/16-18 x 3/4

134 532 19 78-57 Arm Shift

139 874 55 04-12 Bolt 1/4-20 unf Gr. 8 w/Patch

140 810 04 04-00 Washer Lock Hvy Helical 1/4

141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.

155 812 00 00-28 Ring Retainer

157 532 10 57-01 Washer Plate Shf

158 532 19 43-52 Keeper T/A

159 876 02 04-12 Pin Cotter 1/8 x 3/4

160 532 16 94-84 Retainer Clip

161 532 10 57-09 Spring, Return, Clutch

165 532 19 62-12 Busing Shaft Brake Hand Control

166 532 42 83-05 Nut Push .625

167 532 40 52-57 Latch Brake Parking

172 532 19 76-57 Strap Torque LH

174 532 19 72-89 Nut Push

175 532 19 78-58 Shaft Asm Shift

176 532 19 62-14 Arm Clevis Rod Shift

178 532 19 74-56 Spring Shift

183 532 13 70-57 Spacer, Axle

184 532 41 12-89 Handle Parking Brake

185 872 11 06-22 Bolt

186 532 19 43-21 Spacer Retainer

187 819 13 32-10 Washer

188 532 19 43-23 Link Clutch Ground Drive

189 532 19 43-17 Bellcrank Ground Drive

190 532 19 43-18 Keeper Bellcrank Ground Drive

192 532 15 03-60 Nut Lock Center 1/4-28

193 817 06 05-12 Screw 5/16-18 x 3/4

195 532 19 73-32 Bracket Brake Rod

202 532 19 78-59 Link Shift

203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.

205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.

221 532 40 31-87 Retainer Spring Clip Handle

232 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5

233 532 40 52-96 Washer Serrated

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

TRACTOR - MODEL NO. MC2042YT (96042011500), PRODUCT NO. 960 42 01-15

ENGINE

SPARK ARRESTER KIT



ENGINETEX?BSCYL?

















Autres manuels pour MC2042YT

Table des matières

Autres manuels McCulloch Tondeuse à gazon

McCulloch

McCulloch M65B56SDK Manuel utilisateur

McCulloch

McCulloch MC17542STA Manuel utilisateur

McCulloch

McCulloch 966564001 Manuel utilisateur

McCulloch

McCulloch M56-150WF Manuel utilisateur

McCulloch

McCulloch M13538 Manuel utilisateur

McCulloch

McCulloch 96141020600 Manuel utilisateur

McCulloch

McCulloch M53-190WF Manuel utilisateur

McCulloch

McCulloch MM6556SMD Manuel utilisateur

McCulloch

McCulloch 96141003802 Manuel utilisateur

McCulloch

McCulloch M185-117H Manuel utilisateur

McCulloch

McCulloch LZ145H92RBK Manuel utilisateur

McCulloch

McCulloch MC19538LT Manuel du propriétaire

McCulloch

McCulloch M145-97T Manuel utilisateur

McCulloch

McCulloch M12597H Manuel utilisateur

McCulloch

McCulloch M56-190WFPX Manuel utilisateur

McCulloch

McCulloch M105-97F Manuel utilisateur

McCulloch

McCulloch M4553CMHW Manuel utilisateur

McCulloch

McCulloch M115-97T Manuel utilisateur

McCulloch

McCulloch Edition 1-R Manuel du propriétaire

McCulloch

McCulloch M53-190WFX Manuel utilisateur

McCulloch

McCulloch 532 43 27-66 Manuel utilisateur

McCulloch

McCulloch ROB R600 Manuel utilisateur

McCulloch

McCulloch MM51-450SMR Manuel utilisateur

McCulloch

McCulloch POULANPRO PP19H42 Manuel utilisateur

Manuels Tondeuse à gazon populaires d'autres marques

RHINO

RHINO 1958 Manuel utilisateur

Wolf Garten

Wolf Garten Compact plus 40 B Manuel utilisateur

Cub Cadet

Cub Cadet LTX 1045 Manuel utilisateur

Craftsman

Craftsman 917.378461 Manuel utilisateur

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuel utilisateur

Challenge

Challenge CH18V2 Instructions de fonctionnement

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuel utilisateur

DEWEZE

DEWEZE ATM-725 Manuel d'utilisation

Weed Eater

Weed Eater 180083 Manuel utilisateur

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuel utilisateur

Better Outdoor Products

Better Outdoor Products Quick Series Manuel utilisateur

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuel d'utilisation

MTD

MTD 795, 792, 791, 790 Manuel utilisateur

Toro

Toro Groundsmaster 3505-D Manuel utilisateur

Dennis

Dennis FT 610 Manuel utilisateur

AIRFORCE

AIRFORCE F-15 Gen 3 Manuel utilisateur

MTD

MTD 126-220-000 Manuel utilisateur

Toro

Toro 74806 Manuel utilisateur
