Catena 4610 User Manual

Engineering Report 234001177

Rev B

Date: 2019-09-09

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- ii -

PROPRIETARY NOTICE AND DISCLAIMER

Unless noted otherwise, this document and the information herein disclosed are proprietary to MCCI

Corporation, 3520 Krums Corners Road, Ithaca, New York 14850 (“MCCI”). Any person or entity to

whom this document is furnished or having possession thereof, by acceptance, assumes custody thereof

and agrees that the document is given in confidence and will not be copied or reproduced in whole or in

part, nor used or revealed to any person in any manner except to meet the purposes for which it was

delivered. Additional rights and obligations regarding this document and its contents may be defined by

a separate written agreement with MCCI, and if so, such separate written agreement shall be controlling.

The information in this document is subject to change without notice, and should not be construed as a

commitment by MCCI. Although MCCI will make every effort to inform users of substantive errors, MCCI

disclaims all liability for any loss or damage resulting from the use of this manual or any software

described herein, including without limitation contingent, special, or incidental liability.

MCCI, TrueCard, TrueTask, MCCI Catena, and MCCI USB DataPump are registered trademarks of MCCI

Corporation.

MCCI Instant RS-232, MCCI Wombat and InstallRight Pro are trademarks of MCCI Corporation.

All other trademarks and registered trademarks are owned by the respective holders of the trademarks

or registered trademarks.

Document Release History

Rev A

2019-03-01

Initial Release

Rev B

2019-09-09

Updated the User Manual

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- iii -

TABLE OF CONTENTS

1 Introduction .......................................................................................................................................... 5

2 Specifications and Features .................................................................................................................. 5

2.1 Additional Features....................................................................................................................... 6

3 Catena 4610 Pinouts ............................................................................................................................. 7

3.1 Logic Pins....................................................................................................................................... 8

3.1.1 Connector JP1 ....................................................................................................................... 8

3.1.2 Connector JP3 ....................................................................................................................... 9

3.1.3 Connector JP4 & JP5 ............................................................................................................. 9

3.2 Power Pin .................................................................................................................................... 10

3.3 Other Pins....................................................................................................................................10

4 Power Source ......................................................................................................................................11

5 Antenna Options ................................................................................................................................. 11

5.1 Whip Antenna ............................................................................................................................. 11

5.2 U.FL .............................................................................................................................................12

5.3 SMA............................................................................................................................................. 13

6 Additional Accessories ........................................................................................................................14

6.1 Programming Requirements....................................................................................................... 14

6.1.1 ST-LINK/V2 in-circuit debugger/programmer..................................................................... 14

6.1.2 USB to Serial Cable..............................................................................................................14

7 Software Requirements ......................................................................................................................15

8 Assembly Instructions......................................................................................................................... 15

9 Configurations of Catena 4610 ........................................................................................................... 17

9.1 Library Installation ......................................................................................................................17

9.2 Arduino IDE Setup.......................................................................................................................18

9.3 Programming Methods ...............................................................................................................21

9.3.1 ST-LinK................................................................................................................................. 21

9.3.2 DFU...................................................................................................................................... 24

9.4 Provisioning Steps....................................................................................................................... 26

9.5 TTN Registration Steps................................................................................................................ 26

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- iv -

LIST OF TABLES

Table 1 Antenna Specification .................................................................................................................... 12

Table 2 USB to Serial Connection................................................................................................................ 17

Table 3 Catena 4610 to STLink connection.................................................................................................22

LIST OF FIGURES

Figure 1 Catena 4610 .................................................................................................................................... 5

Figure 2 Catena 4610 Description................................................................................................................. 6

Figure 3 Catena 4610 Pinout......................................................................................................................... 8

Figure 4 Whip Antenna ............................................................................................................................... 11

Figure 5 uFL antenna................................................................................................................................... 12

Figure 6 uFL/SMA adapter cable................................................................................................................. 13

Figure 7 SMA antenna................................................................................................................................. 13

Figure 8 ST Link Programmer ......................................................................................................................14

Figure 9 USB to Serial Cable........................................................................................................................15

Figure 10 Catena 4610 after soldering components .................................................................................. 16

Figure 11 Catena 4610 with Battery ...........................................................................................................16

Figure 12 Catena 4610 Serial Configuration ............................................................................................... 17

Figure 13 Cloning libraries using the script.................................................................................................18

Figure 14 BSP Search................................................................................................................................... 19

Figure 15 BSP Installation ........................................................................................................................... 20

Figure 16 BSP Installed................................................................................................................................ 20

Figure 17 Selection of device from list of boards .......................................................................................21

Figure 18 Catena 4610 connection with PC using STLink Debugger.......................................................... 22

Figure 19 Catena 4610 connection with ST Link programmer.................................................................... 23

Figure 20 Configuration for upload using STLink programmer................................................................... 23

Figure 21 Catena 4610 DFU Mode Connection........................................................................................... 24

Figure 22 Zadig Device Selection ................................................................................................................ 24

Figure 23 Zadig driver replacement............................................................................................................25

Figure 24 Configuration for upload using DFU mode ................................................................................. 25

LIST OF SEQUENCE DIAGRAMS

No table of figures entries found.

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- 5 -

1Introduction

The MCCI Catena® 4610 is a complete single-board IoT device for LoRaWAN™ technology

projects.

Based on the Murata CMWX1ZZABZ-078, and designed to be compatible with the Adafruit

Feather family of development boards and accessories, the Catena 4610 is a great platform for

LoRaWAN investigation and deployment. It works well with The Things Network, or any

LoRaWAN 1.0 or 1.1 network in the 865 to 923 MHz range.

Lightweight and small (roughly 2" by 0.9"), the 4610 needs no external components to measure

and send temperature, pressure, humidity, and lux, powered from USB or any Feather-

compatible LiPo (Lithium-Polymer) battery.

Because of the embedded FRAM, the Catena 4610 fully meets the requirements of LoRaWAN

1.1, without worrying about EEPROM wearout or wear-leveling, both for ABP and OTAA.

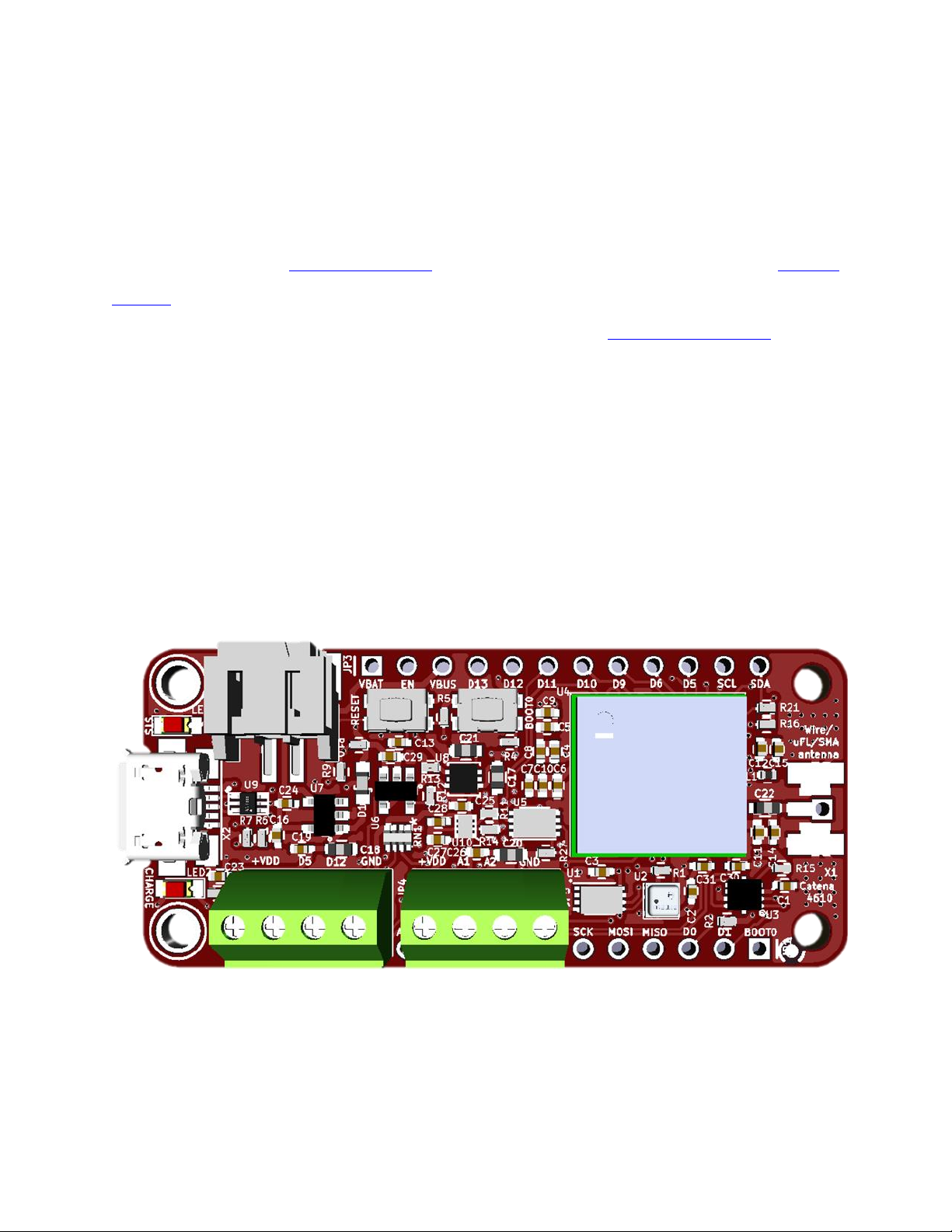

Figure 1 Catena 4610

2Specifications and Features

The specifications and features of Catena 4610 is given below:

Murata LoRaWAN module

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- 6 -

Semtech SX1276 LoRa radio

STM32L082 CPU (Cortex M0+, 32 MHz, 192K flash, 20K RAM)

High quality RF engineering

Certified for US and EU

Compatible with IN866, AS923, AU921 bands

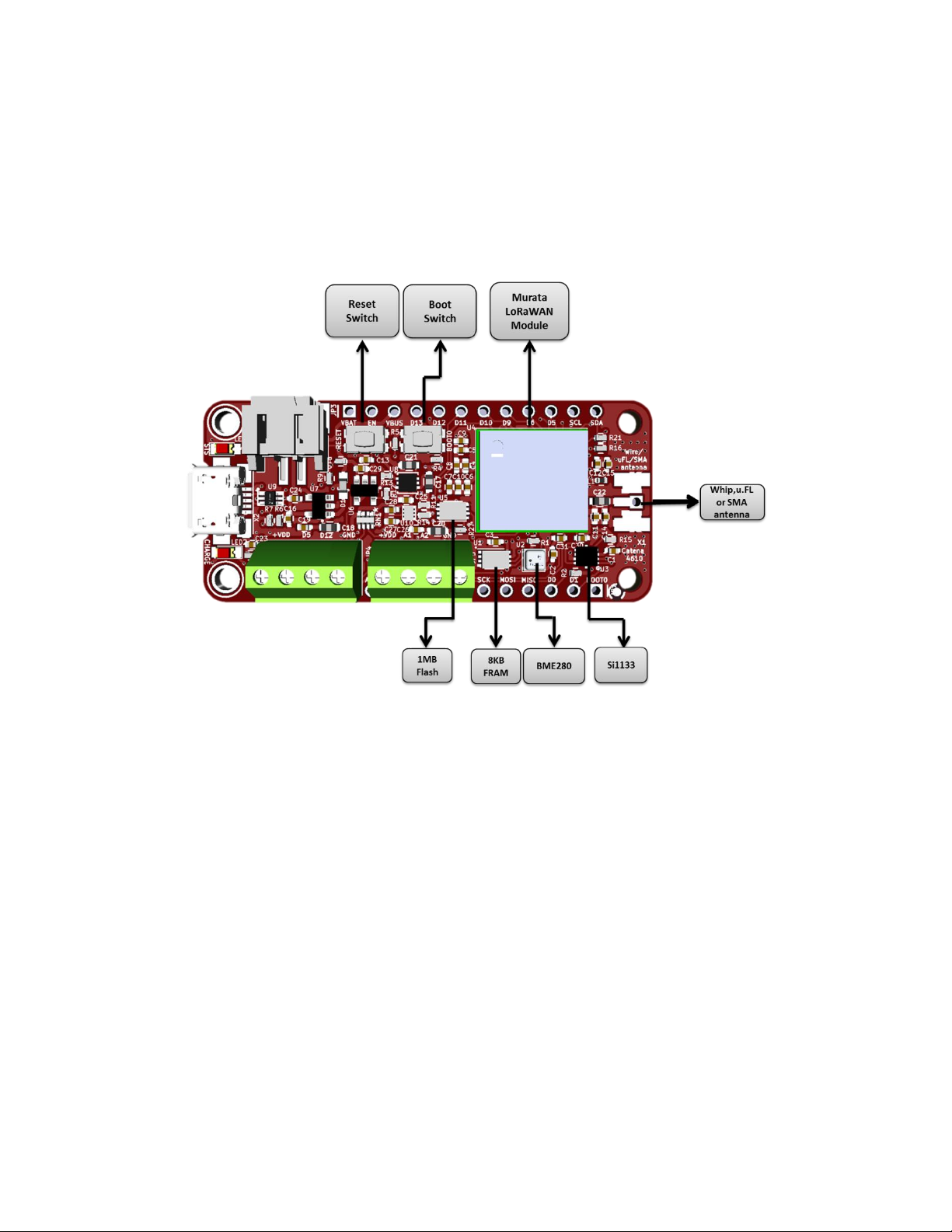

Figure 2 Catena 4610 Description

Integrated sensors

Pressure

Temperature

Humidity

Light

2.1 Additional Features

Powered from secondary 4V LiPo batteries (such as Adafruit's 350 mAh battery) (Note: in

contrast to the Catena 4612, this model targets LiPo batteries only. If you need

primary/disposable batteries, please consider the 4612).

100uA current draw in stand by

8K bytes FRAM for LoRaWAN provisioning info and frame counters -- power can be removed

completely without requiring a new join to the network, and without losing uplink and downlink

count values (required for LoRaWAN 1.1)

1M byte SPI Flash for bulk data storage, future FoTA firmware storage, etc.

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- 7 -

Software-controlled boost converter allows dynamically raising voltage to 3.3V for analog

measurement and powering internal sensors

USB or SWD for download and debug

Pin-compatible with Adafruit Feather M0 family of boards (some limitations because the of

functional differences between the Murata module and the Atmel SAMD21 CPU used in the

Feather M0)

Arduino-compatible

Compatible with the MCCI Catena 4450 and Catena 4612 IoT devices

Designed for use with The Things Network (open-source, user-owned IoT network based on

LoRaWAN); but can be used with any LoRaWAN-compatible network

Provisions for screw terminals for pulse, analog or digital I/O

Software-controlled switches for external power output to screw terminals

Whip, u.FL, or SMA antenna

Open source hardware and software (https://github.com/mcci-catena)

MCCI provides a full Arduino board-support package, available here.

MCCI also provides libraries to allow rapid prototyping and experimenting, including an open-

source LoRaWAN stack that supports the EU868, US915, AS923, AU921 and IN866 regional plans.

ST Micro tools may also be used.

The Catena 4610 works well with and is tested with The Things Network (an open-source, user-

owned IoT network based on LoRaWAN); but can be used with any LoRaWAN-compatible

network.

3Catena 4610 Pinouts

Catena 4610 Pinout is given below:

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- 8 -

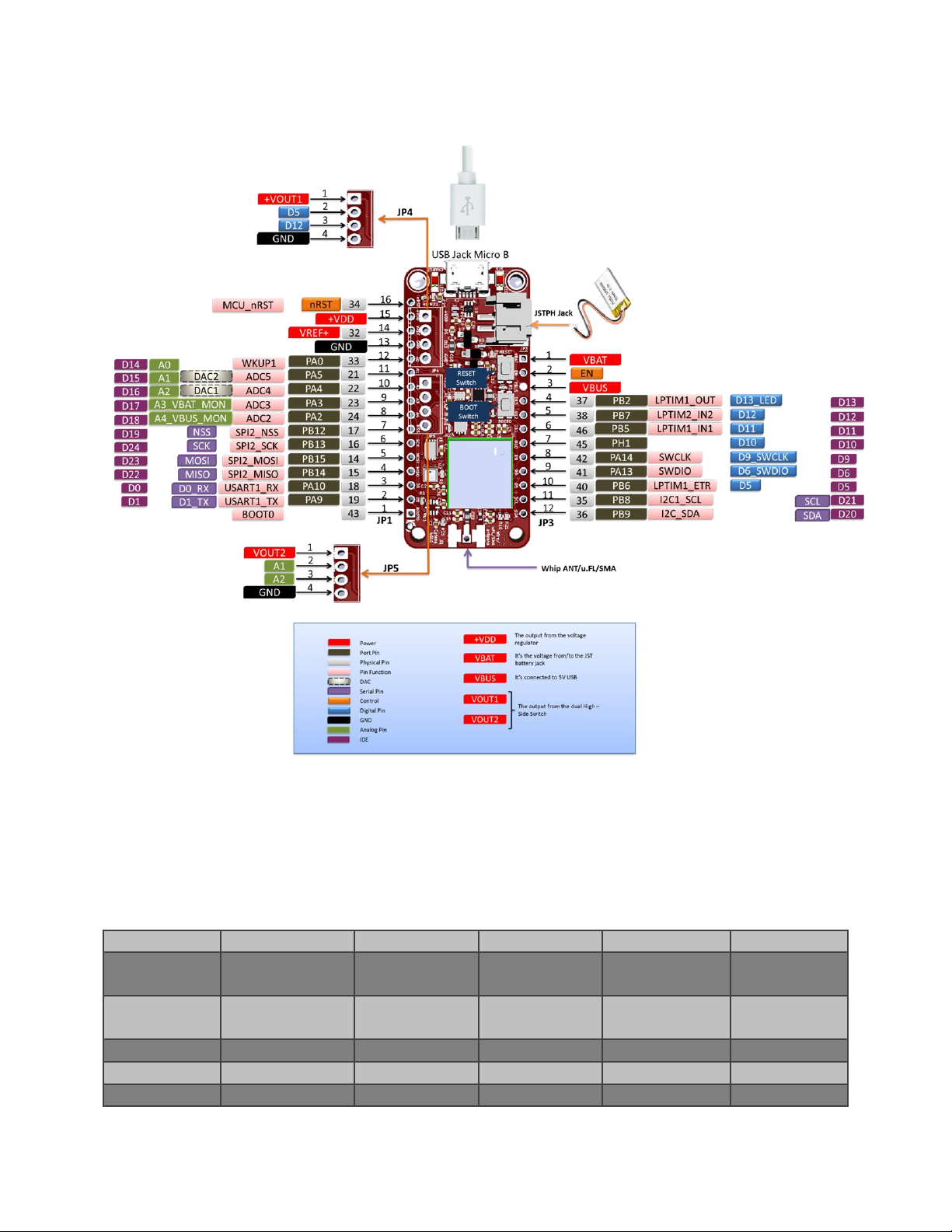

Figure 3 Catena 4610 Pinout

3.1 Logic Pins

3.1.1 Connector JP1

JP1 is a 16 pin connector which has General Purpose I/O pin.

PIN #

Pin Function

Analog Pin

Digital Pin

Purpose

Description

USART1_TX

D1_TX

Transmit pin

for Serial1

USART1_RX

D0_RX

Receive pin

for Serial1

SPI2_MISO

D22

MISO

SPI2_MOSI

D23

MOSI

SPI2_SCK

D24

SCK

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- 9 -

SPI2_NSS

D19

NSS

ADC2

D18

A4_VBUS_MON

Used to

Monitor the

VBUS

ADC3

D17

A3_VBAT_MON

Used to

Monitor the

Battery

Voltage(VBAT)

ADC4/DAC1

D16

GPIO

ADC5/DAC2

D15

GPIO

D14

GPIO

3.1.2 Connector JP3

PIN #

Pin Function

Analog Pin

Digital Pin

Purpose

Description

LPTIM1_OUT

D13

D13_LED

Status LED

LPTIM2_OUT

D12

GPIO

LPTIM1_IN

D11

D10

SWCLK

D9_SWCLK

Used for the

purpose of

programming

the board

using ST-Link

Programmer

SWDIO

D6_SWDIO

Used for the

purpose of

programming

the board

using ST-Link

programmer

LPTIM1_ETR

I2C1_SCL

SCL

I2C Clock pin

I2C1_SDA

SDA

I2C Data pin

3.1.3 Connector JP4 & JP5

In JP4 and JP5, screw terminals can be connected. These connectors have GPIO pins with a power pin

(VOUT1, VOUT2) and GND. These pins can be used for the customized usage by the user.

Connector

JP4

D4, D12

JP5

A1,A2

Catena 4610 User Manual

Engineering Report 234001177 Rev B

- 10 -

3.2 Power Pin

PIN #

Connector Ref #

Pin Function

Description

JP1

VREF+

Reference

Voltage same as

the logic Voltage

(3.3V)

JP1

VDD

The output from

the voltage

regulator

JP3

VBUS

5V comes from

USB

JP3

VBAT

Voltage from the

battery

JP4

VOUT1

Output voltage

from the Dual

High Side Switch

JP5

VOUT2

Output voltage

from the Dual

High Side Switch

3.3 Other Pins

PIN #

Connector Ref #

Pin Function

Description

JP1

BOOT0

Boot Pin –Helps

to send the board

in Boot mode

(enumerate as

Bootloader) for

programming

JP1

nRST

Reset pin –Helps

to reset the

board.

JP3

To enable the

3.3V voltage

regulator

Table des matières

Autres manuels MCCI Matériel réseau

MCCI

MCCI Catena 4801 Guide de référence

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur
