Smart Start Guide

2013 M{zd{5

Key

KEYLESS ENTRY SYSTEM

This system remotely locks and unlocks the doors and the liftgate.

Release Button

• Push to extend key.

• Push and fold to

retract key.

Lock

• Push once to lock all

doors and liftgate.

• Push twice (within

ve seconds) for horn

sound verication that

all doors are locked.

Unlock

• Push once to

unlock driver’s door.

• Push twice (within ve

seconds) to unlock all

doors and liftgate.

Panic Alarm

• Push for one second or

more to activate alarm.

• Push Lock, Unlock,

or Panic Alarm to

turn alarm off.

Retractable Key

LIFTGATE

Grasp the lower end of the liftgate and push

the electric liftgate opener button on the liftgate,

when the latch releases, raise the liftgate.

While the ignition is switched ON, the liftgate

can be opened only when the vehicle is

stopped with the parking brake applied

(manual transaxle), or with the selector lever

in the P position (automatic transaxle).

NOTE: When the liftgate opener switch is pushed,

the liftgate will open slightly. If the liftgate is not

opened within 1.5 seconds, the liftgate latch locks

(you will hear it lock) and the liftgate cannot be

opened or closed from this slightly raised position.

To open/close the liftgate, push the liftgate opener

switch, open the liftgate within 1.5 seconds, then

close it. The door/liftgate ajar warning light will be

on if the liftgate is not fully closed. Electric Liftgate Opener

INFO

Push INFO button on steering wheel to display the following

(actual displayed information will vary on your vehicle):

INFO Button

Average fuel economyDistance-to-emptyAverage vehicle speed

Current fuel economy

Information Display

PARKING SENSOR SYSTEM

The parking sensor system uses ultrasonic sensors to detect

obstructions behind the vehicle with transmission in Reverse

and speed below 6 mph (10 km/h). The system noties the

driver of the approximate distance from the vehicle to the

obstruction using a beep sound.

• Push the parking sensor switch on the dash to turn the system on

(switch indicator lit) and off.

PERSONALIZE YOUR MAZDA5 WITH

GENUINE MAZDA ACCESSORIES:

Go to www.MyMazda.com, then select “Accessories” below the MyMazda Home

header for a complete listing of available accessories for your Mazda5.

Seat Controls and Storage

SEAT CONTROLS

Recline Lever

Pull up to adjust seatback angle.

Lumbar Adjustment

Lumbar can be changed by pulling

the lumbar lever forward to adjust the

lumbar support.

Slide Release Lever

Pull lever up to move seat

backward or forward.

Height Adjustment Lever

Raise or lower seat height by

repeatedly pulling up or pushing

down on the lever.

FUEL DOOR RELEASE

(located on oor next to driver’s seat)

To open, pull the fuel door release.

NOTE: Fuel requirement 87 Octane.

Fuel Door

To avoid scratching the paint during

refueling, secure the fuel ller cap

tether over the hook as shown.

www.MazdaUSA.com

Release

Strap

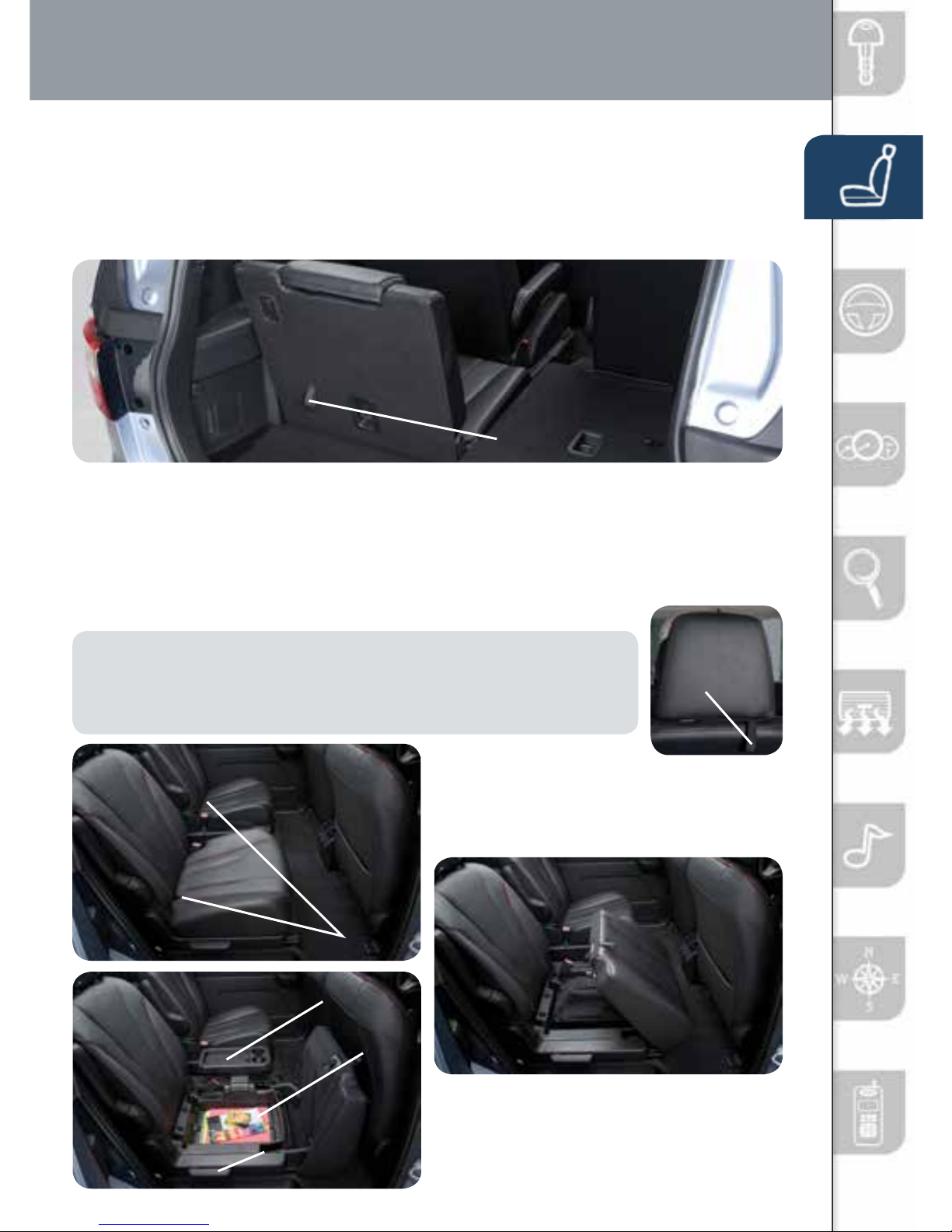

Split-Folding Third-Row Seatback

 • Tocreateaatluggagecompartmentspace,lowertheheadrestraintsall

the way down, pull the release strap, then fold the seatbacks forward.

 • Toreturntheseatbackstotheoriginalposition,pullthereleasestrap.

Second Row Seat Storage/Flip Out Center Console

 • Pulluponthestraponeitherseattolifttheseatbottomandyou’llnd

convenient space to store small items and a console in the right side seat

thatipsout.

 • Whenreturningtheseatbottomintoplace,makesureit

locks into position by attempting to move it up and down.

To fold the second row seats at:

1 Slide the seat all the way back.

2 Lift up the seat bottom.

3 Fold the head restraint downward.

4 Fold down the seatback using the

recline lever.

Strap

Center Console

Storage

Recline Lever

NOTE: The second row seats are equipped with foldable head

restraints. To fold the head restraint, pull the strap on the back of the

head restraint and fold the head restraint downward. To return the

head restraint to its upright position, lift it upward.

Strap

Driver’s View

HEADLIGHT

LEVELING

(P. 9)

LIGHTING/

TURN SIGNALS

(P. 9)

WIPER/

WASHER

(P. 10)

HOOD

RELEASE

CRUISE

CONTROL

BLUETOOTH®

& AUDIO

TILT/TELESCOPING

STEERING WHEEL

LEVER

DSC/TCS

SWITCH

PARKING

SENSOR

SYSTEM

(P. 2 )

Driver’s View

1This indicator light illuminates to remind you that the front passenger’s front/side airbags and seat

belt pretensioner will not deploy during a collision. The reason for this is that the weight in the seat is

less than approximately 66 lbs. Always wear your seat belt and secure children in the rear seats in

appropriate child restraints. See the Owner’s Manual for important information on this safety feature.

WIPER/

WASHER

(P. 10)

HAZARD

WARNING

INFORMATION

DISPL AY

(PP. 2, 13, 15-16)

AUDIO

SYSTEM

( PP. 15 -16 )

SEAT WARMER

(LOCATED ON CENTER CONSOLE)

CLIMATE

CONTROL

( PP. 13 -14 )

PASSENGER

AIRBAG OFF

INDICATOR1CLOCK

(P. 15 )

SPORT A/T

(P. 11)

www.MazdaUSA.com

Instrument Cluster

FUEL GAUGE

TACHOMETER

GLOSSARY OF WARNING AND INDICATOR LIGHTS

NOTE: See Owner’s Manual for more details and explanations

INSTRUMENT

CLUSTER DIMMER1

1•Rotatetheknobtoadjustthebrightnessoftheinstrumentclusterandotherdashboardilluminations.

ENGINE COOLANT TEMP LIGHTS

Since this vehicle does not use an engine

coolant temperature gauge, red and blue

engine coolant temperature lights are used to

indicate high and low coolant temperature.

Red Coolant Temp Light

Flashing: Engine is starting to run hot.

Drive slowly to reduce engine load.

On: Engine is overheating. Safely pull over to

the side of the road and turn the engine off.

Refer to the Owner’s Manual for

more information.

Blue Coolant Temp Light

On: Engine coolant is cold and no warm

air is available for heater/defroster.

Off: Engine coolant is warm and warm air

is available for heater/defroster.

The light may stay on for a few minutes

after start-up when the engine is cold, but

the vehicle can be driven with the light on

or off.

Check Fuel Cap

Check Engine Light

ABS (Antilock Brake

System) Malfunction

Power Steering

Malfunction

Lights On (Exterior)

Tire Pressure

Monitoring

System (TPMS)

Warning Light

On/Warning Beep: Low tire

pressure in one or more tires.

Low Fuel Level

SHIFT LEVER

POSITION INDICATOR

NOTE: Low ambient temperature and/or high altitude causes tire pressures to drop

and may turn the TPMS warning light on. If the warning light comes on, check the tire

pressure and ll the tires as soon as possible, preferably before moving the vehicle

and warming up the tires. Tire pressure should be checked when the tires are cold.

2•Pushtotogglebetweentripmeter(A&B).

 •Whenatripmeterisselected,pushandholdtoresettozero.

TRIP METER

SELECTOR2

SPEEDOMETER

Turn Signals/Hazard

Warning Indicator Lights

Traction Control System

(TCS)/Dynamic Stability

Control (DSC)

On: TCS/DSC malfunction

Flashing: TCS/DSC operating

Seat Belt

Unbuckled/Malfunction

Automatic Transmission

Malfunction

Door/Liftgate Ajar

Cruise Main Indicator

Light On (AMBER)/

Cruise Set Indicator

Light On (GREEN)

Headlight High Beams On

Airbag/Front Seat Belt

Pretensioner System

Malfunction

Low Engine Oil Pressure

Charging System

Malfunction

Security Indicator Light

Brake Warning Light

Parking brake on/low brake

uid/malfunction

OFF Dynamic Stability Control

(DSC)/Traction Control

System (TCS) Off

Indicator Light

DSC OFF switch pushed and

TCS/DSC turned off.

www.MazdaUSA.com

Lights

HEADLIGHT LEVELING

Adjust headlight

angle with headlight

leveling switch

depending on vehicle

passengers&load

(example: Driver only

= 0, Driver + Passengers = 1 or

2, etc. ). Refer to your Owner’s

Manual for complete details.

LIGHTING CONTROL/TURN SIGNAL LEVER

AUTO:The light sensor

automatically determines

when to turn the headlights

on or off.

:Turns tail, parking, dashboard,

and headlights on.

:Turns fog lights

on only when

headlights

are on.

:Turns tail,

parking, and

dashboard

lights on.

Pull

to Flash

High Beams

Push for

High Beams
