Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that’s the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
©2002 Mazda Motor Corporation
Printed in Japan Mar. 2003(Print4)
Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of
your Mazda. Should you resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because
improvement is a constant goal at Mazda, we reserve the right to make changes in
specifications at any time without notice and without obligation.
Air Conditioning and the Environment
Your Mazda’s genuine air conditioner is filled with HFC134a (R134a), a refrigerant that
has been found not to damage the earth’s ozone layer. If the air conditioner does not
operate properly, consult an Authorized Mazda Dealer.
Please be aware that this manual applies to all models, equipment and options. As a
result, you may find some explanations for equipment not installed on your vehicle.
J07R_8R09_EA_02G_Edition4.book Page 1 Monday, February 3, 2003 1:16 PM
How to Use This Manual
Form No. 8R09-EA-02G
We want to help you get the most driving
pleasure from your vehicle. Your owner’s
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.
The above symbol in this manual means
"Do not do this " or "Do not let this
happen".
Index: A good place to start is the Index,
an alphabetical listing of all information
in your manual.
You’ll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
The above symbol, located on some parts
of the vehicle, indicates that this manual
contains information related to the part.
Please refer to the manual for a detailed
explanation.
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
A CAUTION indicates a situation in
which bodily injury or damage to your
vehicle, or both, could result if the
caution is ignored.
NOTE
A NOTE provides information and
sometimes suggests how to make
better use of your vehicle.
WARNING
CAUTION
J07R_8R09_EA_02G_Edition4.book Page 2 Monday, February 3, 2003 1:16 PM
Table of Contents
1
2
3
4
5
6
7
8
9
10
11
Form No. 8R09-EA-02G
Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Before Driving Your Mazda
Important information about driving your Mazda.
Driving Your Mazda
Explanation of instruments and controls.
Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
In Case of an Emergency
Helpful information on what to do in an emergency.
Maintenance and Care
How to keep your Mazda in top condition.
Customer Information and Reporting Safety Defects
Important consumer information including warranties and add-on equipment.
Specifications
Technical information about your Mazda.
Index
J07R_8R09_EA_02G_Edition4.book Page 3 Monday, February 3, 2003 1:16 PM
J07R_8R09_EA_02G_Edition4.book Page 4 Monday, February 3, 2003 1:16 PM
1-1
Form No. 8R09-EA-02G
1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard Overview .................................................................. 1- 2
Interior Overview ........................................................................ 1- 3
Exterior Overview ....................................................................... 1- 4
J07R_8R09_EA_02G_Edition4.book Page 1 Monday, February 3, 2003 1:16 PM
1-2
Your Vehicle at a Glance
Form No. 8R09-EA-02G
Dashboard Overview
Hood release handle
Climate control system
Cup holder
Glove box
Shift lever
Parking brake
Audio system
Passenger-side air bag
Hazard warning flasher switch
Fog lights switch
Lighting control/Turn signals
Instrument cluster
Driver-side air bag
Wiper and washer lever
Ignition switch
Ashtray
Center console
Power window
switches
Cruise control switches
Cruise main switch
(page 2-20)
(page 5-17)
(page 5-30)
(page 5-14)
(page 5-31)
(page 5-32)
(page 5-14)
(page 5-35)
(page 6-10)
(page 5-10)
(page 6-40)
(page 3-13)
(page 3-16)
(page 5-2)
(page 6-2)
(page 5-5)
(page 6-38)
(page 6-39)
(page 6-40)
(page 2-20)
J07R_8R09_EA_02G_Edition4.book Page 2 Monday, February 3, 2003 1:16 PM
1-3
Your Vehicle at a Glance
Form No. 8R09-EA-02G
Interior Overview
Vanity mirror
Rearview mirror
Seat belts
Interior light
Sunvisors
Seats
(page 6-37)
(page 6-37)
(page 2-4)
(page 2-2)
(page 6-37)
(page 3-32)
J07R_8R09_EA_02G_Edition4.book Page 3 Monday, February 3, 2003 1:16 PM
1-4
Your Vehicle at a Glance
Form No. 8R09-EA-02G

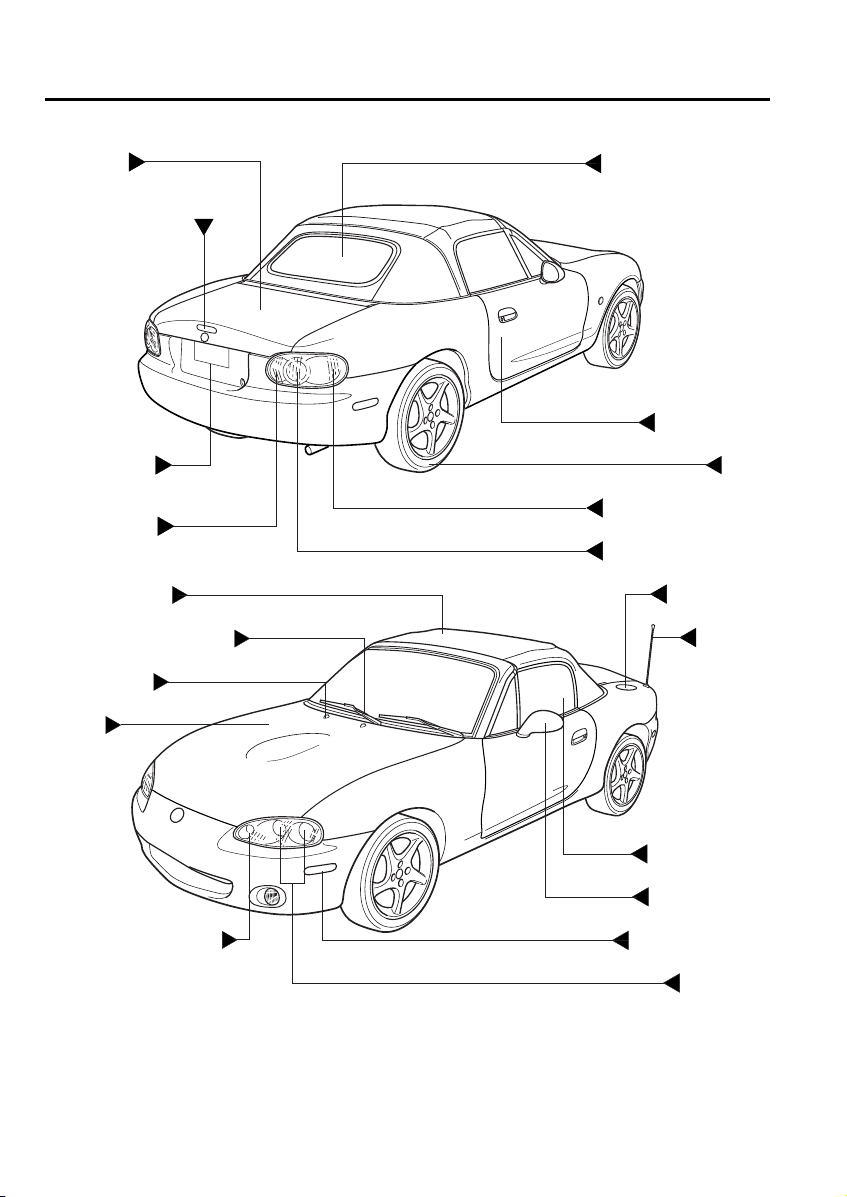

Exterior Overview
Door and keys
Outside mirrors
Side-marker lights
Headlights
Fuel-filler lid
Tires
Windshield wiper blades
Washer fluid
Hood
Front turn signal lights/
Parking lights
Rear turn signal lights
Brake lights/Taillights
Power windows
Antenna
Rear window defroster
Trunk lid
High-mount brake light
License plate
lights
Reverse lights
Convertible top
(page 3-9)
(page 8-35)
(page 8-35)
(page 8-35)
(page 5-34)
(page 3-2)
(page 8-27)
(page 8-35)
(page 8-35)
(page 3-14)
(page 6-10)
(page 3-17)
(page 8-24)
(page 8-22)
(page 3-16)
(page 8-34)
(page 8-32)
(page 8-34)
(page 3-31)
(page 3-13)
J07R_8R09_EA_02G_Edition4.book Page 4 Monday, February 3, 2003 1:16 PM
2-1
Form No. 8R09-EA-02G
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats .............................................................................................. 2- 2
Seats ......................................................................................... 2- 2
Seat Belt Systems ......................................................................... 2- 4
Seat Belt Precautions ............................................................... 2- 4
3-Point Type Seat Belt ............................................................. 2- 7
Seat Belt Pretensioner and Load Limiting Systems ................ 2- 8
Seat Belt Extender ................................................................... 2-10
Seat Belt Warning Light .......................................................... 2-11
Seat Belt Warning Beep ........................................................... 2-12
Child Restraint ............................................................................ 2-13
Child Restraint Precautions ..................................................... 2-13
Installing a Child-Restraint System ......................................... 2-16
LATCH Child-Restraint Systems ............................................ 2-18
SRS Air Bags ............................................................................... 2-20
Supplemental Restraint Systems (SRS) Precautions ............... 2-20
Passenger-Side Air Bag Deactivation Switch .......................... 2-23
Air Bag System Description .................................................... 2-26
J07R_8R09_EA_02G_Edition4.book Page 1 Monday, February 3, 2003 1:16 PM
2-2
Essential Safety Equipment
Form No. 8R09-EA-02G
Seats
▼Seat Slide
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
Seats
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to slide
the seat forward and backward and
rocking the seatback.
Driver’s Seat Adjustment:
Adjusting the driver’s seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver’s seat only when the vehicle is
stopped.
WARNING
WARNING
Lever
J07R_8R09_EA_02G_Edition4.book Page 2 Monday, February 3, 2003 1:16 PM
