Maytronics Dolphin SX30 Manuel utilisateur

8151668 Ver. 01 12/2015

Robotic Pool Cleaner SX30

User Instructions

Robotic Pool Cleaner SX30

User Instructions

Contents

1. INTRODUCTION ...................................................................... 2

2. SPECIFICATIONS...................................................................... 2

3. WARNINGS AND CAUTIONS .................................................. 2

3.1 Warnings ............................................................................ 2

3.2 Cautions............................................................................. 2

4. POOL CLEANER PARTS ........................................................... 3

5. USING THE POOL CLEANER ................................................... 4

5.1 Setup.................................................................................. 4

5.2 Putting the Pool Cleaner into the pool.............................. 5

5.3 Indicator Lights - Model Classic 12+ only.......................... 5

5.4 Removing the Pool Cleaner from the pool ........................ 6

6. CLEANING THE DUAL FILTER BASKET ................................... 7

6.1 Cleaning after use.............................................................. 7

6.2 Periodic ﬁlter cleaning ....................................................... 8

7. CLEANING THE IMPELLER....................................................... 9

8. OFF-SEASON STORAGE.......................................................... 10

9. TROUBLESHOOTING............................................................... 11

Robotic Pool Cleaner SX30

User Instructions

Robotic Pool Cleaner SX30

User Instructions

INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient

and cost-effective pool cleaning. Its reliable filtration in all pool conditions and active brushing,

enhance pool hygiene.

Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologys, long-lasting

performance

and easy maintenance. You and your family will be free to enjoy your swim with

full confidence that your pool is completely clean.

SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

3. WARNINGS AND CAUTIONS

3.1 Warnings

• Use the originally supplied power supply only

• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an

earth leakage interrupter (ELI)

• Keep the power supply out of standing water

• Position the power supply at least 3m/10ft away from the edge of the pool

• Do not enter the pool while the Pool Cleaner is working

• Unplug the power supply before servicing

3.2 Cautions

Use the Pool Cleaner in the following water conditions only:

Maximum 4 ppmChlorine

pH 7.0-7.8

Temperature 6-34°C/ 43-93°F

NaCl Maximum 5000 ppm

CAUTION

Digital Power supply

Input: 100-125 AC Volts / 200-230 AC Volts

50-60 Hertz

Output: <30 VDC

IP 54

Robotic Pool Cleaner SX30

User Instructions

Caddy kit - optional

Power supply options

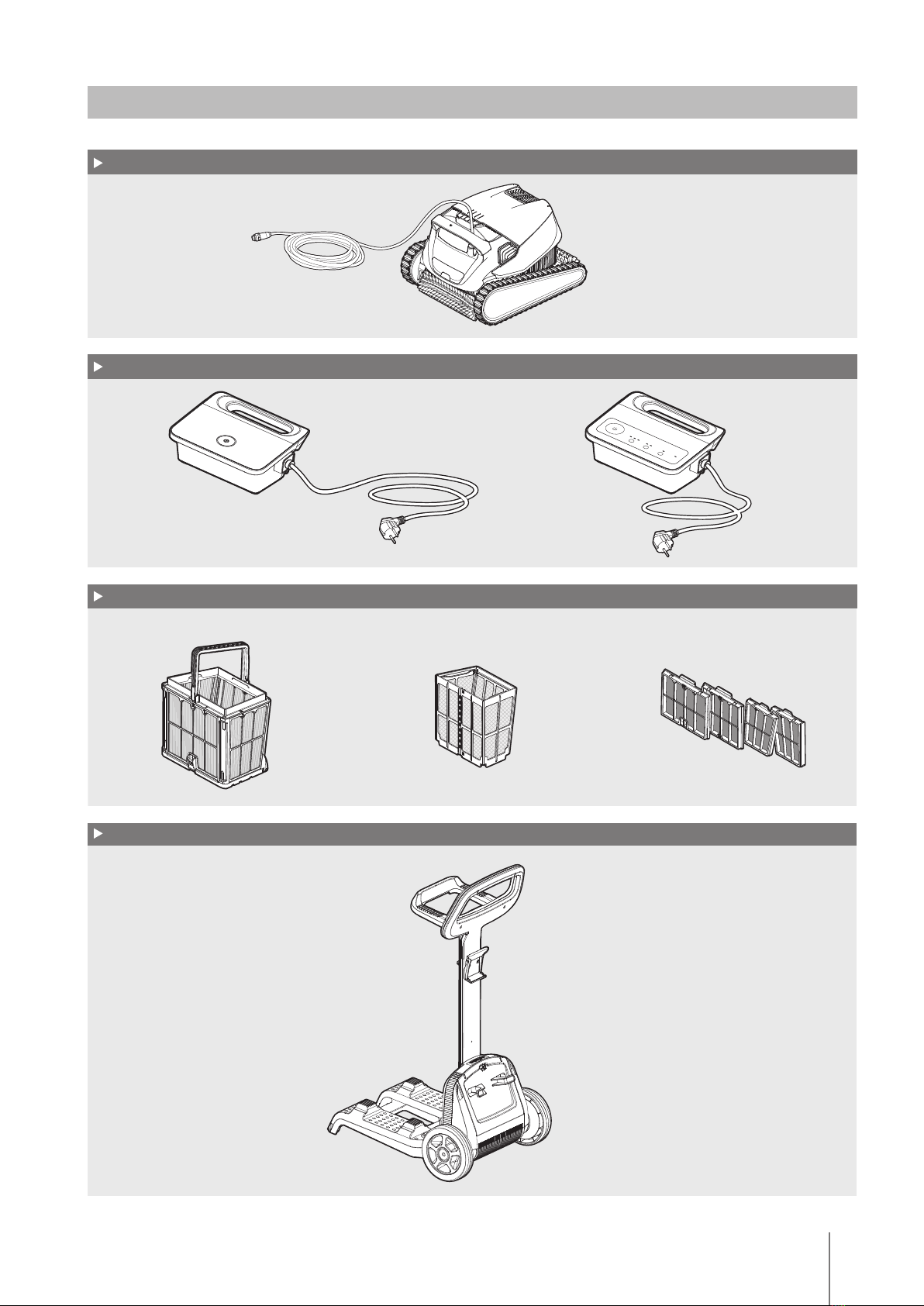

POOL CLEANER PARTS

Robotic Pool Cleaner SX30

Filtration options

Robotic Pool Cleaner SX30

User Instructions

5. USING THE POOL CLEANER

5.1 Setup

Before using the Pool Cleaner for the first time, perform the following steps:

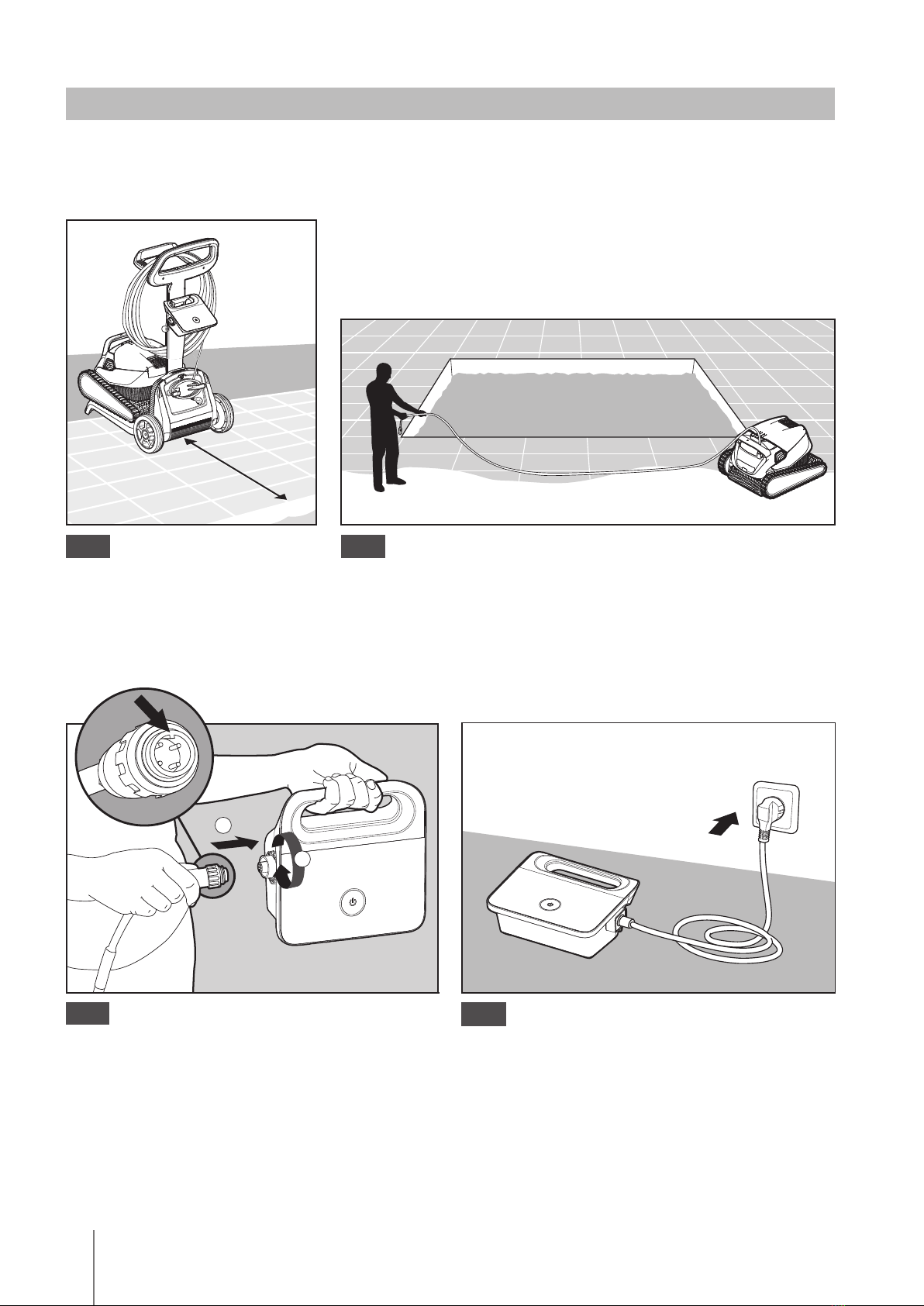

Position the power supply

so that it is approximately in the

middle of the long side of the

pool at a distance of 3m/10ft.

Unwind the cable and stretch it out completely so that it has

no kinks.

Attach the ﬂoating cable to the power

supply by inserting it with the notch on the

connector (1), lined up with the groove in

the socket on the power supply, and turning

clockwise (2).

Plug in the power supply and leave it in the

OFF position.

3m/10ft

5.1.1

5.1.4

5.1.2

5.1.3

Robotic Pool Cleaner SX30

User Instructions

5.2 Putting the Pool Cleaner into the pool

Put the Pool Cleaner into the pool.

Release the Pool Cleaner and let it sink to the floor

of the pool.

Make sure that the floating cable is free of any

obstructions.

5.2.1

Turn the power supply ON.

The Pool Cleaner will now operate until it has

reached the end of the cleaning cycle.

5.2.2

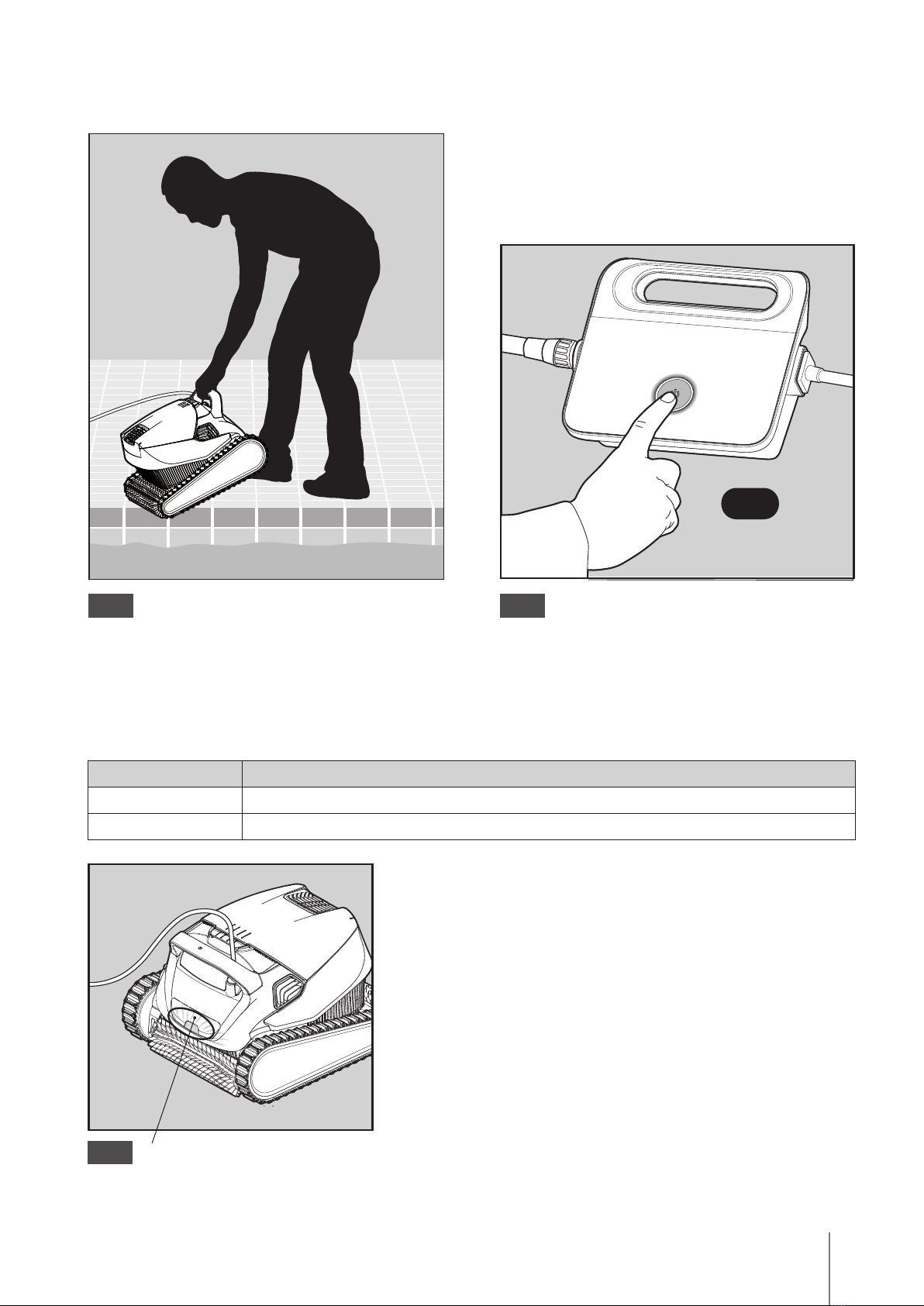

Light Indication

Blue blinking Normal operation of the Pool Cleaner

Green blinking Remote-Control or Smartphone communicate with the Pool Cleaner

5.3

Indicator Lights - Some Models

5.3.1

Indicator lights.

Robotic Pool Cleaner SX30

User Instructions

CAUTION

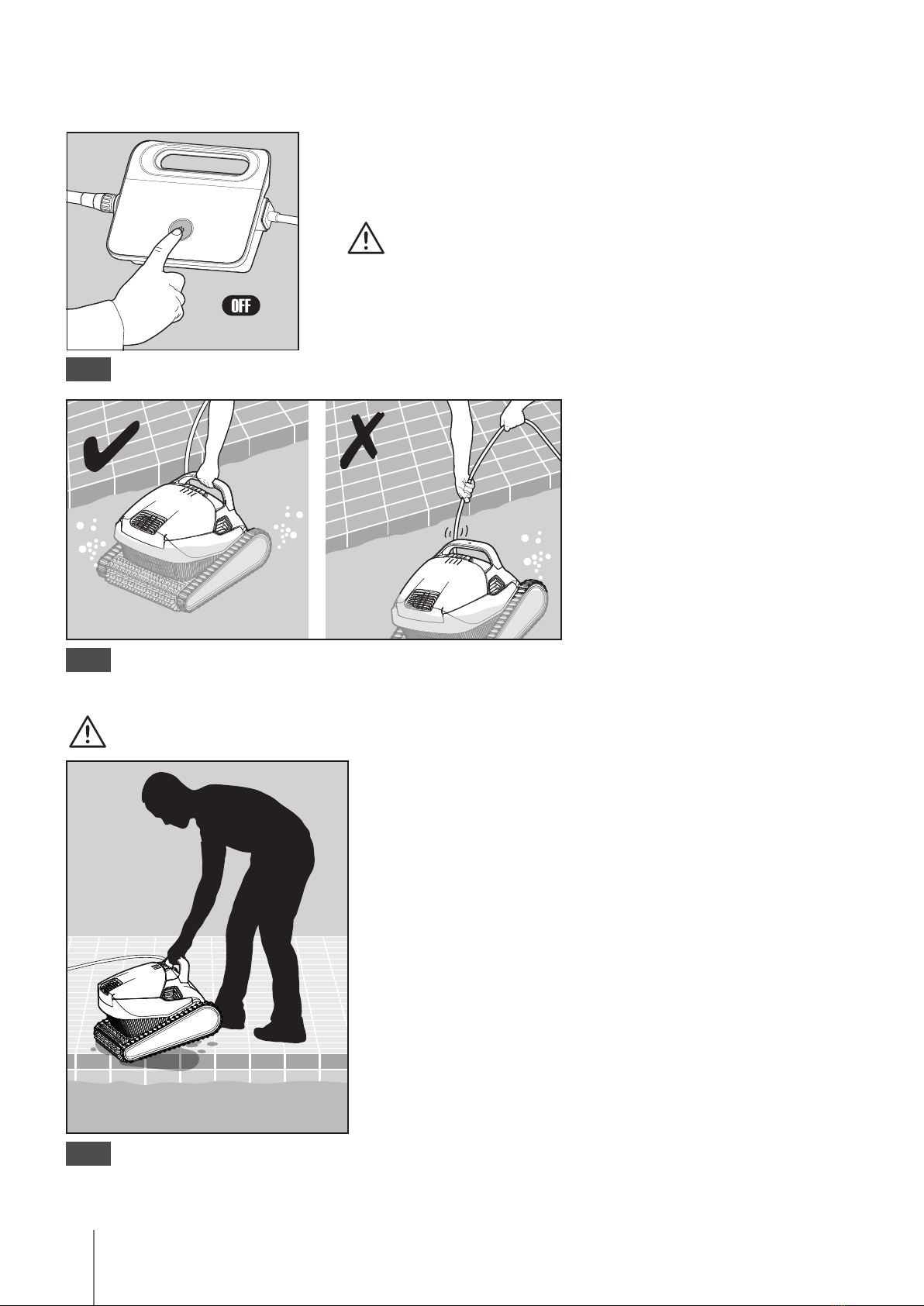

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Using the floating cable, bring the Pool Cleaner to the pool’s edge.

Using the handle, remove the Pool Cleaner from the pool.

Place the Pool Cleaner on the edge of the pool and let

the water drain out.

5.4.3

5.4.2

5.4 Removing the Pool Cleaner from the pool

CAUTION

Turn OFF and unplug the power supply.

5.4.1

Robotic Pool Cleaner SX30

User Instructions

6. CLEANING THE DUAL FILTER BASKET

CAUTION

Make sure the power supply is switched off and unplugged.

It is highly recommended to clean the ﬁlter basket after each cleaning cycle.

Note: Do not let the ﬁlter panels dry out before cleaning.

6.1 Cleaning after use - removing and cleaning the dual ﬁlter basket

Open the filter cover. Upon opening the filter cover,

the handle will lift independently.

6.1.1 6.1.2

Lift up the basket. Open the latch

to release the bottom lid

in order to remove the

debris.

6.1.3 6.1.4 Clean the filter basket

with a hose.

6.1.5

Robotic Pool Cleaner SX30

User Instructions

6.2 Periodic ﬁlter cleaning – recommended at least once a month

Dismantle the 4 ultra-fine filter panels of the outer basket, according to the following steps:

Holding down the

handle, remove the inner

net basket.

Dismantle the panels,

starting by pressing on

panel 1 using your thumbs.

Continue to dismantle

the panels in the order of their

numbers: 2 —

> 3 —

> 4.

Clean the filter panels with a hose.

Assemble the filter panels according to the

following order:

Panel 4 —

> 3 —

> 2 —

> 1.

6.2.1 6.2.2

6.2.4

6.2.3

6.2.5

Insert the clean filter basket and close the filter cover.

6.2.6

Robotic Pool Cleaner SX30

User Instructions

6.3 CLEANING THE IMPELLER

CAUTION

Make sure the power supply is switched off and unplugged.

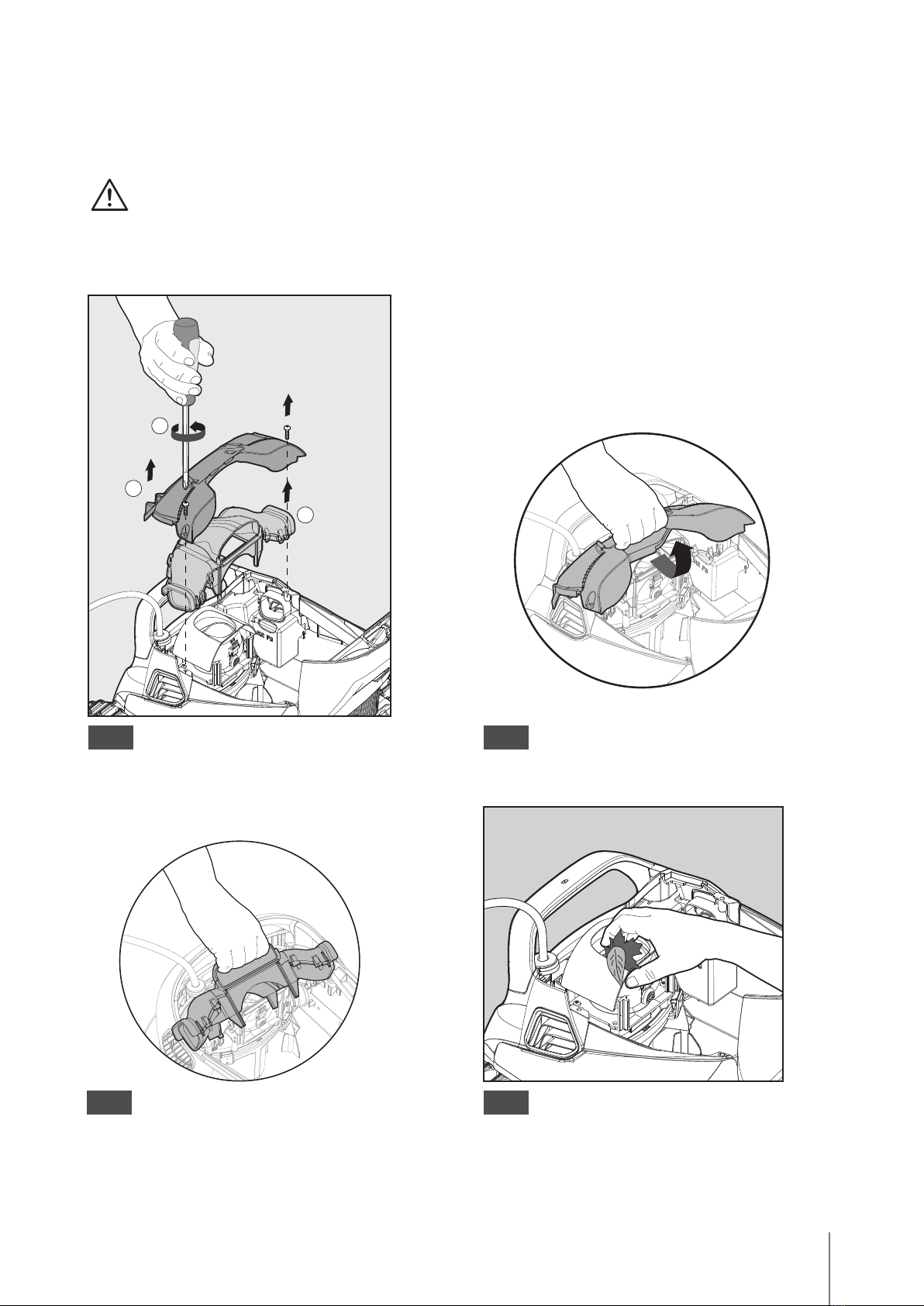

Clean the debris trapped in the impeller opening, according to the following steps:

6.4 If you notice debris trapped in the impeller:

7.1.1 7.1.2

7.1.3 7.1.4
