1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost

effective pool cleaning. Its reliable ﬁltration in all pool conditions, active brushing, and all-surface climbing

brush enhance maximum pool hygiene.

Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and

easy maintenance. You and your family will be free to enjoy your swim with the full conﬁdence that it is

completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.4 m (1.33 ft)

Maximum depth: 5 m (16.4 ft)

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only

• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth

leakage interrupter (ELI)

• Keep the power supply out of standing water

• Position the power supply at least 3.5 m (12 ft) away from the edge of the pool

• Do not enter the pool while the Pool Cleaner is working

• Unplug the power supply before servicing

• Keep the Robotic Pool Cleaner out of the reach of children or persons with reduced

physical, sensory, or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction.

3.2. Cautions

When not in use store the Pool Cleaner on the stand in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine 4 ppm max.

pH 7.0 – 7.8

Temperature 6 °C – 35 °C (43 °F – 95 °F)

NaCl 5000 ppm max.

CAUTION

Robotic Pool Cleaner Basic 4-UNI |User Instructions 3

4. POOL CLEANER PARTS

Power Supply Stand

Brushes

There are three types of optional brushes, each designed to provide optimal traction on different

pool surfaces. Only one type set is provided with your robot Pool Cleaner.

Wonder (foam) Brush

For smooth ceramic tiles

Combined Brush

All surface climbing brush

ideal for most pool surfaces

PVC Brush

For concrete, PVC,

ﬁberglass and liner

Robotic Pool Cleaner Basic 4-UNI

Filtration

Cartridge with net ﬁlters (x4) or ultra-ﬁne ﬁlter (x4)

There are two options of ﬁltration system: ﬁlter bag or cartridge.

Only one system type is provided with your robot pool cleaner.

Bottom lid and ﬁlter Bag

4Robotic Pool Cleaner Basic 4-UNI |User Instructions

5. USING THE POOL CLEANER

The Pool Cleaner is very easy to use. Just follow the simple steps to get started, and your Pool Cleaner

is ready to go.

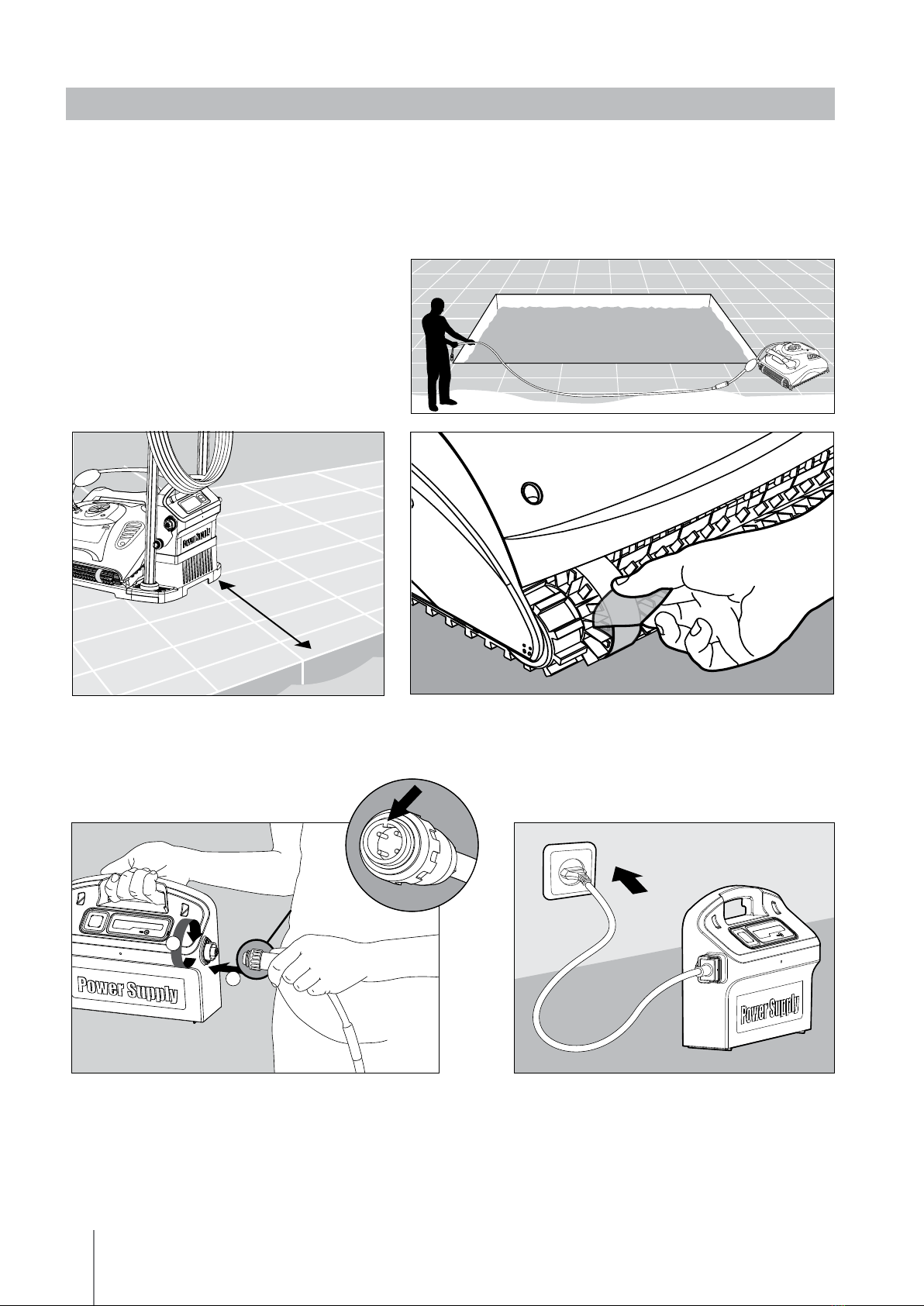

5.1. Setup

Some models arrive with plastic coverings on the brushes.

Remove them before use.

Position the stand so that it is

approximately in the middle of the

long side of the pool at a distance

of 3.5 m (12 ft).

Plug in the power supply and leave it in the

OFF position.

Unwind the cable and stretch it out

completely so that it has no kinks.

Attach the ﬂoating cable to the power supply

by inserting it with the notch on the connector (1)

lined up with the groove in the socket on the

power supply and turning clockwise (2).

3.5 m (12 ft)

Before using the Pool Cleaner for the ﬁrst time perform the following steps:

Robotic Pool Cleaner Basic 4-UNI |User Instructions 5

5.2. Putting the Pool Cleaner into the pool

If your Pool Cleaner is equipped with brushes that

contain sponges, dip the brushes in the water and

squeeze them so that they will absorb water the ﬁrst time

you use the Pool Cleaner, or if the brushes have dried out

between uses.

Holding the Pool Cleaner upside down in the water,

gently rock it back and forth with your ﬁngers holding

the plastic doors on the bottom lid open to release

trapped air. Continue until no more bubbles are released.

Release the Pool Cleaner and let it sink to the ﬂoor

of the pool.

Make sure that the ﬂoating cable is free of any

obstructions.

To avoid kinks in the ﬂoating cable, place approximately

enough cable in the water for the Pool Cleaner to reach

the farthest corner of the pool.

Turn the power supply ON.

The Pool Cleaner will now operate until it has

reached the end of the cleaning cycle.

5.3. Removing the Pool Cleaner from the pool

OFF

CAUTION

Turn OFF and unplug the power supply.

6Robotic Pool Cleaner Basic 4-UNI |User Instructions

6. CLEANING THE FILTER BAG OR CARTRIDGES

Depending on the model, your Pool Cleaner may be equipped with a ﬁlter bag or cartridge.

It is recommended to clean the ﬁlter bag or cartridge after each cleaning cycle.

6.1. Removing and cleaning the ﬁlter bag

CAUTION

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Using the ﬂoating cable, bring the Pool Cleaner to the pool’s edge.

Using the handle, remove the Pool Cleaner from the pool.

Place the Pool Cleaner on the edge of the pool and let the water drain out.

CAUTION

Unplug the power supply.

10 cm (4 in)

Robotic Pool Cleaner Basic 4-UNI |User Instructions 7

Turn the Pool Cleaner upside-down.

Open the bottom lid.

Remove the ﬁlter bag.

Clean the ﬁlter bag with a hose.

We recommend that you periodically wash the

ﬁlter bag in a washing machine using the gentle

cycle program.

Periodically clean the brushes with a hose.

Click

6.2. Replacing the ﬁlter bag

Put the ﬁlter bag over

the frame so that the

strap is in the middle

of the shortest side.

Make sure that ﬁlter bag

is positioned properly

on the frame.

8Robotic Pool Cleaner Basic 4-UNI |User Instructions

6.3. Cleaning the ﬁlter cartridges

With the Pool Cleaner upside down

open the bottom lid and pull it out.

Open the clips and remove

the ﬁlter.

Insert the ﬁlters with the plastic backing facing out.

Insert the cartridge unit.

Clean the ﬁlters with a hose.

Note: Don’t let the ﬁlter cartridges dry out before cleaning.

CAUTION

Unplug the power supply.

Click

Robotic Pool Cleaner Basic 4-UNI |User Instructions 9

Replace the screws.

6.4. Cleaning the impeller

If you notice debris trapped in the impeller open the impeller and remove the debris.

CAUTION

Unplug the power supply.

Using a screwdriver, remove the screws on the

impeller cover and remove it.

Clear any debris that may be in the impeller.

7. OFFSEASON STORAGE

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

• Disconnect the Pool Cleaner from mains

• Make sure that no water is left in the Pool Cleaner

• Thoroughly clean the ﬁlter bag or cartridges and insert in place

• Roll up the cable so that it has no kinks and place on the stand

• Store the Pool Cleaner upright on the stand or simply upside down in a protected area

out of direct sun/rain /snow at a temperature of between 5 °C – 45 °C (41 °F – 113 °F)
