Maytag MER5875RAB - 30" Electric Range Manuel

Repair

Parts

List

MODEL NUMBER

MER5875RAB

When requesting service or ordering parts, always

provide the following information:

- Product Type - Part Number

- Model Number - Part Description

RANGE

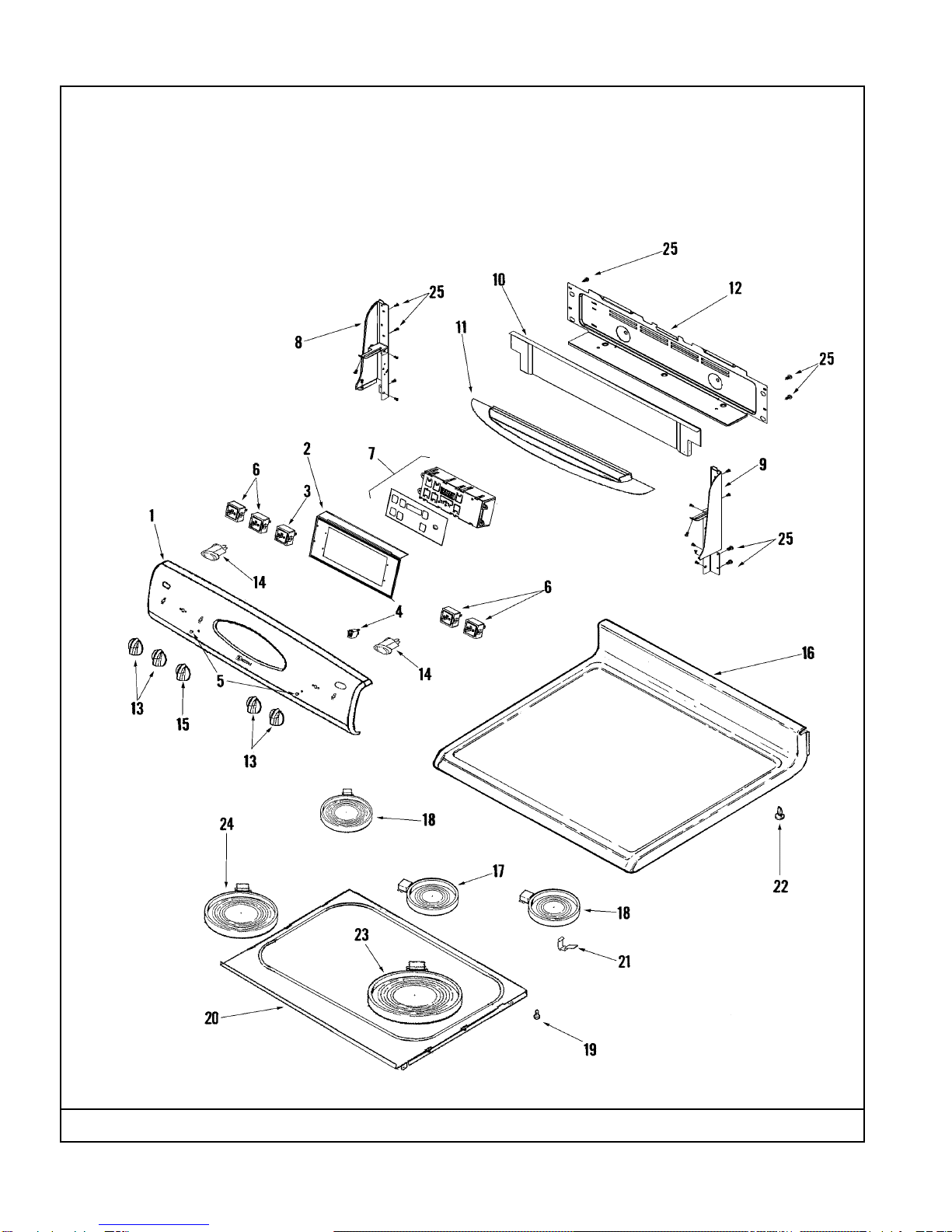

Section: CONTROL PANEL/TOP ASSEMBLY

C10-688

Model: MER5875RAB

CONTROL PANEL/TOP ASSEMBLY

No. Part No. Description

Section:

Series Qty

1 74011211 PANEL, BACKGUARD (BLK) 10 1

2 74009052 BRACKET, CLOCK 10 1

- 74001530 SCREW (8AB1/2-NI) 10 2

3 74006589 SWITCH, INFINITE (WARMING) 10 1

4 74004153 LIGHT, INDICATOR 10 2

5 7730P011-60 LENS, INDICATOR LIGHT 10 2

6 74008940 SWITCH, INFINITE (FLEX) Note: SWITCH, INFINITE (FLEX LR/RR) 10 2

- 7101P309-60 SCREW Note: SCREW, SWITCH 10 10

6 74011102 SWITCH, DUAL ELEMENT Note: SWITCH, DUAL ELEMENT (LF) 10 1

6 74003122 SWITCH, INFINITE (DUAL) Note: SWITCH, INFINITE (DUAL RF) 10 1

- 74001530 SCREW (8AB1/2-NI) Note: SCREW, CLOCK MTG 10 4

7 74008658 CLOCK/OVERLAY (BLK) 10 1

8 74009022 END CAP (RT-BLK) 10 1

9 74009023 END CAP (LT-BLK) 10 1

10 74009444 SHIELD, VENT 10 1

11 74009202 SHIELD, HEAT VISOR (BLK) Note: SHIELD, HEAT VISOR (BLK) 10 1

- 74008836 INSULATION, FOIL (BKGD) 10 1

12 74010983 COVER, REAR WIRE 10 1

13 74008945 KNOB (BLK/CHR) 10 4

14 74010227 SWITCH, ROCKER W/SHIELD (BLK) Note: SWITCH, ROCKER (DUAL-BLK) 10 2

15 74008948 KNOB (BLK/CHR) Note: KNOB (BLK/CHR) WARMING 10 1

16 74011154 TOP, MAIN ASY. (BLK) 10 1

17 74011676 ELEMENT, WARM ZONE 12 1

17 74006584 ELEMENT, W/LIMITER (WARMING) 10 1

18 74008568 ELEMENT (1200W) Note: ELEMENT (1200W) LR/RR 10 2

19 74009538 SCREW 10 6

20 74008900 BOTTOM, BURNER BOX 10 1

21 74007134 SPRING, ELEMENT SUPPORT 10 11

22 74008761 SPACER, SNAP-IN 10 4

23 74011218 ELEMENT, TRIPLE (33/22/11) Note: ELEMENT,TRIPLE (33/22/11)RF 10 1

24 74008897 ELEMENT, DUAL (2400W) Note: ELEMENT, DUAL (2400W)LF 10 1

25 74001530 SCREW (8AB1/2-NI) 10 22

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CABINET

C14-928

Model: MER5875RAB

CABINET

No. Part No. Description

Section:

Series Qty

1 74004078 ROLLER, DRAWER 10 2

2 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

3 74005230 NUT, LOCK (8-32) 10 2

- 74001530 SCREW (8AB1/2-NI) 10 4

4 74008687 RUNNER, SERVICE DRAWER 10 2

5 74008688 STOP, DRAWER 10 2

- 74001530 SCREW (8AB1/2-NI) 10 4

6 74008689 SHIELD, HEAT 10 1

7 74008690 SPACER, SIDE PANEL 10 6

- 74008798 SCREW W/SHOULDER (#8) 10 6

8 74008696 GASKET 10 1

9 74008697 RECEIVER, HINGE 10 2

10 7101P112-60 SCREW 10 4

- 74001530 SCREW (8AB1/2-NI) 10 8

11 74008701 RETAINER, SIDE 10 2

12 74008702 LATCH ASSEMBLY 10 1

- 74003975 SCREW (8ABX3/8-BLK) 10 2

- 74001530 SCREW (8AB1/2-NI) 10 1

- 74008704 INSULATOR, SHIELD 10 1

13 74008703 SWITCH, DOOR 10 1

14 74002373 LEG, LEVELING 10 4

- 74008835 CLIP, RETAINER 10 1

- 74008705 SLEEVE, ROD TUBE 10 1

15 74008706 ROD, DOOR SWITCH 10 1

16 74008707 BUMPER 10 1

17 74008710 PANEL, SIDE (BLK) 10 2

- 74004208 SCREW 10 6

18 74008762 BOTTOM, WIRE COVER 10 1

- 74001530 SCREW (8AB1/2-NI) 10 2

19 7103P027-60 NUT, TERMINAL BLOCK 10 3

20 74008699 BACK, MAIN 10 1

21 74009651 COVER, MAIN WIRE (ELE) 10 1

22 74008760 COVER, WIRE (LWR) 10 1

23 3605F146-51 PLATE, CONDUIT REINFORCEMENT 10 1

24 74008340 PANEL, ACCESS 10 1

- 7101P352-60 SCREW Note: SCREW, ANTI-TIP BRACKET 10 2

25 74005564 BRACKET, ANTI-TIP 10 1

26 7401P039-60 BLOCK, TERMINAL 10 1

27 74008759 INSULATOR, POWER CORD 10 1

28 74011187 BRACKET, OVEN SUPPORT 10 1

29 74008715 SWITCH, LIMITER THERMAL 10 1

- 74001530 SCREW (8AB1/2-NI) 10 2

30 74010814 RETAINER, CONV INSULATION 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: CAVITY

C12-546

Model: MER5875RAB

CAVITY

No. Part No. Description

Section:

Series Qty

1 74008691 VENT, OVEN 10 1

2 74008692 ELEMENT, BROIL 10 1

- 74001530 SCREW (8AB1/2-NI) 10 2

3 74004943 SENSOR, OVEN (LONG) 10 1

- 71001867 LENS, BULB 10 1

4 71002427 OVEN LIGHT ASSY. 10 1

5 7407P103-60 BULB, OVEN 10 1

6 74011117 ELEMENT, BAKE (3600W) 10 1

- 74001530 SCREW (8AB1/2-NI) 10 4

7 74008694 SUPPORT, OVEN BOTTOM (REAR) 10 2

8 74008695 SUPPORT, OVEN BOTTOM (FRONT) 10 1

- 74001530 SCREW (8AB1/2-NI) 10 2

9 74001530 SCREW (8AB1/2-NI) 10 6

10 74008700 INSULATION, WRAPPER 10 1

11 74008698 INSULATION, BACK 10 1

12 74008763 RACK, OVEN 10 2

13 74003976 SCREW, SHOULDER 10 2

14 74008741 BOTTOM, OVEN 10 1

15 74009587 INSERT, HALF RACK 30" 10 1

16 74008924 RACK, CREATE A SPACE HALF "Q" 10 1

- 74005401 SCREW 10 3

17 74005783 COVER, CONVECT 10 1

- 74005401 SCREW 10 3

18 74009430 FAN, CONVECTION ASY. 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

Section: DOOR/DRAWER

C11-877

Model: MER5875RAB

DOOR/DRAWER

No. Part No. Description

Section:

Series Qty

1 74008926 LINING, DOOR 10 1

2 74010546 HINGE, DOOR 10 2

3 74003644 FRAME, GLASS 10 1

4 74003645 GLASS, INNER 10 2

5 74003647 INSULATION, OVEN DOOR 10 2

- 74001530 SCREW (8AB1/2-NI) 10 6

6 74008744 BAFFLE, DOOR 10 1

7 74009025 TAPE, DBL SIDED (BLK) 10 4

8 74005546 SPACER, RUBBER 10 2

9 74009018 GLASS, DOOR (BLK) Note: (ORDER #14/GLASS REPLACED) 10 1

10 74010971 HANDLE, DOOR (BLK) 10 1

10 74011767 HANDLE, DOOR (BLK) Note: MUST ORDER 2/74011674 W/HANDLE 12 1

11 74008931 TRIM, TOP (BLK) 10 2

- 74009537 SCREW (BLK) 10 3

12 74011674 SCREW, HANDLE MOUNTING 12 2

12 74006777 SCREW 10-32 W/ WASHER 10 2

13 74009412 BRACKET, DOOR HANDLE (LT) 10 1

13 74009413 BRACKET, DOOR HANDLE (RT) 10 1

- Y706189 SCREW 10 8

14 74004224 TAPE, SINGLE SIDED (WHT) 10 4

15 74008889 TRIM, BOTTOM (BLK) 10 1

16 7101P282-60 SCREW (10-24X5/16-NI) 10 2

17 74010560 TRIM, SIDE (BLK) 10 2

18 74005231 SHAFT, STORAGE DRAWER ROLLER 10 2

19 7103P082-60 NUT 10 2

20 74008333 DRAWER, STORAGE 10 1

21 74008885 PANEL, DRAWER (BLK) 10 1

22 74001530 SCREW (8AB1/2-NI) 10 2

23 7101P072-60 SCREW 10 2

24 7103P139-60 NUT, LOCK 10 2

25 74004078 ROLLER, DRAWER 10 2

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available

SUPPLEMENTAL INFORMATION

No. Part No. Description

Section:

Series Qty

- 8113P566-60 MANUAL, USE & CARE 11 1

- 8113P492-60 MANUAL, USE & CARE 10 1

- 74011216 HARNESS, SWITCH/TOP (RT) 10 1

- 74008934 HARNESS, SWITCH/TOP (LT) 10 1

- 74011215 HARNESS, MAIN 10 1

- 74011680 HARNESS, BURNER BOX 12 1

- 74011217 HARNESS, BURNER BOX 10 1

- 12500100 KIT, BROILER PAN/INSERT--W Note: AVAILABLE AS AN ACCESSORY ONLY 10 1

- 74009330 BOOKLET, COOKING MADE SIMPLE 10 1

- 20001080 COOKTOP CLEANING CREME 4 OZ 10 1

- 74007585 RAZOR, SCRAPER 10 1

*Color Code (-)=Not Shown #=Series, Serial Prefix or Run No., N=Not Available
