Maytag MES5752BAW Manuel de la liste des pièces

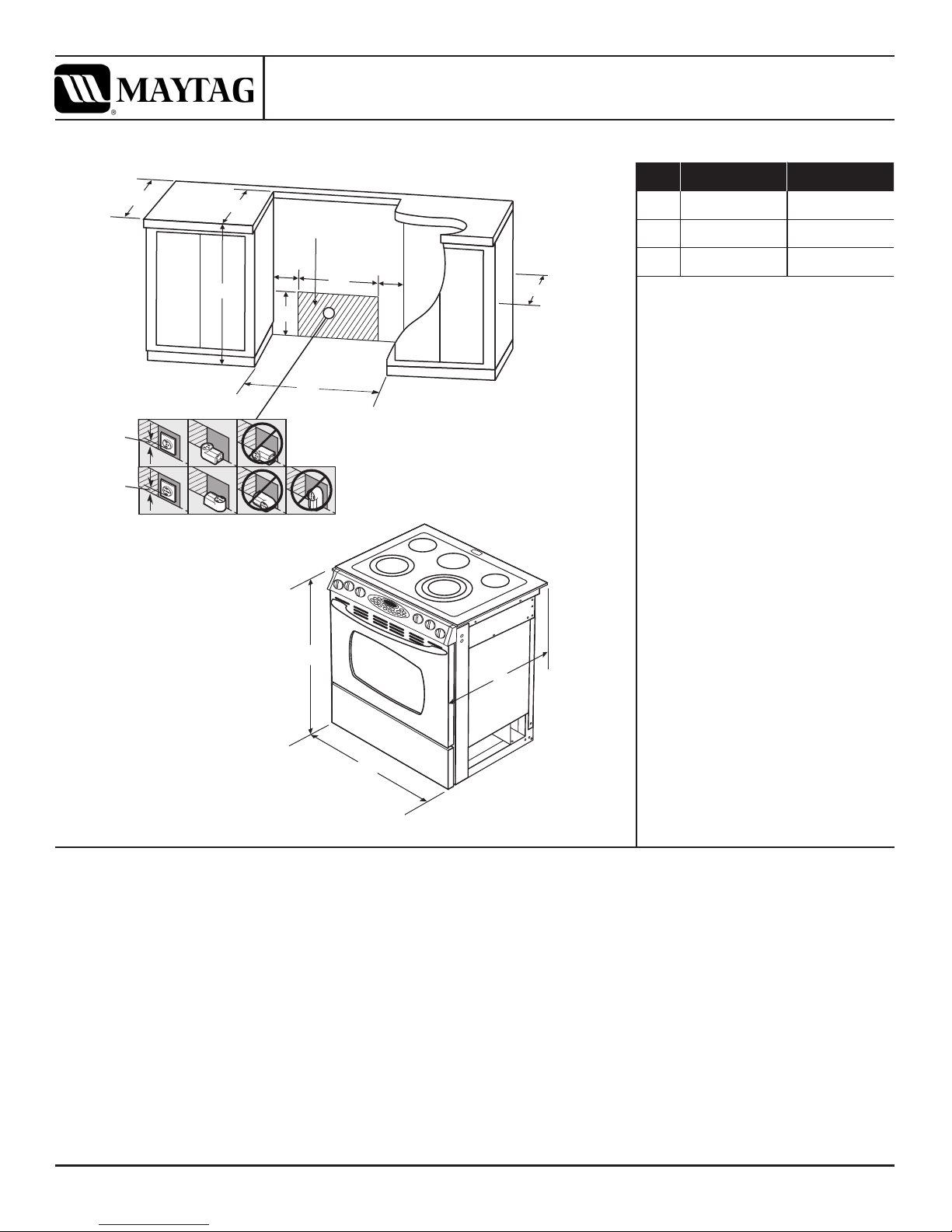

30” SLIDE-IN ELECTRIC RANGE

1. Provide for 120/208, 120/240 volt outlet per applicable cord in this area. 16" (40.6 cm) W x 5

3/4" (14.6 cm) H,

located 7" from side wall.

2. Depth excluding handle. Dimension given is from wall to front of oven door.

3. Height may vary slightly depending upon leveling legs.

4. If cabinet backsplash behind unit is not present, backsplash kit (UXA9107AA in B=black, W= white, Q= bisque, S=stainless)

may be ordered from dealer.

5. When replacing an existing unit, a maximum of 23 1

/2" is acceptable. If the cut depth exceeds 23 1

/2" use filler kit (K71FILL in B=black,

W= white, Q=bisque).

6. If end cabinet is not present, side panel kit (UXA1100AA in B=black, W= white, Q= bisque, S=stainless) may be ordered from dealer.

7. 120/240 V or 120/208 V Grounded Electrical Outlet in the hatched area.Outlet MUST be flush. Nothing located in hatched area

can extend more than 2" from wall or range will not slide all the way back.

8. Some white European style cabinets are equipped with delicate white vinyl drawer and door fronts. The vinyl may not be designed

to withstand the heat produced by the normal safe operation of a selfclean range. Discoloration or delamination may occur. To avoid

possible damage, we recommend increasing the 30" cabinet opening to 31 1

/4" minimum and using heat shield (CABKIT V).

The countertop cut-out must remain 30".

NOTES:

Style of product may vary from picture

"51

19"

ELECTRIC

SUPPLY

LOCATION

30"

10"

25" 23.25"5

36" 24"

1-1/2"min

(3.8 cm)

1-1/2"min

(3.8 cm)

PRODUCT DIMENSIONS

INCHES CENTIMETERS

MODEL SKUs

26 5/16 66.8

30 76.2

36 91.4

MES5752BAW

MES5752BAB

MES5752BAS

Important:Because of continuing product improvements, Maytag® reserves the right to change specifications without notice. Dimensional specifications are provided for

planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

2005-09-07 at 15:20:23 CDT
