OVEN PARTS

For Models: CWE4100ACB10, CWE4100ACE10

(Black) (White)

10−11 Litho in U.S.A. (JMJ)(bay) Part No. W10250556 Rev. B

24" BUILT−IN

ELECTRIC OVEN

OVEN PARTS

For Models: CWE4100ACB10, CWE4100ACE10

(Black) (White)

W10250556

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10203506

Installation

Instructions

W10224167

Owners Manual

W10211157

Diagram, Wiring

9762761 Brochure, Tips

(Safe Cooking)

4002F121−51

Back, Main

3601F005−61

Baffle, Base

7002P236−60

Insulation,

Top & Rear

W10214296

Cover, Box

7101P356−60

Screw

7 Extrusion, Bottom

7754P004−60

White

7754P003−60

Black

8 Extrusion, Side

7750P122−60

White Left

7750P121−60

White Right

7750P118−60

Black Left

7750P117−60

Black Right

7002P006−60

Insul., Bottom

10 Nut, Snap

7103P039−60

White

7103P041−60

Black

7101P287−60

Screw

12 Panel, Side

2618F150−51

Left

2618F149−51

Right

3804F096−51

Retainer, Rear

3804F118−51

Retainer, Top

3604F101−80

Shield, Air

3804F104−51

Retainer, Bottom

2205F003−19

Bottom, Oven

7408P035−60

Receptacle, Lamp

7112P004−60

Clip, Thermostat

7112P020−60

Clip, Oven Front

7407P103−60

Bulb, Oven

3807F137−80

Support

4003F049−80

Base, Chassis

7506P403−60

Tube, Oven

8026P070−60

Tube, Vent

26 Extrusion ,Vent

7756P123−60

White

7756P071−60

Black

27 Extrusion, Top Frt

7756P117−60

White

7756P104−60

Black

7101P633−60

Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

7002P160−60

Insulation, Back

OVEN DOOR PARTS

For Models: CWE4100ACB10, CWE4100ACE10

(Black) (White)

W10250556

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3601F102−51

Baffle, Door

3 Handle, Door

7701P137−60

White

7701P136−60

Black

4 Spacer,

Door Handle

8010P128−60

White

8010P127−60

Black

5 Panel, Oven Door

2401F199−71

White

2401F199−70

Black

6 Glass, Oven Door

7902P590−60

White

7902P357−60

Black

7902P715−60

Glass, Inner

2402W205−19

Lining, Door

9 Retainer, Glass

7112P094−60

White

7112P093−60

Black

7101P356−60

Screw

7101P326−60

Screw

7101P633−60

Screw

7002P015−60

Insulation, Door

7212P003−60

Seal, Oven Door

(Vertical)

7212P006−60

Seal, Oven Door

(Horizontal)

INTERNAL OVEN PARTS

For Models: CWE4100ACB10, CWE4100ACE10

(Black) (White)

W10250556

Illus. Part

No. No. DESCRIPTION

7406P182−60

Element, Broil

7801P153−60

Rack, Oven

7406P424−60

Element, Bake

7101P287−60

Screw

W10273818

Rack, Offset

3807F749−45

Support,

Broil Support

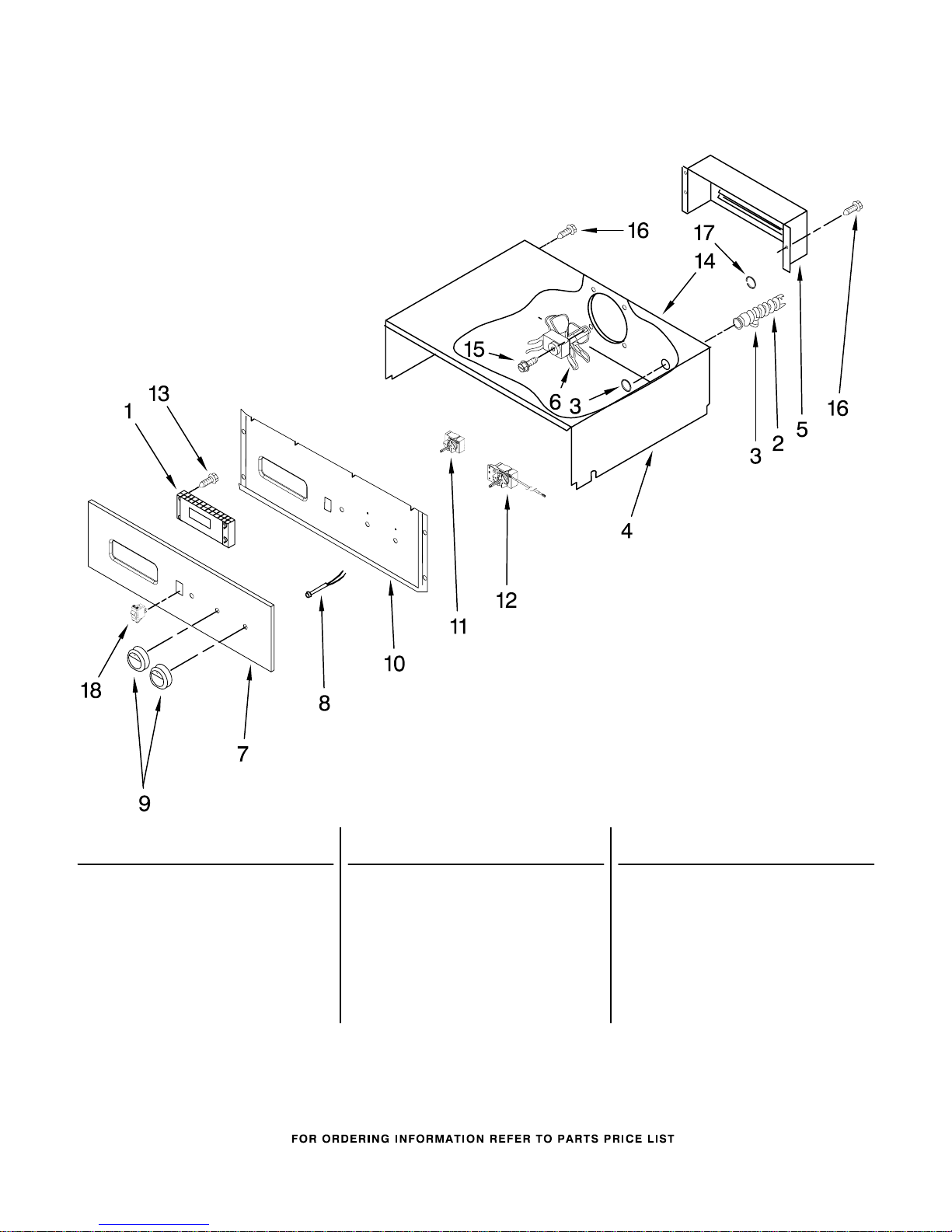

CONTROL PANEL PARTS

For Models: CWE4100ACB10, CWE4100ACE10

(Black) (White)

W10250556

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Clock

7602P165−60

White

7602P164−60

Black

5700P367−60

Conduit, Flexible

7417P017−60

Connector, Cable

W10214294

Cover, Wire

4005F262−51

Cover, Fan

7427P006−60

Assembly, Fan

7 Panel, Control

W10198731

White

W10198729

Black

7407P102−60

Light, Indicator

9 Knob, Thermostat

7735P048−60

White

7735P049−60

Black

3605F194−80

Plate, Backing

7403P172−60

Switch, Selector

7404P049−60

Thermostat, Oven

7101P077−60

Screw

3605F164−51

Plate, Conduit

7101P376−60

Screw

7101P287−60

Screw

8008P004−60

Grommet

18 Switch, Rocker

7403P842−60

White

7403P841−60

Black

OPTIONAL PARTS

For Models: CWE4100ACB10, CWE4100ACE10

(Black) (White)

W10250556

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72032 Black

PAINT, SPRAY

350930 White

830864 Black

WIRING HARNESS PARTS

W10212891

Harness, Main

Miscellaneous

W10123240

Pan,

Porcelain Broiler

4396096RB

Griddle, Gourmet

4378577 Stone,

Brick Baking

31605 Kit,

Cooktop Care

31552 Degreaser,

Heavy Duty

31682 Cleaner,

Appliance
