Maxview COMBO/50 Instructions de montage

Installation & User Instructions

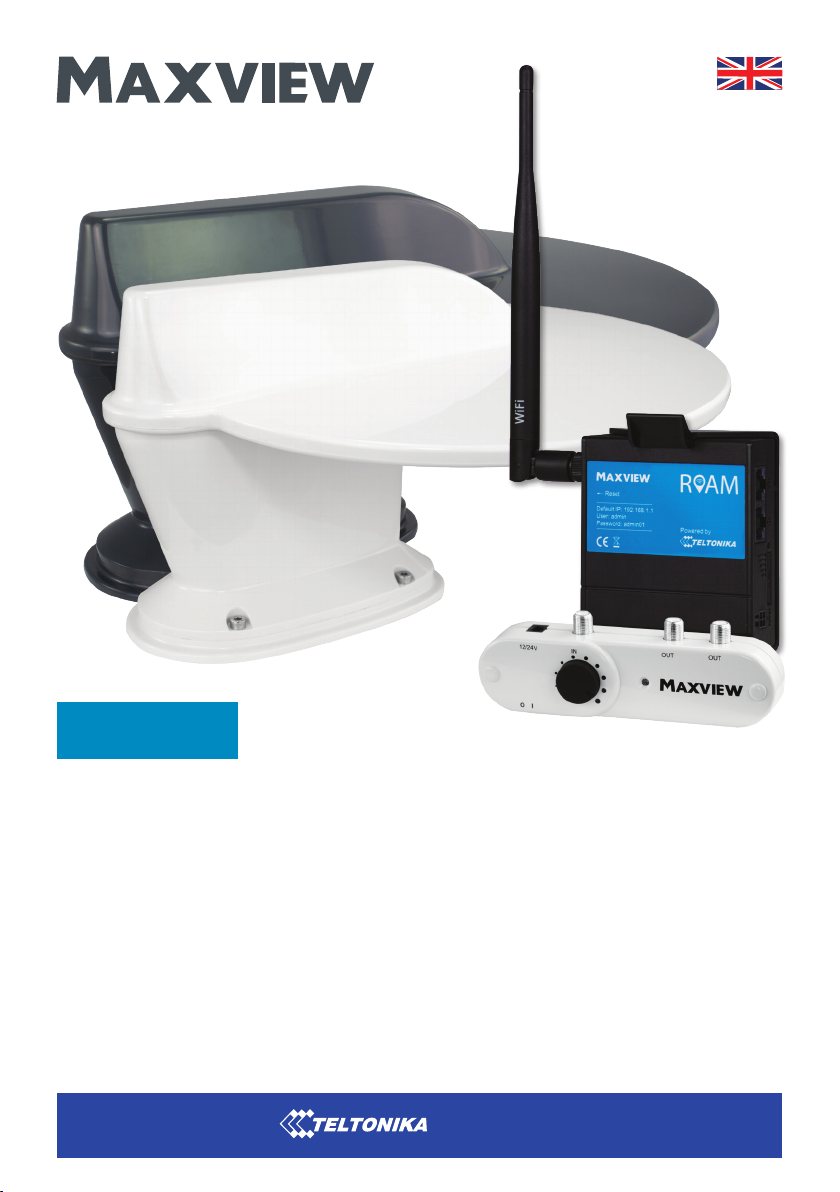

COMBO/50

UK contact:

Helpline: +44 (0)1553 811000

Email: suppor[email protected]o.uk

Web: www.maxview.co.uk

Maxview reserve the right to change specifications without prior notice

9111457 Iss 1

Roam Combo

We have partnered up with one of the largest

suppliers of Wi-Fi products worldwide.

Roam Combo Combo Powered by

This manual provides information on how to control the Roam Combo Router using your

devices internet browser. Most of these functions can be completed easier and faster

using the Maxview Roam Combo App. See the Roam Combo App instruction manual for

Maxview Address:

Maxview Ltd, Garage Lane, Setchey, King’s Lynn, Norfolk. PE33 0AT. UK

Contents

Record your Purchase

Please fill in the details below once purchased. This information will be required in the unlikely event of a fault

occurring with this system.

SERIAL NUMBER

2. Record your Purchase

3. Product Contents

3. Tools Required

3. Choosing a Service Provider

4. Accessories

Installation Instructions

5. Antenna Installation

8. Signal Booster Installation

12. Inserting Sim Card

13. Router Installation

Router - Getting Connected and Basic Functions

16. Get to know your Router

17. Getting Online

19. Factory Reset

Router - Advanced Functions and Changing Router

Settings

21. Connecting to the Web User Interface

23. Logging out of the Web User Interface

Router - Changing the Primary Internet Source

from 3G/4G to Wi-Fi

25. Changing the Primary Source

28. Changing the Routers LAN IP Address

Router - Other Functions

30. Managing and Removing Wi-Fi Connections

30. Changing Wi-Fi SSID (name) and Password

32. Entering SIM PIN

33. Controlling Data Usage & Other Functions

34. Router Firmware Update

Additional Information

35. General Safety Warnings

35. Terms and Conditions

36. Maintenance

36. Troubleshooting & FAQ’s - For Internet with Router

40. Troubleshooting & FAQ’s - For TV with Signal Booster

41. 2 year Guarantee

42. Environment

43. Specifications

44. Certification

Introduction

Thank you for purchasing this product, should you have any difficulty using your

Roam Combo please contact our friendly Customer Helpline on +44 (0)1553 811000 or

email support@maxview.co.uk.

SSID

PASSWORD

See page 16 to see where you can find this information.

Product Contents

A. Antenna Mounting Foot

B. Combo Antenna* with 2 x 0.8m cables with

SMA connectors and 1 x 5m coaxial cable

C. Roof Clamp

D. ‘F’ Connector

E. Fused Power Cable (For Signal Booster)

F. Fixing Screws

G. 1m F to Coaxial Flylead

*White or Grey Plastics

Tools required

- Power Drill

- 2.5mm Drill Bit

- Pozidrive (No.2) Screwdriver

- Cross Head Screwdriver

Choosing a Service Provider

To use the Maxview Roam Combo, you will need a suitable data SIM card (sold separately).

The Maxview Roam Combo is unlocked, so you can use any service provider. The best package

will depend on many factors such as data usage, budget, location of travel and usage habits,

however pre-paid data plans are usually more cost effective.

- File/Emery Paper

- Surface Cleaner

- Knife

- 25mm Hole Saw

- 4mm Allen Key

- Side Cutters

- Hack Saw

H. Signal Booster

I. 1.5m Ethernet Cable

J. 12V Vehicle Power Supply (for Router)

K. Router Bracket

L. 4G/5G Router

M. SIM Adaptor Pack

N. Internal Wi-Fi Antenna

O. Fixing Template

Roam Combo Extension Cables

Extension cables can be purchased separately to

allow a flexible mounting position to the router.

1 metre MXL050/EXT1

2 metres MXL050/EXT2

Accessories -

Sold separately

Roam Combo 230V PSU

230V ac to 12V dc Power Supply Unit

to power a Roam Combo. For indoor use only.

MXL050/PSUUK3 metres MXL050/EXT3

Antenna

Installation Instructions

Mounting Foot

with wet seal and

Clamping Tool

Towards front of vehicle

!Allow the Flexible Adhesive to cure as per the manufacturers guidelines before travel.

Front of

vehicle

X = 2mm

Y = 25mm

Choose a location, ensure the antenna is positioned

on a flat surface and is clear from obstructions.

Use the included template and drill 5 x 2mm holes.

Use hole position (Y) as a pilot hole to drill a larger

25mm hole. Clean up hole, ensuring the location of

the Mounting Foot is clean and clear from debris

and dirt.

Position the Mounting Foot and press down firmly.

Apply sealant generously to the wet seal channel,

ensuring the bead is consistent in size with no gaps.

OPTIONAL - For optimum secure mounting, use the

4 supplied Roof Fixing Screws, to secure the

Mounting Foot to the vehicle roof.

If your roof thickness is between 19-40mm, you

can screw the Foot Clamp into the Mounting Foot

underside to cover the hole inside the vehicle.

Note: The Clamping Tool can

be cut down to suit your

vehicle roof thickness.

Turn anti-clockwise until

tight and secure Foot Clamp

with the Foot Clamp Screw.

Installation of the Mounting Foot is now complete.

19-40mm

Place the Antenna Head Unit onto the Mounting Foot.

Tighten the 4 Foot Mounting Bolts by hand with an

Allen Key.

We recommend the use of a Torque Wrench set to

3.5Nm.

Installing the Antenna Head Unit

Signal Booster (For TV)

Installation Instructions

Cable routing

Route Coaxial Cable (A) inside vehicle to Variable

Signal Booster which should be located near your

TV/Receiver.

Note cable can be shortened to suit application.

Please Note:

When fitting the Signal Booster and Router, there should be as much distance between the

two units as possible. The TV Coax cable and Router SMA cables should also not be routed

next to each other wherever possible. This will reduce the potential for interference between

the two systems.

✗✓

Connections & features

A. 12/24V power input

B. On/off power switch

C. Wall fixing hole

Operation

1. Slide power switch to the right. The LED indicator should now be on.

2. Turn the gain control knob clockwise to increase signal strength.

Power source methods

- 12/24V DC (Fused Power Cable included for 12/24V wiring)

- 12/24V DC PSU Output (230V PSU)

D. Antenna input

E. TV output 1

F. TV output 2

G. Gain control knob

H. Power indicator

Can be mounted to vehicle

shelving or side panels using the

2 screws provided.

Note:

Before drilling always check for

hidden electrical wires or

plumbing.

Mounting Option

Using Signal Booster

OUT OUT

12/24V

ADE

BGH

Fitting F Connector

If you decide to shorten the cable please see below method of preparing cable.

Cut cable to required length. Strip

away 12mm of outer insulation.

Gather strands of screening braid,

twist together and wind back

around outer insulation. Cut foil

to be flush with outer insulation.

Strip away 10mm of inner

insulation around the inner wire.

Check none of the screening braid

is touching the inner copper wire.

Cut off inner copper wire to

extend 3mm beyond plug body.
