Matrix ROM3 Manuel utilisateur

OWNER’S

MANUAL

REHAB SYSTEM

ROM3Rehab System Owner’s Manual

BEFORE YOU BEGIN

Prior to assembling the unit, unpack all of the contents of the box and make sure that all

necessary components are present. Review the contents of the hardware package for

completeness.

To ensure correct assembly of the unit, carefully read and follow all assembly steps.

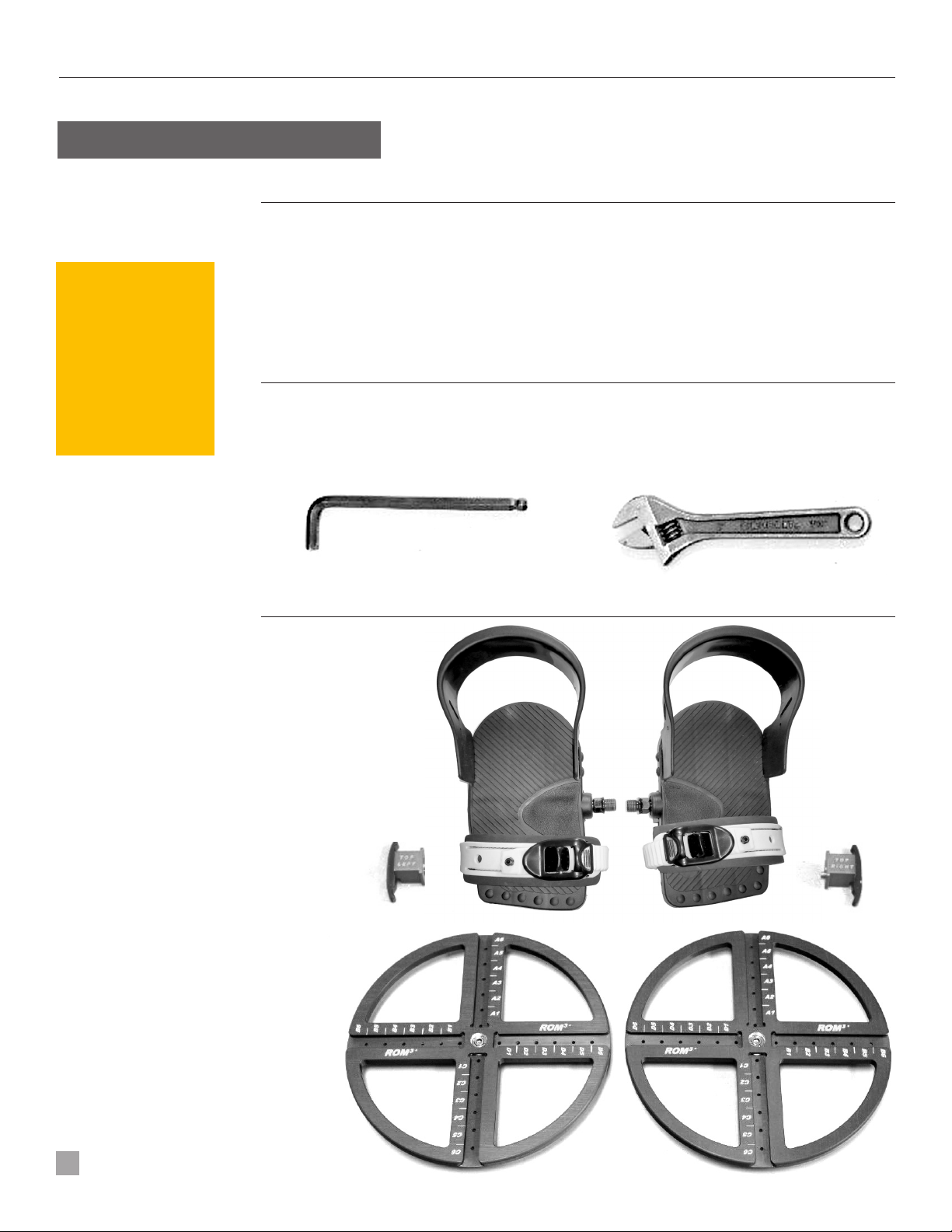

TOOLS REQUIRED

8 mm Allen Wrench Adjustable Wrench

PARTS INCLUDED

• 2 Pedals

• 2 Discs

• 2 Pedal Blocks

(left and right)

Assembly steps and instructions

NEED HELP?

Contact Customer

Tech Support

to report any

missing items.

866-754-7089

left disc

left pedal

right pedal

block

right disc

right pedal

left pedal

block

ROM3Rehab System Owner’s Manual

STEP 1 – Attaching the discs to the bike

a. Place one disc onto the spindle with the “A” channel up

(Fig.1b).

b. Securely tighten it with the 8 mm Allen wrench.

(Clockwise)

c. Place the other disc onto the other spindle with the “A”

channel pointing downward (Fig. 1c).

d. Securely tighten it with the 8 mm Allen wrench.

(Clockwise)

STEP 2 – Attaching the pedals to the pedal blocks

a. Start with the LEFT pedal block.

b. Fit it onto the “A” Channel of the disc with the words

“TOP LEFT” up (see Fig. 2a)

c. Pull the pin release and let the pedal block be secured

into the hole in the channel.

d. Take the LEFT pedal and screw it into the pedal block

COUNTERCLOCKWISE (see Fig. 2b)

e. Take the RIGHT pedal block.

f. Fit it onto the “A” Channel of the disc with the words

“TOP RIGHT” up (see Fig. 2c)

g. Pull the pin release and let the pedal block be secured

into the hole in the channel.

h. Take the RIGHT pedal and screw it into the pedal block

CLOCKWISE (see Fig. 2c).

Assembly is now complete. The bike is now ready

for operation.

spindle

Right Side: “A” Channel up

Screw left pedal into the “TOP LEFT”

pedal block COUNTERCLOCKWISE.

Fit pedal block into the “A” Channel

and pull the pin release to secure.

Screw right pedal into the “TOP

RIGHT” pedal block CLOCKWISE.

Left Side: “A” Channel down

g. 1a g. 1b g. 1c

g. 2a g. 2b g. 2c

ROM3Rehab System Owner’s Manual

Basic usage

Please refer to the cycle Owner’s Manual and the ROM3Protocol regarding use

of the bike.

Technical Information

Table showing the length of the radius in each pedal position.

Pedal Position Radius in Inches Radius in CM

1 1.7 4.3

2 2.7 6.8

3 3.7 9.4

4 4.7 12.0

5 5.7 14.5

6 6.7 17.0

Table showing the rotational distance (circumference) in each pedal position.

Pedal Position

Rotational

Circumference

in Inches

Rotational

Circumference

in Centimeters

1 10.6 27.0

2 16.9 42.7

3 23.2 59.0

4 29.4 75.3

5 35.7 91.0

6 41.9 106.7

Basic operation and usage

Technical

Service Contact

Information

For questions

on patient protocol

and medical matters.

Phone:

866-754-7089

Email:

info@rom3rehab.com
