Mastech Ms6708 Manuel utilisateur

Digital Sound Level Meter

Operating Manual

Contents

I. Preface…………………………………………………1

II. Safety instructions.........................................................1

III. LCD display introduction........................….....…........1

IV. Functional characteristics description.........…...…......2

V. Specifications ……………………………..…..…........2

VI. Preparations before use .............................…….......... 3

VII. Basic usage methods……………………..…..…..….4

VIII. Calibrate sound level meter………………..……….5

IX. Notes…………………………………..…..………….5

I. Preface

Thank you for using our product.

Please read the operating manual carefully before using the

product.

The Sound Level Meter is an instrument used to measure the

ambient sound level, such as sound level around factories,

workshops, schools, residential, offices, road, audio etc. It

also can be appropriate for noise engineering, product

quality control, health prevention and treatment, etc.

II. Safety instructions

Please use according to each specification of sound level

meter.

Operating environment:

● Elevation ＜2000 m

● Relative humidity (RH) ≦80%RH

● Operating temperature 0 - 40°C

Storage and maintenance: Do not use alcohol or other

solvents to clean the meter. If it is not to be used for long

time, remove batteries and keep the meter in a dry and clean

environment.

Safety symbols:

Dual protection is used for the meter.

Comply with CE safety standard.

III. LCD display introduction

Display

symbols

Description

Display

symbols

Description

FAST

High speed

OVER

Over flow

SLOW

Low speed

A weighting

mode

HOLD

Keep

C weighting

mode

UNDER

Below

Decibel

MAX

Maximum

SONE

Sound unit

(sone)

MIN

Minimum

Battery power

IV. Functional characteristics description

● This sound level meter complies with IEC651 Type 2 and

ANSI S1.4 Type 2.

● With the measuring scope from 30 to 130 dB and

automatic shifting function

● A and C weighting network selection

● High speed (FAST)/Low speed (SLOW) response rate

selection

● Maximum (MAX) locking function

●Digital display, good anti-interference performance, power

saving

● With the backlight feature, it is appropriate for gathering

the sound data at night. To save power, backlight auto power

off function is provided.

● Composite material injection molding process is adopted

for casing with anti-drop structure design. It is not only

extremely wear-resisting, but also elegant.

● With power saving and high-reliability circuit design,

well-designed high-efficiency power supply circuit makes

the batteries more durable.

V. Specifications

● Sound pressure accuracy: ± 1.5 dB (sound pressure

standard, 94 dB @ 1KHz).

● Sound pressure accuracy: ±5 dB (sound pressure standard,

94 dB @ 8KHz).

● Sound pressure frequency response: 30Hz - 8KHz.

● Dynamic range of sound pressure: 50 dB (for each

measurement gear level).

● Sound pressure measurement scope: 30-130 dBA, 35-130

dBC.

● Sound pressure frequency weighting characteristics: A and

C characteristics.

● Dynamic characteristic of sound pressure: FAST 125ms,

SLOW 1sec

● Microphone: polarized capacitive microphone.

●Digital display: 4-digit, resolution: 0.1 dB, sampling rate:

2 times/sec.

● Analog bar display: Each analog bar represents 1 dB,

sampling rate is 20 times/sec.

● Measurement gear level: 30-80 dB, 40-90 dB, 50-100 dB,

60—110 dB, 70—120 dB, 80-130 dB, 6 gear levels in total.

● Automatic shifting gear level: microcomputer will

automatically select the best gear level in the range from 30

to 130 dB.

● Below or above limit prompt: indicated with “UNDER” or

“OVER” display.

● Power supply: 4 x 7th batteries of 1.5V each

● Operating temperature: 0 ~+ 40 °C

● Operating temperature: 10 ~80％RH

●Storage temperature: - 10 ~+ 60 °C

● Storage humidity: 10 ~70％RH

● Outside measurement: 193 (L) × 60(W) × 29 (H) mm

● Weight: about 222 g (including batteries)

● Accessories: Headphone plug, operating manual, batteries,

cotton ball

VI. Preparations before use

1. Use cross screwdriver to open the battery cover on the

back of the meter, and install 4 7th alkaline batteries of 1.5V

each to the battery holder.

2. Return the battery cover and use cross screwdriver to

tighten screw.

3. When the battery is aging, “ ” symbol will appear on

the LCD display, indicating that batteries don’t have enough

power to use, and should be replaced with new ones.

VII. Basic usage methods

1. Press the power switch, the default measurement gear

level of LCD display microprocessor is 40~90 dB. And the

measured onsite sound level will display within this range. If

one of the “UNDER” or “OVER” characters displays on the

LCD, it means that onsite sound is either lower or higher

than the limit range of 40 ~ 90 dB. At this time, the

measurement value is not accurate, you should click Up and

Down key to set the measurement gear level of the

instrument to get accurate measurement value.

2. Setting measurement gear level:

Press the Level▲ or ▼ keys to select appropriate gear level

to measure the current sound level, when the “UNDER”

character appears, it means that the gear level of the

instrument is too high. You should press Level▼ to set a

lower gear level until the “UNDER” character disappears.

When the “OVER” character appears, it means that the gear

level of the instrument is too low. You should press Level▲

to set a lower gear level until the “OVER” character

disappears.

3. Selecting the weighting mode:

To measure the sound level within the human audible range,

select A weighting mode (simulate the hearing

characteristics of human ears) mode, press the A/C key, click

to select A, click again C. To measure the actual sound level,

select C weighting mode.

4. To read real-time sound level, select FAST (high speed).

To obtain the average sound level, select SLOW (low speed).

Press FAST/SLOW key to select FAST or SLOW.

5. To obtain the maximum sound level, press “MAX”

function key and you can read the maximum sound level

reading value, press MAX key again to return to the normal

measurement mode.

6. To light up the backlight of LCD when measuring at night,

press key.

VIII. Calibrate sound level meter

If the sound level meter is used for too many days, the

measurement accuracy will reduce. At this time, the sound

level meter should be calibrated. Usually it should be

calibrated once a year. Standard sound source is required for

calibration. Please contact our company for specific method.

IX. Notes

1. Do not use the meter in hot, humid environment.

2. If the meter is not to be used for a long time, remove the

batteries to avoid electrolyte leakage damaging the

instrument.

3. Auto gear level (30-130 dB) is not suitable for measuring

transient impact noise.

4. When you measure sound level outside, anti-wind ball

should be installed on the microphone head to avoid blowing

directly into the microphone and generating airflow noise.

5. If “”symbol displays on the LCD, it means that the

battery voltage is too low. You should immediately replace

batteries. It is recommended that you use alkaline batteries.

Table des matières

Autres manuels Mastech Instrument de mesure

Mastech

Mastech MS2001 Instructions de montage

Mastech

Mastech MS2203 Manuel utilisateur

Mastech

Mastech MS2600 Manuel utilisateur

Mastech

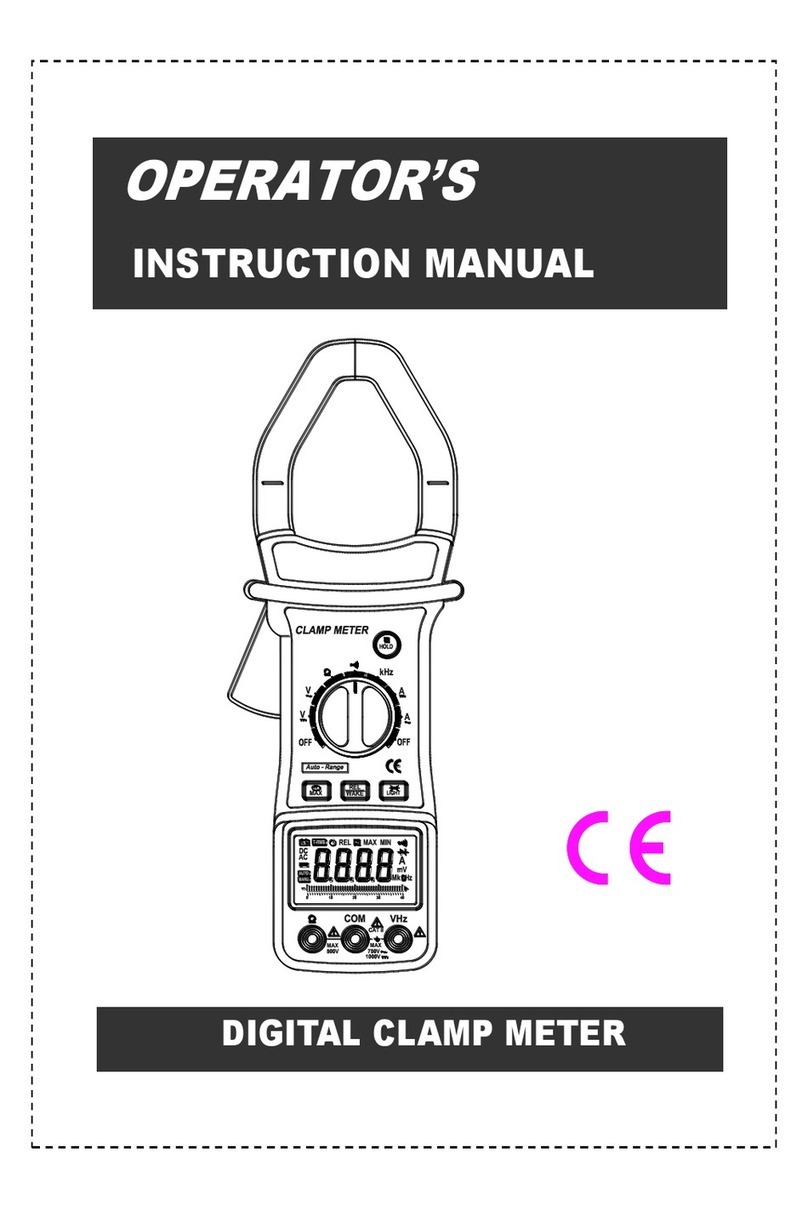

Mastech MS2000R Instructions de montage
