Marshall Electronics V-LCD173HR Manuel utilisateur

Broadcast A/V Division

V-LCD173HR

___________________________________________________________________________________

17.3” Professional LCD Rack Mount / Desktop Monitor

USER MANUAL

V-LCD173HR Manual

Marshall V-LCD173HR 2

Table of Contents

1. Introduction, Installation, and Setup.......................................................................................……………..…….....3

2. Panel Features........................................................................................................................…………..………....3

3. Navigation Main Menu……………………………….........................................……….……………..........................5

3.1 Main Menu……………….…………………………………………………..……………...…………………………5

3.2 Video Configuration……………….………………………………………………….…………………….…………5

3.3 Marker Configuration………………………………………………………..……….………….………………….…6

3.4 Display Configuration………………………………………………………….……………………….……………..7

3.5 Function Configuration………………………………………………………………………….…….…………..…..8

3.6 Audio Configuration………………………………………………………………………………………….……..…9

3.7 System Configuration…………………………………………………………………………………….………..….9

4. Specifications………………………………………………………………………………………………………….…...10

5. Dimensions…………....................................................................................……………………............................13

6. Monitor Care…………………………………………………………………………………………………………..……13

7. Warranty...............................................................................................................................………………..….....14

IMPORTANT SAFETY INSTRUCTIONS:

The V-LCD173HR 17.3” LCD Monitor has been tested for conformance to safety regulations and requirements

and has been certified for international use. However, like all electronic equipment, the V-LCD173HR should be

used with care. Please readandfollow the safetyinstructions toprotect yourself from possible injuryandto minimize

the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.

• Do not attempt to service this unit yourself, except where explained in this manual.

• Provide proper ventilation and air circulation and do not use near water.

• Keep objects that might damage the device and assure that the placement of this unit is on a stable surface.

• Use only the power adapter and power cords and connection cables designed for this unit.

• Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning.

V-LCD173HR Manual

Marshall V-LCD173HR 3

1. Introduction, Installation and Setup ______________________________________________

■Introduction and Installation

The V-LCD173HR 17.3” LCD Monitor can be mounted in any standard EIA 19” equipment rack. The attached rack ears can

be angled to provide the user control over the viewing angle. Adequate ventilation is required when installed to prevent possible

damage to the monitor’s internal components. Both VESA standard 75mm and 100mm hole pattern allow for custom mounting

installations.

■Package Contents

• 1x V-LCD173HR 17.3” LCD Monitor

• 1x DC Adapter

• 1x TALLY Connector

NOT INCLUDED:

• Optional Marshall “V-ST15” base mount for desktop use

• (4) M4 screws needed to install “V-ST15” base mount

■Connections, Power-On, and Initial Setup

Plug the power supply into an AC power source. Attach the power connector to the back of the monitor. Connect the required

cables for video signal input and output. (Power must be supplied to the V-LCD173HR to activate the loop-though output.) The

monitor defaults to ‘ON’ when power is supplied. Choose the desired signal source by selecting the “SDI”, “HDMI” or “VIDEO”

button on the front bezel.

2. Panel Features _____________________________________________________________

Top and Front Panel Features

1 – Rack Mount Ears: Use rack mount ears to mount 6RU

racks or other display applications.

5 – Video Buttons: Indicator lights up when signal

switches to VIDEO state.

2 – SDI Button: Indicator lights up when signal switches to

SDI state.

6 – Menu Navigation Knob: Turn first for Volume,

Brightness, etc or press first for Main Menu.

V-LCD173HR Manual

Marshall V-LCD173HR 4

3 – HDMI Button: Indicator lights up when signal switches

to HDMI state.

7 – Headphone Jack: Standard 3.5mm stereo mini-

phone plug can be used.

4 – User-Definable Function Buttons: Functions can be

customized by pressing any User button for 3-5 seconds.

These user-definable function buttons are assigned using

the on-screen direct access menu.

Default User Function Options:

F1: Aspect Ratio F2: Histogram F3: False Color

8 – Power Button: Use the power button to switch the

screen ON and OFF.

Rear Panel Features

1 – USB Interface: Only for program upgrades. NOT to be

used for non-professional use.

5 – Analog Audio “RCA” Connectors: Left and right

audio inputs are active when “Video” is selected as the

video source. This audio may be monitored at the

headphone jack connection.

2 – Tally Input Connector: The LED tally can be

activated by connecting the corresponding pin to ground.

A variety of external devices can be used to perform the

contact closure. No additional power should be supplied to

the HD-15 port. See pinout guide next to connector.

6 – HDMI Digital Video Connectors: HDMI video input

and loop output. Embedded audio may be monitored at

the headphone jack connection and visually monitored

on-screen.

3 – Serial Digital “BNC” Connectors: SDI input and loop

output are compatible with SDI, HDSDI and 3GSDI inputs.

Embedded audio may be monitored at the headphone jack

connection and visually monitored on-screen.

7 – 4-Pin Power Connector:

To be used with 12-volt power supplies only.

Caution: 24 volts 4-pin power supplies are NOT

compatible with this monitor. Please check label on

the power supply before connecting.

4 – Composite Analog “BNC” Connectors: Video input

and loop output are used for NTSC or PAL composite

(CVBS) video sources.

8 – VESA 75mm and 100mm Hole Patterns: VESA-

standard hole-patterns (75mm and 100mm) are

provided to accommodate a variety of custom

mounting options.

V-LCD173HR Manual

Marshall V-LCD173HR 5

3. Navigation Menu_____________________________________________________________

Main Menu: Push the MENU control button on the monitor to adjust the function configurations. To change configurations,

select a configuration from the main menu by turning the knob and pressing the menu button once to select. Edit configuration

by turning knob to change levels, then press menu button again to confirm the changes. Repeat with each selection as

needed.

3.1 Main Menu Navigation

Press the MENU knob on the monitor and function menus will pop-up on the screen. Rotate left or right

to select an option. Then press the knob again to open the selection. When an arrow pointer appears in

the menu, turn the Menu knob again to access the item or to confirm a selection.

3.2 Video Configuration Submenu

ITEMS

OPTIONS

Video Configuration

Exit

Brightness

0 – 100 (50 is default)

Contrast

0 – 100 (50 is default)

Saturation

0 – 100 (50 is default)

Sharpness

0 – 100 (0 is default)

Color Temp (White Bal)

6500K, 7300K, 9300K, User

V-LCD173HR Manual

Marshall V-LCD173HR 6

Color Temp R

0 – 255

Note: These three items

appear when “User” mode

is selected.

Color Temp G

0 – 255

Color Temp B

0 – 255

■ Brightness

The Brightness level ranges from 0 to 100.

■ Contrast

The Contrast level ranges from 0 to 100.

■ Saturation

The Saturation level ranges from 0 to 100.

■ Sharpness

The Sharpness level ranges from 0 to 100.

■ Color Temp

Choose one of three color temperature presets (6500K, 7300K or 9300K) or define the color with the USER mode.

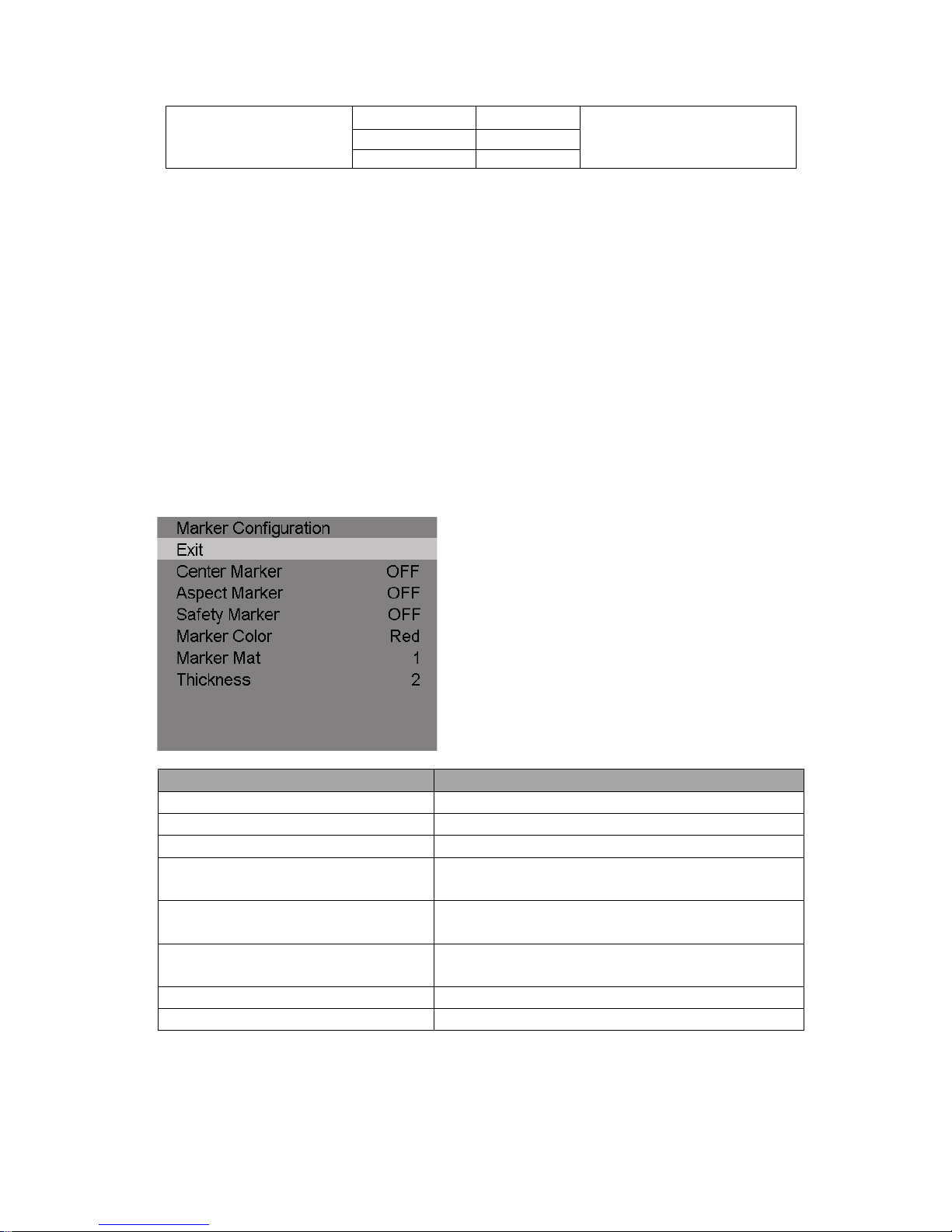

3.3 Marker Configuration Submenu

■Marker Enable

Turn ‘ON’ to display a Marker Enable on the screen.

■ Center Marker

Turn ‘ON’ to display a Center Marker on the screen.

ITEMS

OPTIONS

Marker Configuration

Exit

Center Marker

OFF, ON (OFF is default)

Aspect Marker

OFF, 4:3, 14:9, 13:9, 15:9, 1.85:1, 2.35:1

(OFF is default)

Safety Marker

OFF, 95%, 93%, 90%, 88%, 85%, 80% (OFF

is default)

Marker Color

Red, Green, Blue, White, Black (Red is

default)

Marker Mat (background)

OFF, 1– 7 (1 is default)

Thickness

1, 2, 3, 4, 5, 6, 7 (2 is default)

V-LCD173HR Manual

Marshall V-LCD173HR 7

■ Aspect Marker

Set the Aspect Marker on the screen. Options: OFF, 4:3, 14:9, 13:9, 15:9, 1.85:1, 2.35:1.

■ Safety Marker

Use this to superimpose one of 6 Safety Markers on the screen. Options: OFF, 95%, 93%, 90%, 88%, 85%, 80%.

■ Marker Color

Choose from 5 Marker Colors: Red, Green, Blue, White, or Black.

■ Marker Mat (marker background)

Choose the Marker Mat transparency. Options: OFF,1-7.

■ Thickness

Choose the Marker Line Thickness ranging from 1 to 7.

3.4 Display Configuration Submenu

ITEMS

OPTIONS

Display Configuration

Exit

Aspect Ratio

16:9, 4:3 (16:9 is default)

Check Field

OFF, Mono, Red, Green, Blue (OFF is default)

Scan

Full Screen, Overscan, Underscan, Pixel-to-Pixel

(Full Screen is default)

Image Flip

OFF, H, V, H/V (OFF is default)

Freeze Input

OFF, ON (OFF is default)

■ Aspect Ratio

Option to switch between 16:9 and 4:3 Aspect Ratio.

■ Check Field

Use these modes for monitor calibration or for individual color component image analysis. In Monochrome mode, color

is disabled and grayscale image is shown. In Blue, Green, and Red Check Field modes, only the selected color is shown.

■ Scan

Use to enable the Scan mode. Options: Full screen, Overscan, Underscan, Pixel-to-Pixel.

■ Image Flip

Select to enable Image Flip mode. Options: OFF, H (Horizontal), V (Vertical), H/V (Horizontal and Vertical).

V-LCD173HR Manual

Marshall V-LCD173HR 8

■Freeze Input

Turn ‘ON’ to enable Freeze Input mode. A still image will remain on the screen until Freeze is turned off or power is

removed from the monitor.

3.5 Function Configuration Submenu

ITEMS

OPTIONS

Function Configuration

Exit

Peaking

OFF, ON (OFF is default)

Peaking Color

Red, Green, Blue, White, Black (Red is default)

Peaking Level

0 – 100 (50 is default) Note: This option is

disabled when Peaking is set to OFF.

False Color

OFF, ON (OFF is default)

Exposure

ON, OFF (OFF is default)

Exposure Level

0 – 100 (15 is default) Note: This option is

disabled when Exposure is set to OFF.

Histogram

OFF, Y, RGB, Color (Y is default)

DSLR Scale

OFF, ON (Available for HDMI input only.)

■ Peaking

Turn ‘ON’ to enable Peaking mode.

■ Peaking Color

When Peaking Mode is enabled, the monitor will add color to sharply defined edges and objects in an image. This is

intended as a tool to aid in judging sharp camera focus. When a camera is adjusted for best focus, the object of interest

will have colored edges. Choose from 5 Peaking Colors: Red, Green, Blue, White, or Black. Normally, this function is

turned on only as long as needed for focus adjustment and then turned off for normal monitor operation.

■ Peaking Level

The Peaking Level ranges from 0 to 100.

■ False Color

Turn ‘ON’ to enable False Color mode. When this is on, the picture will have colors added based on video level. It is

useful to make a quick check to see if level exceed normal black and white limits or to make a comparison between one

scene or lighting situation and another.

V-LCD173HR Manual

Marshall V-LCD173HR 9

■ Exposure

Turn ‘ON’ to enable Exposure Level mode.

■ Exposure Level

The Exposure Level setting ranges from 0 to 100. This function mimics the “zebra pattern” display that is often used in

many camera viewfinders. It provides a quick check for proper camera exposure. When it is turned ON, diagonal lines

will appear in the image areas where the brightness matches the level Exposure Level setting. This is useful when a

camera angle has been changed and it is important to keep certain objects at the same brightness. On a typical video

scale of 0 – 100, the Exposure number relation is shown in the table below. That is, “zebra patterns” appearing on the

image indicates that the area covered by the zebra pattern matches or exceeds the selected video level.

EXPOSURE

LEVEL NUMBER

APPROXIMATE

VIDEO LEVEL

100%

90%

80%

100

70%

■ Histogram

Use to enable the Histogram mode. Options: OFF, Y (shown), RGB (with color), Color (RGB colors individually shown).

The Histogram display is similar to displays used in DSLR cameras and desktop color processing applications. It

provides a graphic representation of the amount of dark, mid and light tones in an image. It is useful for comparing the

average “balance” between different “real” images, not test patterns.

■ DSLR SCALE (HDMI Input Only)

Turn ‘ON’ to enable DSLR Scale mode.

3.6 Audio Configuration Submenu

ITEMS

OPTIONS

Function Configuration

Exit

Audio

0 – 100 (50 is default)

■Audio

The Audio level ranges from 0 to 100.

3.7 System Configuration Submenu

V-LCD173HR Manual

Marshall V-LCD173HR 10

ITEMS

OPTIONS

System Configuration

Exit

Language

English, Chinese (English as default)

HDMI/SDI Convert

OFF, ON (OFF as default)

Menu Timer

10s, 20s, 30s (10s as default)

Back Light

0 – 100 (100 as default)

Reset

OFF, ON

ISP

Firmware Version

V3.3

■ Language

Choose Language: English or Chinese.

■ HDMI/SDI Convert

Turn ‘ON’ to enable HDMI/SDI Convert mode.

■ Menu Timer

The menu timer level ranges from10s, 20s, 30s.

■ Back Light

The Back Light level ranges from 0 to 100. Back Light adjustment is commonly used to

compensate for ambient light levels in the viewing environment and is preferred over using

Contrast and Brightness for this.

■ Reset

Turn ‘ON’ to enable reset mode.

■ISP

ISP is for service use only.

■Firmware Version

Display firmware version (V3.3 at the time this manual was prepared).

4. Specifications_______________________________________________________________

Model Name

V-LCD173HR

Role of Usage

17.3” LCD Monitor

Table des matières

Autres manuels Marshall Electronics Moniteur

Marshall Electronics

Marshall Electronics V-R231-IMD-HDSDI Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R102DP-2SDI Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R53P Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R151-4P Manuel utilisateur

Marshall Electronics

Marshall Electronics V-RD151-4 Manuel utilisateur

Marshall Electronics

Marshall Electronics V-LCD70P-HDA Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R104DP-HDA Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R104DP-HD Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R151P Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R573P Manuel utilisateur

Marshall Electronics

Marshall Electronics V-MD503 Manuel utilisateur

Marshall Electronics

Marshall Electronics V-LCD70P-HDMI Manuel utilisateur

Marshall Electronics

Marshall Electronics QVW-2710 Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R151PV-R151P Manuel utilisateur

Marshall Electronics

Marshall Electronics QVW-1708 Manuel utilisateur

Marshall Electronics

Marshall Electronics V-LCD70P-3GSDI Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R1042DP-TE4U Manuel utilisateur

Marshall Electronics

Marshall Electronics V-LCD101MD Manuel utilisateur

Marshall Electronics

Marshall Electronics M-CT6 Manuel utilisateur

Marshall Electronics

Marshall Electronics M-Lynx-10 Manuel utilisateur

Marshall Electronics

Marshall Electronics V-R82DP-SD Manuel utilisateur

Marshall Electronics

Marshall Electronics Dual 10.4-inch LCD Rack Mounted Monitor... Manuel utilisateur

Marshall Electronics

Marshall Electronics V-LCD50-HDMI Manuel utilisateur

Marshall Electronics

Marshall Electronics 8.4-inch TFT/LCD Monitor V-R84DP-SD Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
