Dimensions and conguration options
32
markilux 710 / 810
Operation
manual operation; handle with bayonet tting ●
manual operation from inside the building ○
manual operation from the rear ○
hard-wired motor ○
radio-controlled motor ○*
Covers
sunsilk snc (fabric series 324xx/329xx) ●1
sunsilk snc signature (fabric series 369xx) ●1
acrylic 34 (fabric series 341xx-347xx) ●2
widely woven acrylic (fabric series 349xx) ●3
sunsilk perla FR (fabric series 374xx/379xx) ○4
perfotex (fabric series 333xx) ●2
transolair (fabric series 339xx) ●5
Soltis 92 ○6
Miscellaneous
light and wind sensor ○
cover proles for gap between tracks and cover –
wedge-in accro bars –
markilux PVC windows –
Coupled units
coupled unit, 2 elds ○
coupled unit, 3 elds –
● = standard specication
○ = optional accessories
– = not available
○* = radio-controlled motor using 433 MHz technology
●1= in the case of the markilux 710 the maximum unit height is 300 cm
●2= in the case of the markilux 710 the maximum unit height is 250 cm
●3= from an overall width of 329 cm and a unit height of 316 cm with
horizontal seam
○4= in the case of the markilux 710 the maximum unit height is 250 cm
●5= cover seamless, from an awning width of 261 cm and a unit height of 248
cm with horizontal seam.
○6= cover seamless, from an awning width of 186 cm and a unit height of 173
cm with horizontal seam
Frame colours
trafc white - RAL 9016 ●
white aluminium - RAL 9006 ●
grey brown - similar to RAL 8019 ●
non-standard powder-coated nish ○
The width of the awning cover is always less than the width of the awning.
Coupled units on request.
Standard manual operation with bayonet tting and universal joint made of
stainless steel is operated from outside the building (winding handle lengths 110,
140, 160, 180 or 220 cm).
Manual interior operation with universal joint: this operation type requires exact
xture, usually means high (labour) costs for the end consumer and can only be
employed on single units. We therefore recommend the use of a radio-controlled
motor.
Manual operation using a universal joint and from the rear: This operation type
should be used in installations when the system can be approached from the rear
(e.g. on balconies).
In the case of manual operation it takes approximately 24 turns per metre of
overall unit height to extend the system.
Extension when using a motor takes approximately 15 seconds per metre.
N.B.! If the motor is used continuously it will stop automatically after 3 to 4
minutes to prevent overheating.
In the case of a bank of awnings operating simultaneously, the same speed of
rotation of the motors cannot be guaranteed because of tolerances within the
motors themselves.
If a number of single blinds are to be installed next to one another there must be
a distance of at least 25 mm between the blinds in the case of the markilux 710
and 30 mm in the case of the markilux 810.
If coupled blinds are tted into a recess or reveal the overall width of the coupled
awning must be at least 6 cm less than the width of the opening to allow the
awning to be coupled. Make a special note if an awning is to be tted into a recess
or reveal and note the recess/reveal dimensions separately on the order.
Coupled units are only available with motor (surcharge)
Maximum width of coupled units: 2 x 500 cm
= available, 3 brackets per cassette
= available, 2 brackets per cassette
blind width minimum
width
unit
height
75 100 125 150 175 200 225 250 275 300 325 350 375 400 425 450 475 500
hard-wired
motor
radio-
controlled
motor
71-75 76-100 101-125 126-150 151-175 176-200 201-225 226-250 251-275 276-300 301-325 326-350 351-375 376-400 401-425 426-450 451-475 476-500
120
75 74
160
200
250
300
350
dimensions in cm
Colours similar to the RAL chart - these may differ slightly from those depicted in
both hue and nish.

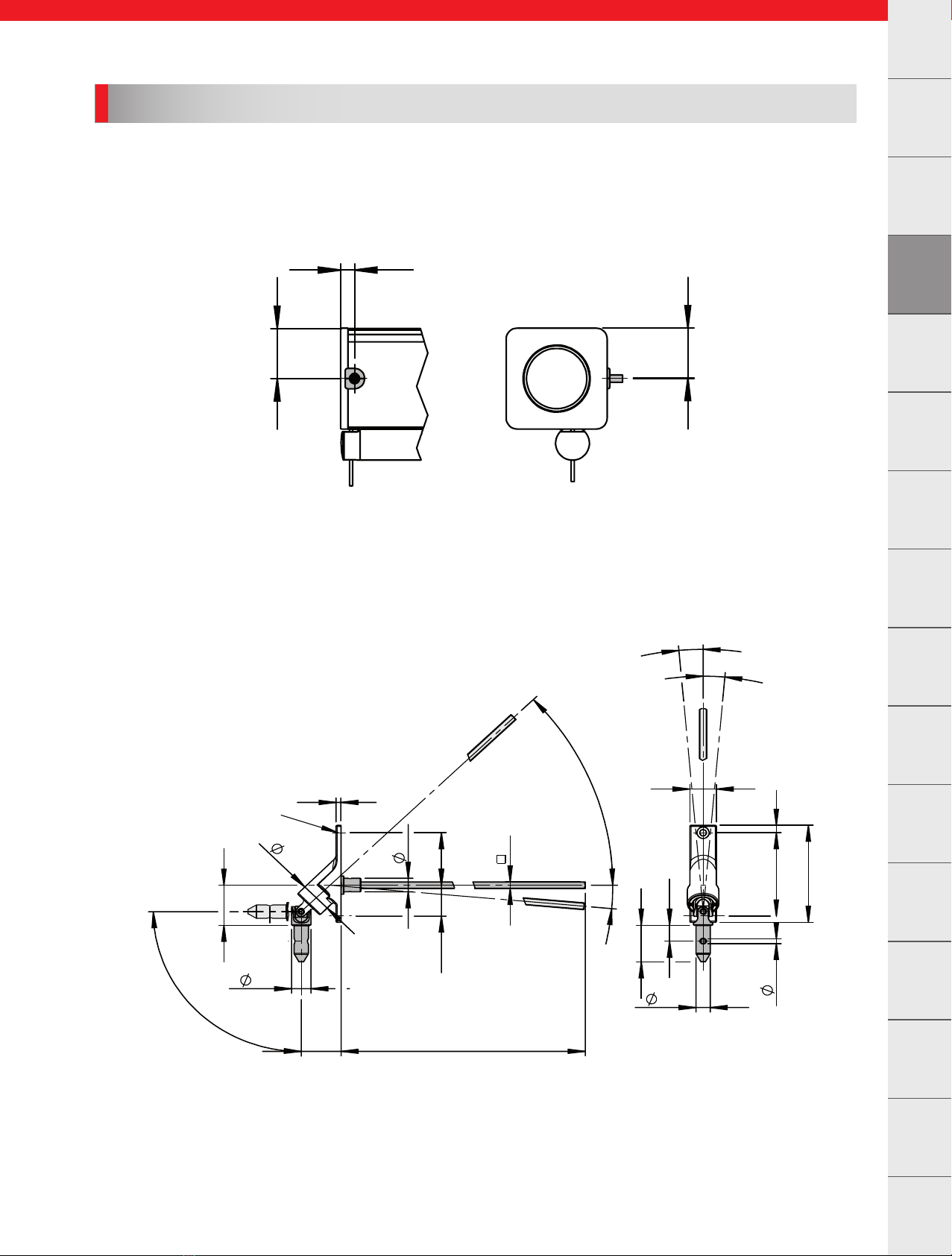

Housing tolerances / Awning cover dimensions Width unit
height
housing tolerance +5 / -10
awning cover width = width less 80
blind/awning cover length = unit height ±0
dimensions in mm
