HI-SPEED USB TO
SATA /IDE ADAPTER
USER MANUAL
MODEL 179195
MAN-179195-UM-0313-09
manhattan-products.com
2
INTRODUCTION
Thank you for purchasing the Manhattan®Hi-Speed USB to SATA/IDE Adapter,
Model 179195.
This convenient device connects SATA, SATA-enhanced, IDE and enhanced-IDE
hard disks to desktop and notebook computers using a USB port. And with its
convenient built-in, one-touch copy feature, you can more easily transfer, share
and back up les or store large le archives on external drives.
By following the instructions in this user manual, you’ll soon be enjoying these
popular features:
• Supports data transfer SATA speeds up to 1.5 Gbps and Hi-Speed USB speeds
up to 480 Mbps
• Supports 48-bit LBA (Logical Block Addressing)
• Fits external SATA and IDE hard drives up to 5.25”
• Plug and Play – Windows, Mac and Linux compatible and hot-swappable
• Lifetime Warranty (For a complete list of country-specic warranties, go to
manhattan-products.com/warranty.)
System Requirements
• Available USB type-A port
• Windows XP/Vista/7

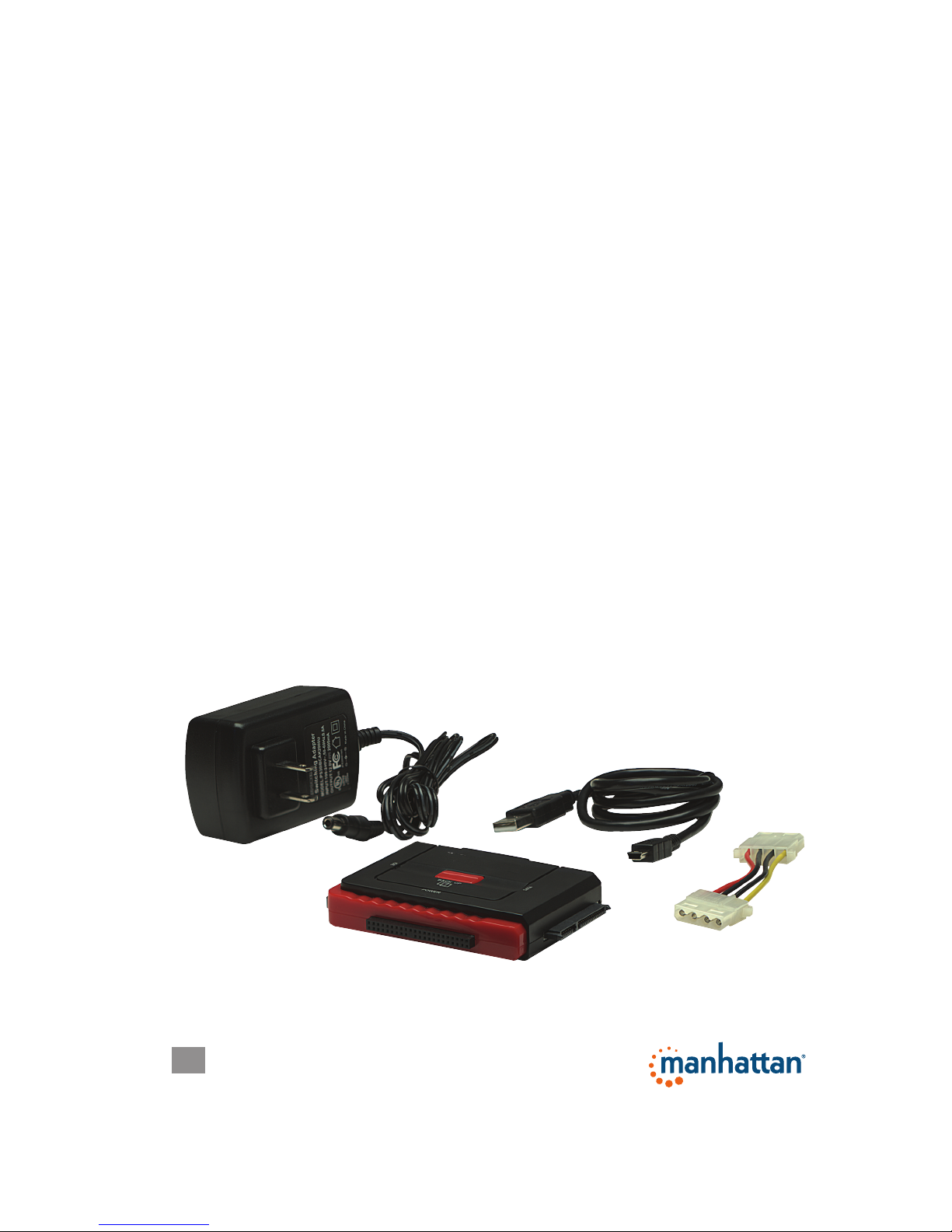

Package Contents
• Hi-Speed USB to SATA/IDE Adapter
• USB cable, 80 cm (31.5 in.)
• 4-pin power cable, 10 cm (4 in.)
• Power adapter, 1.5 m (59 in.)
• Software CD with user manual; multilanguage quick install guide
USB cable
4-pin power cable
Power adapter
3
HARDWARE INSTALLATION
1. Always connect the Hi-Speed USB to SATA/IDE Adapter to the HDD port rst,
then to the computer’s USB port. NOTE: If using the included 4-pin internal
power cable instead, turn off the PC before connecting. Windows will detect a
new device and automatically install the driver.
2. To verify the connection, go to Start / Control Panel / Device Manager. Open
“Hard disk controllers” to display the newly added hard disk drive.
3. If connecting to a new hard disk drive, use Device Manager or enter the
command <diskpart> to initialize and set its capacity. Format the HDD using
standard procedures. If its icon appears on the desktop but you can’t nd it
listed, check the following:
• The HDD has been properly installed; and
• The HDD is set in the Master position.
SOFTWARE INSTALLATION
These steps are for the installation of the convenient one-touch backup software.
NOTE: This software doesn’t support Mac operating systems. Some images may
look different on your computer, as your software version may be slightly different
than the one represented here.
1. Load the included software CD. The PC Clone EX setup wizard’s Welcome
screen will display automatically. Click “Install” to continue.
4
2. When the License and Warranty Agreement displays, click “Agree” to continue.
3. Enter the desired pathway for the installation or click “Browse” to nd a current
folder. Click “Install” to continue.
4. The nal Setup screen will display a progress status bar. When nished, the
wizard will display an “Install complete!” message. Click “OK” to exit the wizard.
Install Complete!
5
5. The PC Clone EX icon will appear in the system tray. To open the program, you
can double-click the icon or right-click to display the menu option for selection.
CREATING PARTITIONS
NOTE: If the hard drive you have placed in the enclosure (the drive that you are
copying data to) has already been partitioned, you can proceed to the next section.
1.
With the adapter plugged into a USB port on your computer and powered
on (see
Hardware Installation above), right-click My Computer on your desktop and go
to Manage. (Or go to Start / Control Panel / Administrative Tools / Computer
Management.)
6
2. In the left-hand le directory, click/select “Disk Management” so its screen
displays on the right. Right-click on the disk identied as “Unallocated,” then
click/select “New Partition...” from the pop-up menu. NOTE: To conrm that the
drive you’ve placed in the enclosure is indeed the unallocated disk, disconnect
the USB cable and see if the corresponding “Unallocated” text disappears.
3. With the Format Partition screen displayed, select your preferred settings, then
click “Next” to continue.
7
OPTION: An alternative pathway for accessing the formatting options is through
Start on your desktop, then All Programs / PCCloneEX / FNet FAT32 Format. The
formatting details and instructions will appear on the screens that display.
FAT32 FORMAT UTILITY
With the increases in drive capacities, the FAT32 Format Utility in older operating
systems is unable to support data transfers in excess of 32 GB. The solution is
to use the FNet formatting utility on the enclosed CD, which can quickly format a
disk for as much as 4 TB (4,000 GB). Note that all data already on the disk will be
deleted.
1.
Connect the HDD to the adapter and turn on the computer.
2. Open PC Clone EX and select Visit FNet.
Show PCClone EX
Visit FNet
8
3. Conrm that the elds for USB Device and Drive to Format display your
preferences and click Start.
4. Select “Quick Format” and click Start. Remember, all data previously loaded
on the receiving HDD will be deleted.
9
5. A Status screen will display the progress of the formatting.
6. When the Format Complete message displays, click OK. The selected disk has
been formatted with the FAT32 le system.
10
ONE-TOUCH BACKUP FUNCTION
To use any of the features available with this function, be sure the adapter is
plugged into a USB port on your computer and powered on, and that a backup
drive has been properly loaded in the enclosure. NOTE: Before backing up les
for the rst time using this device, it’s recommended that the function parameters
be set on the File Backup Settings screen in the PC Clone EX
program.

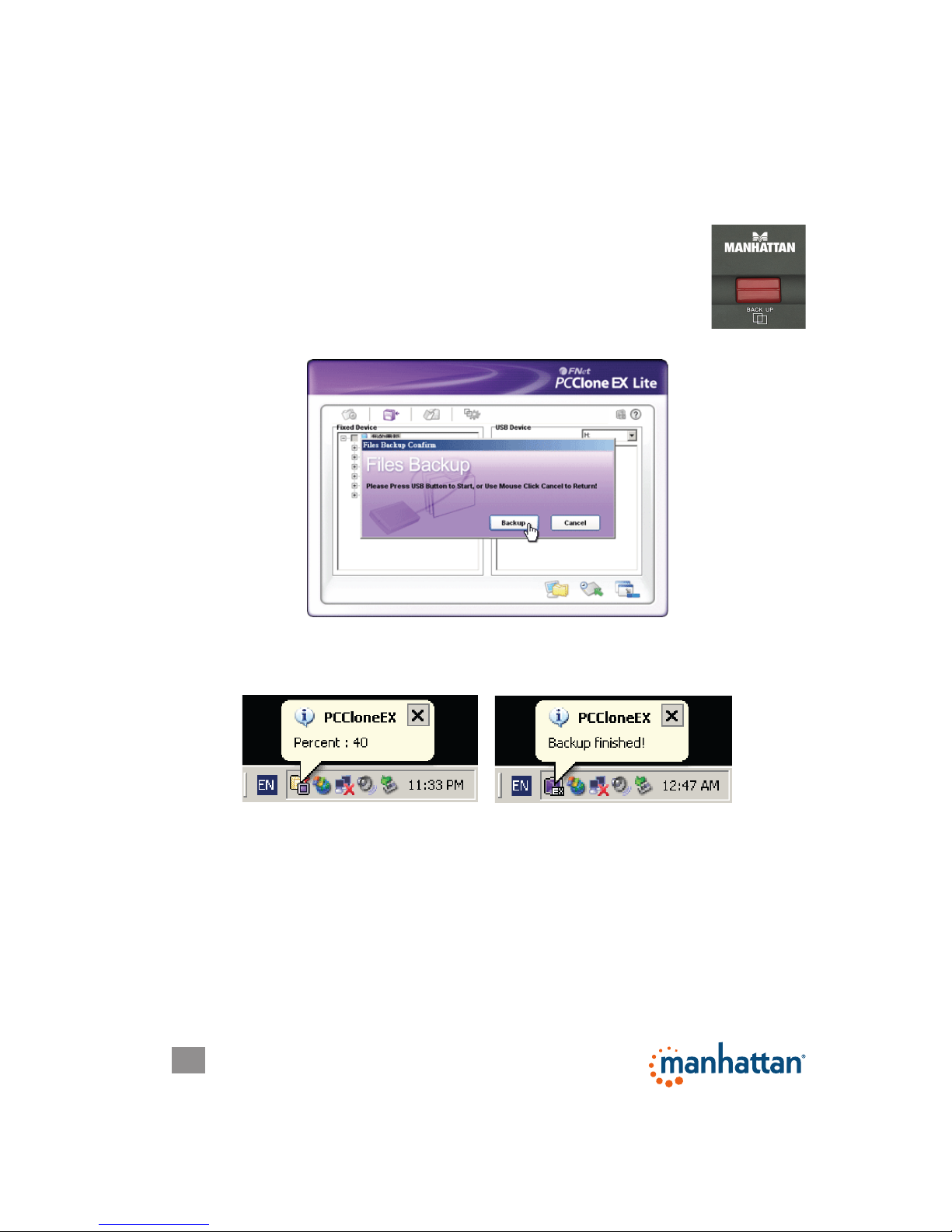

1. With the PC Clone EX program open and the disk connected to
the adapter (see Hardware Installation above), press the Back Up
button on the adapter.
2. A Files Backup Conrm screen will display. Click Backup to continue.
3. While the backup procedure is in progress, the PC Clone EX icon will ash in
the system tray and a status uplate will display every 10 seconds until the
backup is complete.
Quick Launch
The Quick Launch screen displays automatically when the PC Clone EX program
is opened. From here, you can directly execute the File Backup function by clicking
on the boxed icon (5 in the image below) or select one of the other menu options:
1Quick Launch
2 File Backup
3 File Manager
4Setup
5 Quick File Backup
6Minimize
7About
8Help
