Manhattan 303095 Manuel utilisateur

MAN-303095-UM-1106-01

NOTEBOOK

POWER ADAPTER

USER MANUAL

MODEL 303095

Thank you for purchasing the MANHATTAN® Notebook Power Adapter, Model 303095.

Ideal for power supply replacement, upgrade or spare power needs, this device features six

DC output plug tips that match popular Acer, Asus, BenQ, Compaq, HP, Hitachi, Medion,

MSi, Sony, Twinhead and Toshiba models (as listed on pages 4-7).

SPECIFICATIONS & FEATURES

• Input: 100 – 240 V AC (for worldwide use).

• Output: 19 V DC (compatible with most Notebook computers).

• Power Factor Correction circuitry capable of reducing energy loss.

• Over-voltage and over-current protection (input and output).

• Output short protection.

• Over-temperature protection.

• Ripple noise reduction circuitry.

• Meets EMC standards EN55022 and EN55024.

• Approvals: UL, ULC, NEMKO, VDE, CB, ENEC, DFT, ESTI, CE, DEMKO, FIMKO, SEMKO,

CSA, TUV, PCBC, BSMI, PSB, NOM, EK, IRAM, PSE, CCC, FCC.

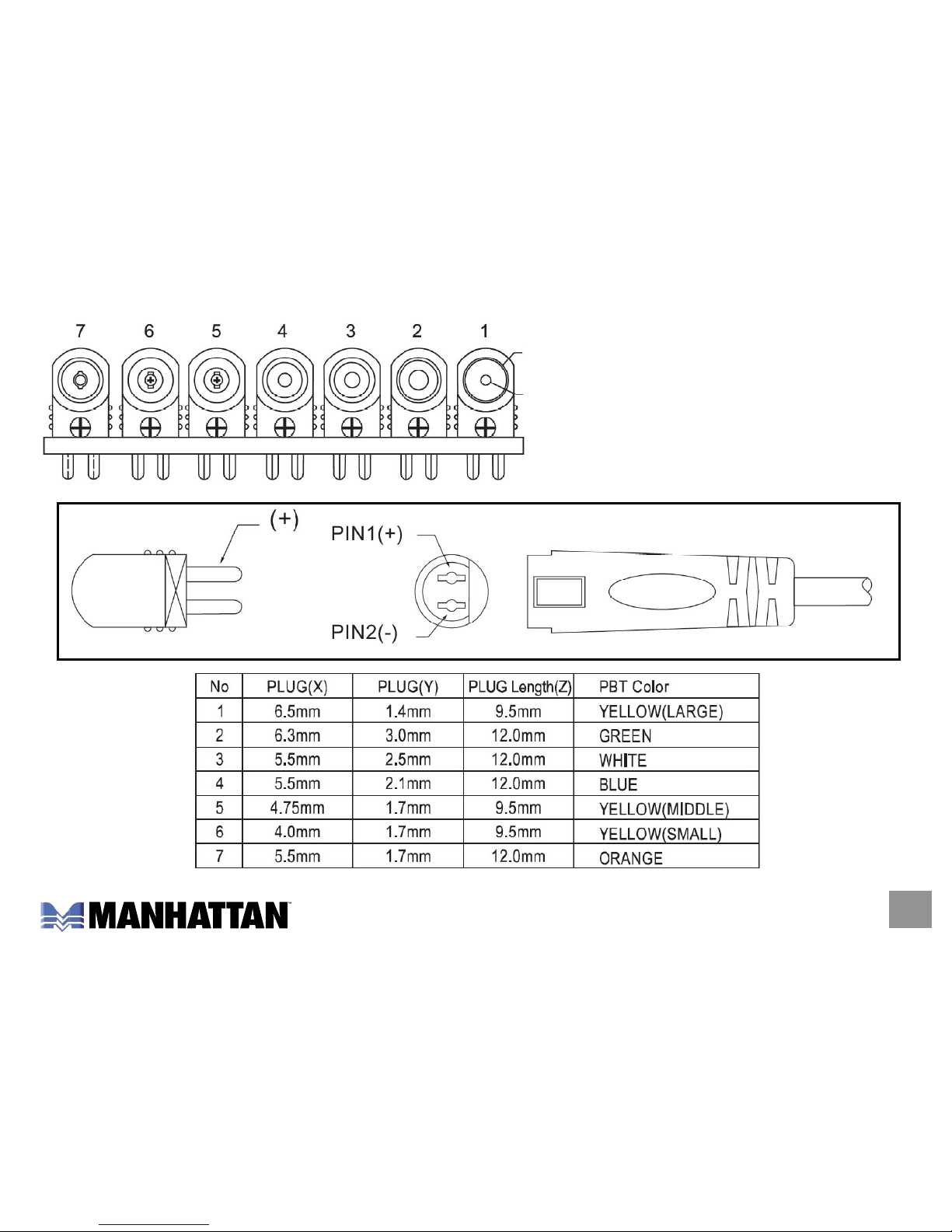

External

diameter

(X)

Internal

diameter

(Y)

NOTE: The AC socket is two

small pins (IEC60320 C8). Use

the proper AC power cord and

DC plug, and, prior to use,

conﬁrm the input voltage of

your notebook PC is 19 V DC.

This MANHATTAN® Notebook Power Adapter is compatible with the following notebook models:

ACER FT8850, TI Ferrari 3000, TF6720

AcerNote 300, 350, 352, 355, 356, 358, 361, 370 and 850C series

Aspire 1200 and 1300

Lifenote 373

Light 350, 356, 358, 360, 370, 371, 372, 373, 374, 380 and 382 series

TI Extensa 350, 355, 360, 365, 366, 367, 368, 390, 390C, 391, 392, 393, 394, 395,

500, 501, 502, 503, 505, 512, 513, 514, 515, 516, 517, 550, 600, 610, 610CD,

610CDT, 616, 620, 690, 700, 710, 711, 712 and 900 series

TravelMate 200, 201, 202, 210, 212, 220, 270, 290, 291, 330, 332, 333, 340, 341, 342,

343, 345T, 350, 351, 360, 505, 506, 507, 508, 510, 512, 513, 514, 515, 517, 520,

521, 524, 525, 600, 602, 603, 630, 720, 721, 722, 723, 730, 732, 734, 735, 736,

737, 738 and 739 series

ASUS A1000 series, A3500 A35C7PDR, A6000 A6Q740DD, Artbook L7336, B1000 series,

F7400, L1000B, L2000B series, L2000D, L2000E, L3000C and L3000S series, L7233,

L7300, L8400, M1000 series, M2 series, M2000 series, M2400, M5200, M6000 M6Q-

74OD, M9000, MP 8xxx series, S1000 series, T4700CS, T7200, T9000 series,

W2V00VC and W3000/5000/6000, A2, A3, A4, A5, A6, A7, A8, L4, L5 series, S2, S3,

S5, V6, W1, W2, W3, W5, W6, M2, M3, M5, M6, M9 series

BENQ Joybook 2100, 6000, 7000, 8100-T20, A32, R22, R31, R53, R53-T21, S52, S53, S61,

S72, S73, 2100-T26 and 5100-T33U

COMPAQ/HP BT813TU, NX6120/6130

Armada 100/100S, 110/110S, 2940, 3100, 4100, 4110/4110D/4110T, 4120/4120T,

4124D, 4125/4125D, 4130/4130T, 4131/4131T, 4150/4150T, 4160/4160T, 4200,

4210/4210T, 4220T, 600 series, 800 series, E300, E500/E500S, E700, M2453, M300,

M500, M700 and V300

Contura 3/20, 3/25, 3/25C, 386/486 series, 4/20, 4/25, 4/25C, 4/25CX, 400C,

400CX, 410C, 410CX, 420C, 420CX, 430C and 430CX

Evo N105, N115, N150 series, N160, N180 and N400c

OmniBook 2000, 2100 series, 2103, 2105, 3000 series, 3100 series, 3101, 4000, 4000C,

4000CT, 4000E, 4100 series, 4101, 4103, 4105, 4150 series, 500, 5000, 6000 series,

6050, 6100, 6200, 7100 series, 7103, 7150 series, 900 series, VT6200, XE series,

XE2 series, XE3 series, XT1000 and XT15 2000

Pavilion 5159, N3100 series, N3110, N3150, N3190, N3200 series, N3210, N3215,

N3220, N3250, N3270, N3290, N3295, N3300, N3300 series, N3310, N3350,

N3370, N3390, N3400, N3410, N3438, N3478, N3490, N5000, N5100, N5125,

N5130, N5150, N5159, N5170, N5190, N5195, N5200, N5210, N5240, N5250,

N5270, N5270 , N5271, N5290, N5295, N5300, N5310, N5311, N5340, N5350,

N5421, N5422, N5425, N5430, N5440, N5441, N5442, N5444, N5445, N5450,

N5452, N5454, N5455, N5461, N5462, N5470, N5472, N5474, N5475, N5481,

N5482, N5484, N5490, N5491, N5495, N5511, N5584, N6191, N6395, N6396,

N6397, N6398, N6399, N6400, N6401, N6403, N6404, N9195 and N9490; XH156,

XH455, XH485, XH535, XH545, XH555, XH575, XH675, XU155, XZ185 and XZ275;

ZE1110 and ZE1145; ZT1114, ZT1120, ZT1121, ZT1125, ZT1130, ZT1131, ZT1132, ZT1135,

ZT1141, ZT1142, ZT1145, ZT1150, ZT1151, ZT1152, ZT1155, ZT1161, ZT1162, ZT1170,

ZT1171, ZT1172, ZT1175, ZT1180, ZT1181, ZT1182, ZT1185, ZT1190, ZT1192 and

ZT3308AP; ZU1155, ZU1175 and EZ2205AP

Presario 1000, 1010, 1020, 1030, 1040, 1050, 1060, 1065, 1070, 1075, 1080, 1082,

1084, 1090, 1200, 1200XL, 1207, 1210, 1215, 1220, 1221, 1230, 1232, 1235, 1236,

1237, 1240, 1244, 1245, 1247, 1250, 1255, 1256, 1260, 1262, 1266, 1267, 1270,

1272, 1273, 1274, 1275, 1277, 1278, 1279, 1280, 1400, 1400T, 1450, 1600i,

1600s series, 1610, 1611, 1612, 1620, 1621, 1622, 1625, 1626, 1630, 1640, 1645,

1650, 1655, 1670, 1675, 1680, 1681, 1682, 1685, 1687, 1688, 1690, 1692, 1693,

1694, 1700 series, 1710, 1710SB, 1800 series, 1800T series, 1800XL, 1810, 1820,

1825, 1827, 1830, 2700, 2700T, 700, 700Z, 701, 702, 703, 704, 705, 705US, 706,

710, 711, 712, 713, 714, 715, 716, 717, 718, 719, 720, 721, 722, 723, 724, 725, 800,

800XL, E3801AP, NC6230 and PV2006

Prosignia 150, 170 and 190

HITACHI E-100, E-100D, E-100DC, E-100DN, E-133, E-133D, E133DC, E-133DC, E-133DN,

E-133T, E-133TC, MX133T, MX150T, MX166T, S940 and VERSA

MEDION MD 5050, 5061, 5214, 5218, 5222, 5223, 5225, 5389, 5396, 5400, 5498, 5499,

5943, 5944, 5945, 5946, 6001, 6200 and 7321

MSi MEGABOOK 300, MEGABOOK M620-C0ZS and S250

SONY Vaio FX103, FX105K, FX109K, FX120, FX170, FX190, FX200, FX270, FX770K, FX800,

FX880K, FXA32, FXA33 and FXA36; PCG-700 series, 705, 707, 717, 719, 729, 731, 735,

748, 800 series, 808, 812, 818, 838, F150, F160, F180, F190, F250, F270, F280,

F290, F340, F350, F360, F370, F390, F400LT, F403, F409, F420, F430, F450, F480,

F480K, F490K, F520, F540, F540K, F560, F560K, F580, F580K, F590, F590K, F630,

F660, F670, F680, F690, F707, F801A, F807, FX103, FX105K, FX109K, FX120, FX170,

FX190, FX200, FX770K, FX800, FX880K, R505CT, R505CTS, R505DT, R505TE, R505TEK,

R505TS, XE17, XG series, XG18, XG19, XG28, XG28K, XG29, XG38, XG39, XG39K, XG9,

Z505, Z505FA, Z505GA, Z505GAH, Z505GAM, Z505HE, Z505HS, Z505HSK, Z505JE,

Z505JEK, Z505JS, Z505JSK, Z505LE, Z505LEK, Z505LS, Z505LSK, Z505R, Z505RX, Z505S

and Z505SX

VGN FE15TP, FJ67TP/W, S54TP, S56TP, S58TP, S67TP/S, SZ13TP/B, SZ16TP/C and SZ18TP/C

TOSHIBA Satellite 1000, 1005, 1100/1100, 1200 series, 1600, 1605, 1625, 1675, 1695,

1700, 1715 XCDS, 1730 series, 1735 series, 1750 series, 1755 series, 3000 and 3005

TWINHEAD 10D, 121I, 12K and F12D

www.manhattan-products.com

Are you completely satisﬁed with this product?

Please contact your MANHATTAN® dealer with comments or questions.

All products mentioned are trademarks or registered trademarks of their respective owners.
