MAKELSAN Lion 650VA Manuel utilisateur
USER MANUAL
Lion Series
650 - 2000 VA
Line Interactive UPS
LION SERIES 650-2000VA
ii
UDD-SD-110/Yayın Tarihi: 23.12.2014/Rev No: 0/Rev. Tarihi:
USER MANUAL
Lion Series
650 - 2000 VA
Line Interactive UPS
UDD-SD-110/Yayın Tarihi: 23.12.2014/Rev No: 0/Rev. Tarihi:
About The Manual
This manual is prepared for the users of Lion Series 650-2000 VA.
Companion Manuals
For further information about this device and its options, please visit www.makelsan.com.tr
Updates
Please visit www.makelsan.com.tr for updates. Always use the latest manuals.
LION SERIES 650-2000VA CONTENTS
UDD-SD-110/Yayın Tarihi: 23.12.2014/Rev No: 0/Rev. Tarihi:
CONTENTS
1 Package Contents ...........................................................................................................................................................3
2 Product Overview ..........................................................................................................................................................3
3 Installation & Initial Startup......................................................................................................................................6
4 Important Safety Warning..........................................................................................................................................8
5 Software Installation & Monitoring........................................................................................................................9
6 Maintenance..................................................................................................................................................................10
7 Trouble Shooting.........................................................................................................................................................10
8 Specifications ................................................................................................................................................................11
9 GUARANTEE..................................................................................................................................................................12
9.1 Terms of Guarantee............................................................................................................................................12
9.2 Cases Not Covered by the Guarantee ..........................................................................................................13
10 CONTACT INFORMATION.....................................................................................................................................16
LION SERIES 650-2000VA
1 Package Contents
You should have received following items inside of package:
-UPS unit
-user manual
-2 fuse tubes
-communication cable (only for the model with USB/RS232 port)
2 Product Overview
Front View:
LED type:
LCD type:
LION SERIES 650-2000VA
Tower type back view:
Rack Mount Type Back View:
LION SERIES 650-2000VA
LION SERIES 650-2000VA
3 Installation & Initial Startup
NOTE:
Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Placement & Storage Conditions
Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please
place the UPS away from other units at least 20 cm to avoid interference. DO NOT operate the
UPS where the temperature and humidity is outside the specific limits. (Please check the specs
for the limitations)
Connect to utility and charging
Plug in the AC input cord to the wall outlet. For the best
results, suggest to charge the battery at least 8hours before
initial use. The unit charges its battery while connecting to the
utility.
Connect to the load
Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power
switch of UPS unit, and then devices connected to the UPS will be protected by UPS unit.
CAUTION: NEVER connect a laser printer or scanner to the UPS unit.
This may cause the damage of the unit.
Connect TEL/Modem/Fax for surge protection
(Only for the model with RJ-45)
Connect a single modem/phone line into surge-protected “IN” outlet on the back panel of the
UPS unit. Connect from “OUT” outlet to the computer with another phone line cable.
Connect Communication Cable (Only for the model with USB/RS232 port)
To allow for unattended UPS shut down/start-up and status monitoring, connect the
communication cable one end to the UPS/RS232 port and the other to the communication port
of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up
and monitor UPS status through PC.
Turn on/off the unit
Turn on the ups unit by pressing the power switch. Turn off the LED UPS unit by pressing again
the power switch.
Cold start Function
When the UPS is off and there is no power utility, it’s still possible to cold start the ups unit to
power the loads
Ce manuel convient aux modèles suivants
4
Table des matières
Autres manuels MAKELSAN UPS
MAKELSAN
MAKELSAN PowerPack SE 1 kVA Manuel utilisateur
MAKELSAN
MAKELSAN LEVELUPS T3 SERIES Manuel utilisateur
MAKELSAN
MAKELSAN Lion+ Series Manuel utilisateur
MAKELSAN

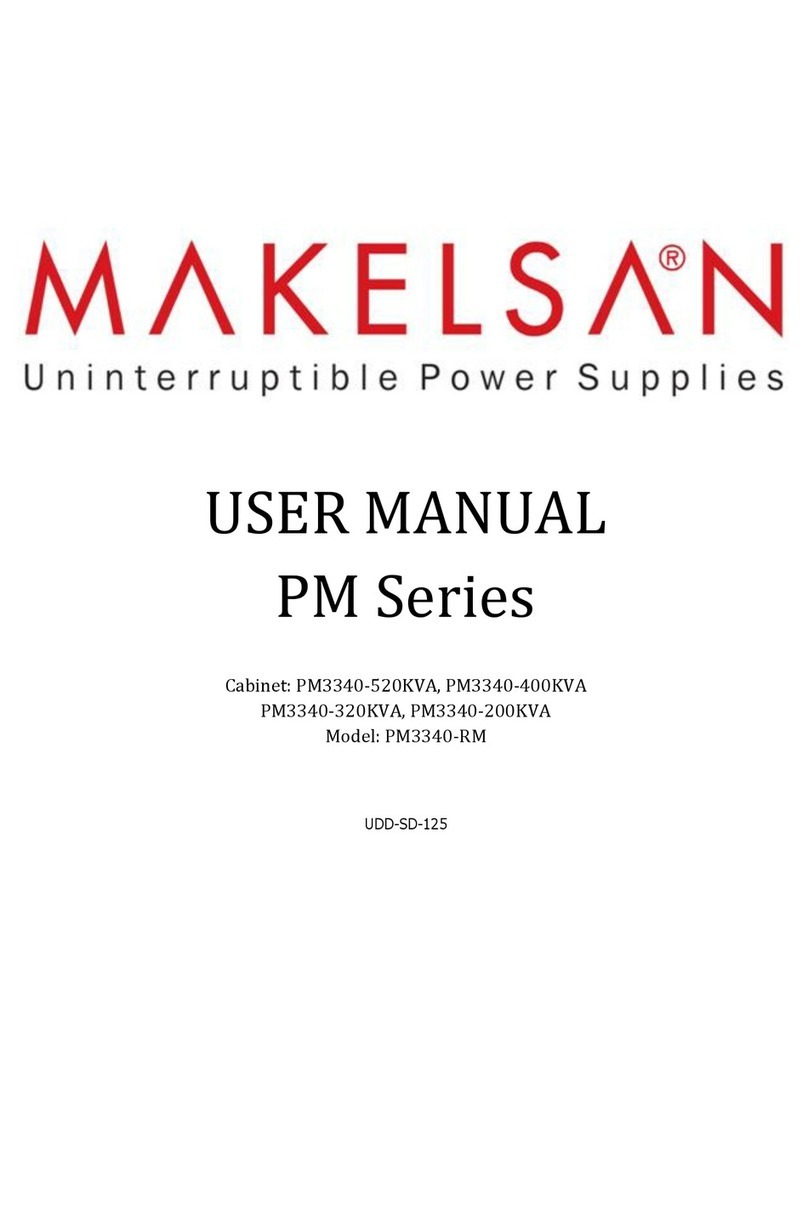

MAKELSAN PM Series Manuel utilisateur
